FeiChao Quick Release Safety Rail Rig for NATO Rail 48mm / 73mm for Anti-Off Top Handle Clamp Slider Adapter DSLR Camera Cage Extension Accessories

Warn tip: These items are Not suitable for all NATO rail, pls compare the size of our product and your rail, check the size is your require.

Note, there are 5 designs(48mm/ 73mm/54mm/42mm/70mm total length) of product optional, please choose the one you like.

Brand: FEICHAO

Color: Black

Name: Universal Slider

Material: Aluminum alloy, stainless steel screws

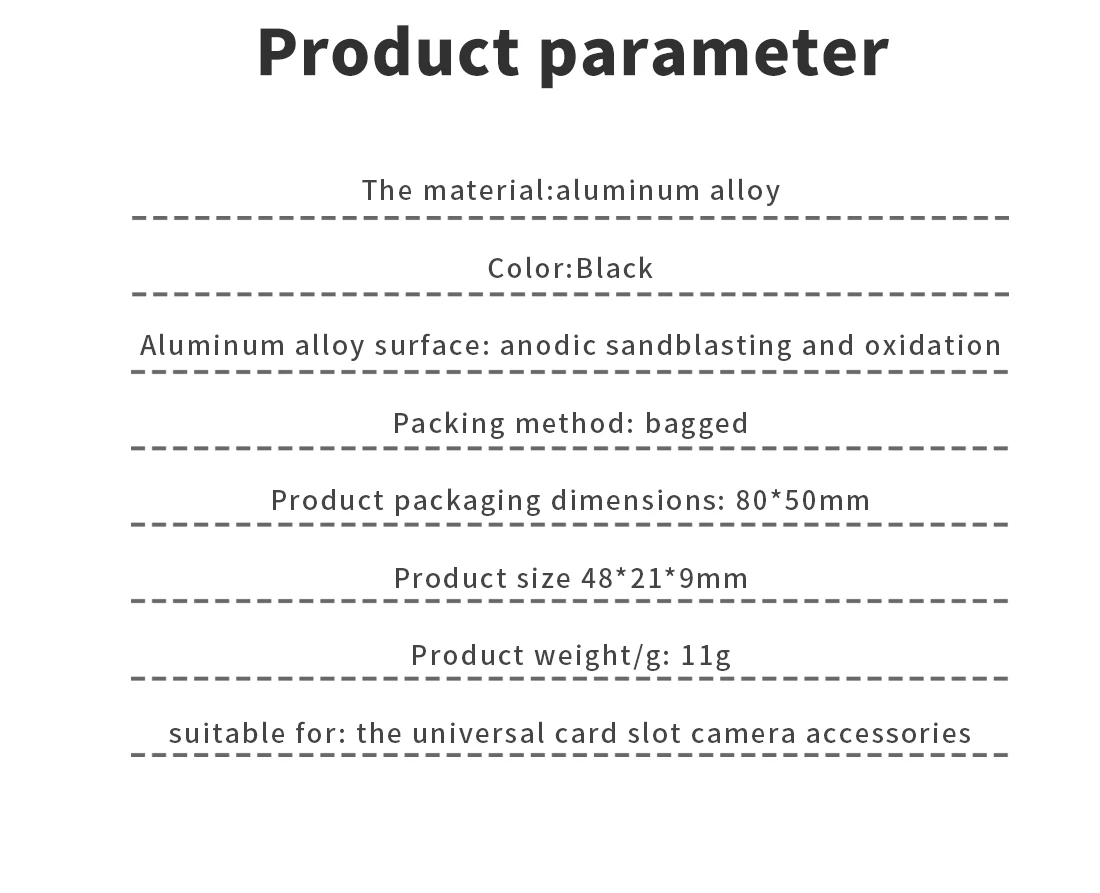

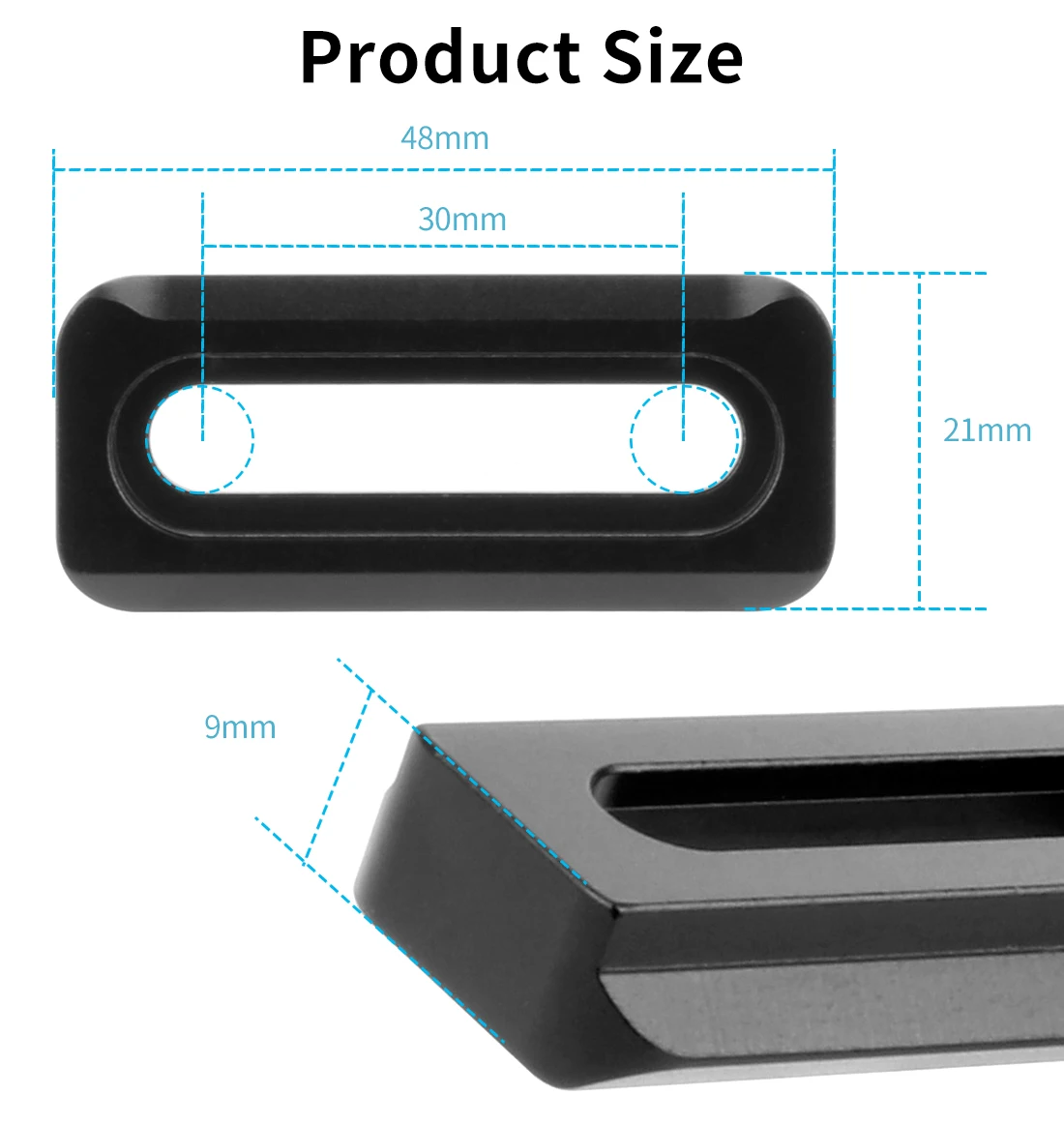

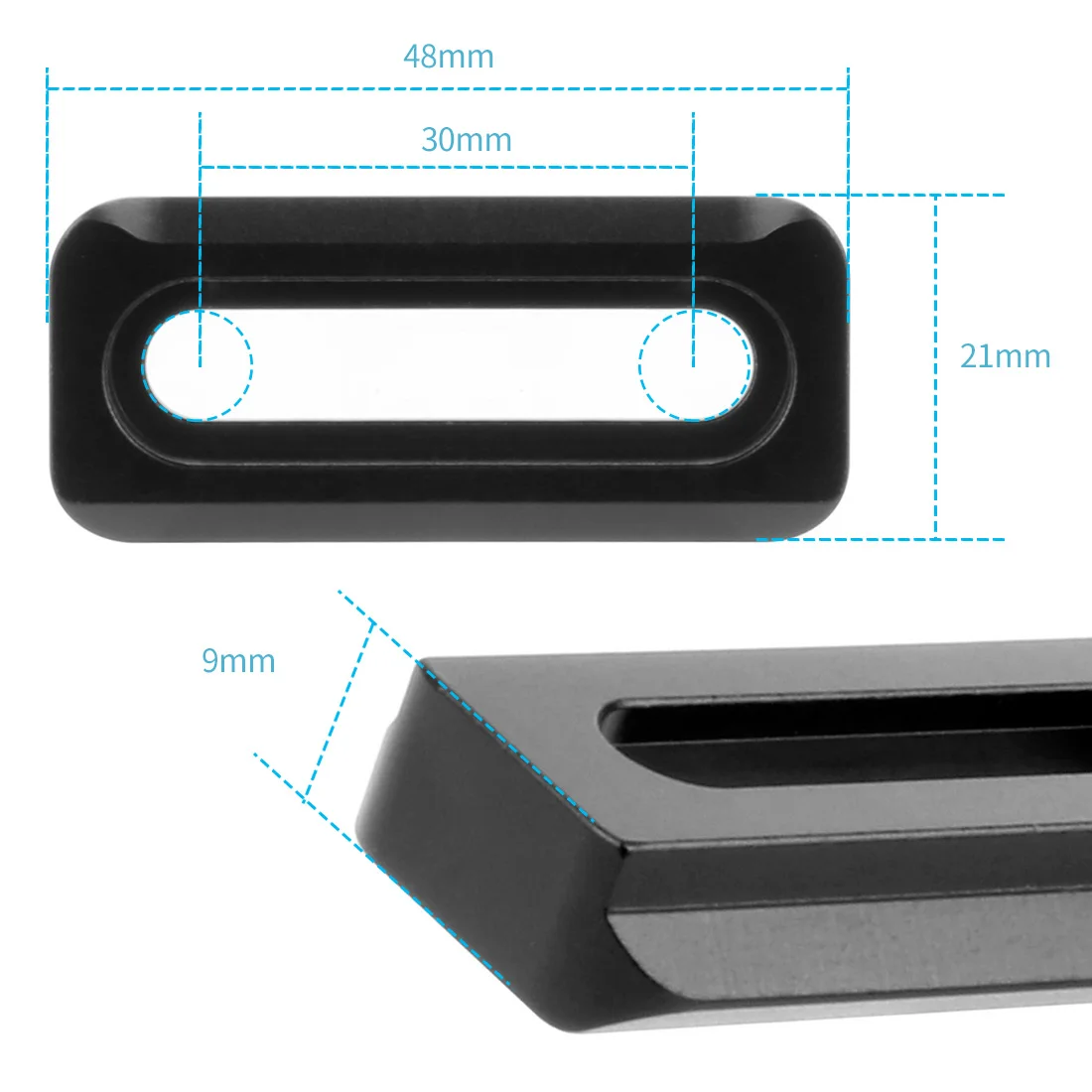

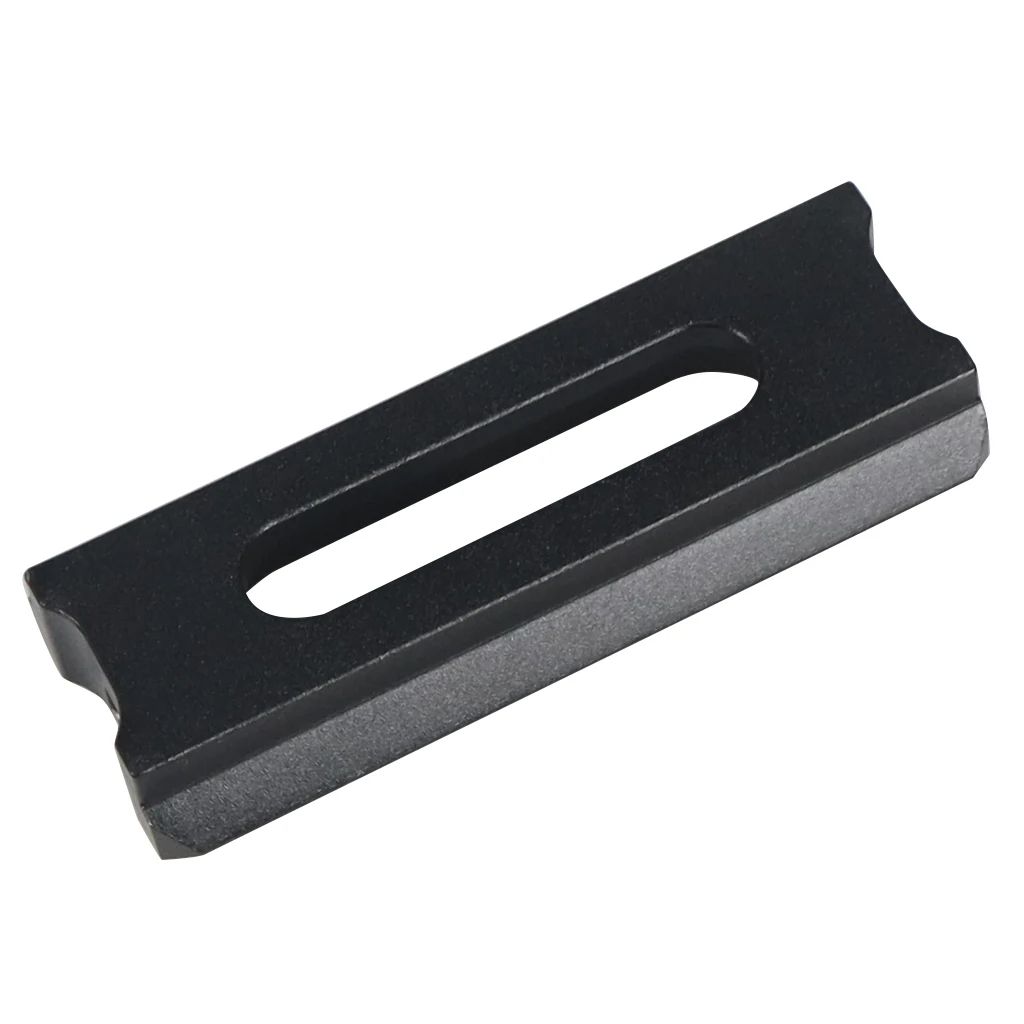

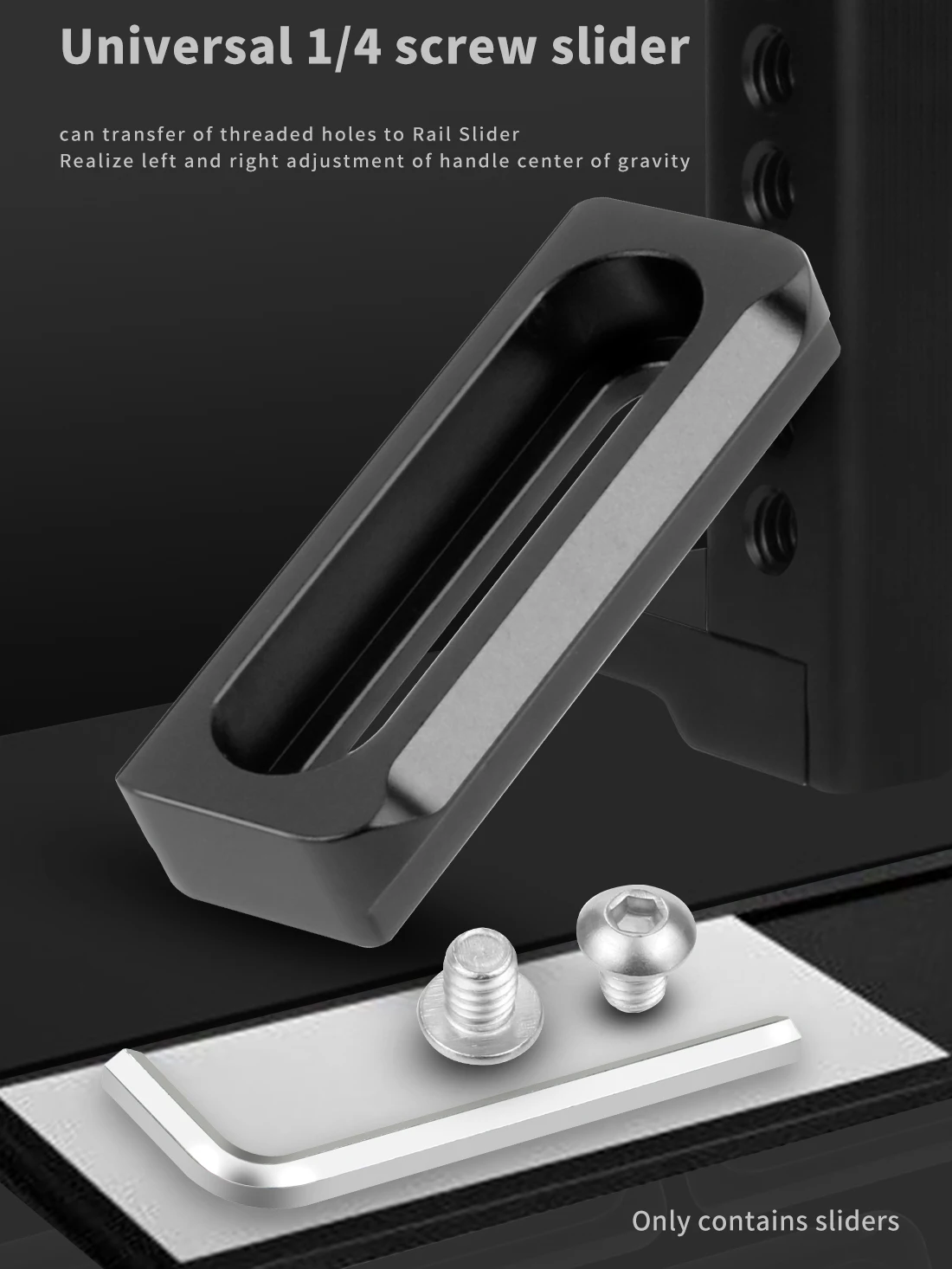

48mm option:

Distance range of Installing center hole : 30mm

Size: 48*21*9mm

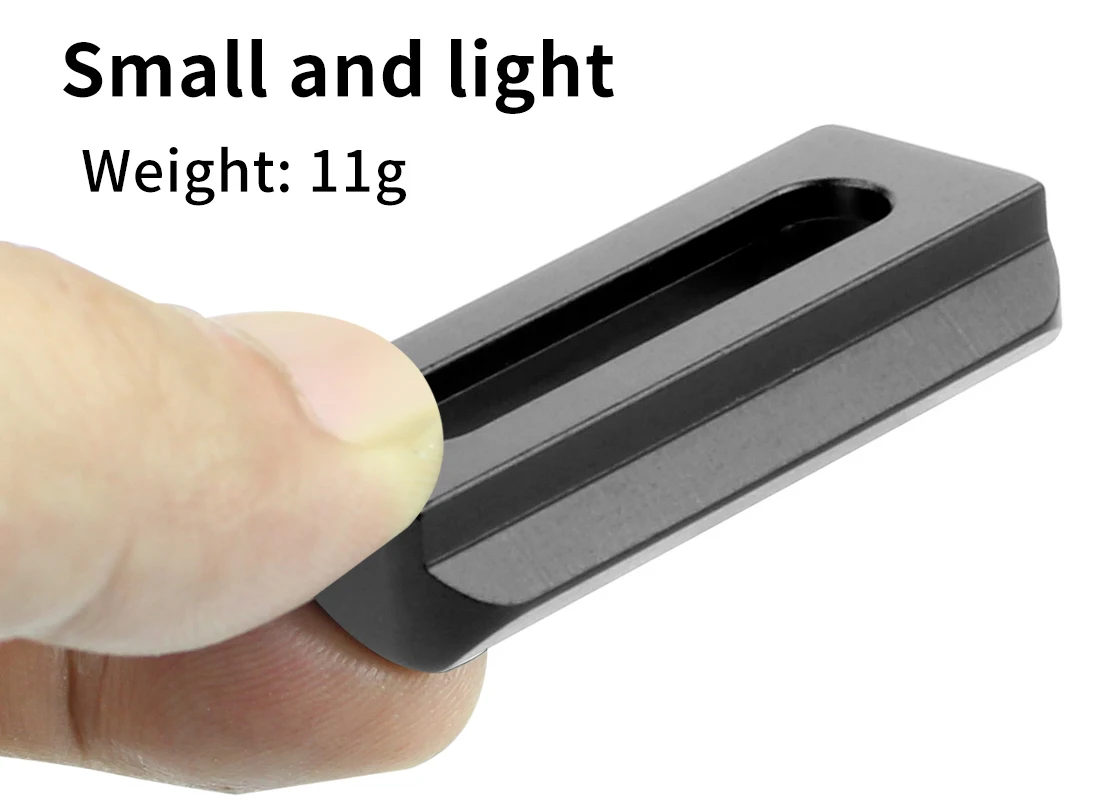

Weight: about 11g

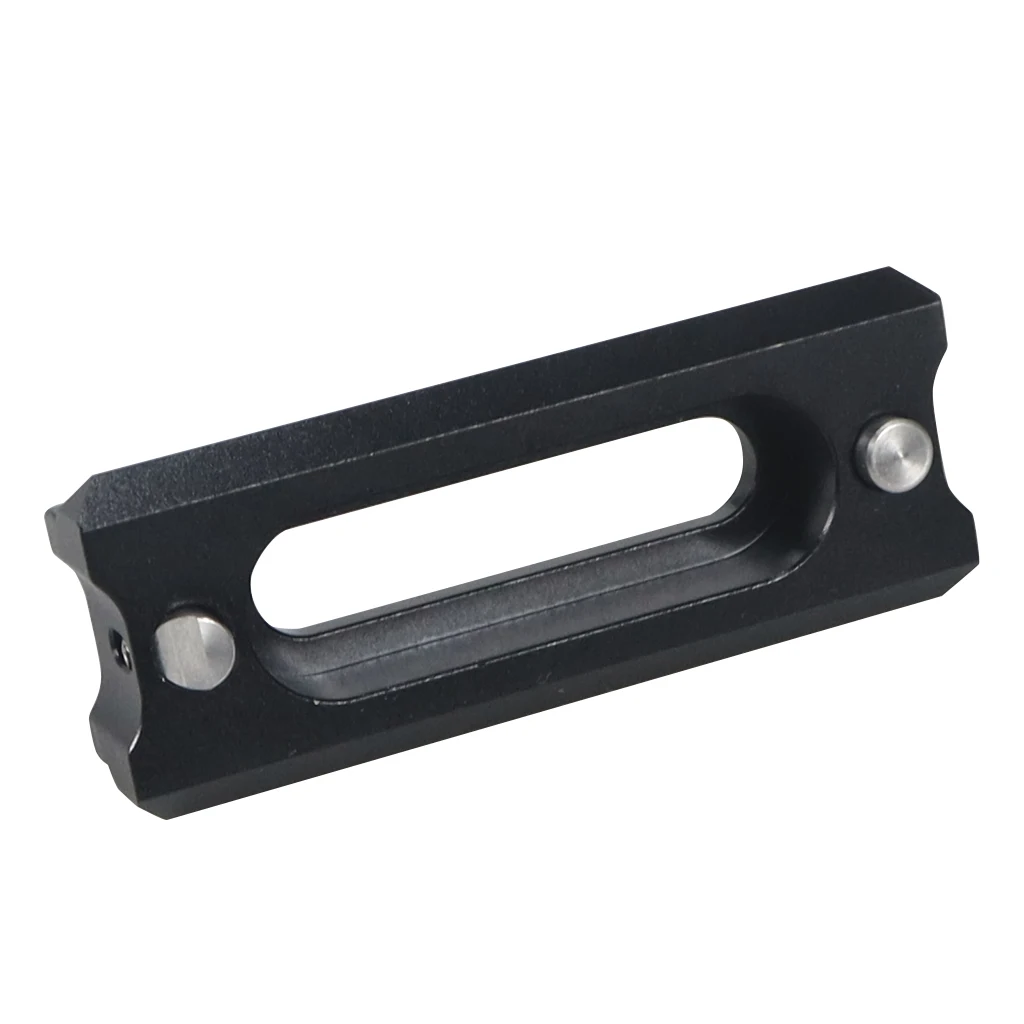

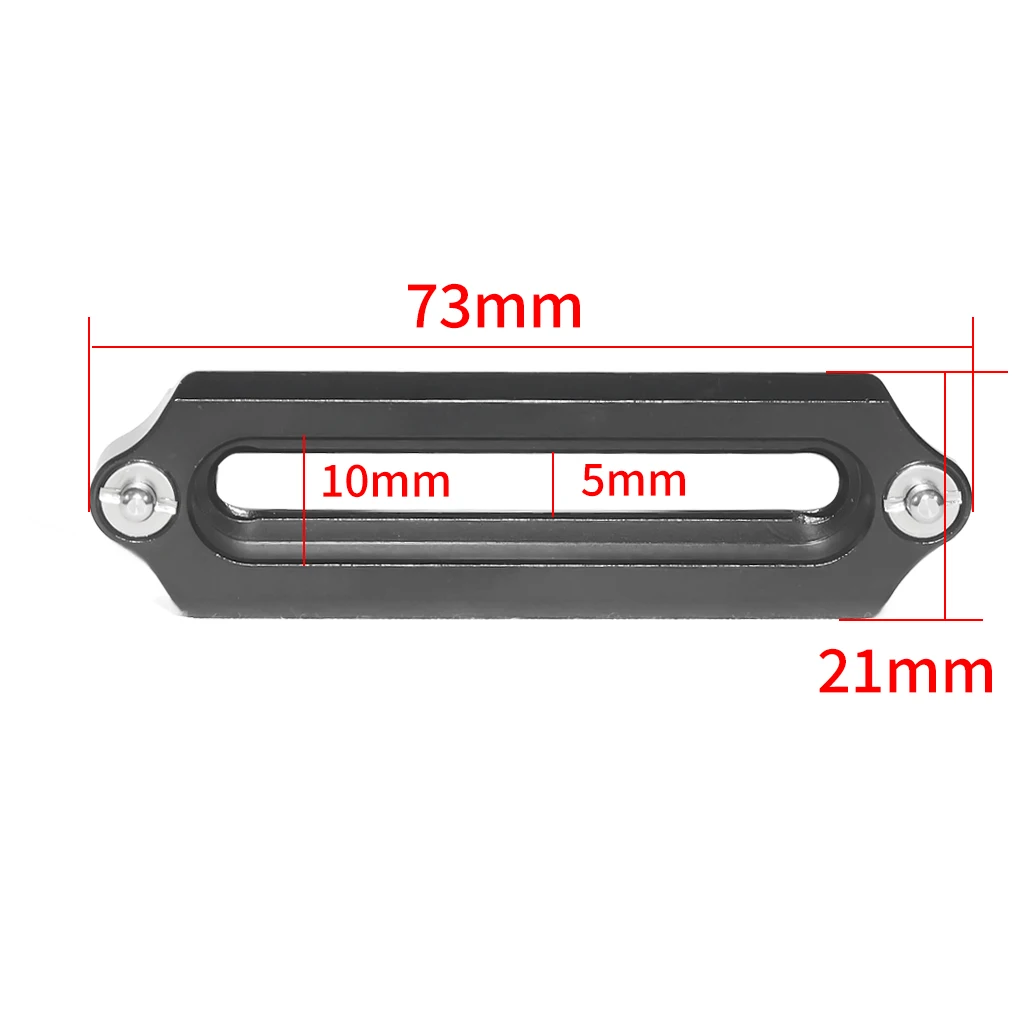

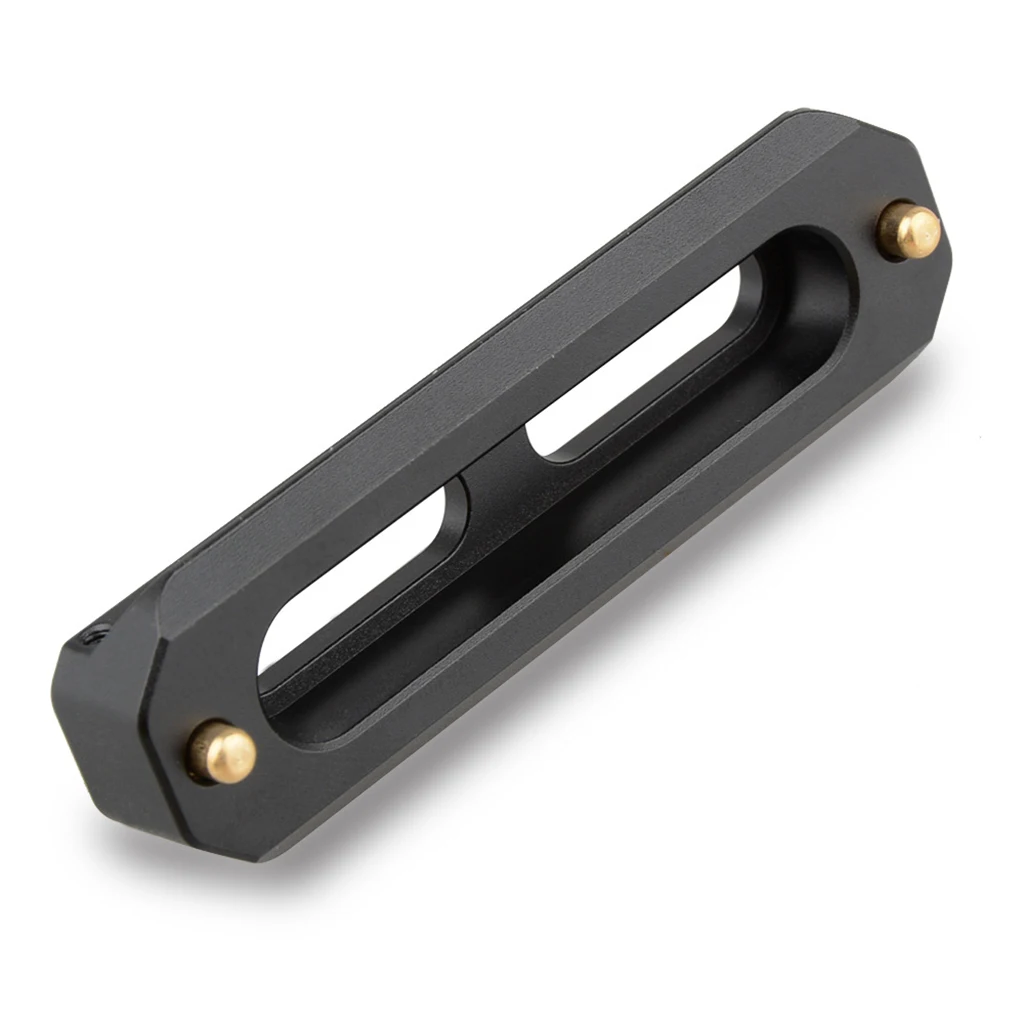

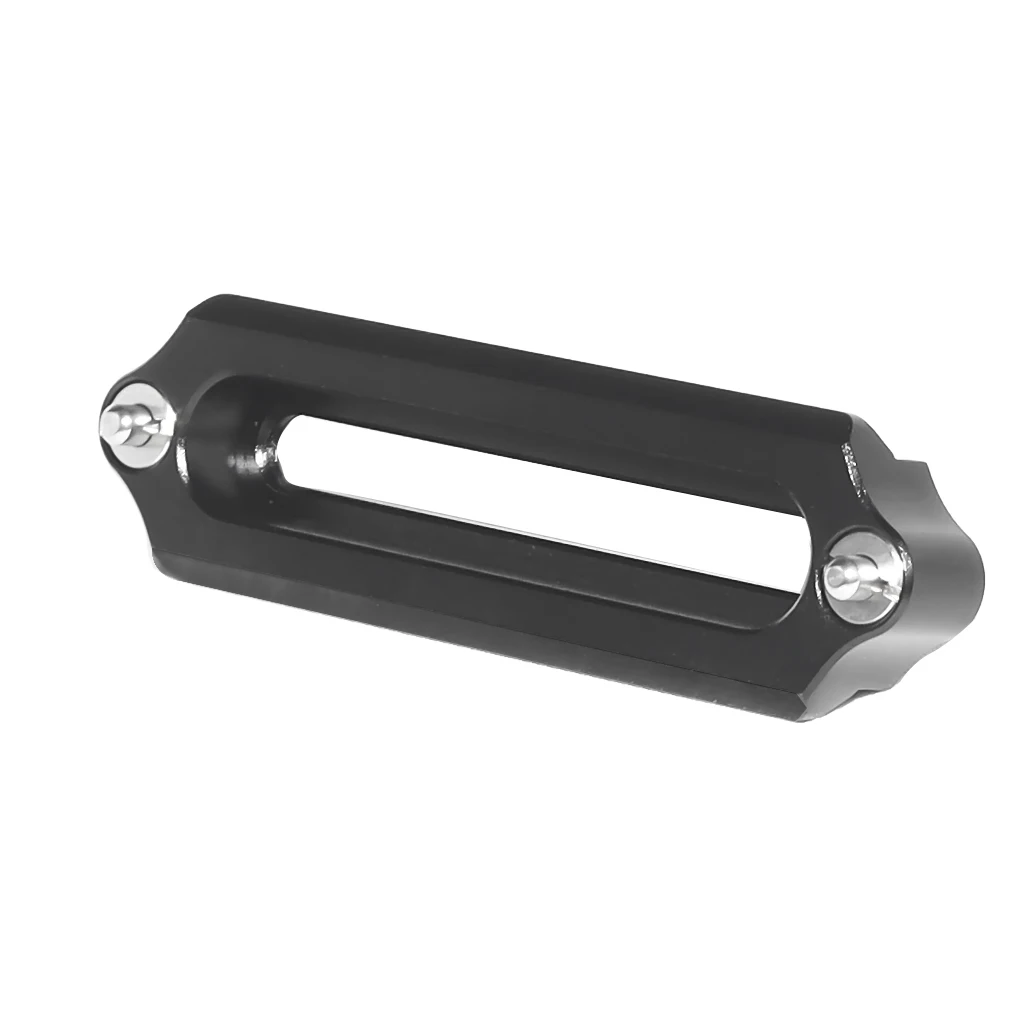

73mm option:

Distance range of Installing center hole :23mm(min)-43mm(max)

Size: 73*21mm

Weight: about 19g

70mm Optional:

Key Features:

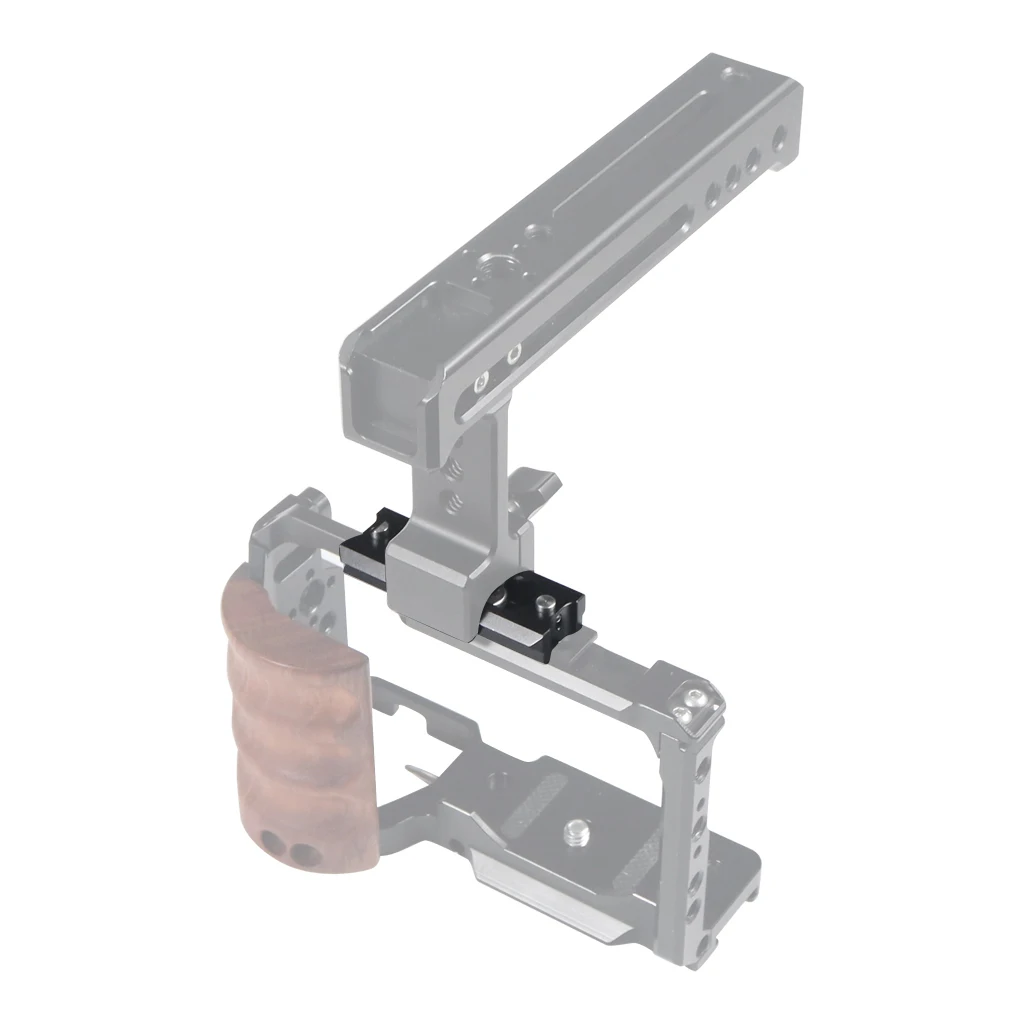

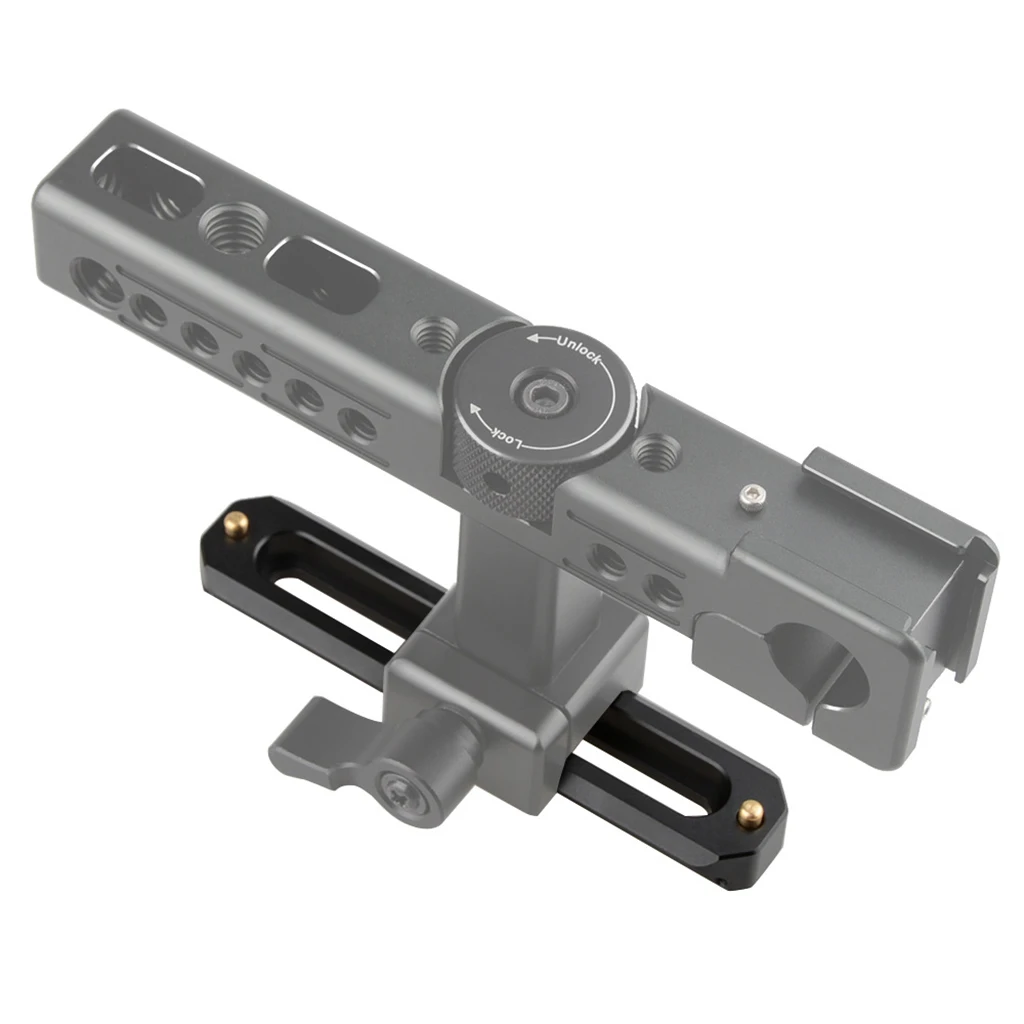

1. 7cm standard quick-release safety nato rail is part of the nato handle
2. It can be attached to any 1/4-20 holes via 1/4’’-20 screws.
3. It features spring-loaded pins on both ends to prevent accidental removal.

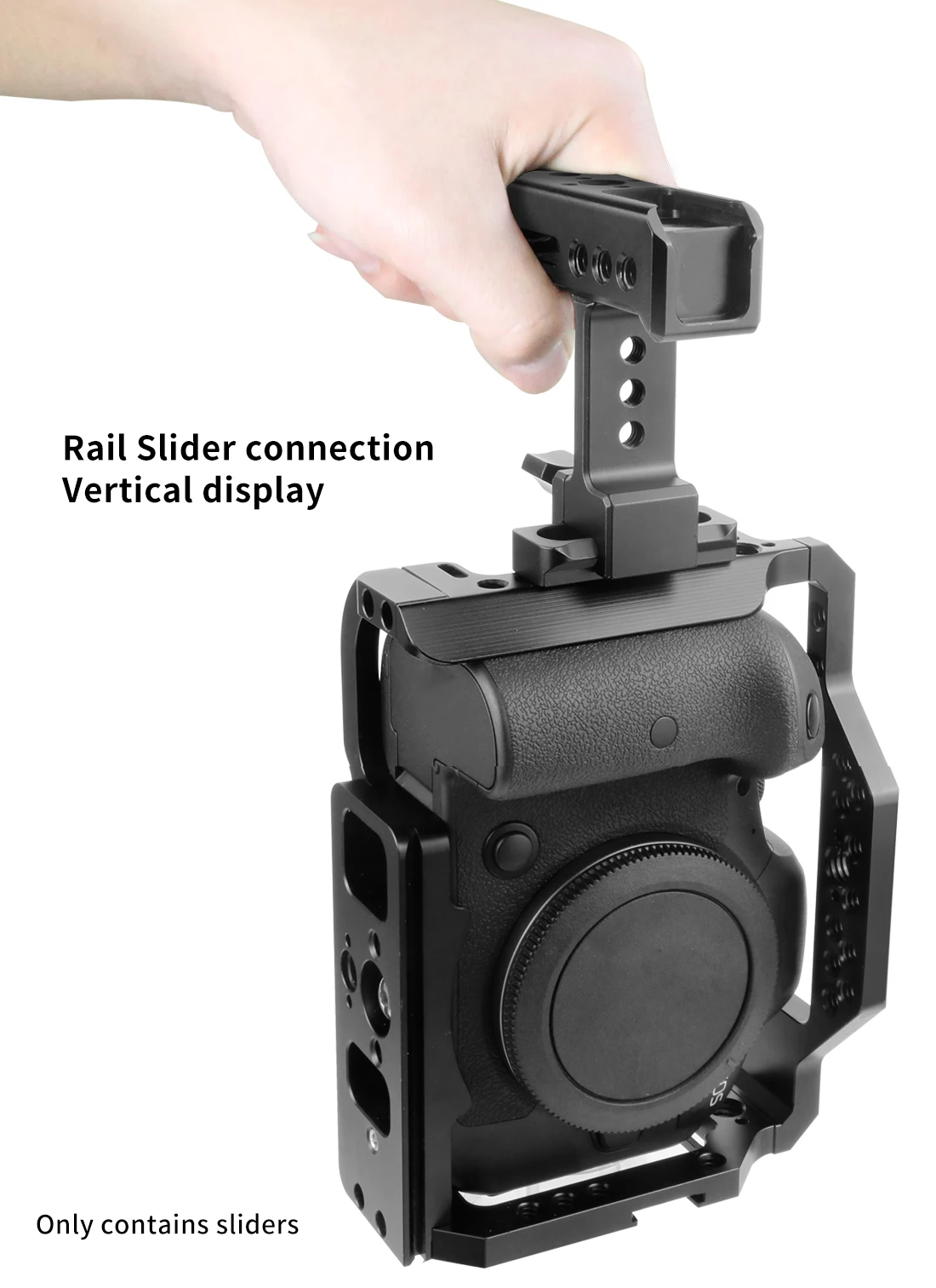

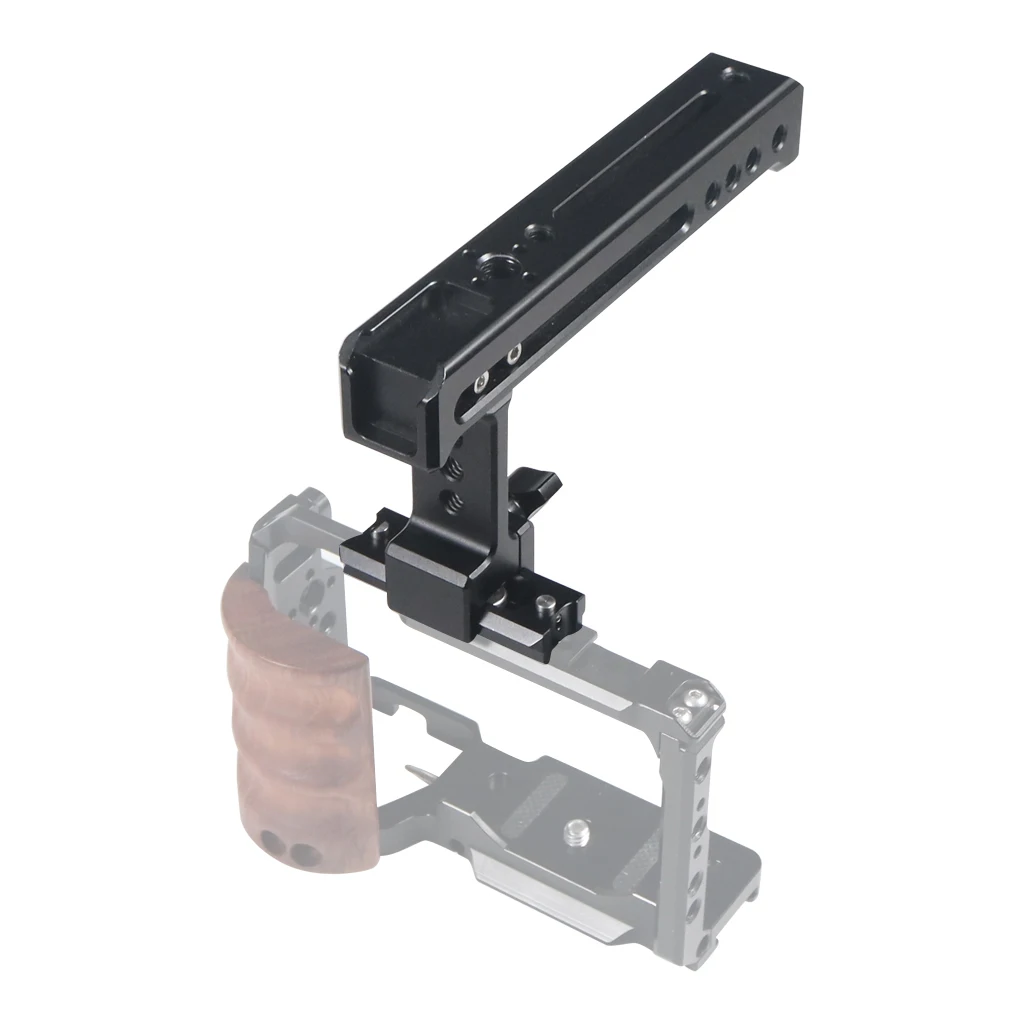

4. Compatible with camera rigs with Nato clamp, RED Epic, RED Scarlet, Black Magic Camera, and so on or other third-party camera accessories.
5. Material: Aluminum Alloy

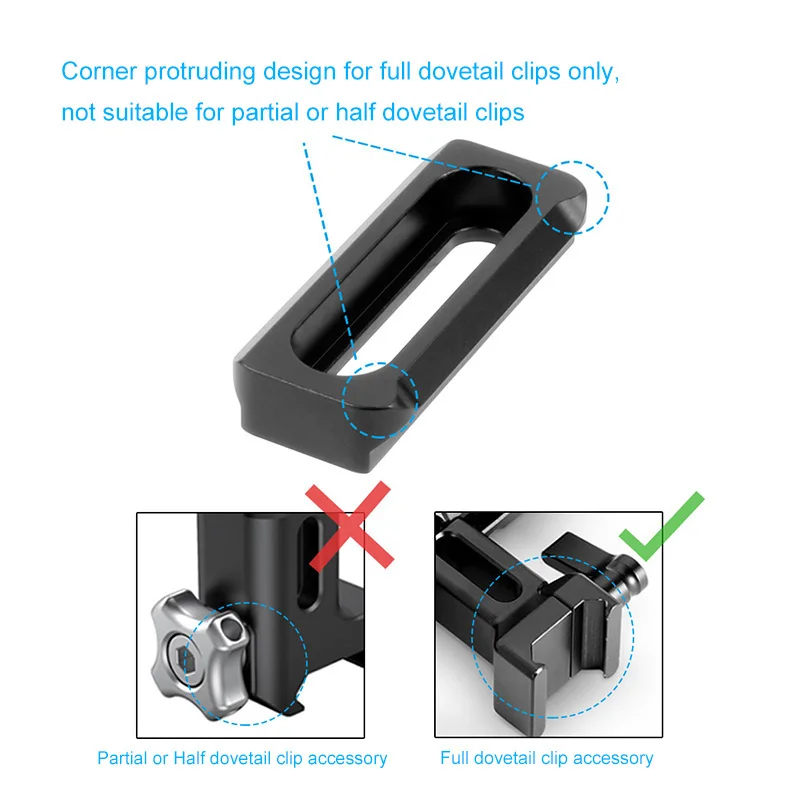

Compatible for standard NATO clamps

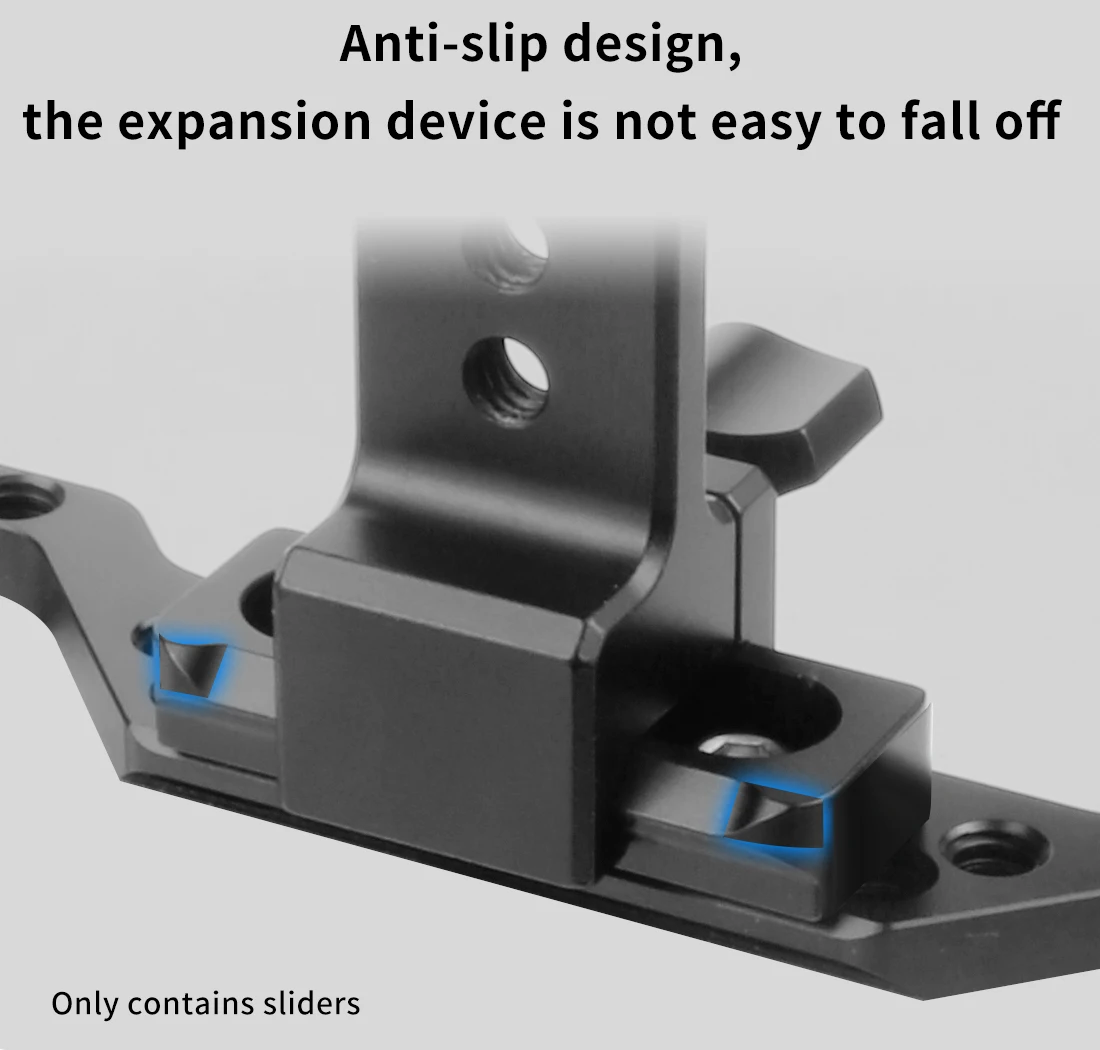

Safety pins on ends prevent for NATO clamp sliding off

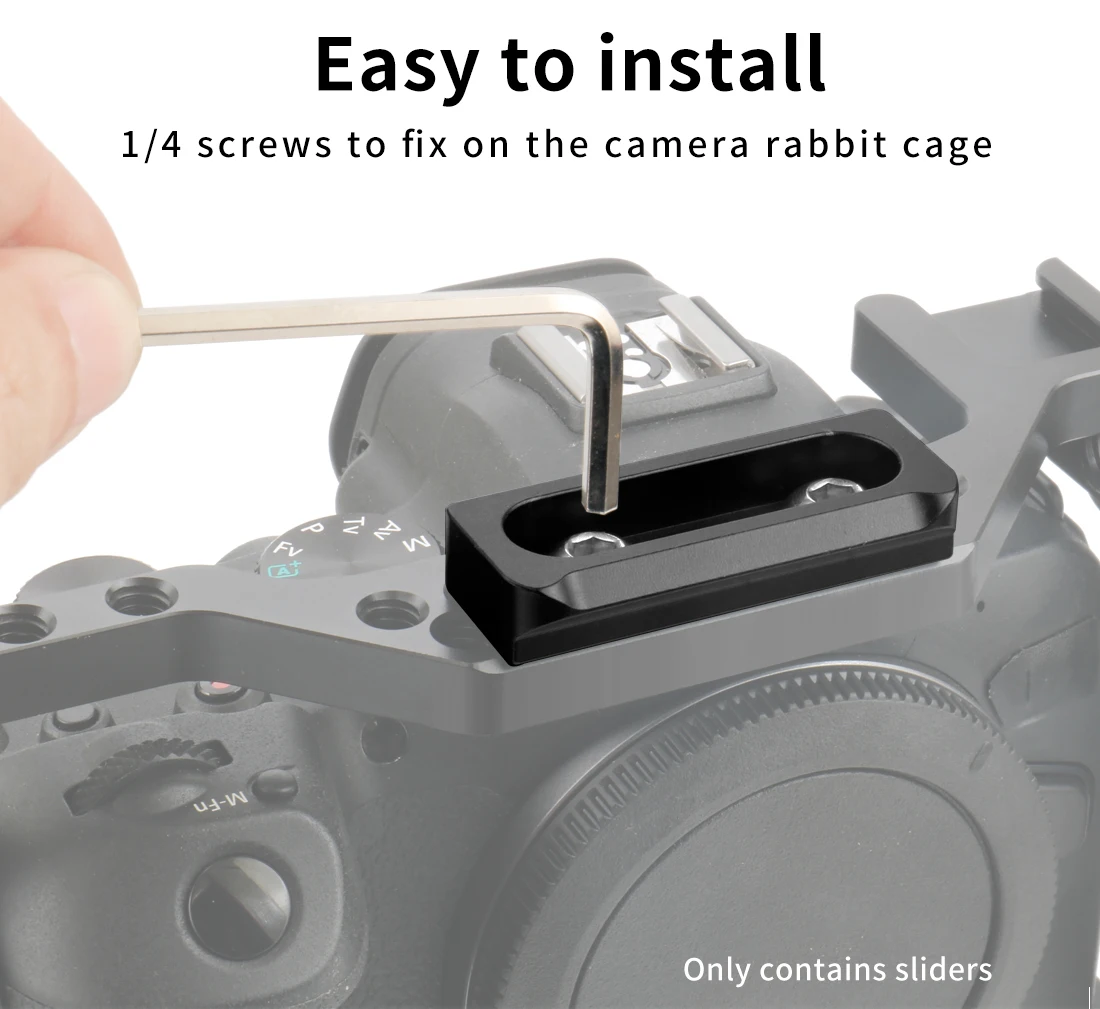

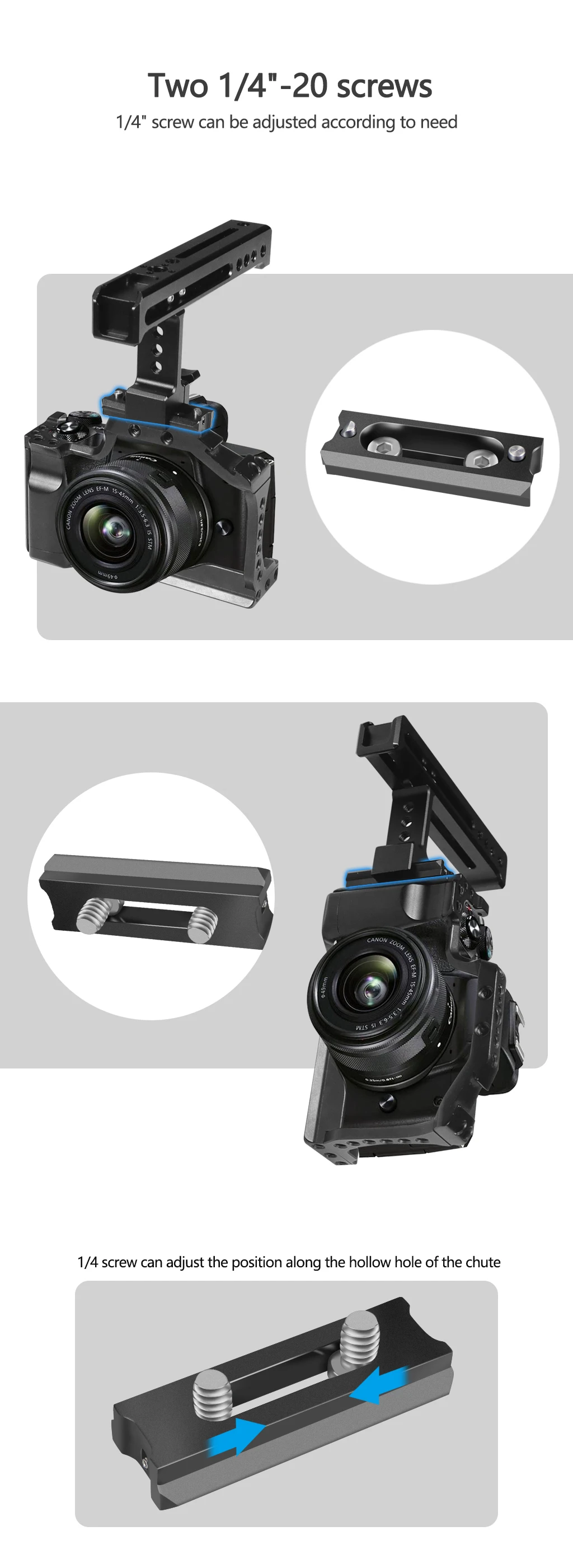

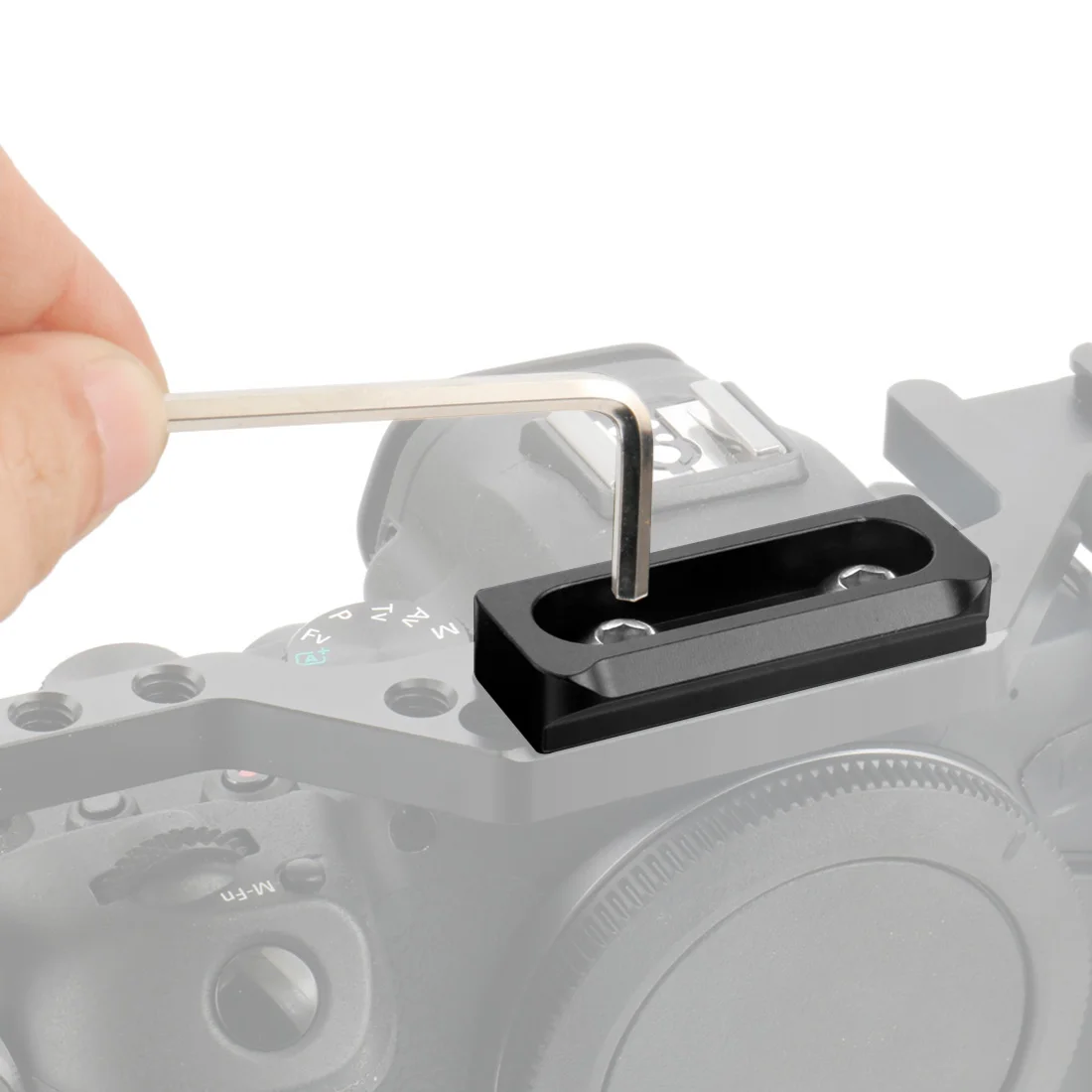

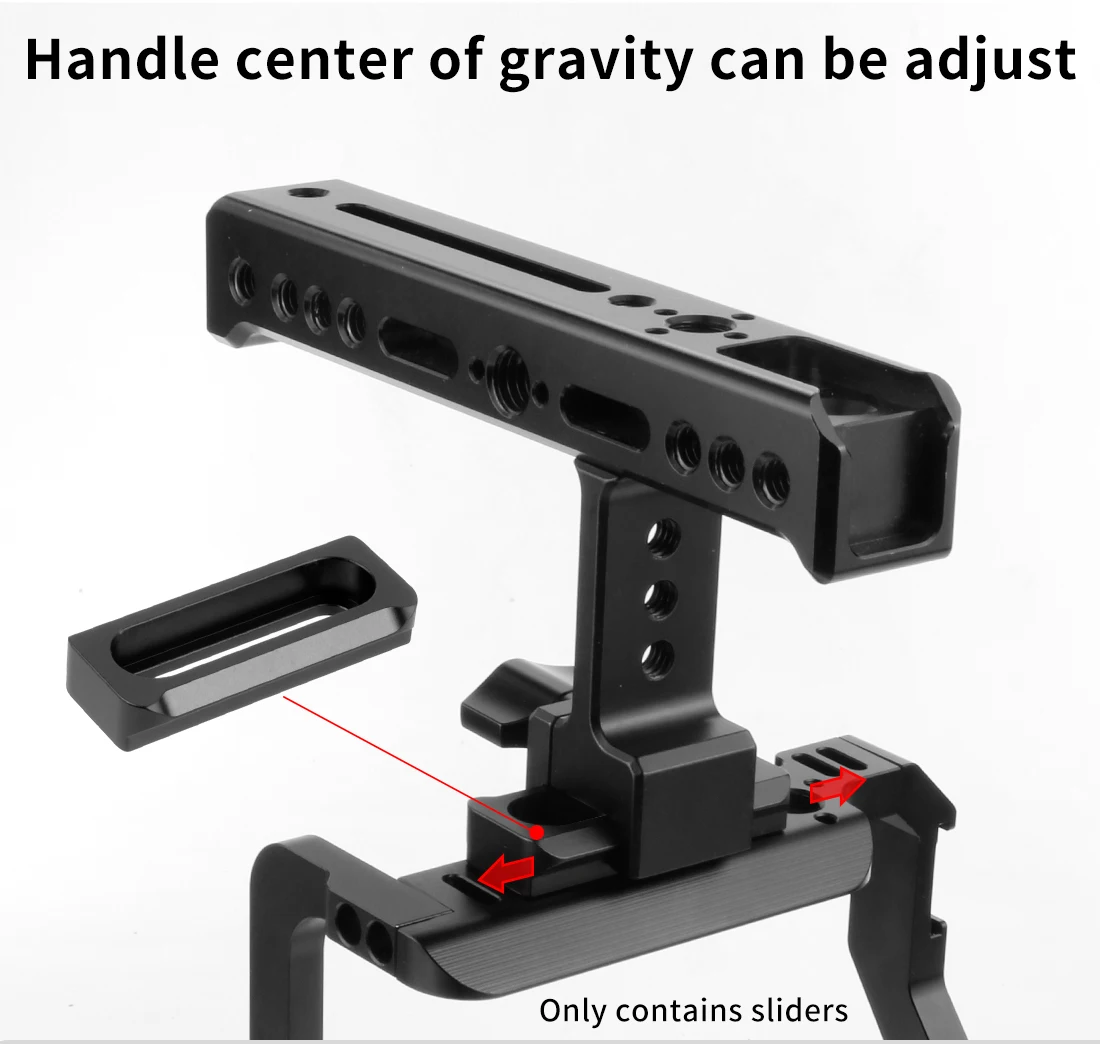

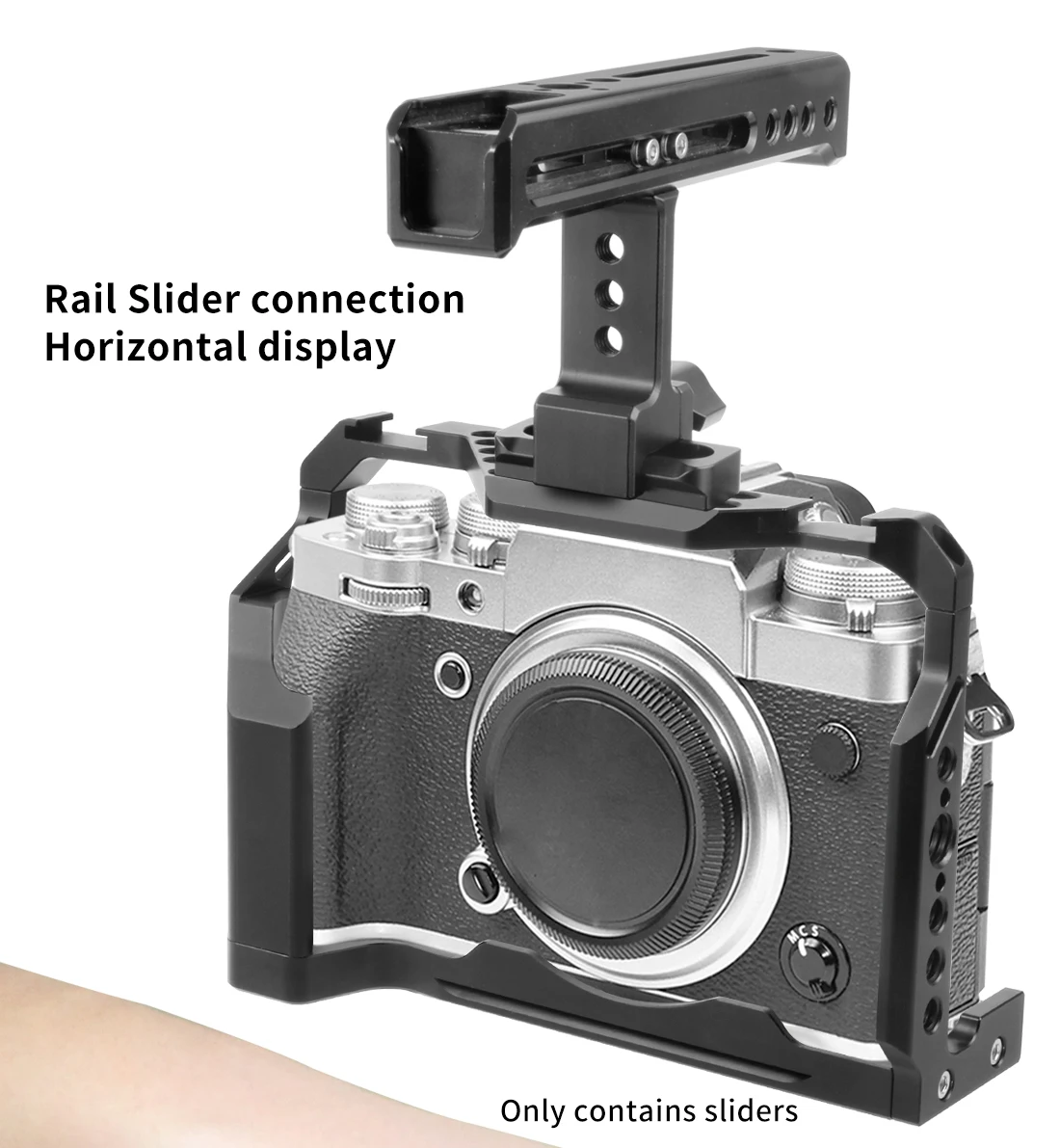

Fix for NATO Rail to a cage or any device by 2 standard 1/4 screw (Screw and Allen Key is included), then you can obtain a quick-release mounting option

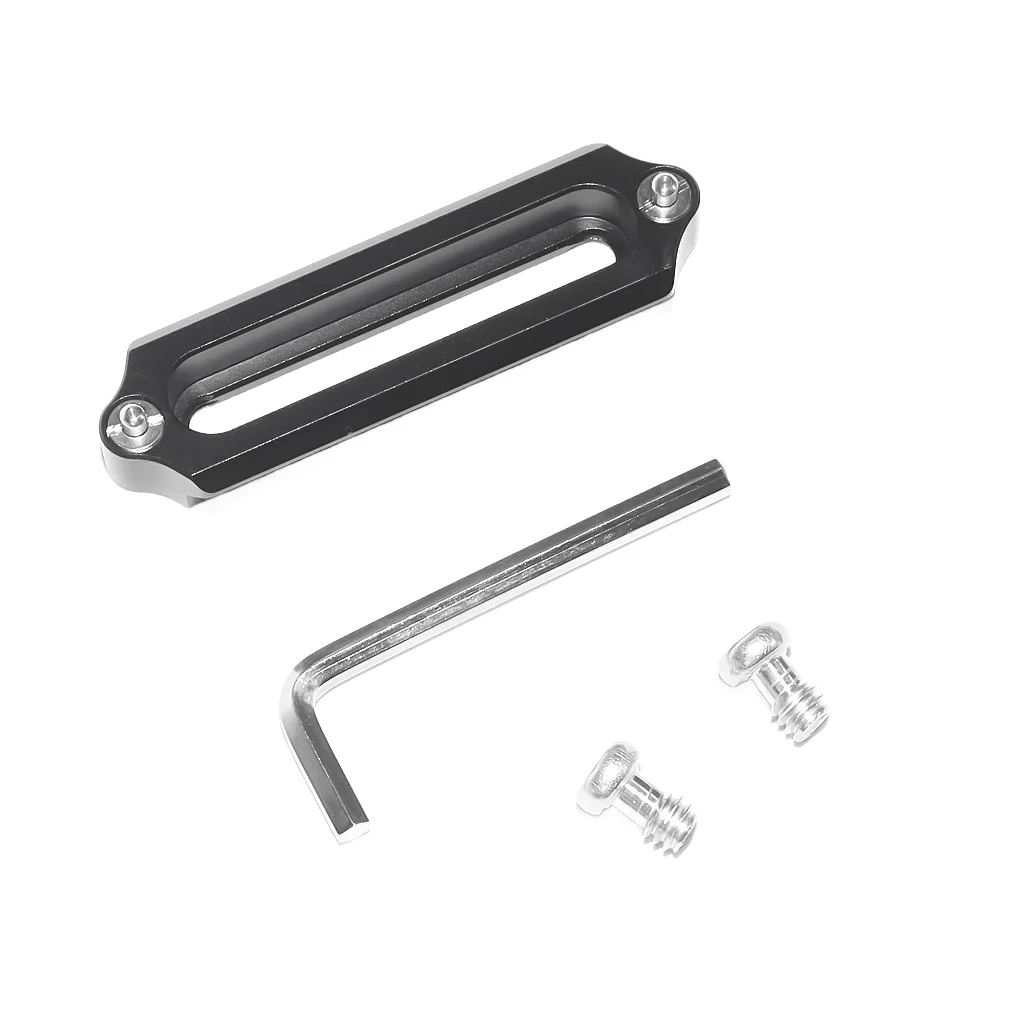

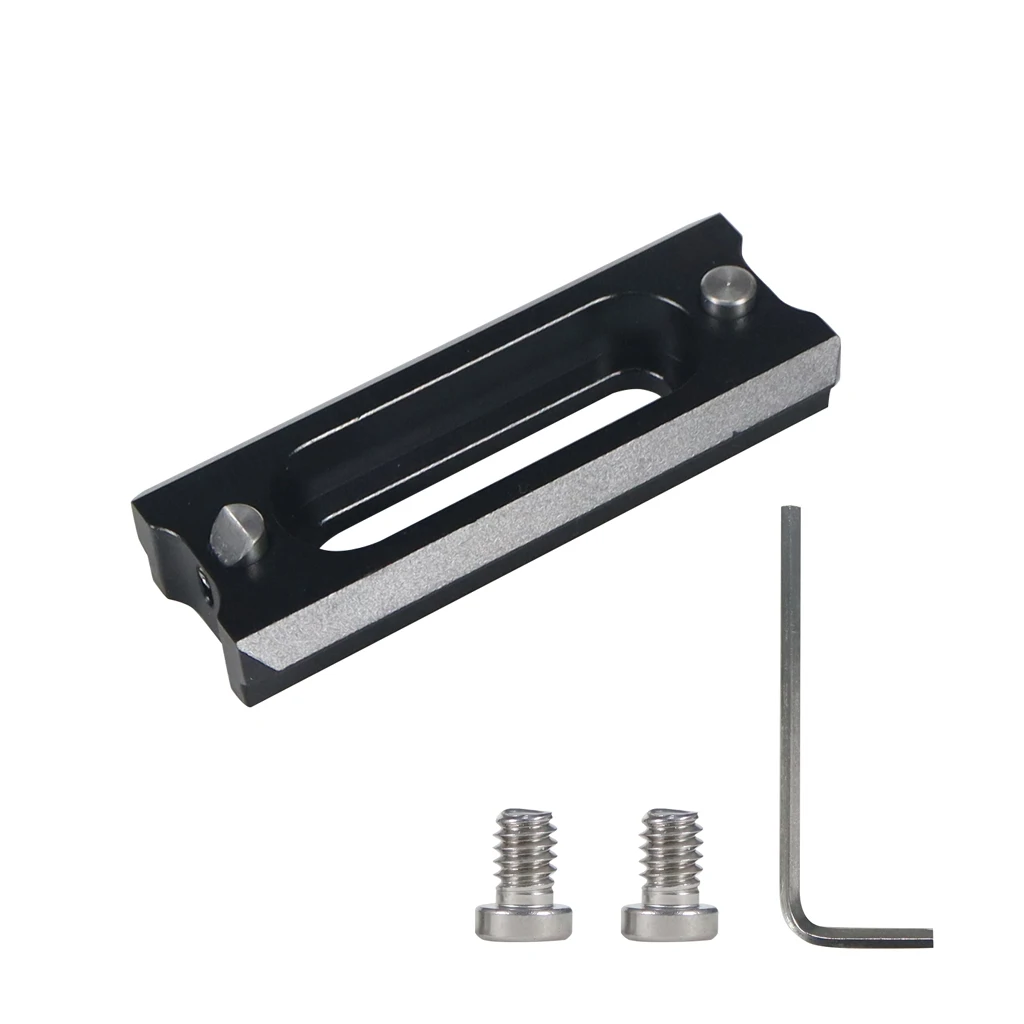

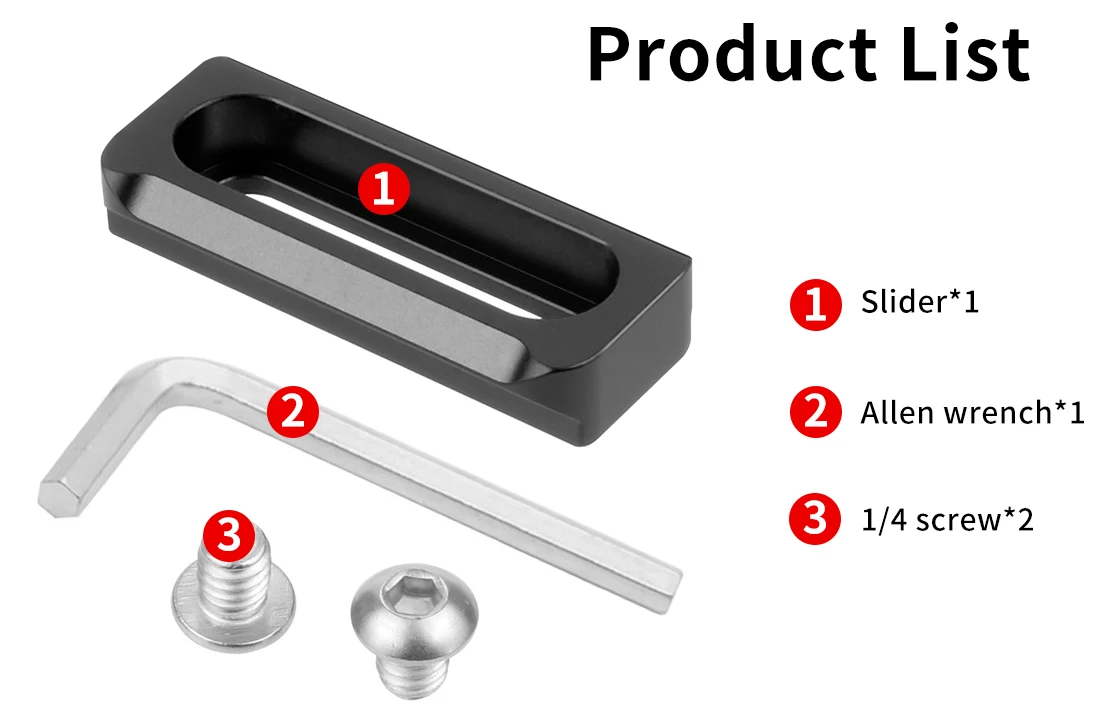

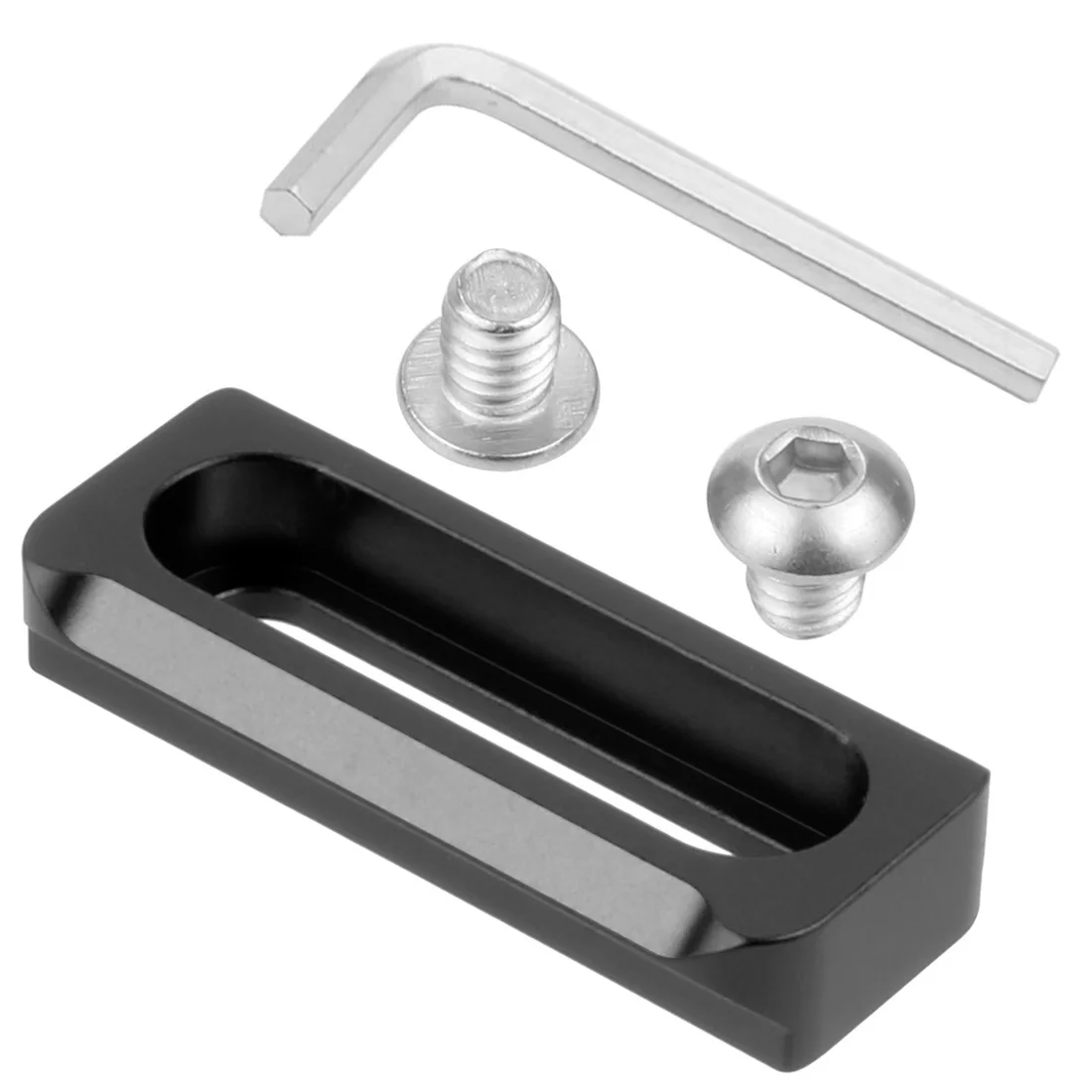

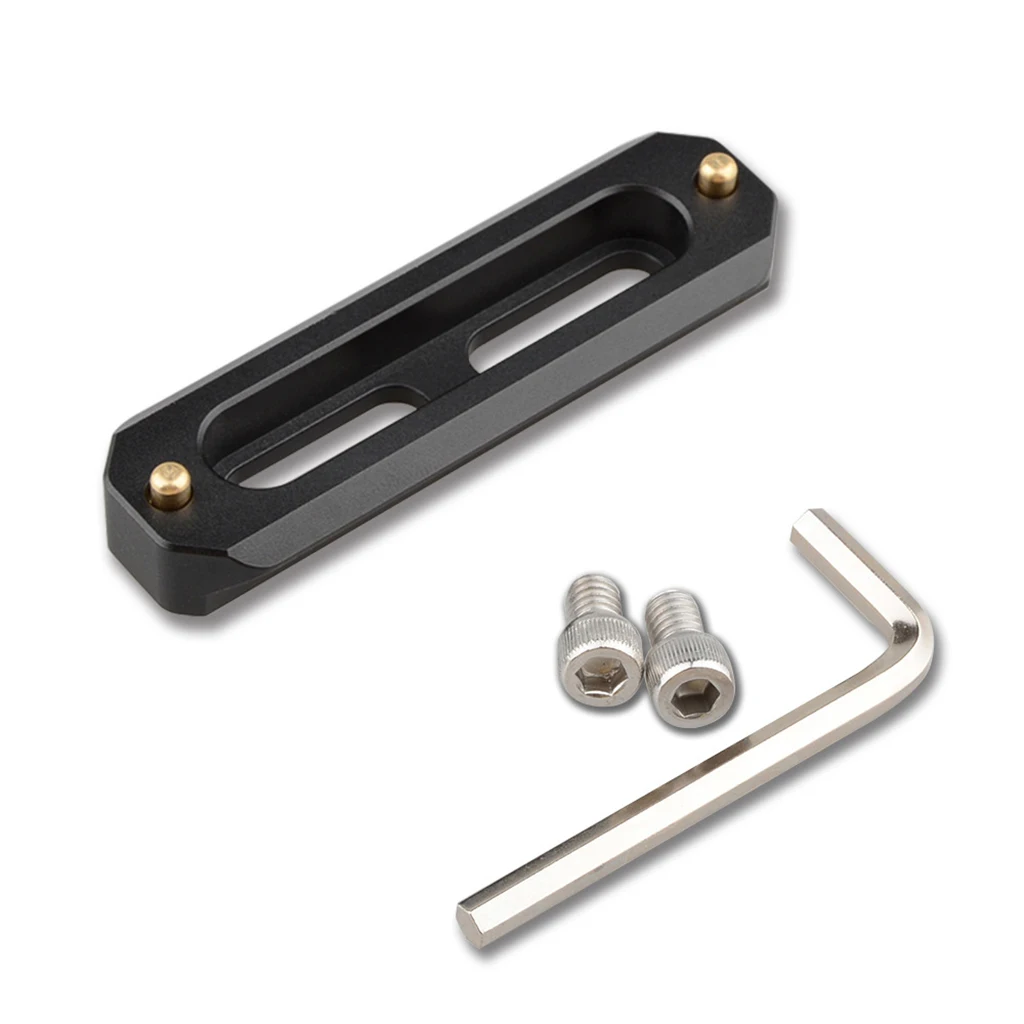

Packing list:

1 x Camera Slider

1 x Hexagonal Screw Wrench

2 x 1/4 screws

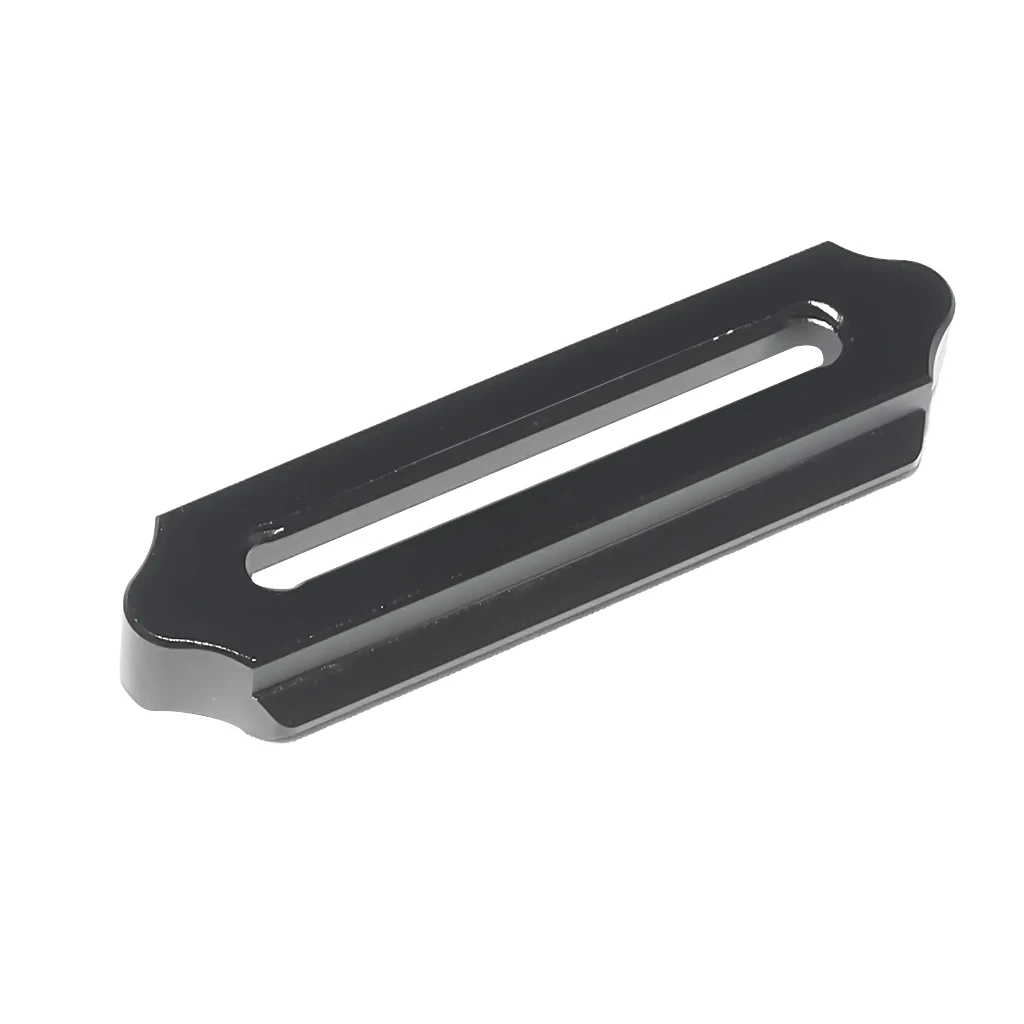

Length 48mm option:

Length 73mm option:

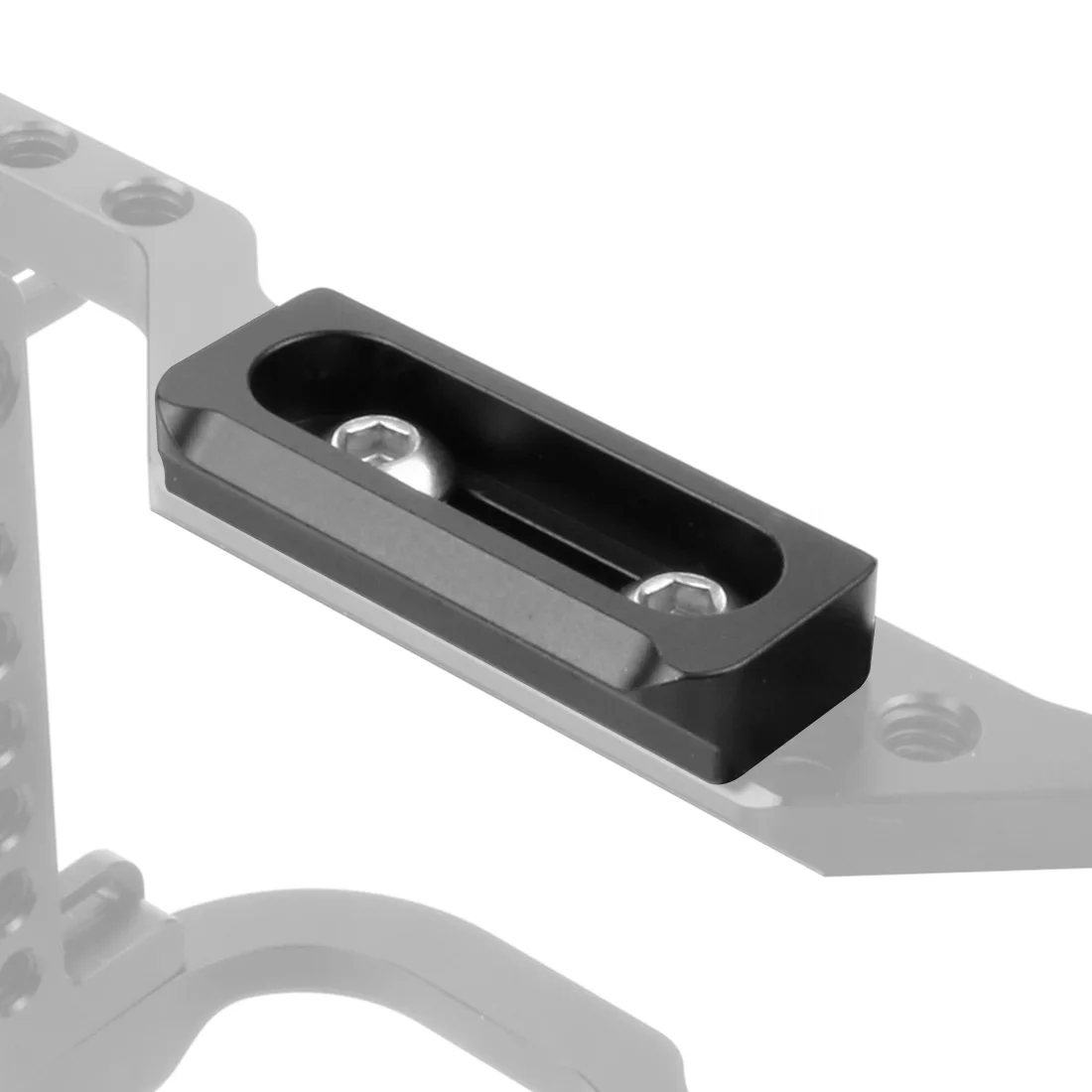

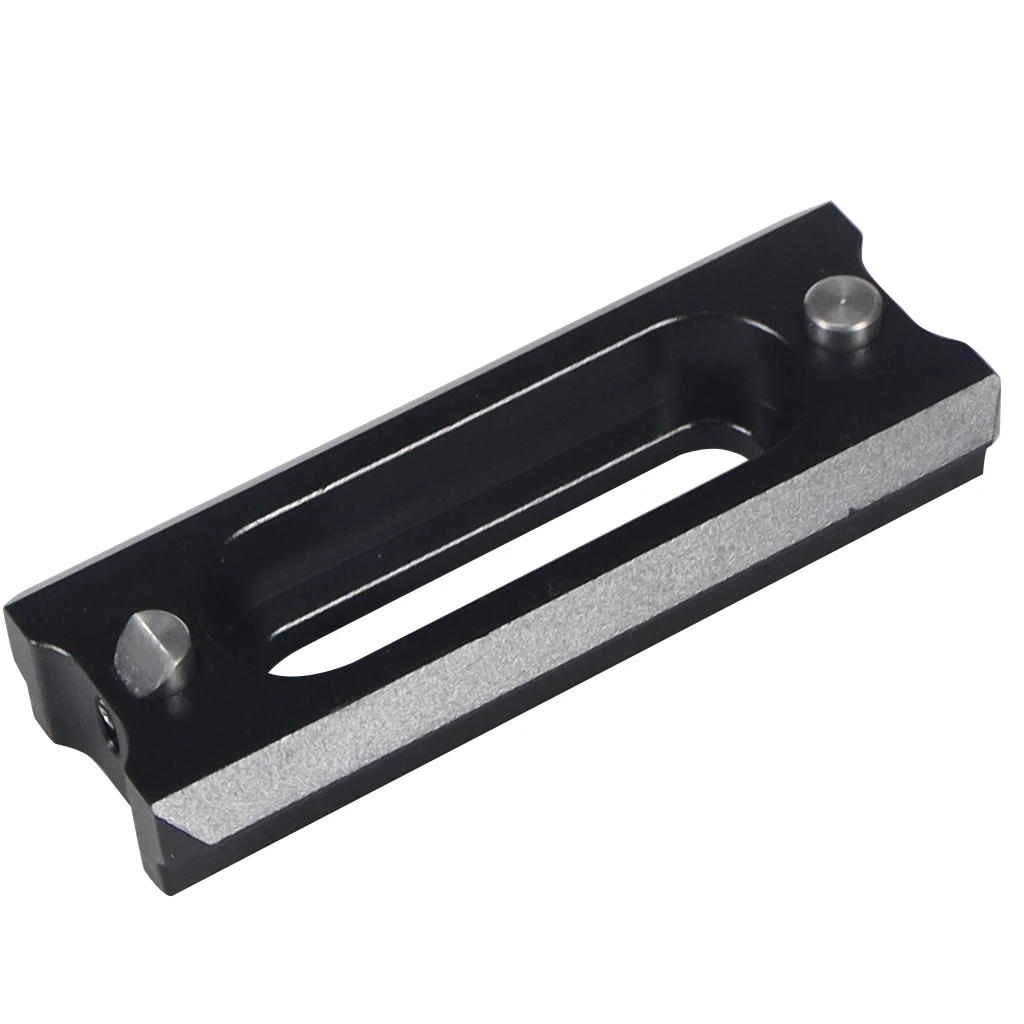

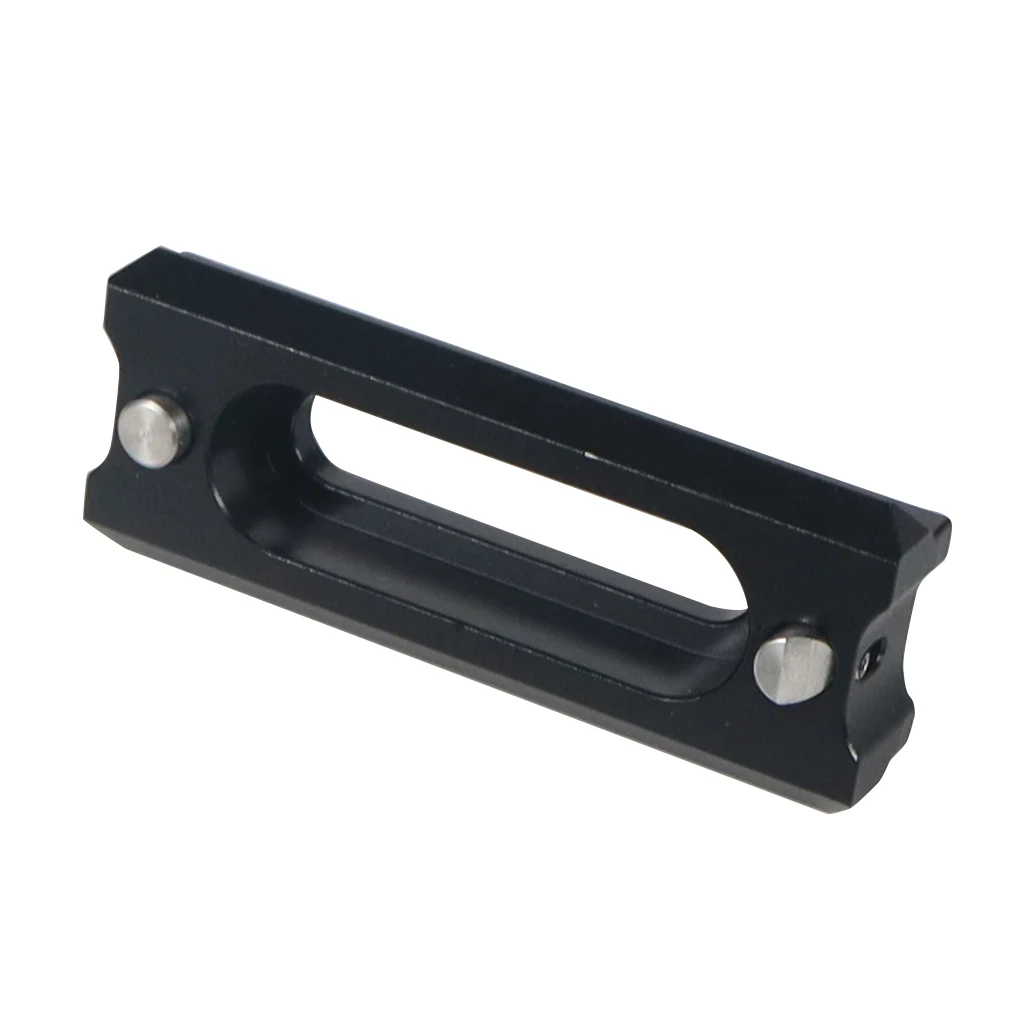

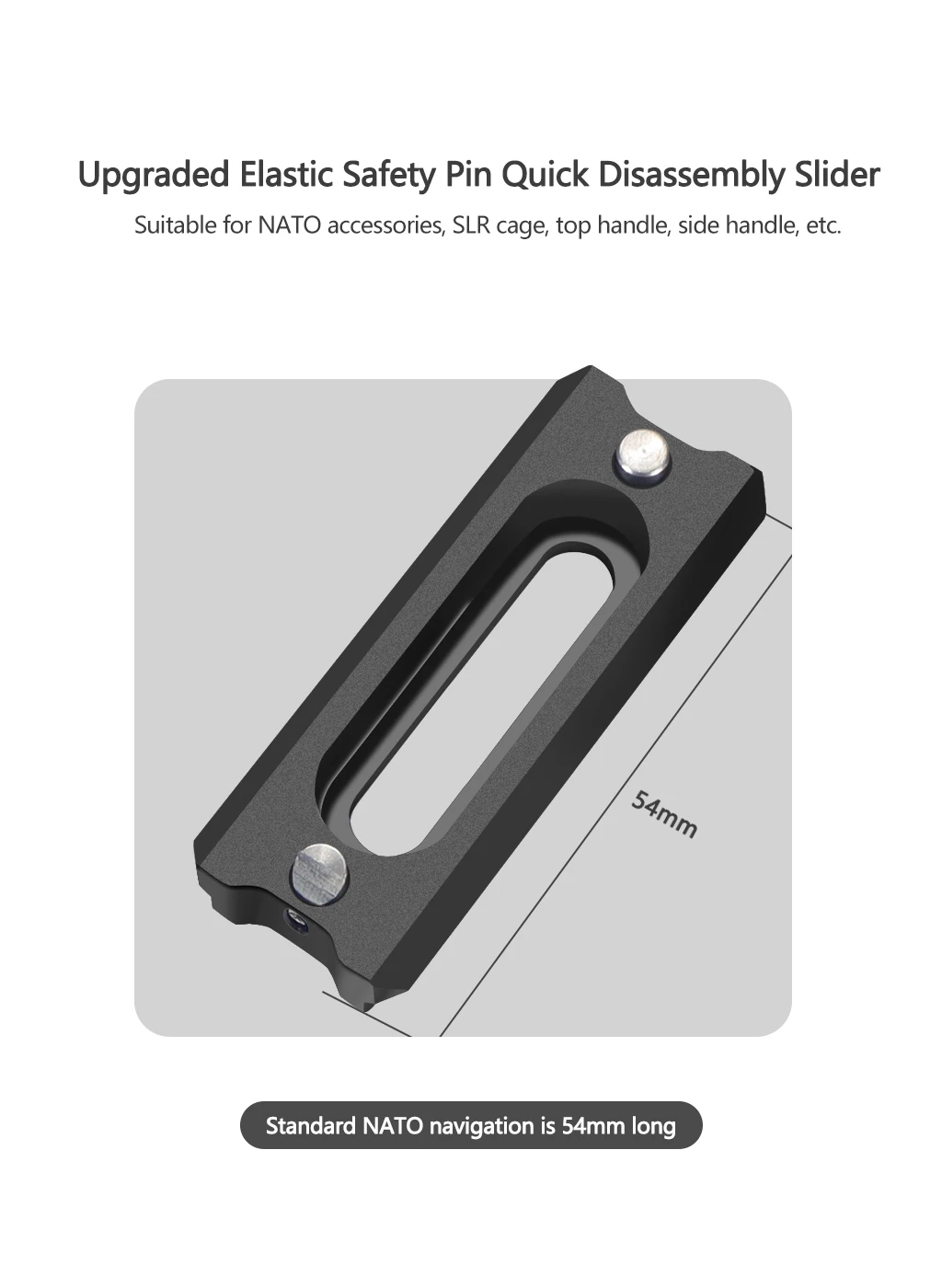

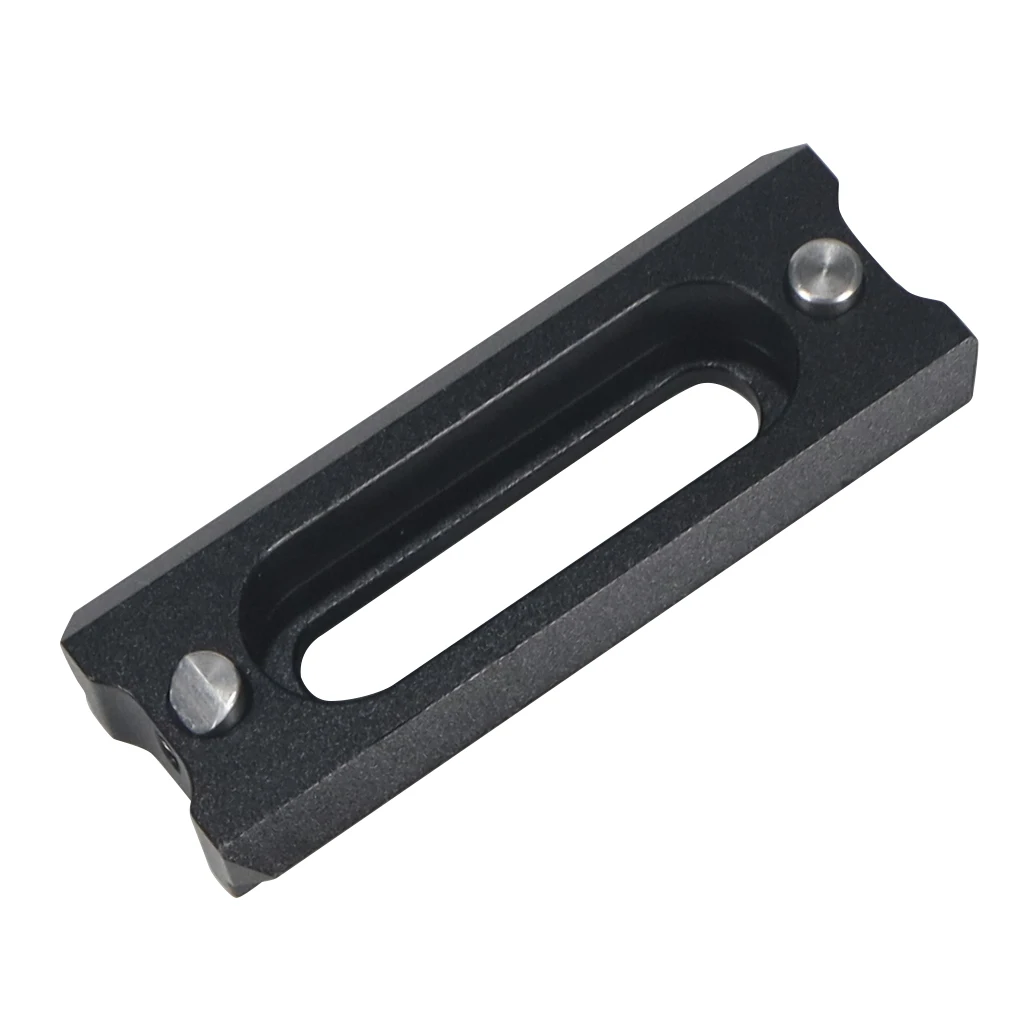

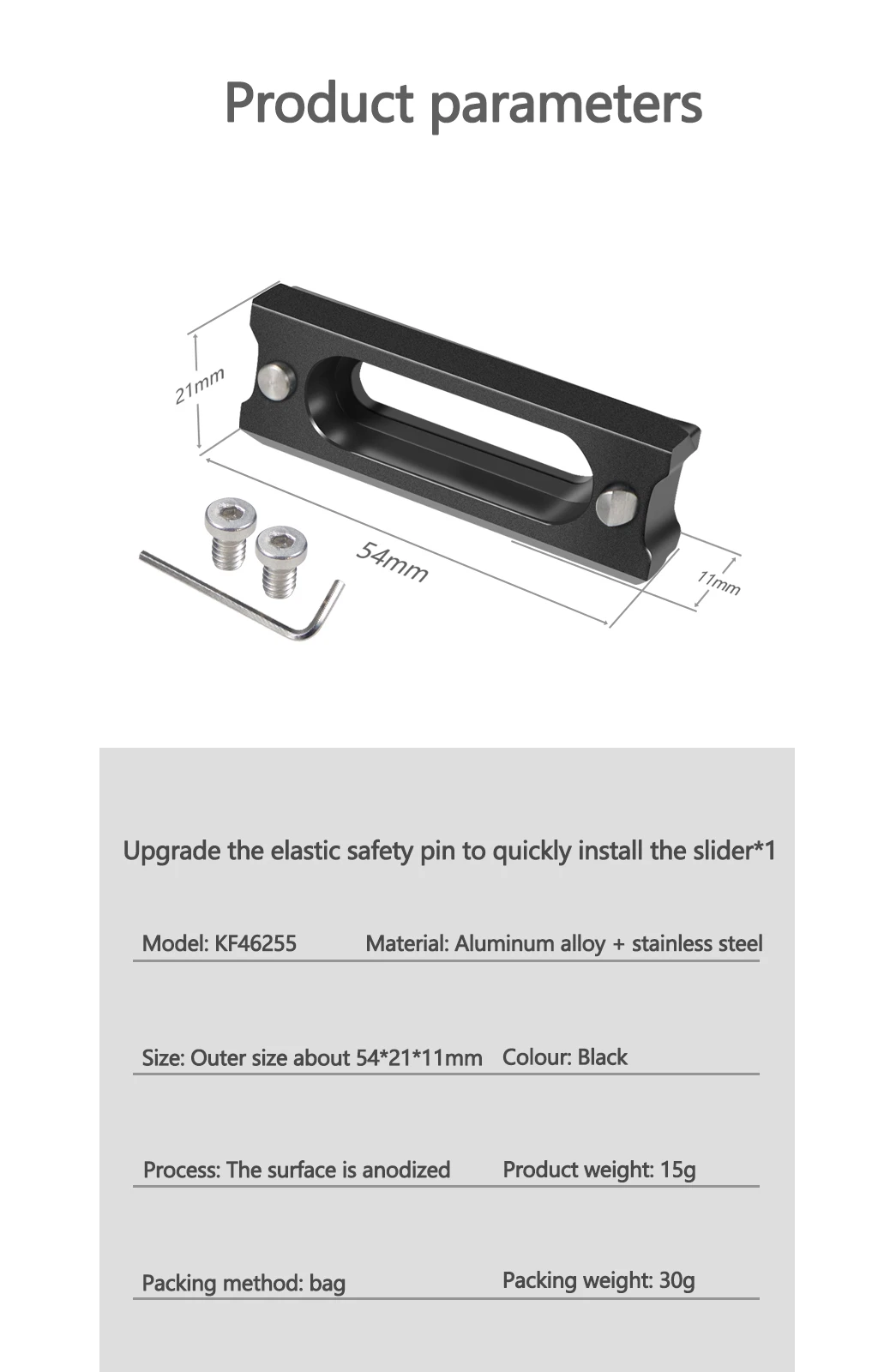

54mm NATO rail with 1/4''-20 screws:

Function.

Attaches to your camera cage with two 1/4''-20 screws, compatible with your NATO accessories such as NATO clips, grips and monitor mounts, for quick attachment and release of accessories. A safety pin at each end of the slide prevents accessories from accidentally slipping off, with one end having a beveled design that allows your NATO accessories to slide through easily.

Features.

Standard NATO rail length - 54mm.

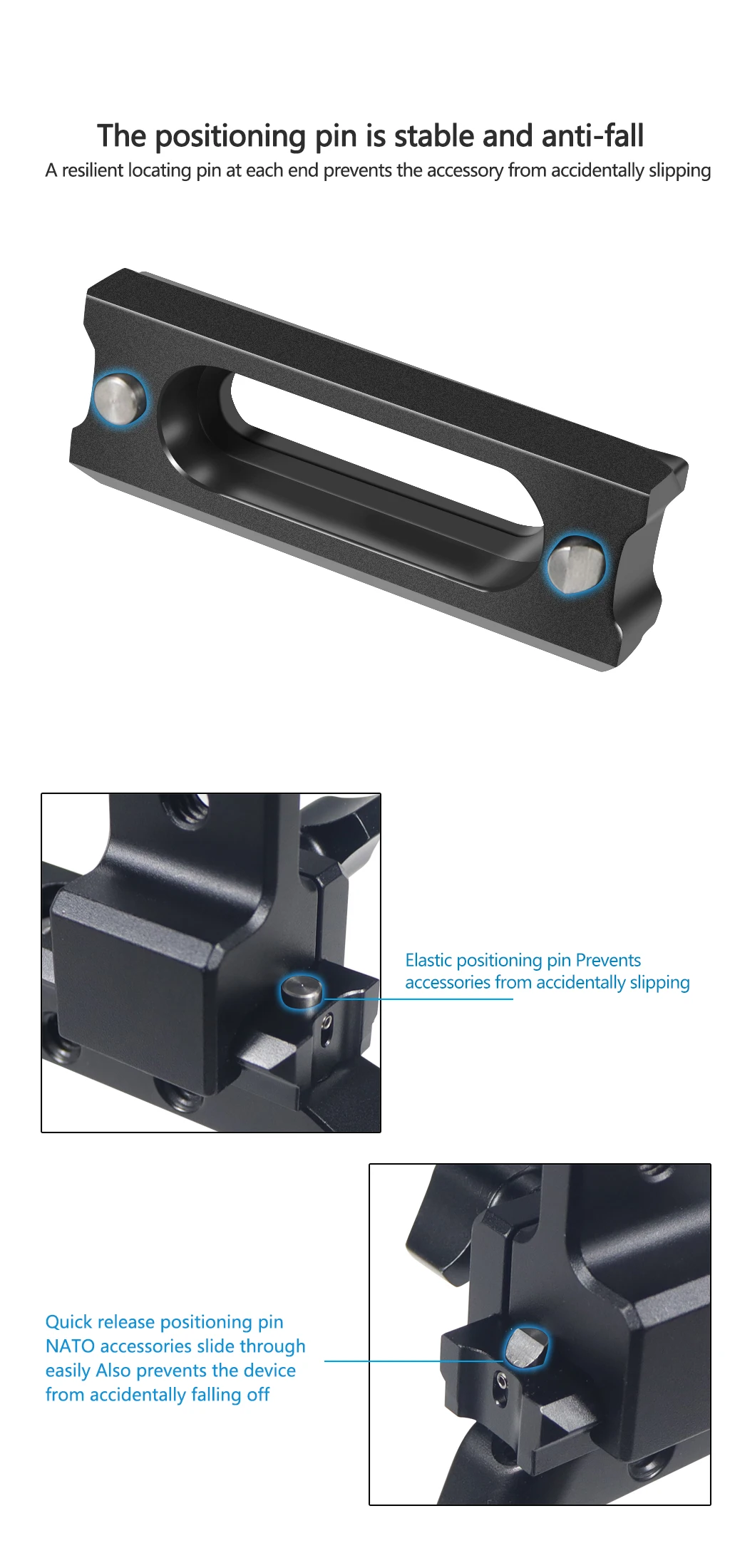

A flexible safety pin at each end to prevent accessories from accidentally sliding off.

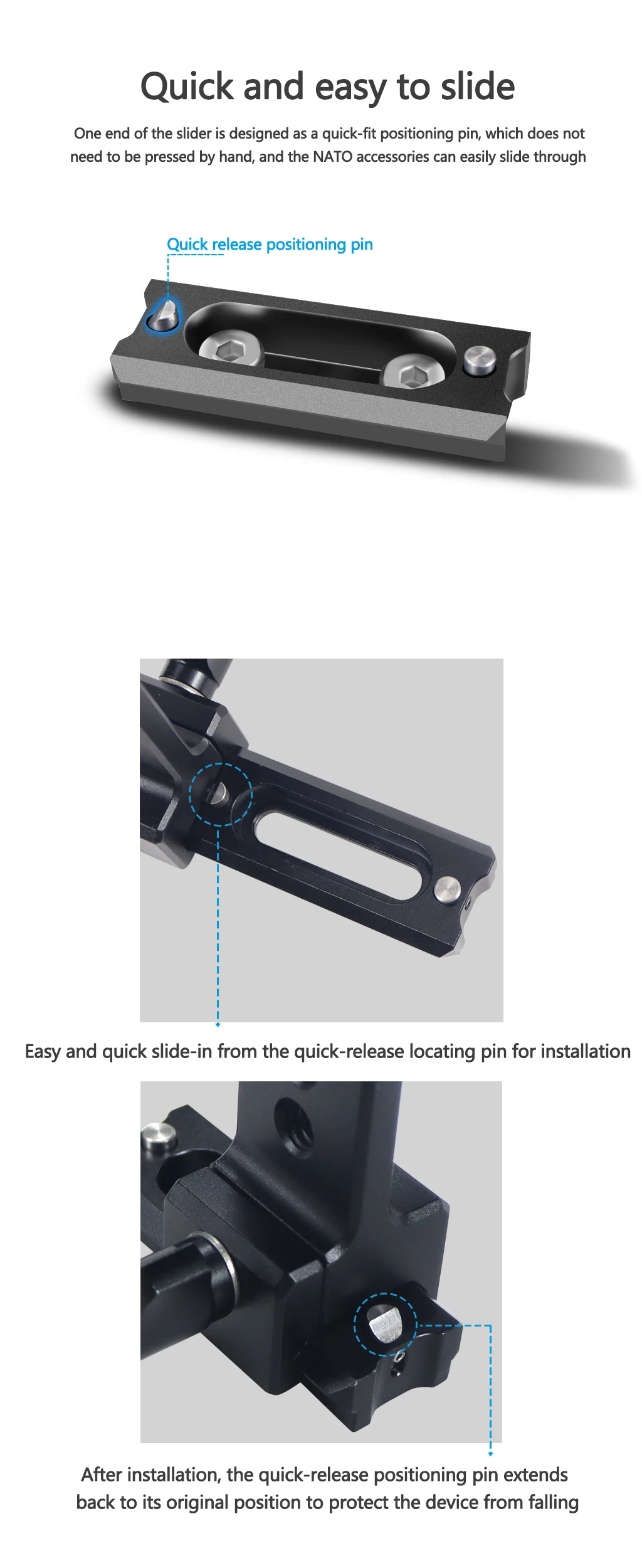

one of the ends of the safety pin is designed with a beveled angle, which allows NATO accessories to slide straight through easily without the need to press by hand.

secured by two 1/4''-20 screws, which are stable and will not come loose.

Aviation aluminum alloy material High-end anodizing.

Parameters.

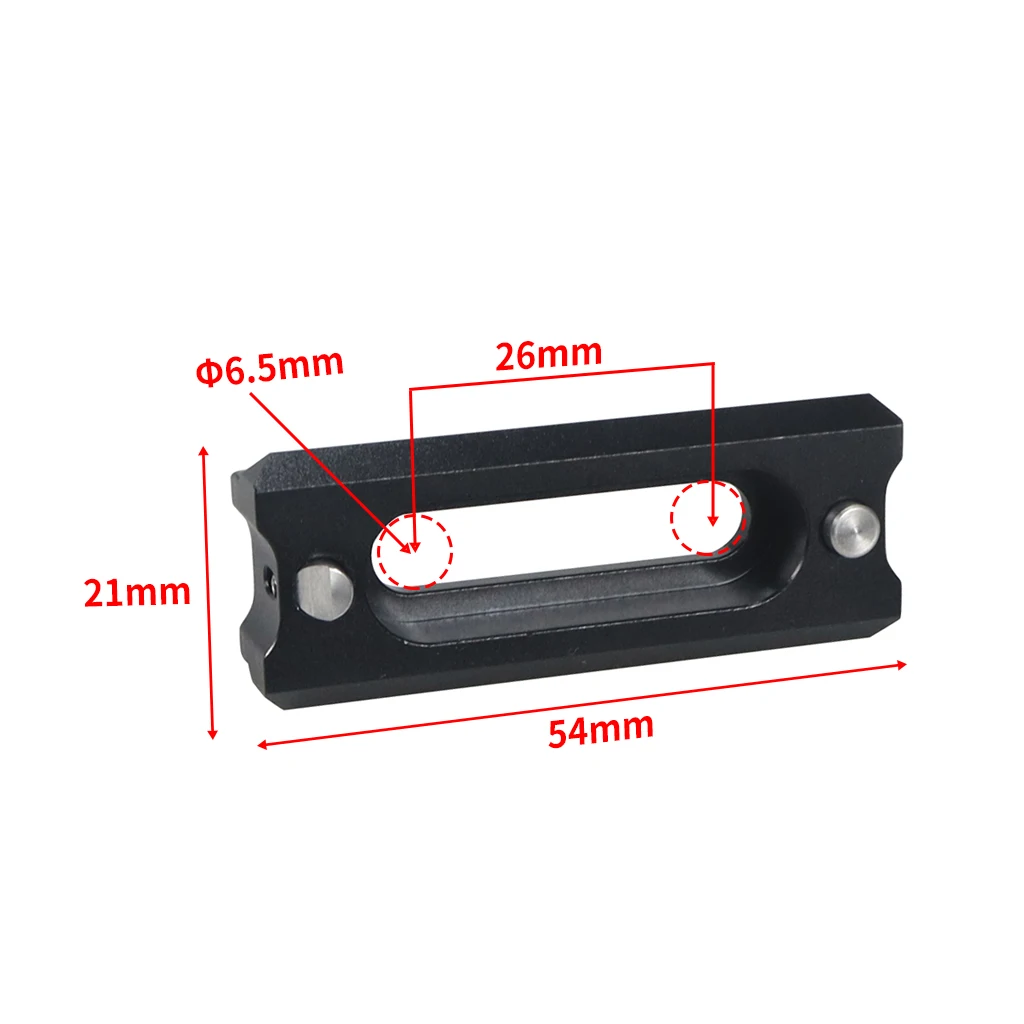

Size: about 54*21*11mm

Color: black

Material: aluminum alloy + stainless steel

Product weight: 15g

Packing list.

NATO rail *1

1/4"-20 screws*2

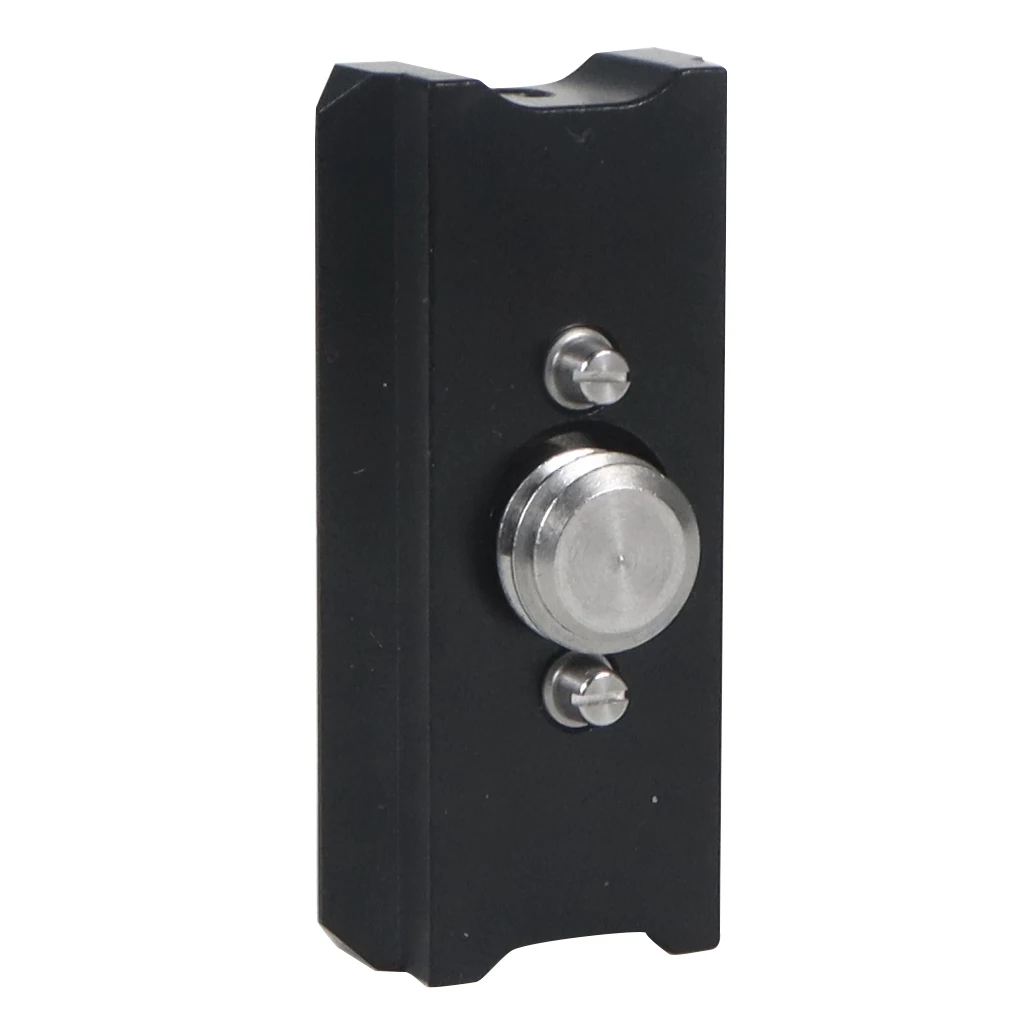

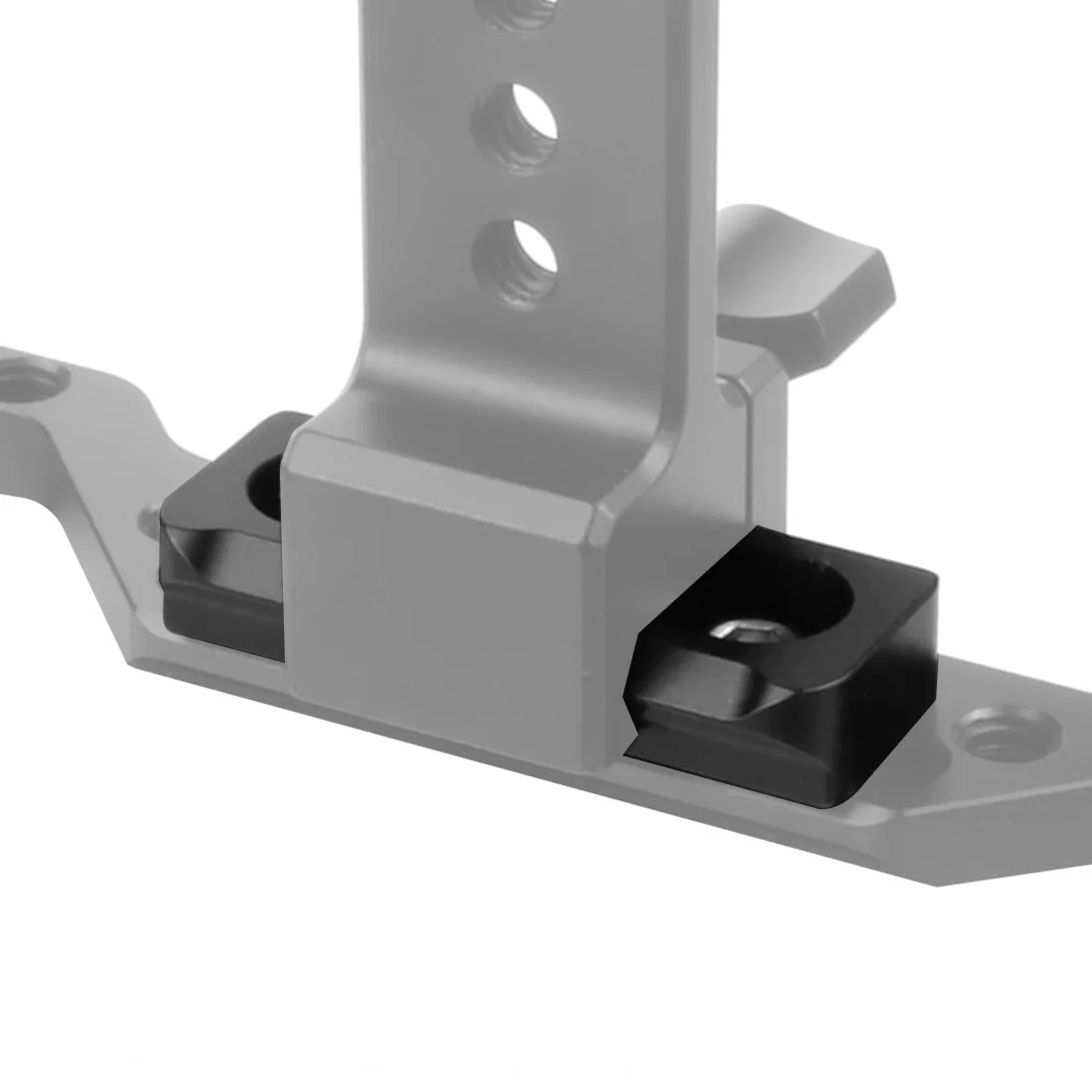

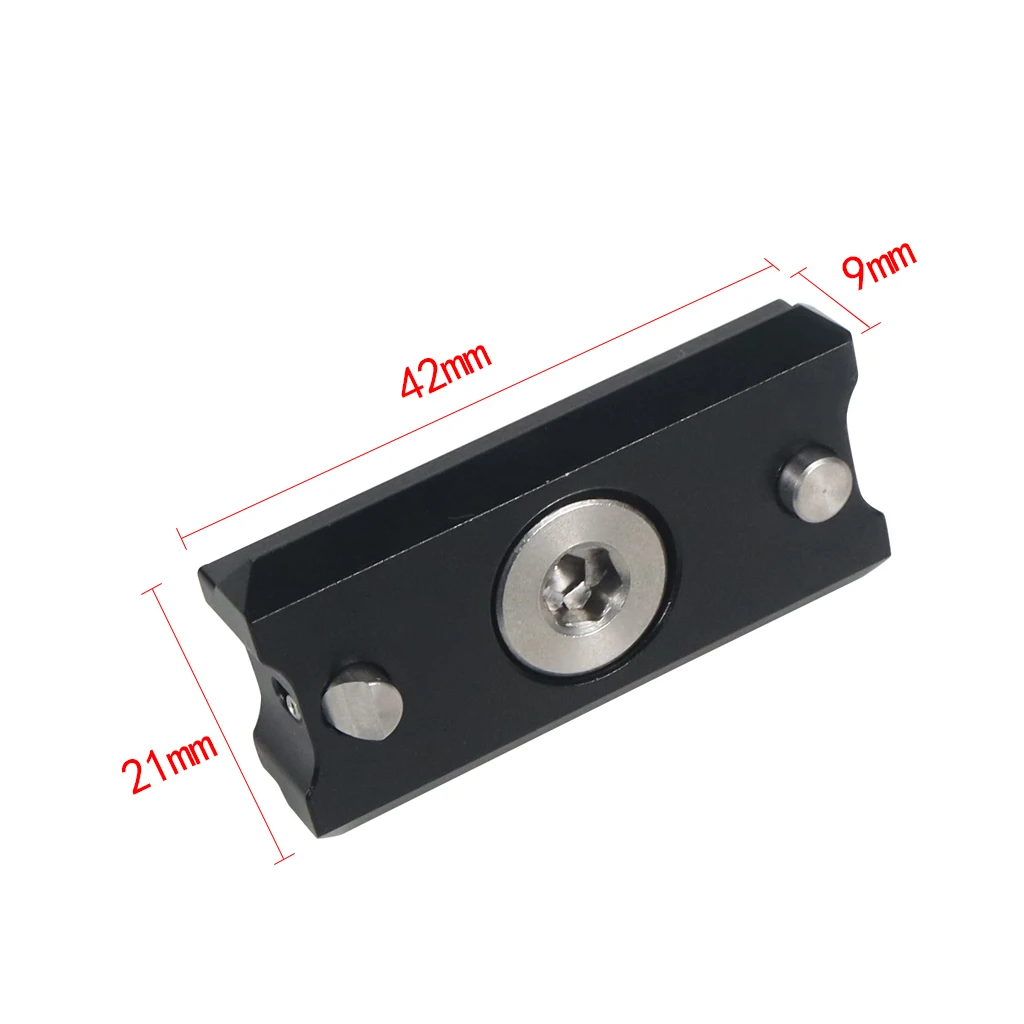

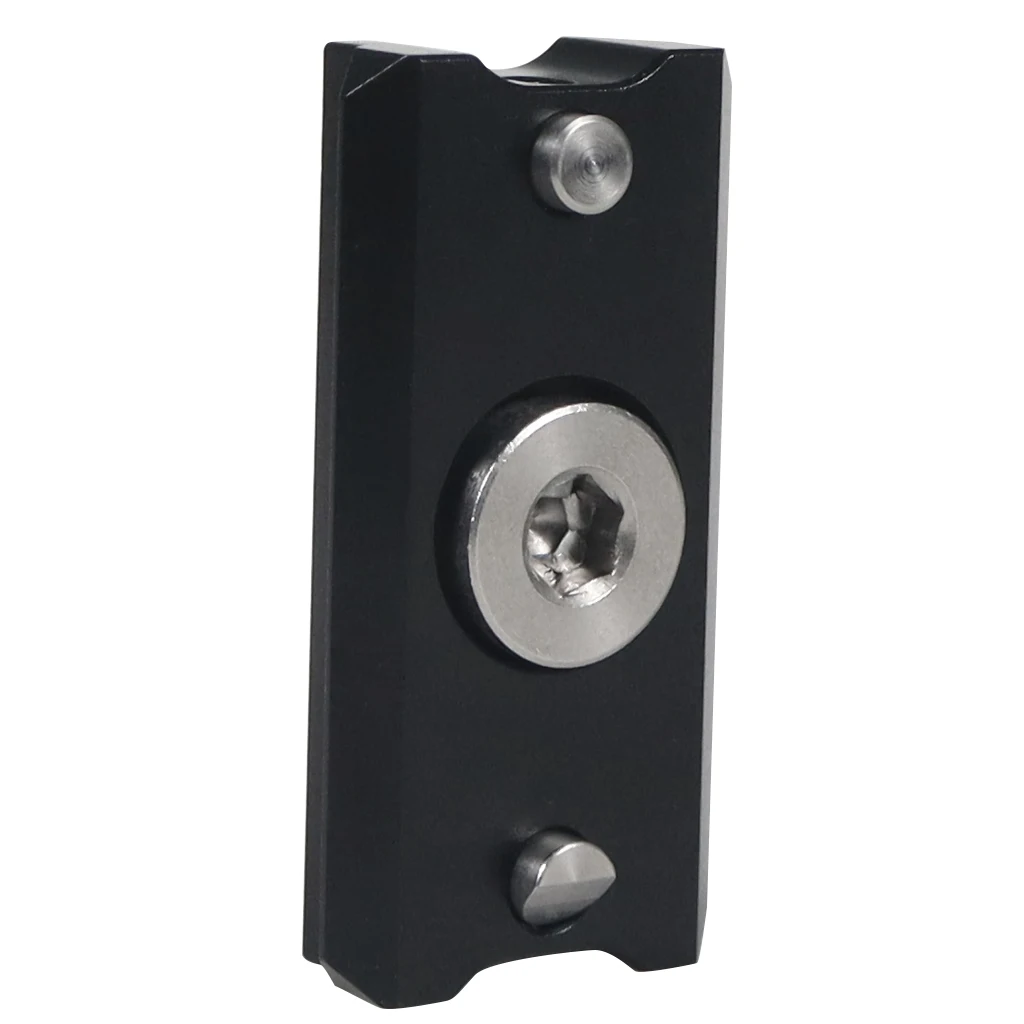

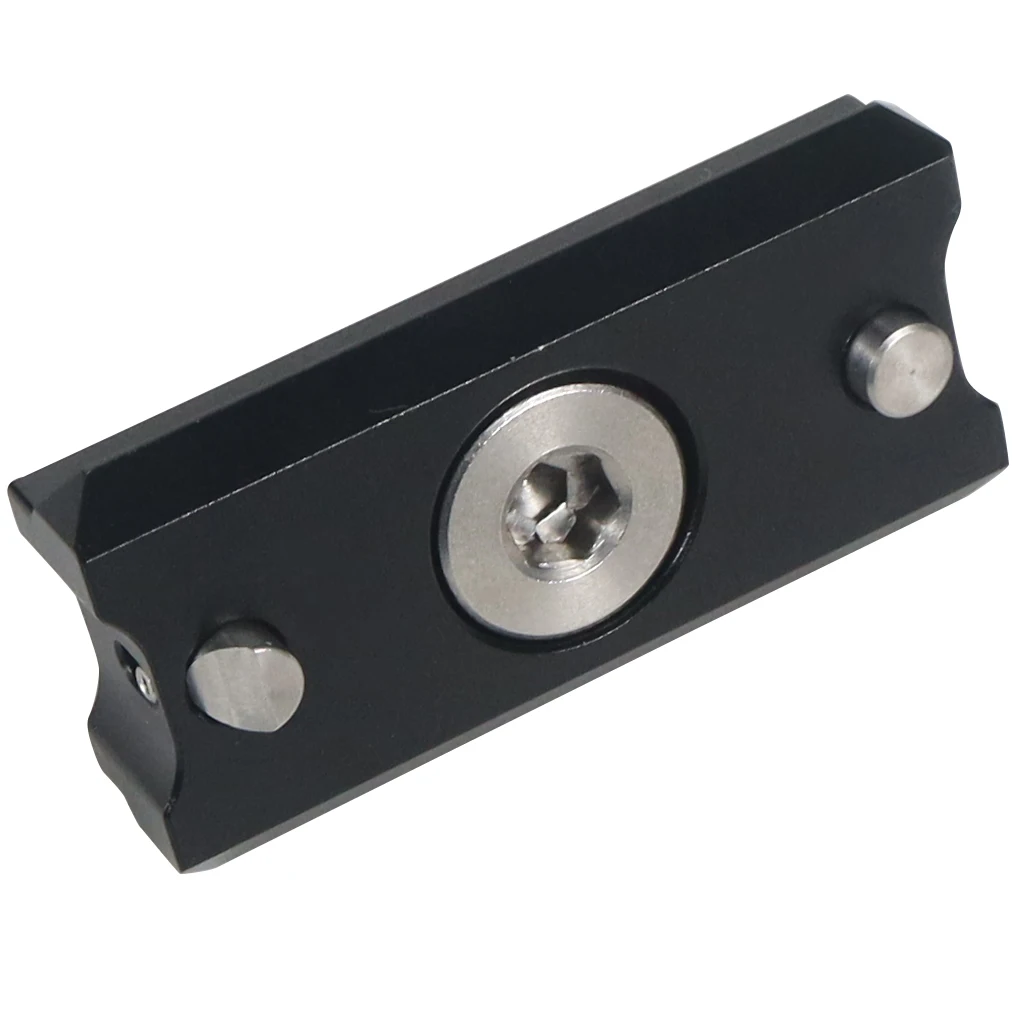

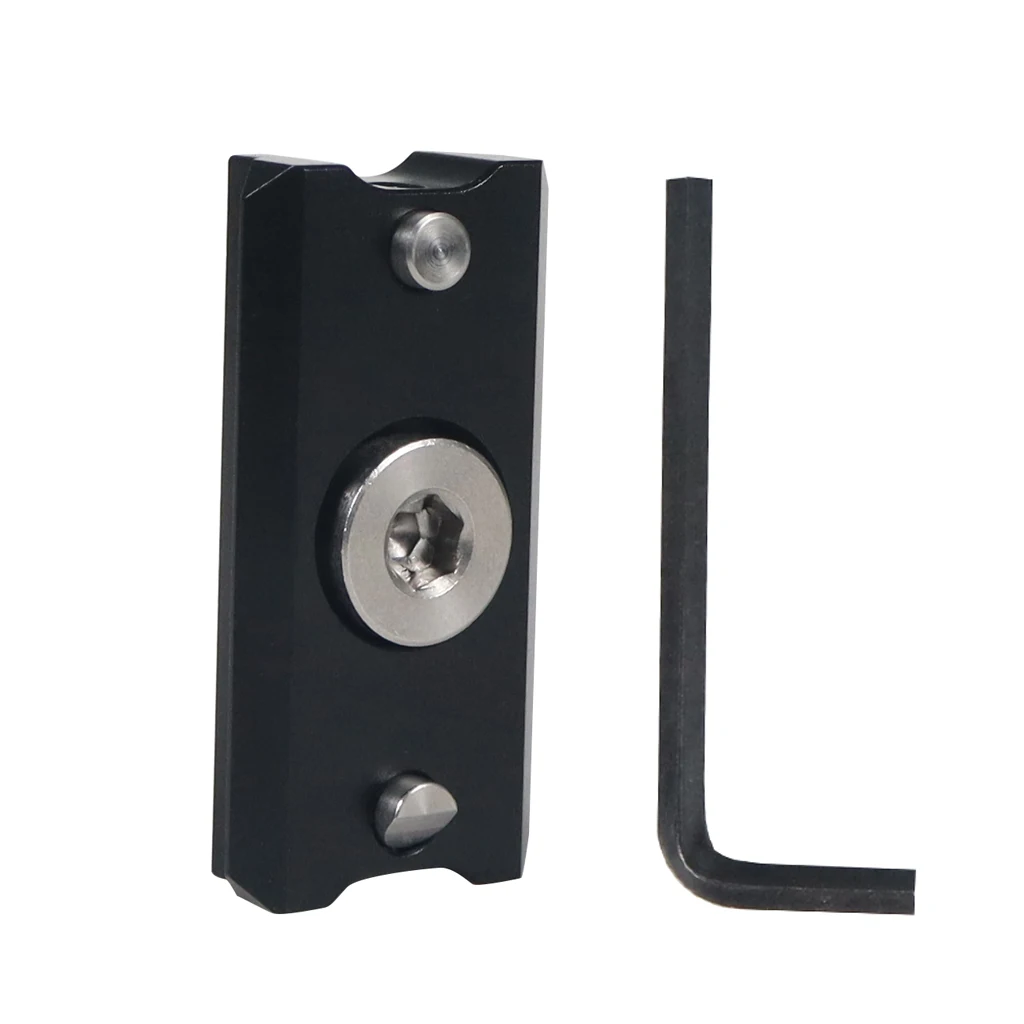

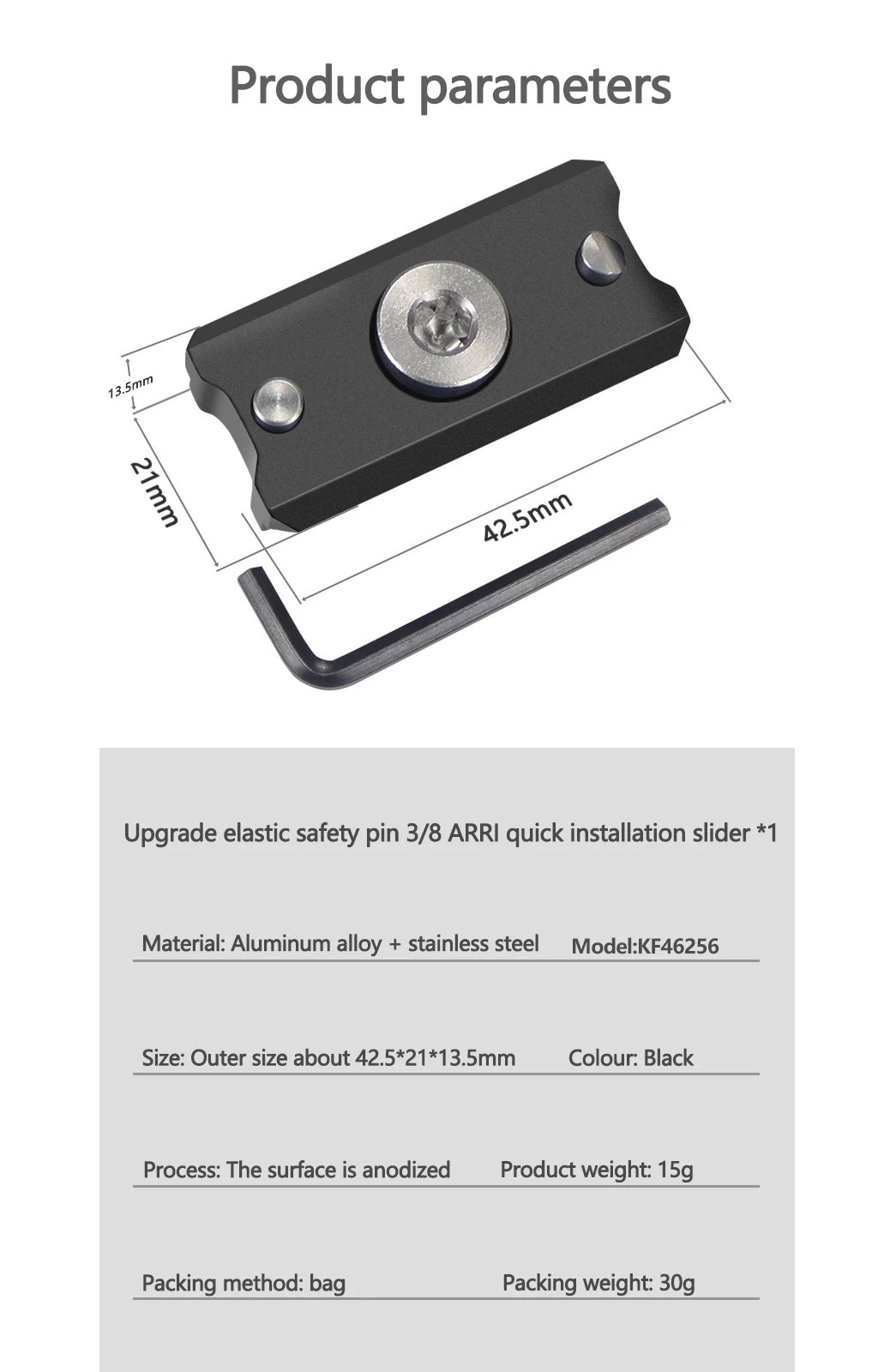

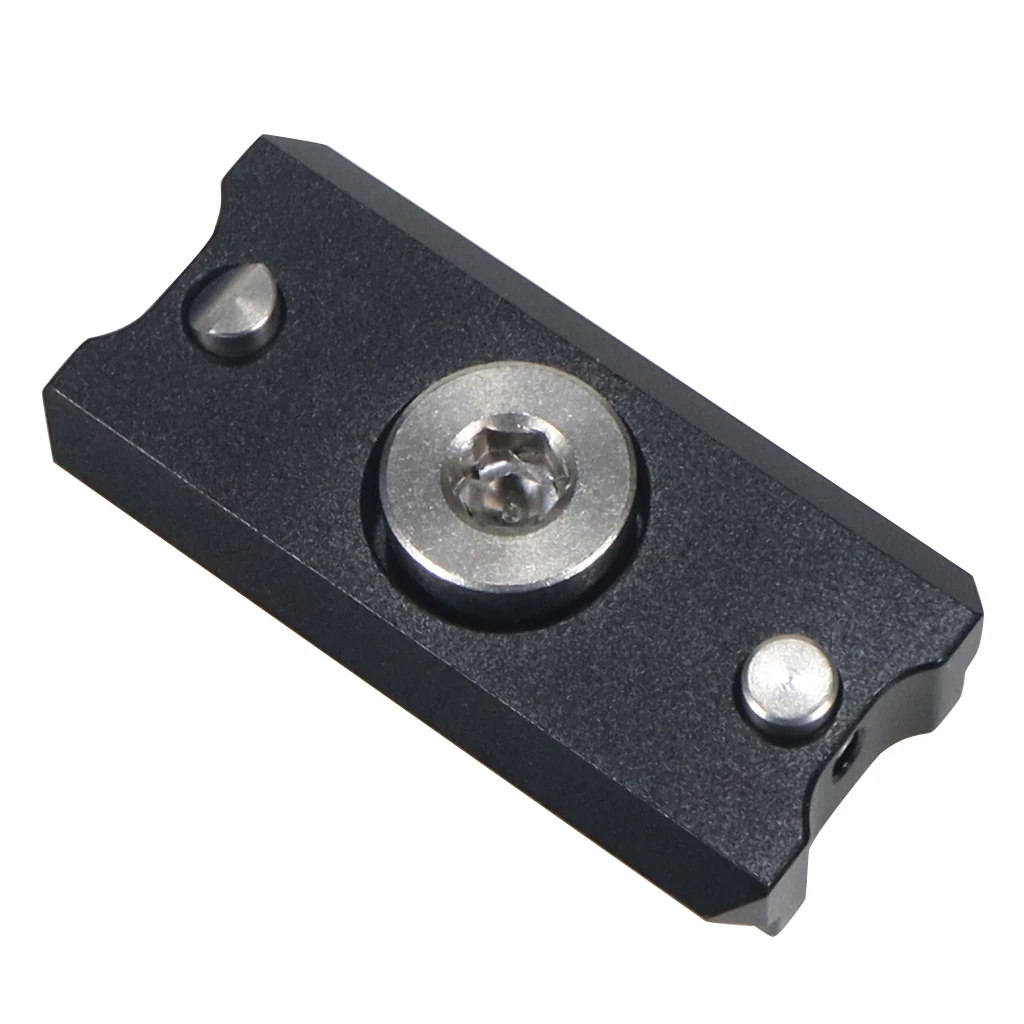

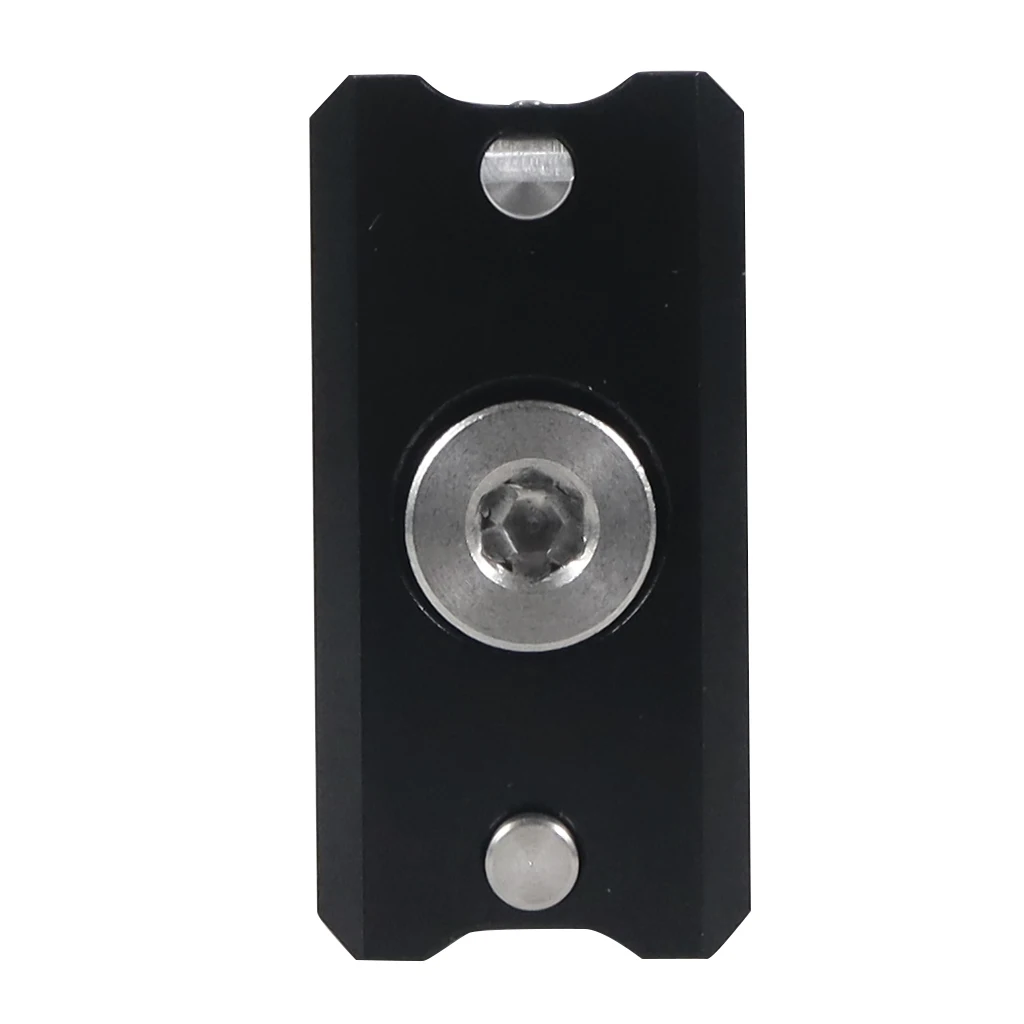

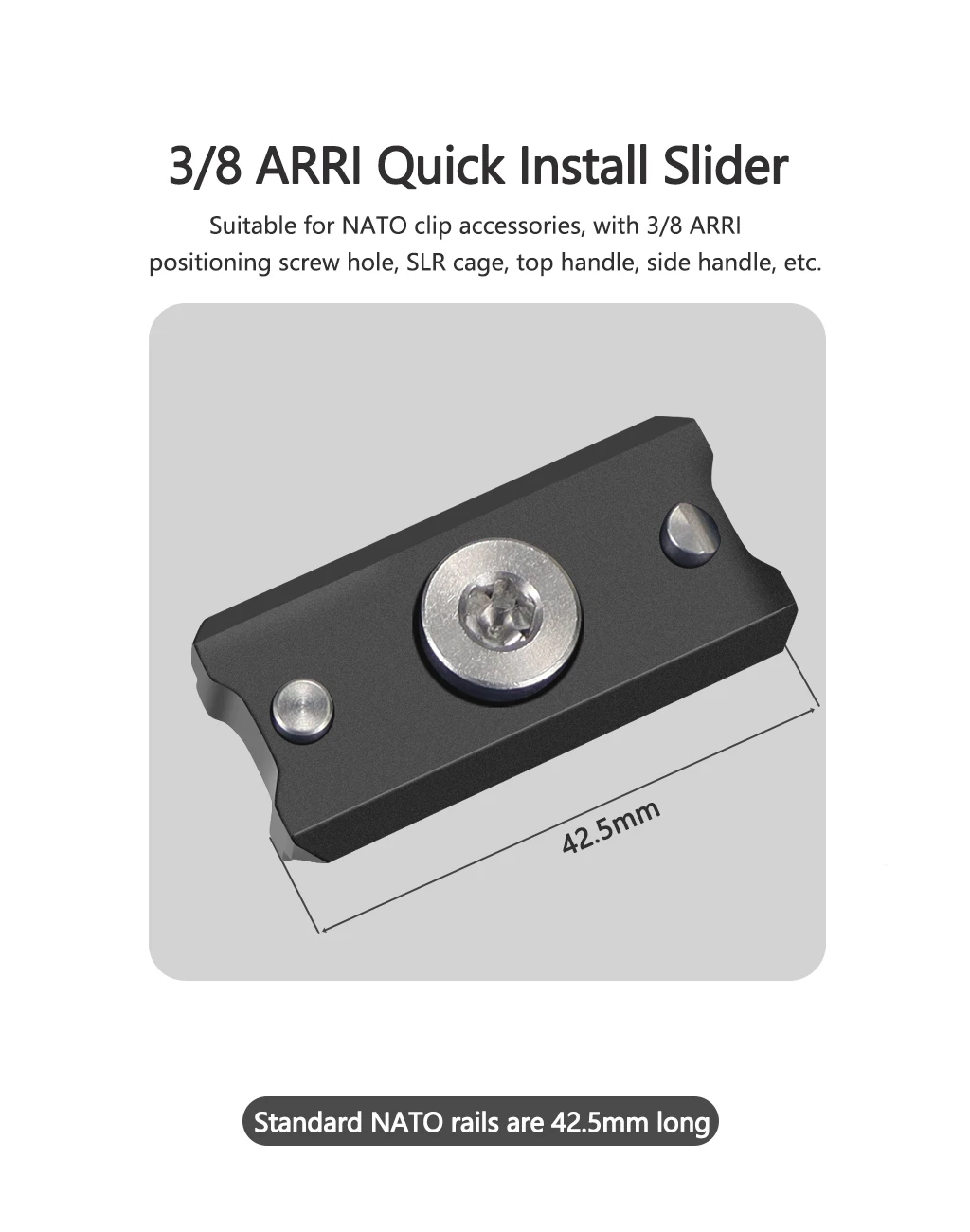

42mm NATO rail with 3/8''-16 screw

Function.

Attaches to your camera cage with 1pc 3/8''-16 screws, compatible with your NATO accessories such as NATO clips, grips and monitor mounts for quick attachment and release of accessories. A safety pin at each end of the slide prevents accessories from accidentally slipping off. The safety pin at one end is angled to allow your NATO accessories to slide through easily without the need for hand pressure.

Features.

Standard NATO rail Length-42.5mm.

A resilient safety pin at each end to prevent accessories from accidentally slipping through.

one end of the safety pin is designed to be angled so that the NATO accessory slides straight through easily without the need for hand pressure.

3/8 arri locating screw fixing, stable and not loose.

Aviation aluminum alloy material High-end anodizing.

Parameter.

Size: about 42*21*13.5mm

Color: black

Material: aluminum alloy + stainless steel

Product weight: 15g

Packing list.

NATO rail *1

3/8"-16 screws *1

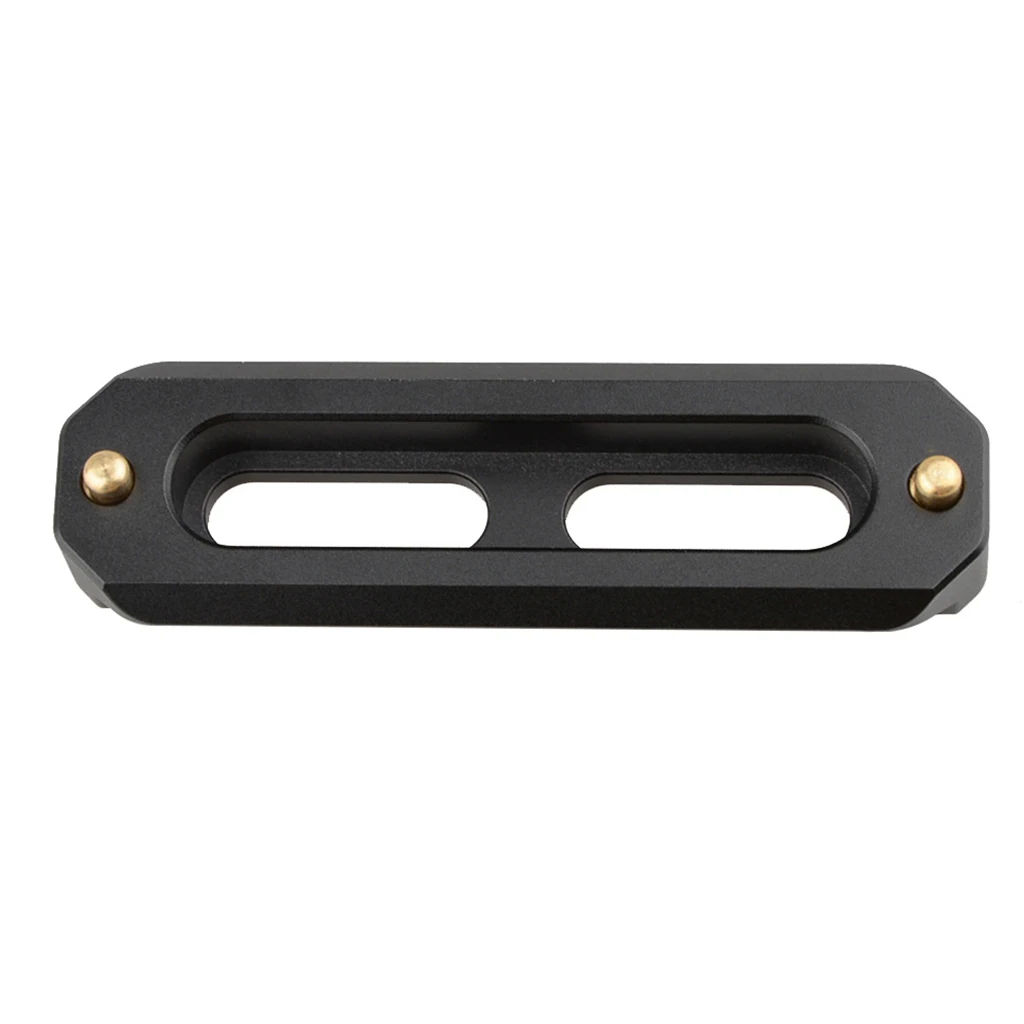

Length 70mm option:
