Custom CNC machining Quick Release Adapter Baseplate With 15mm Rod Clamp For DSLR Camera Cage Rig Shoulder Support System Photography Accessories

£24.70 GBP

~~£24.70 GBP~~ £24.70 GBP

Sale Sold out

Taxes included.

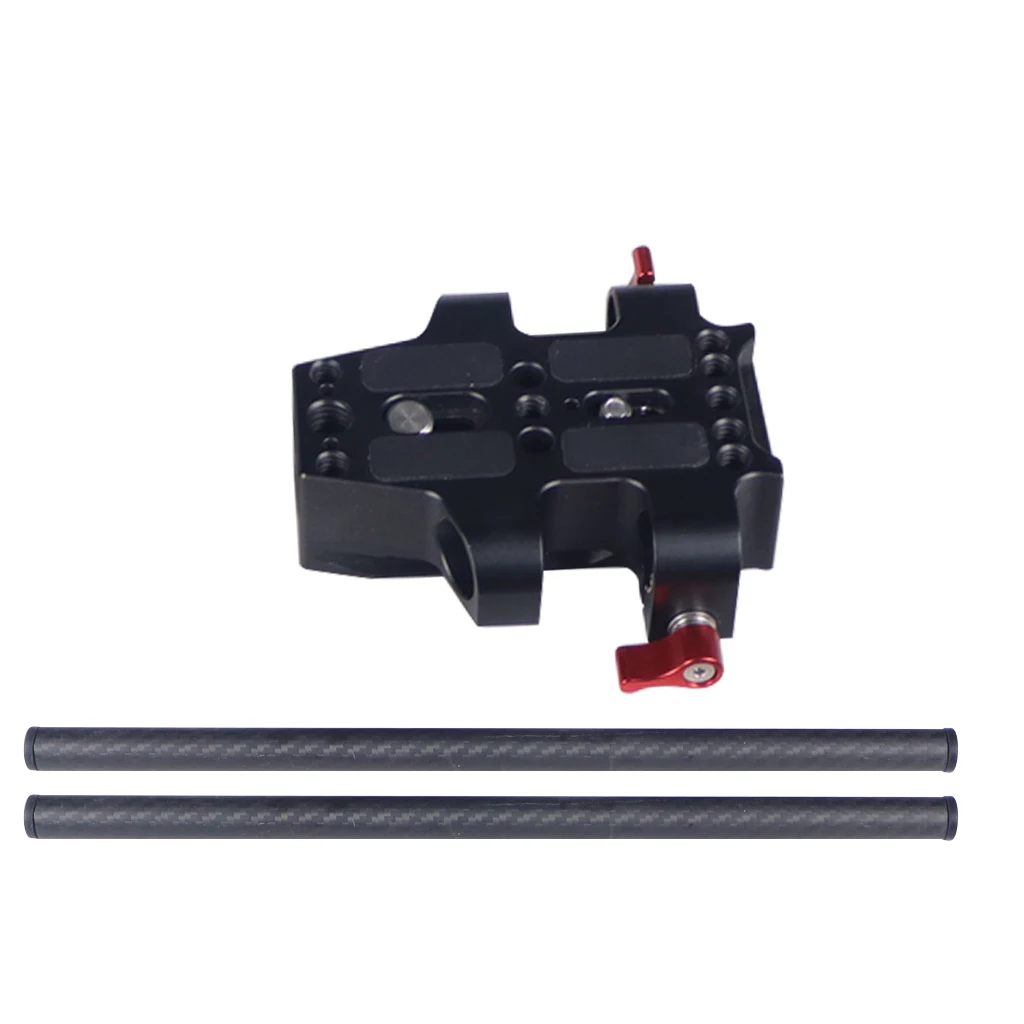

Color Type A Plate Type B Plate Type C Plate Combo A Combo B Combo C

Quantity

We are cnc machining factory welcome customize products.

Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.

Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials

Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,

Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ

File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

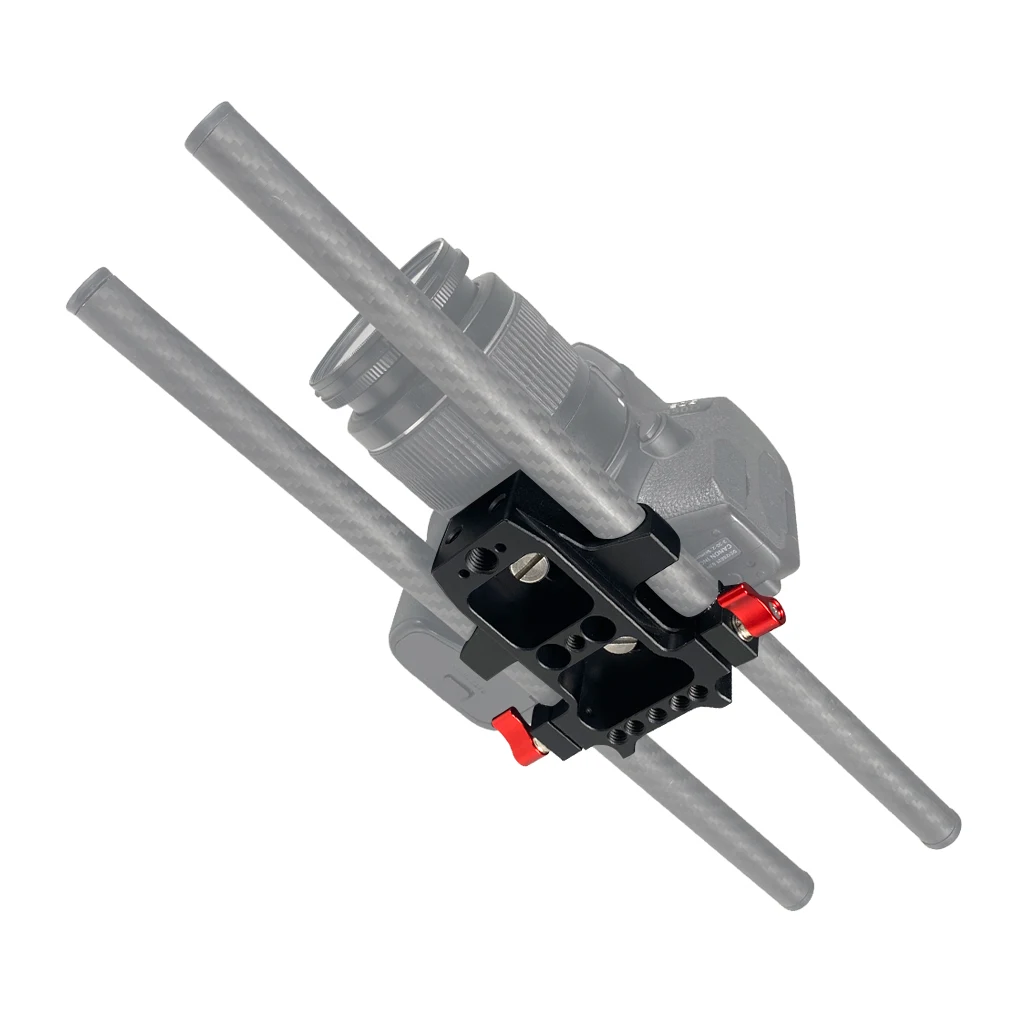

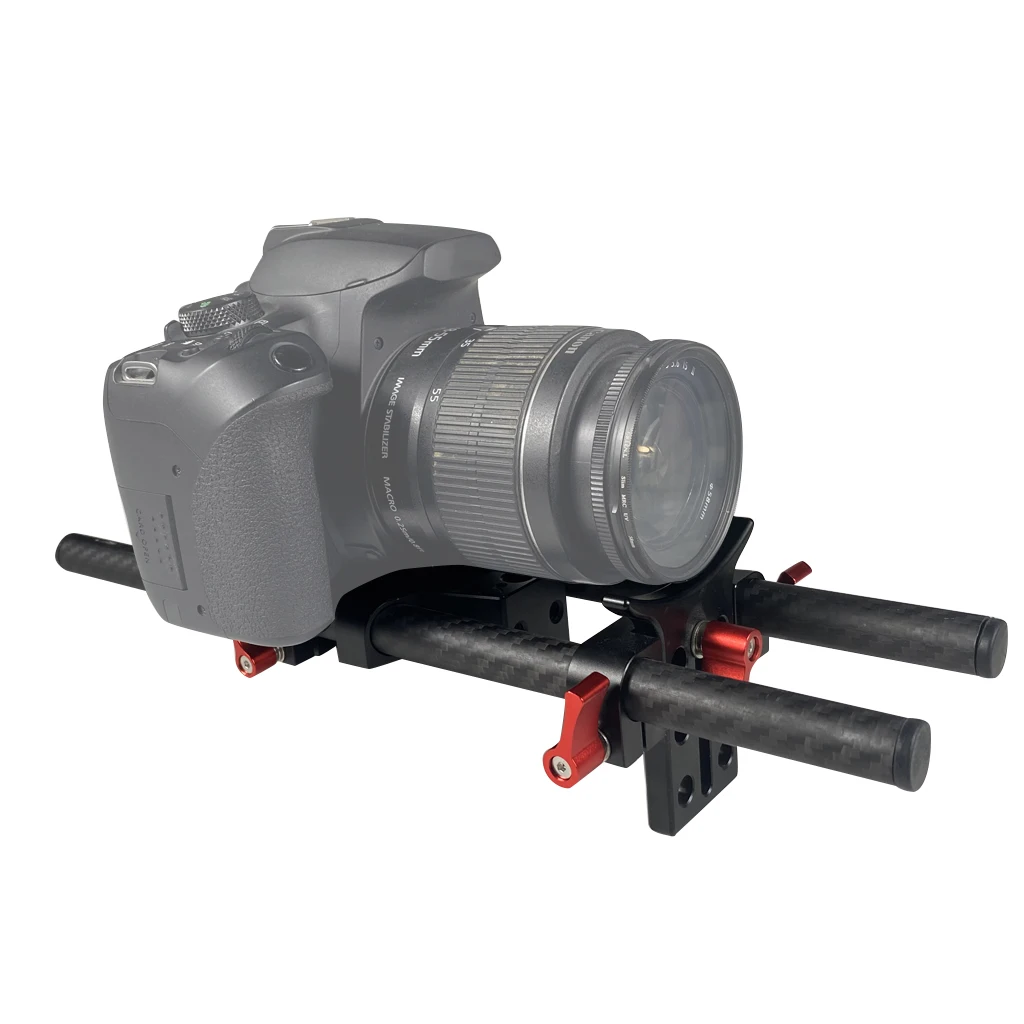

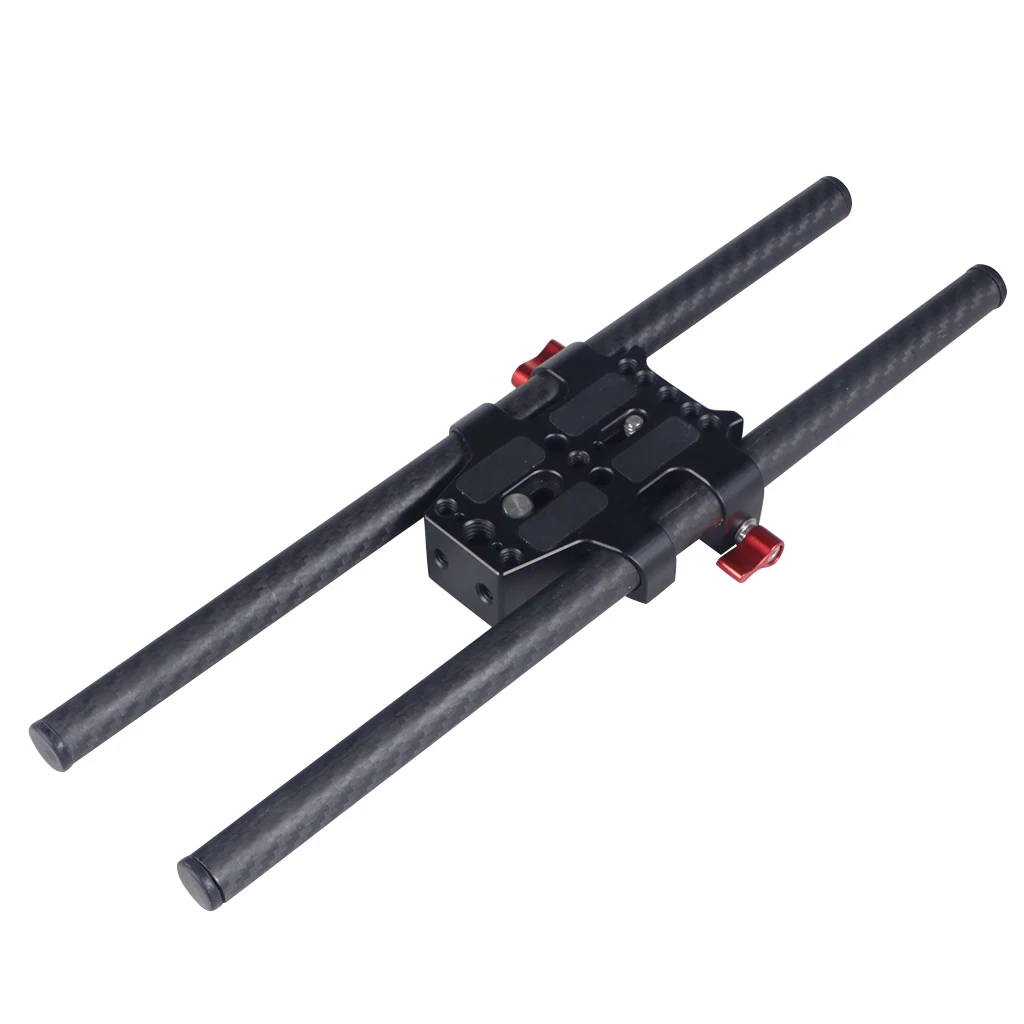

Quick Release Adapter Baseplate With 15mm Rod Clamp For DSLR Camera Cage Rig Shoulder Support System Photography Accessories

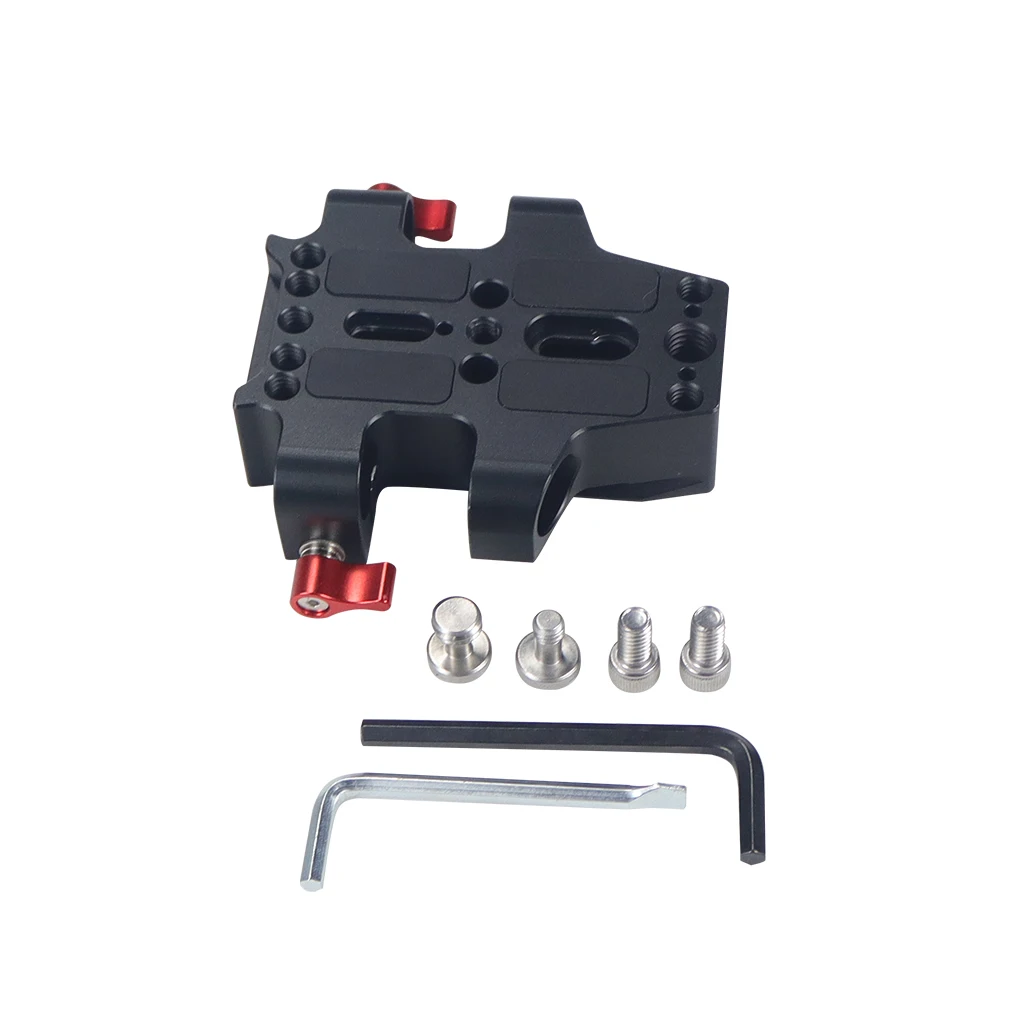

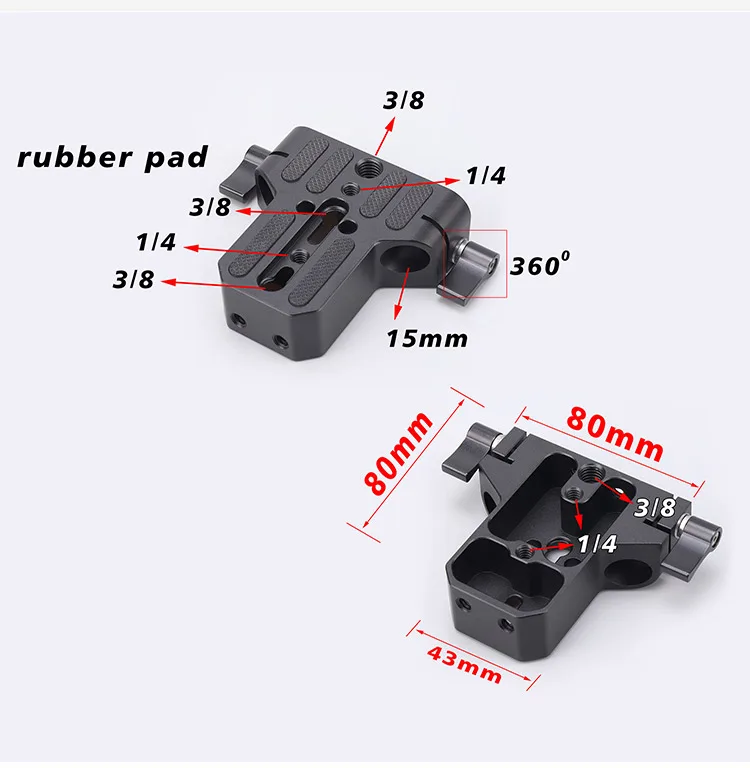

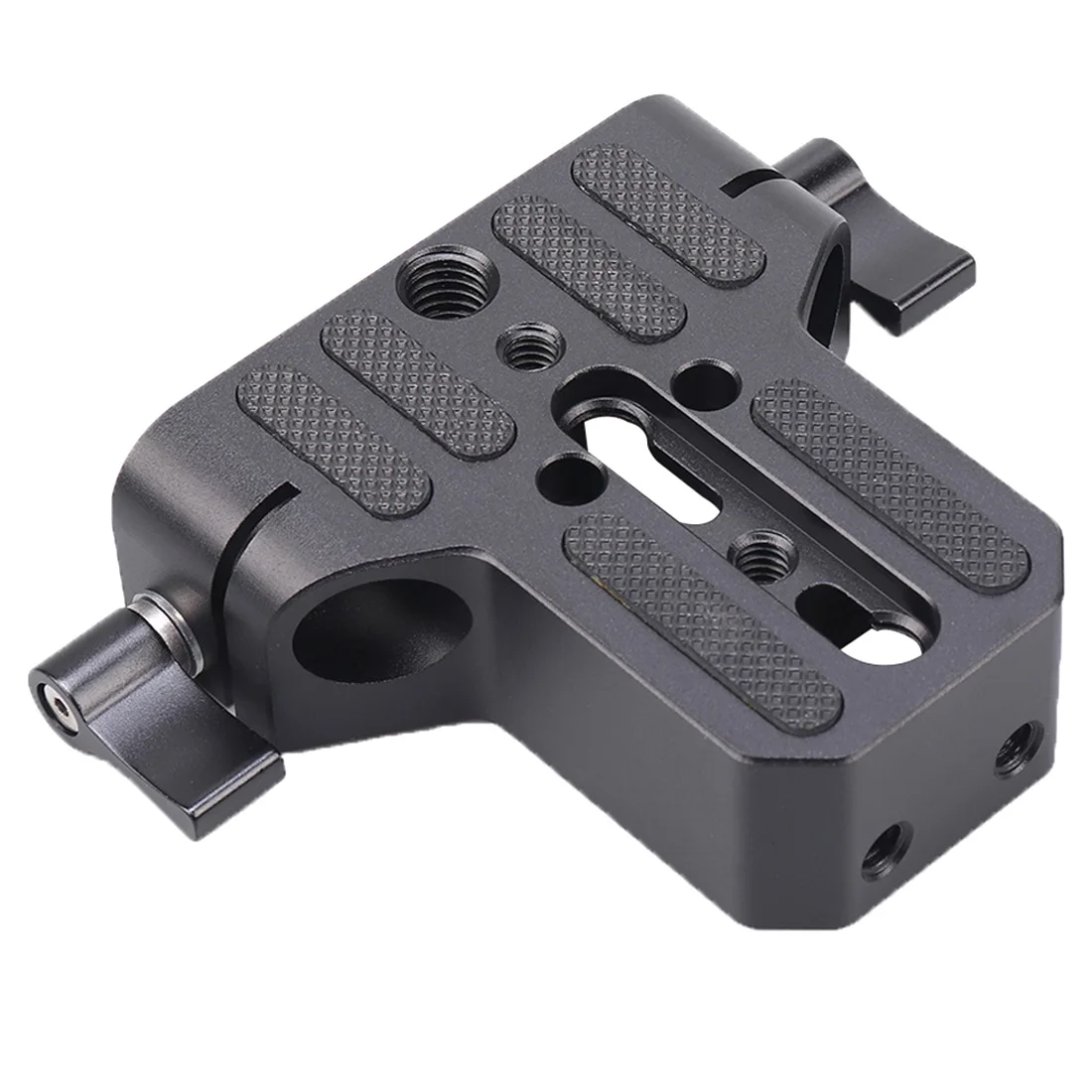

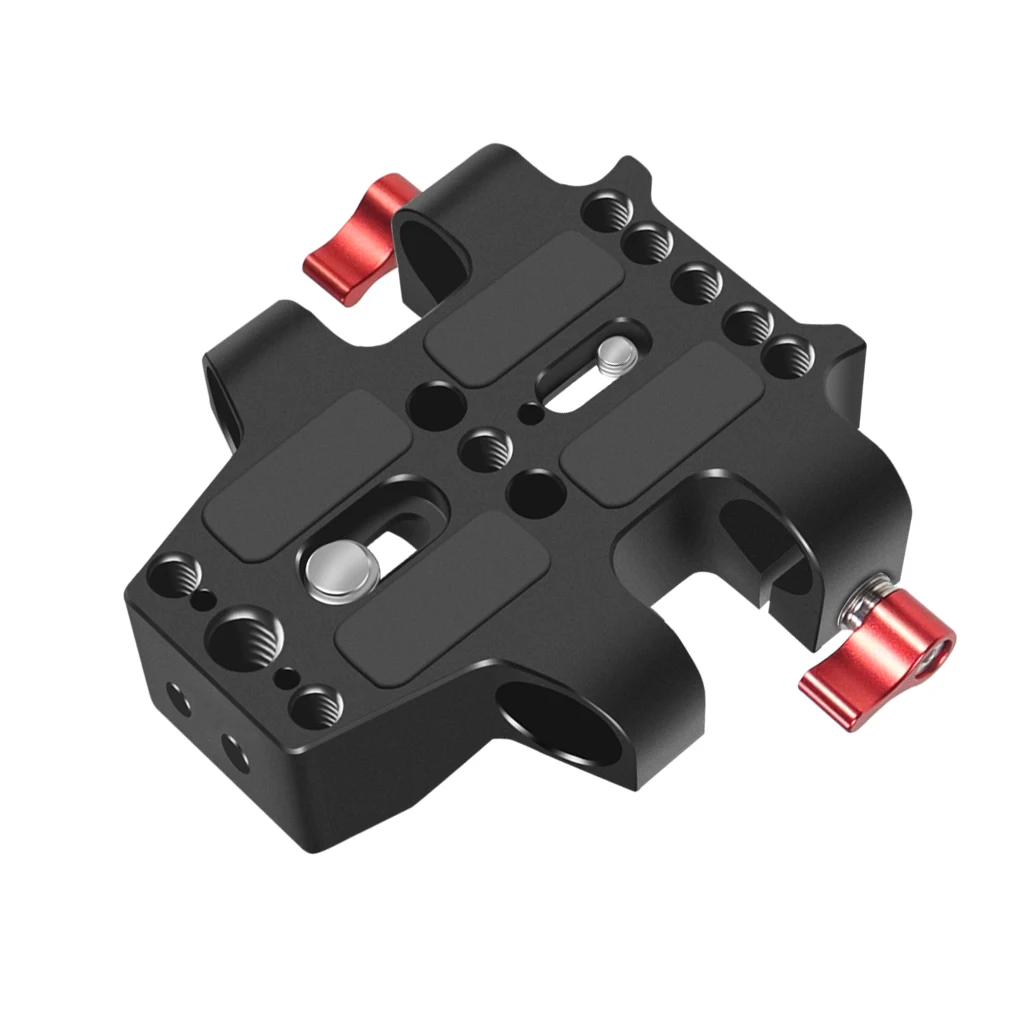

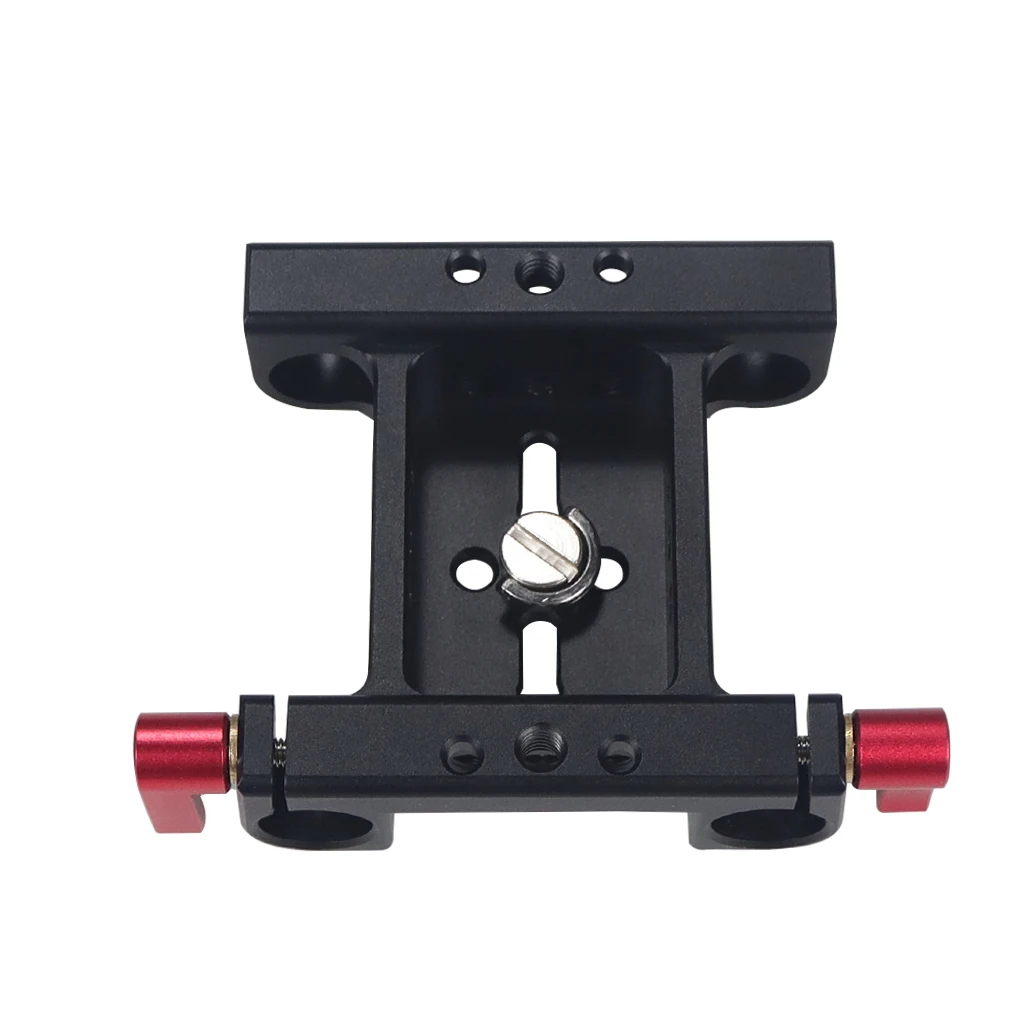

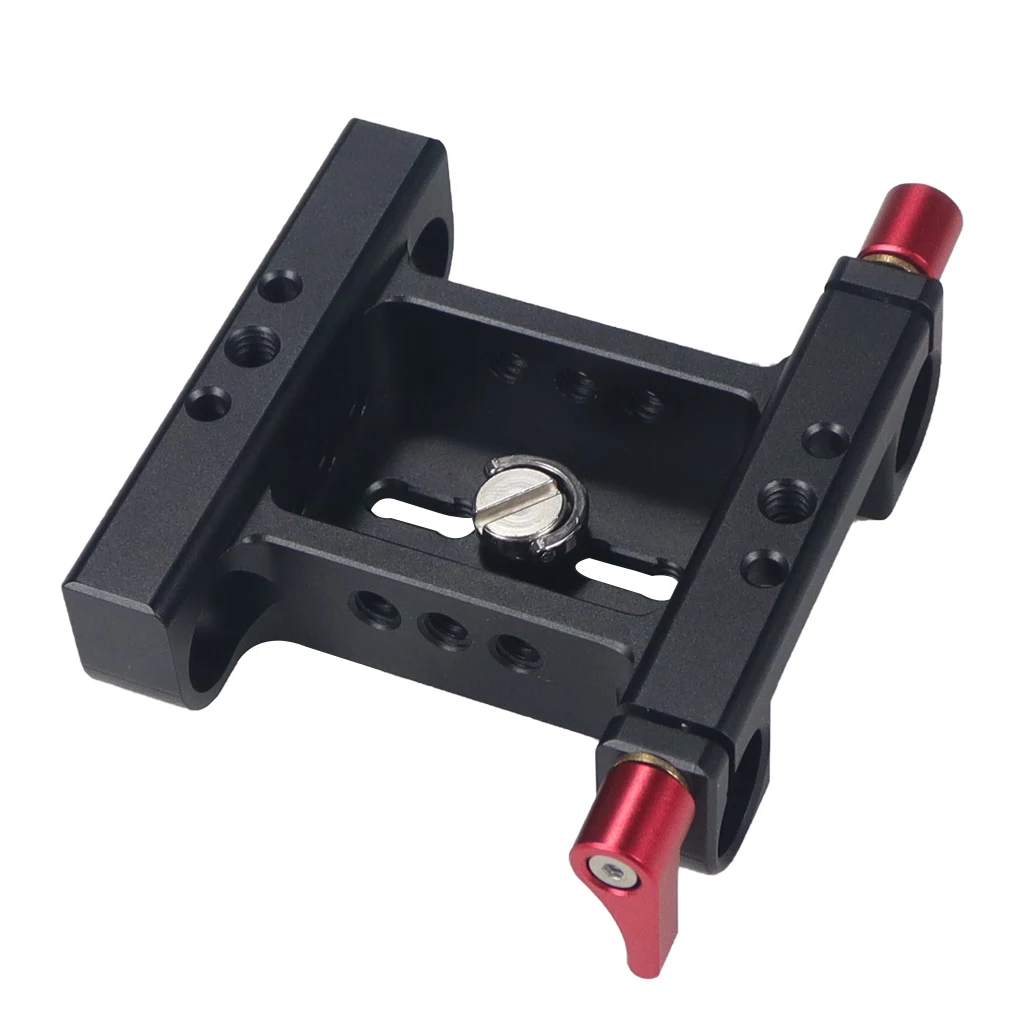

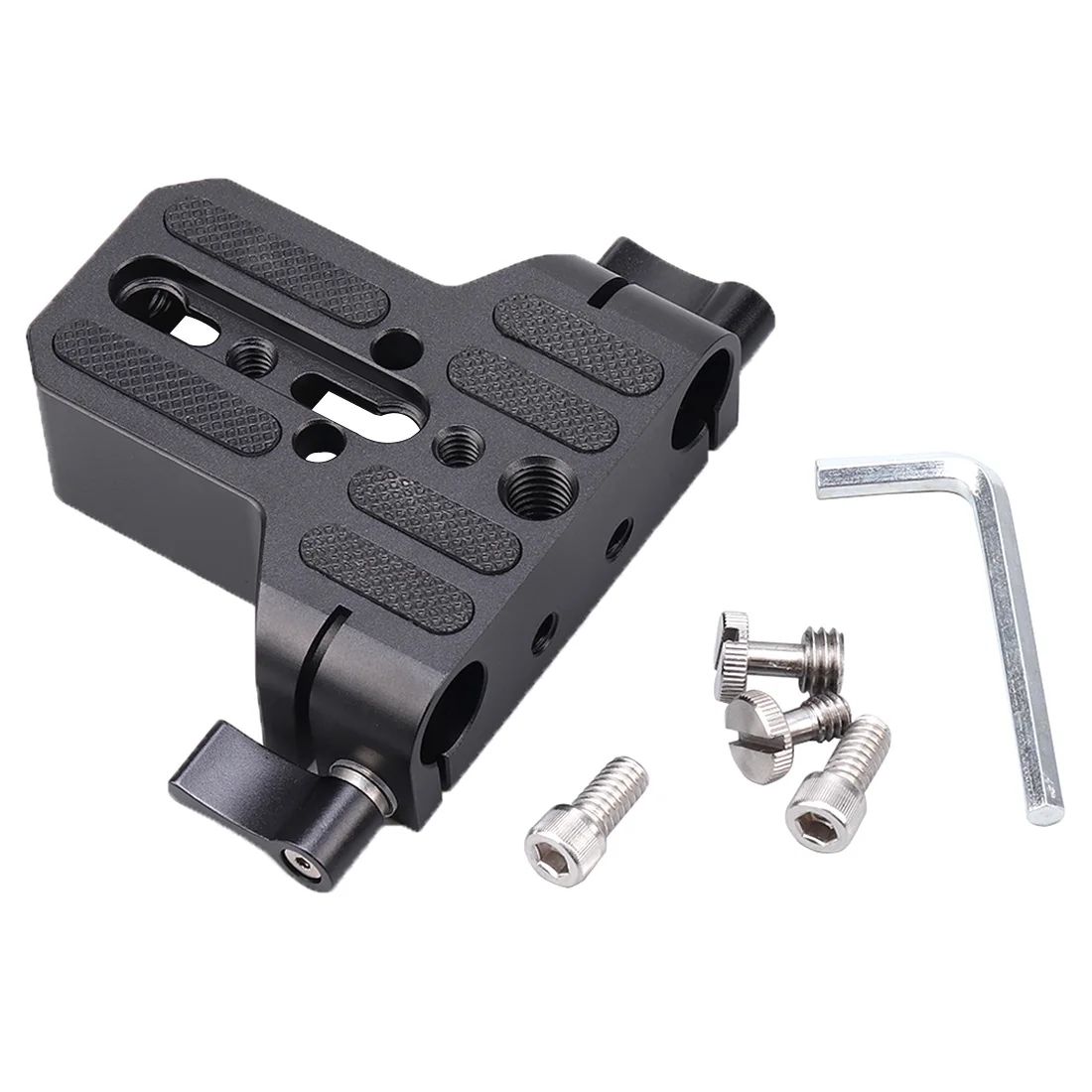

Type A Plate:

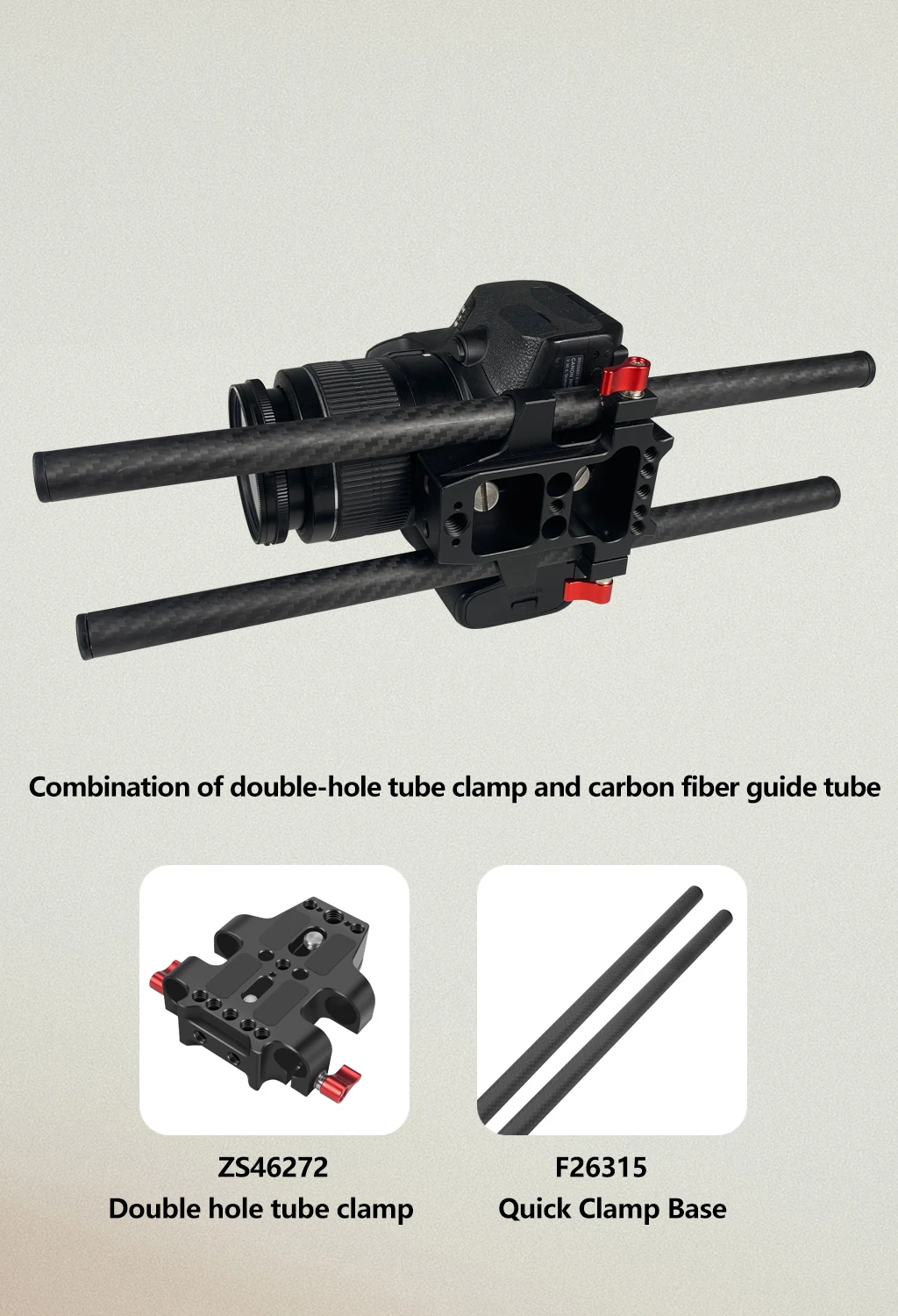

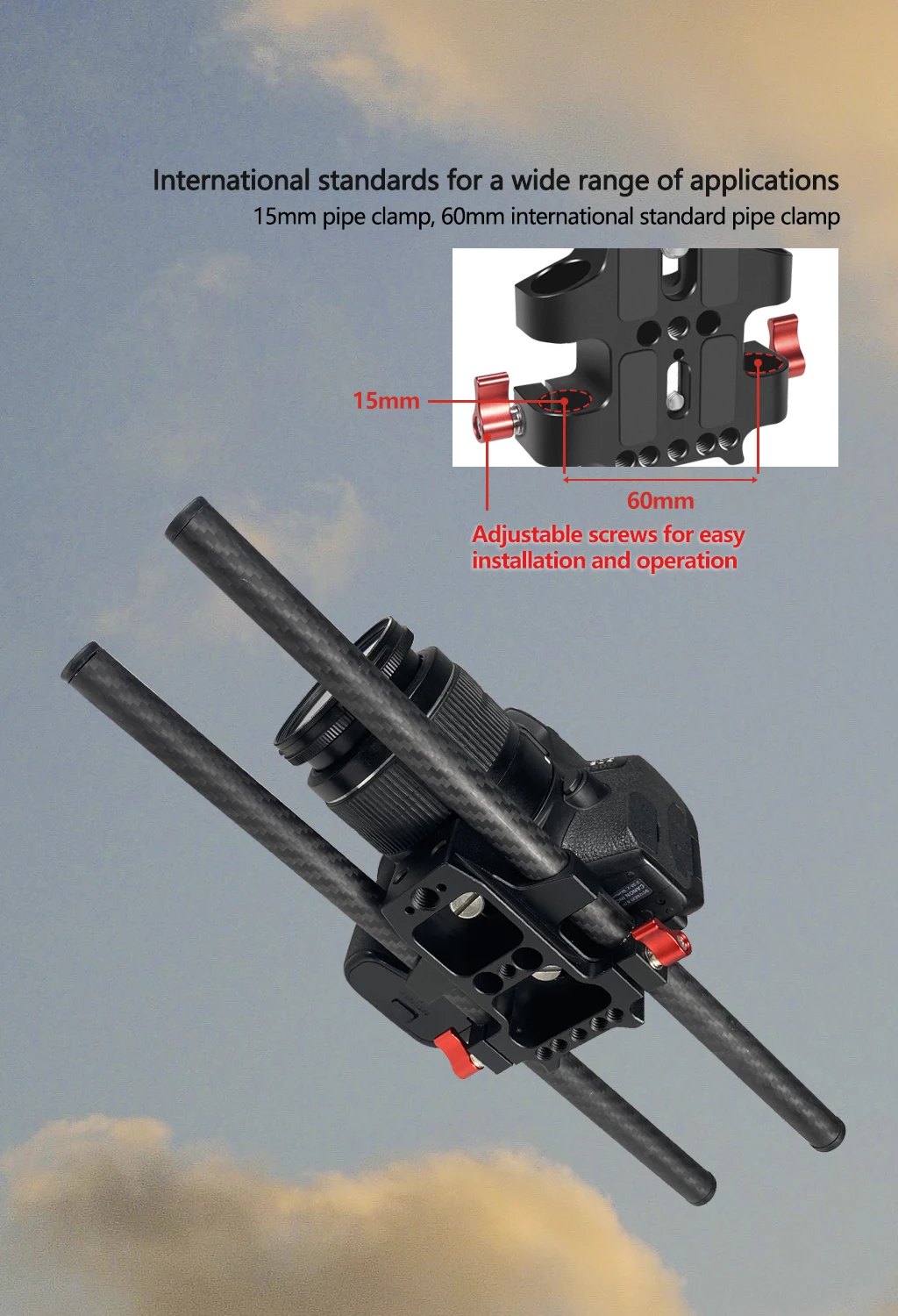

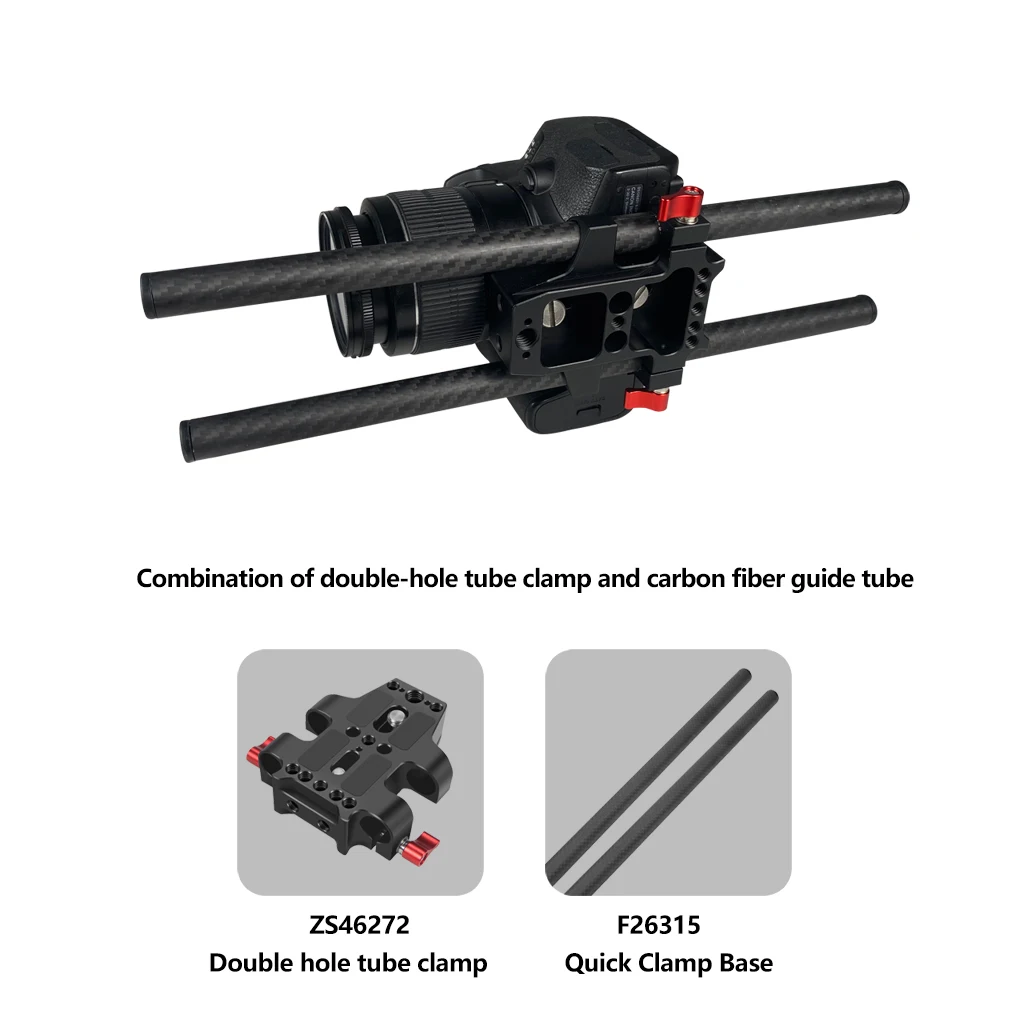

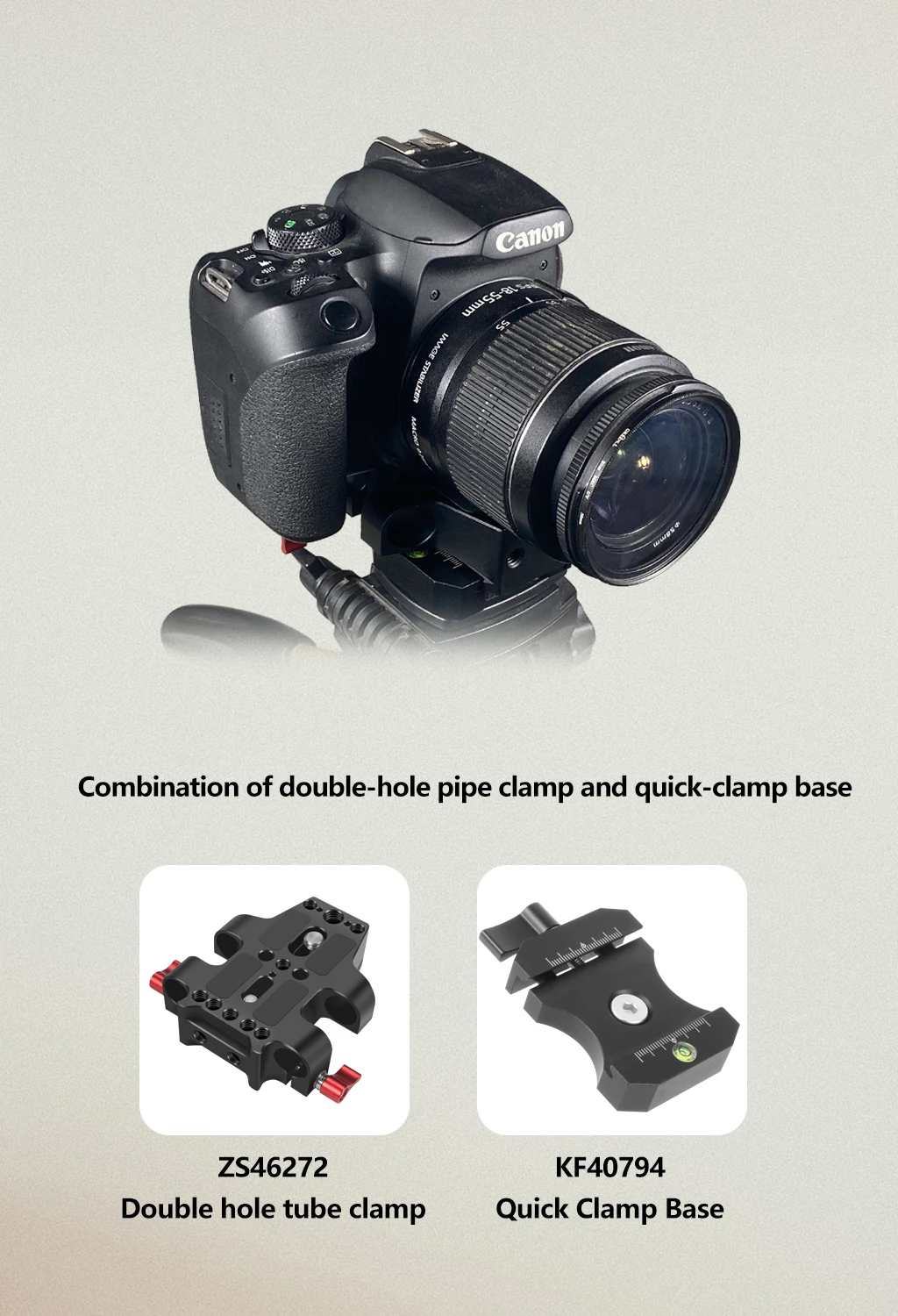

15mm double-hole pipe clamp, gimbal accessory, quick release plate, follow focus, cage catheter base mount

Material: Aluminum alloy

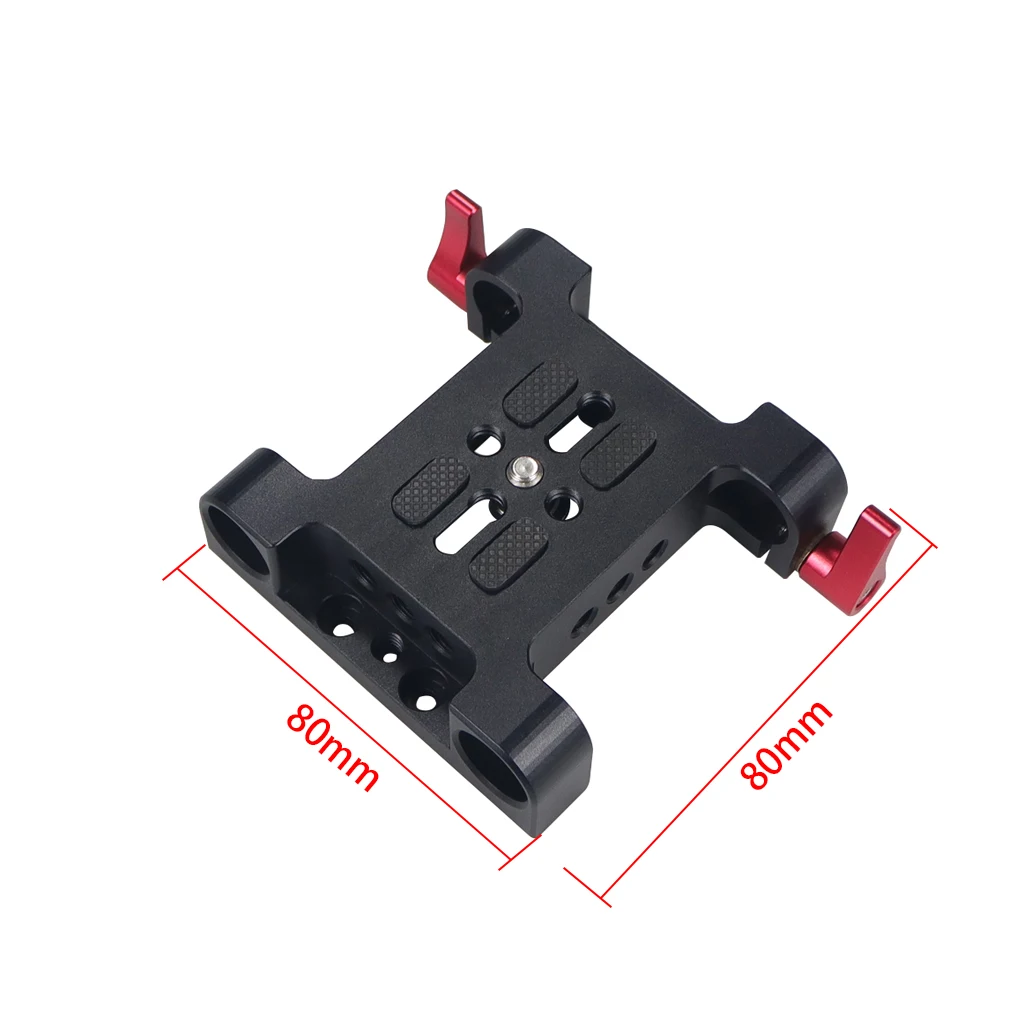

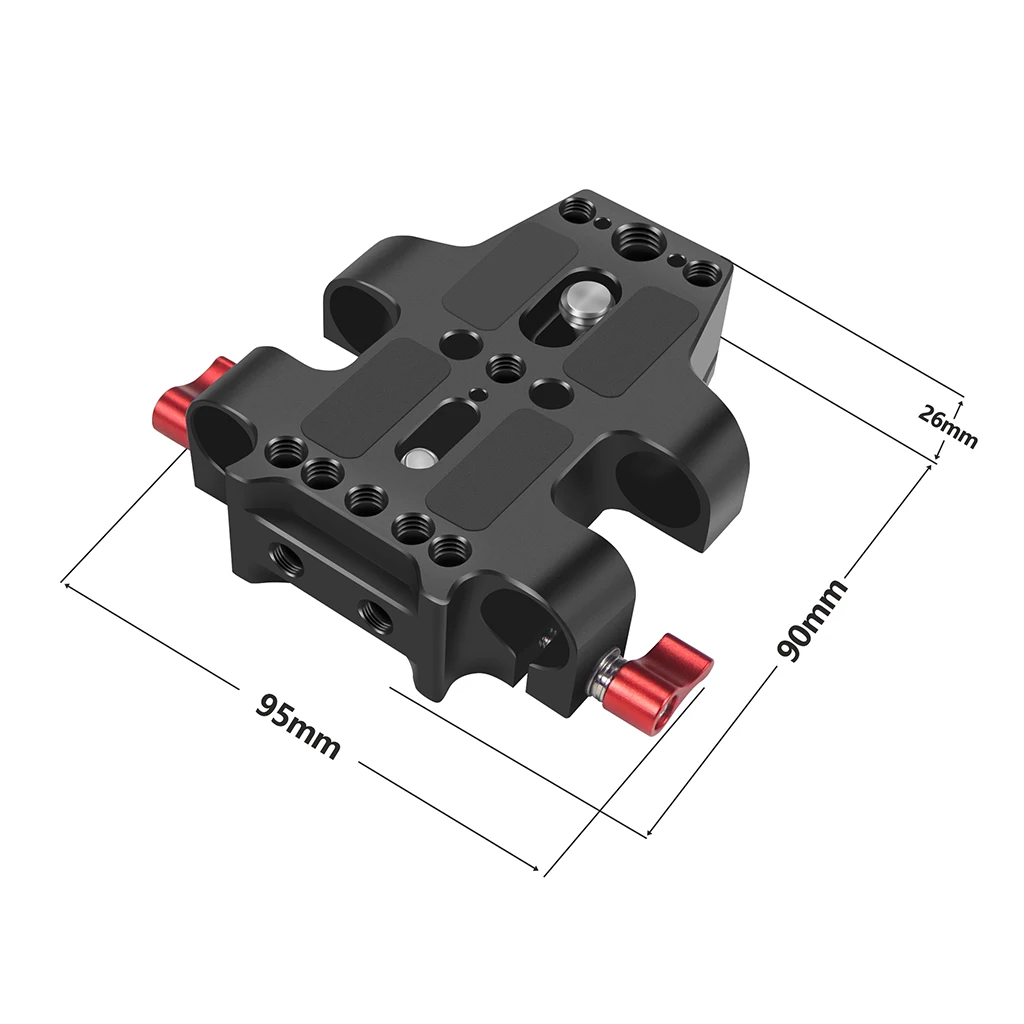

Size: 80*43*80mm

Weight: 220g

Applicable models: For general 15mm pipe diameter

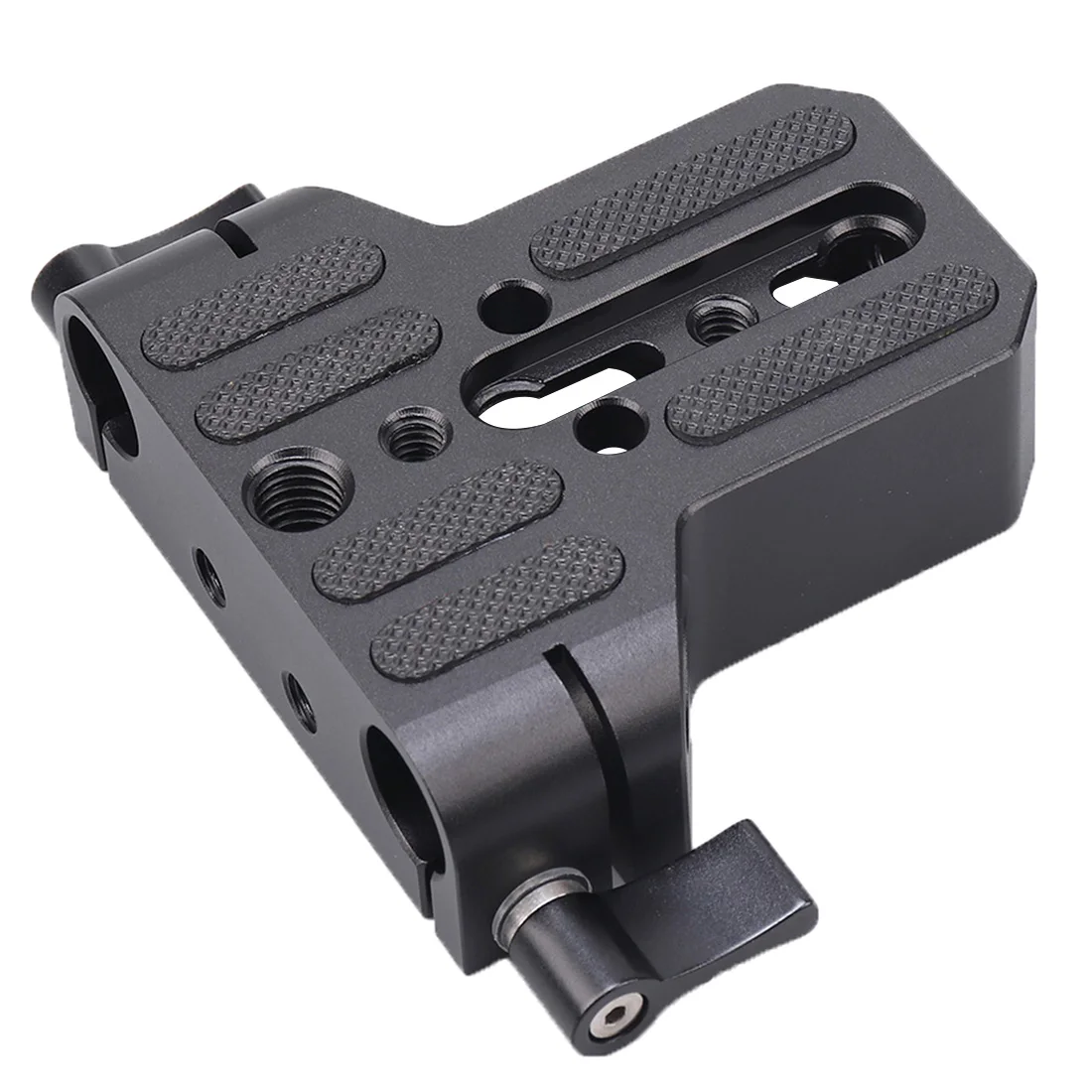

Type B Plate:

Type C Plate:

Features:

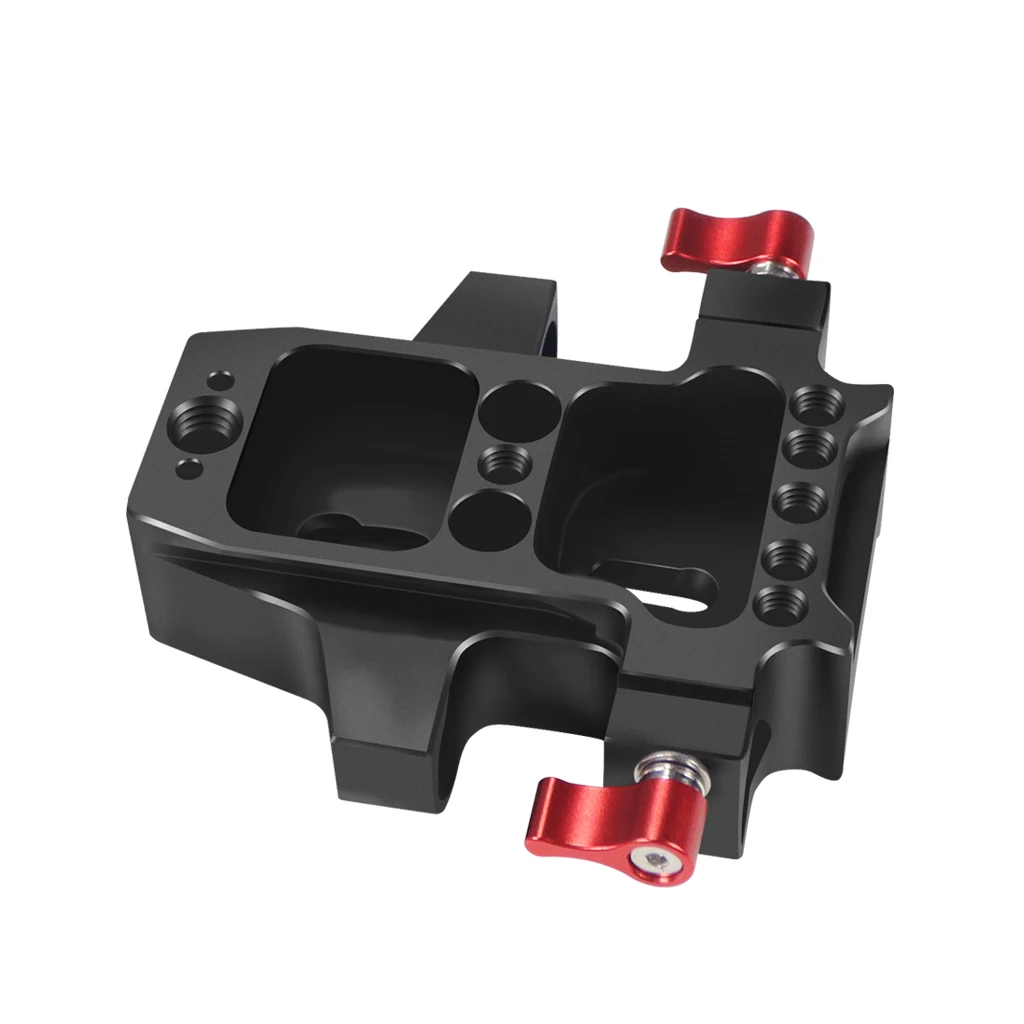

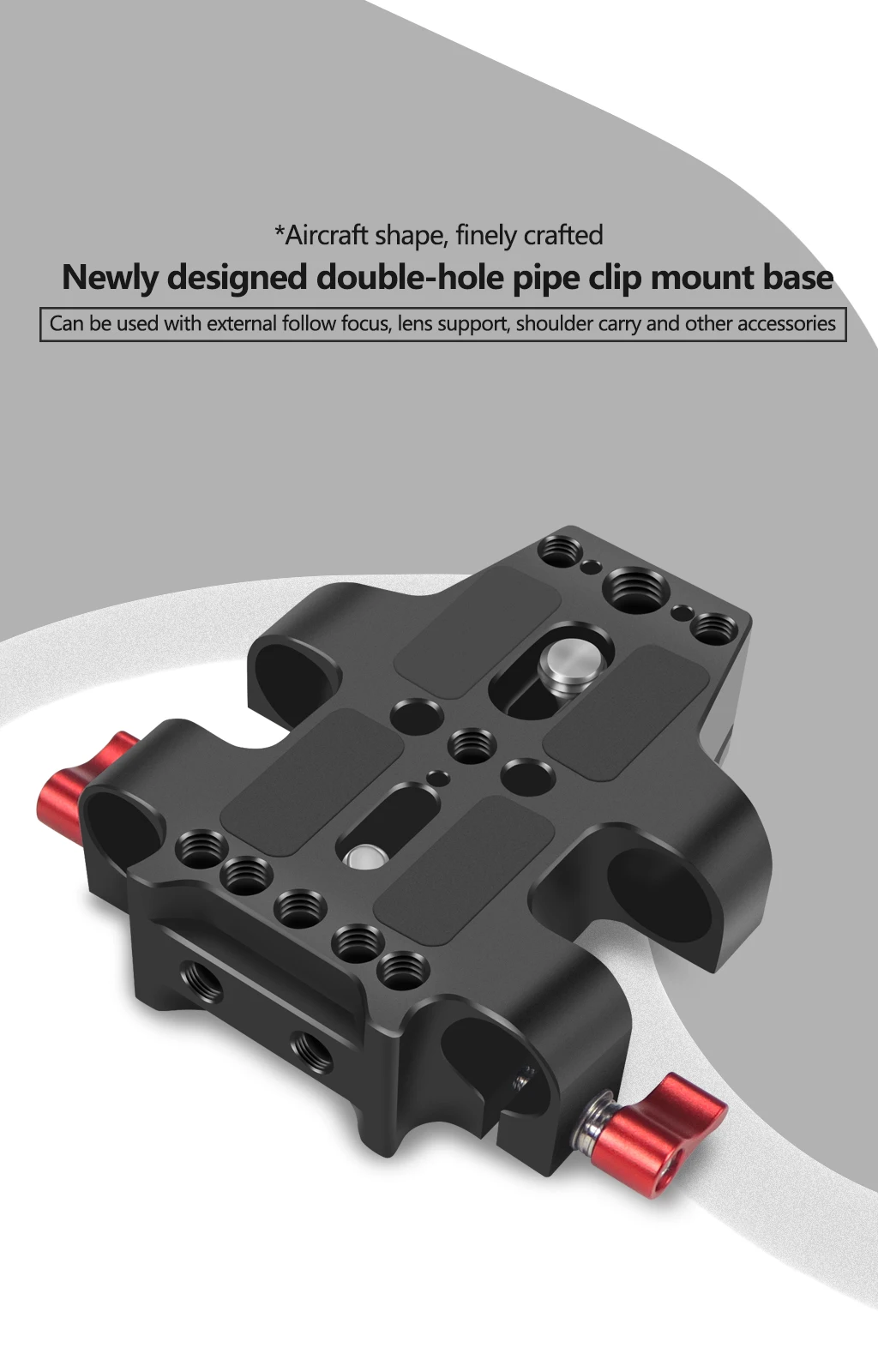

New design, aircraft carrier shape, extreme hollow.

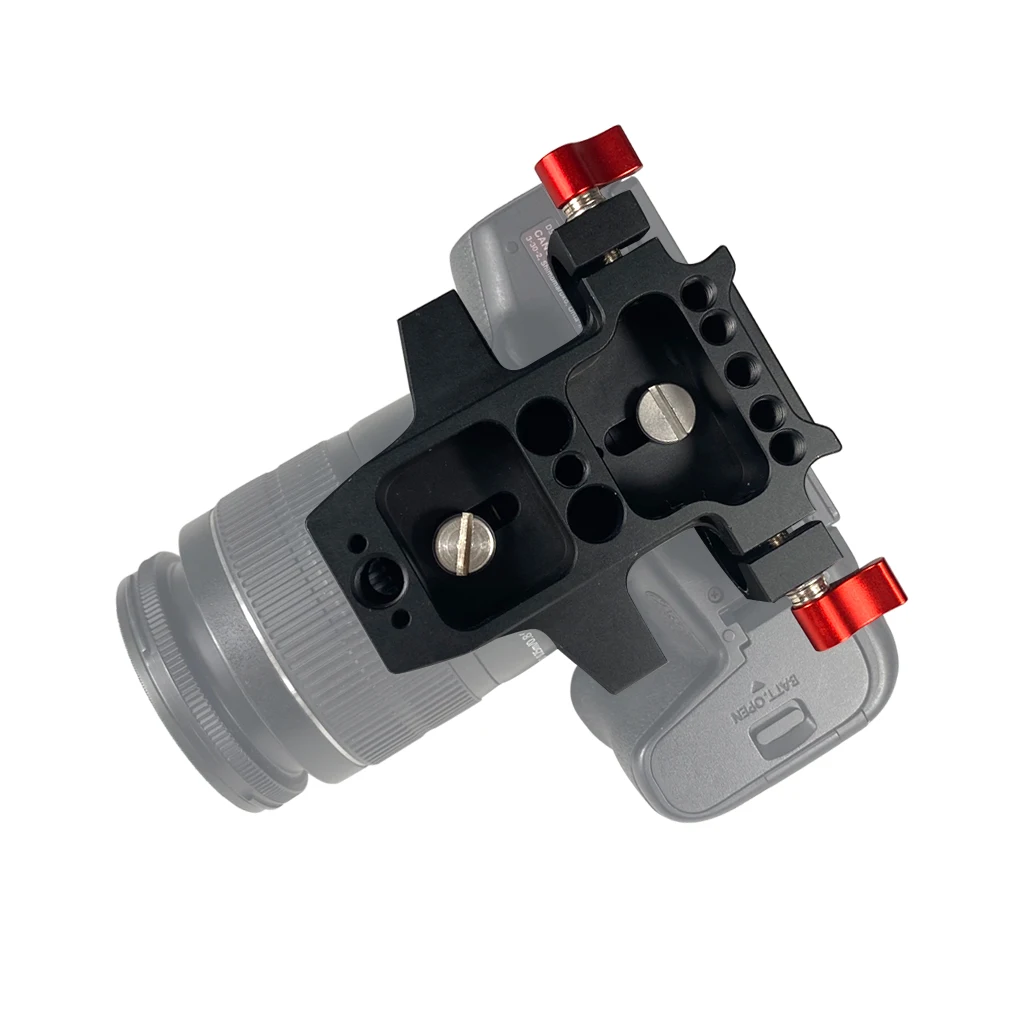

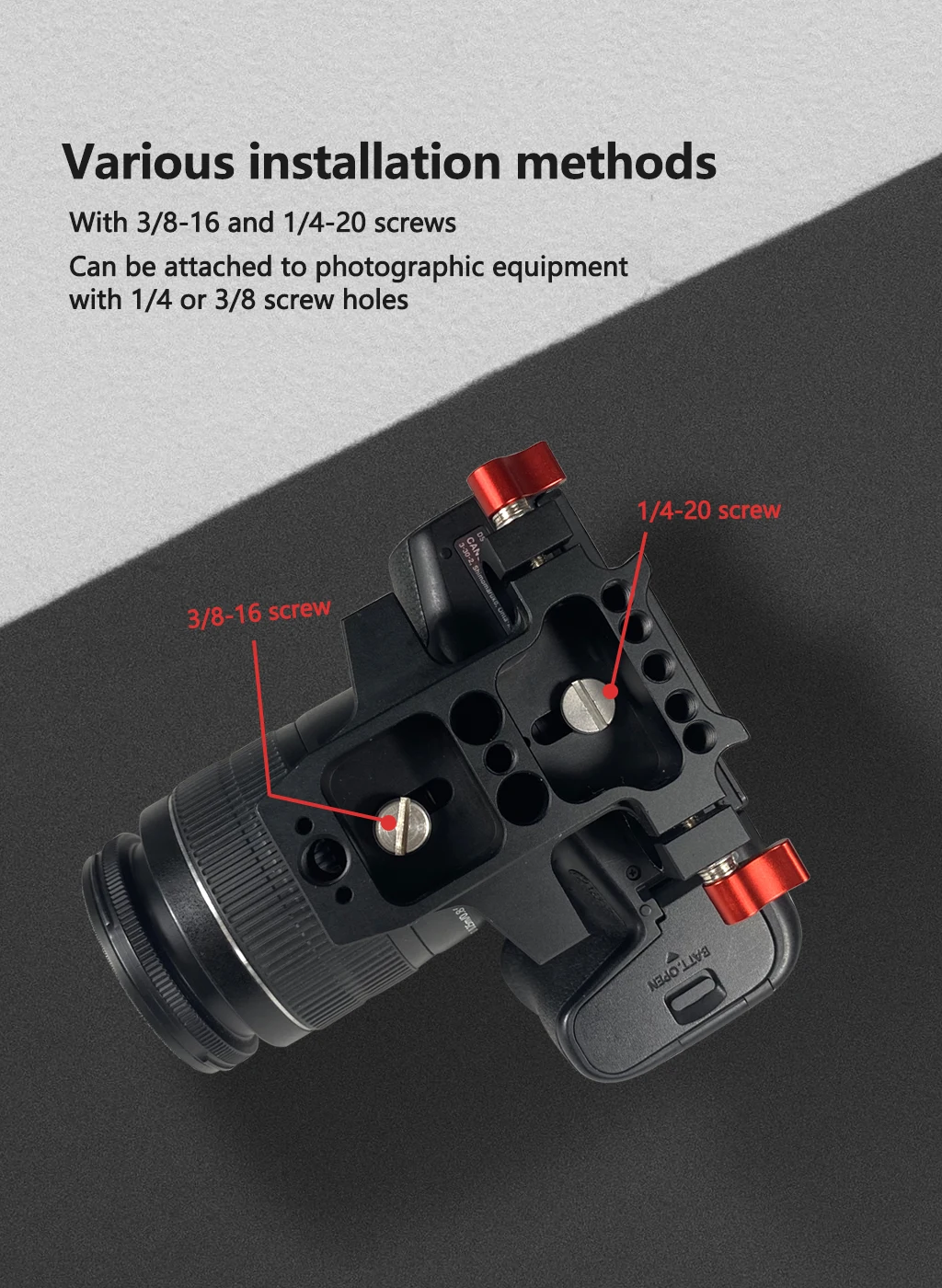

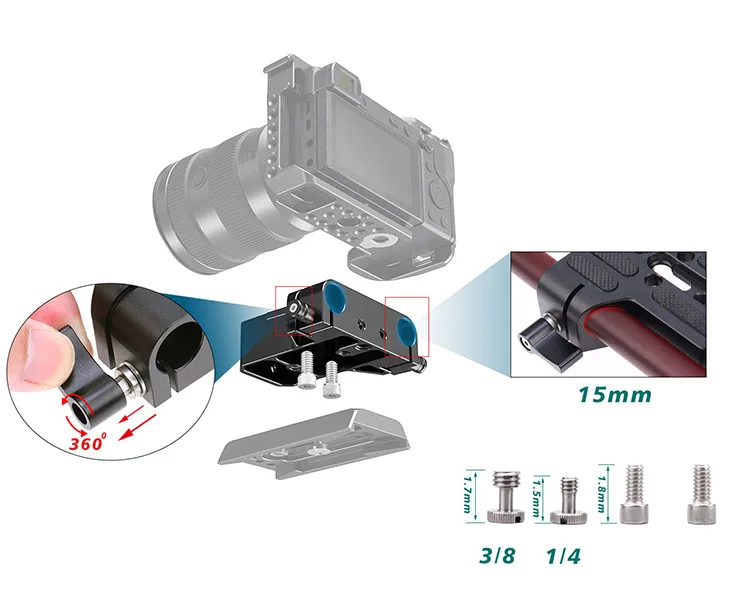

With 3/8"-16 and 1/4" -20 screws, it can be easily and quickly connected to photographic equipment with 1/4" or 3/8" screw holes;

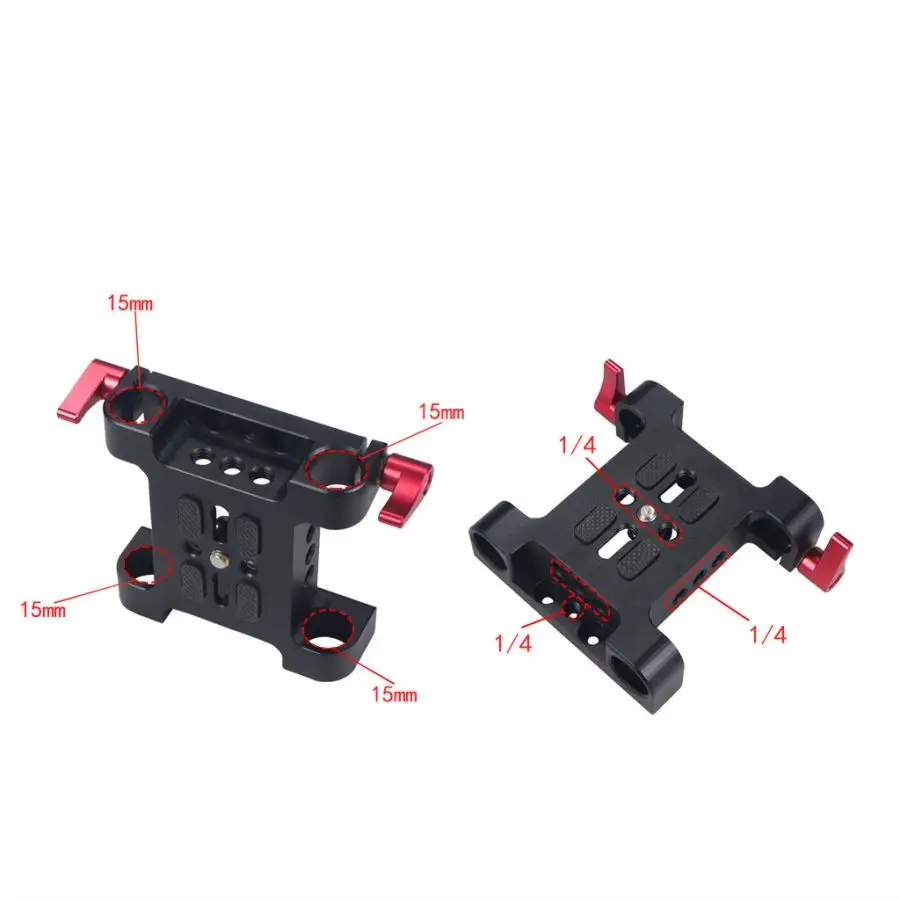

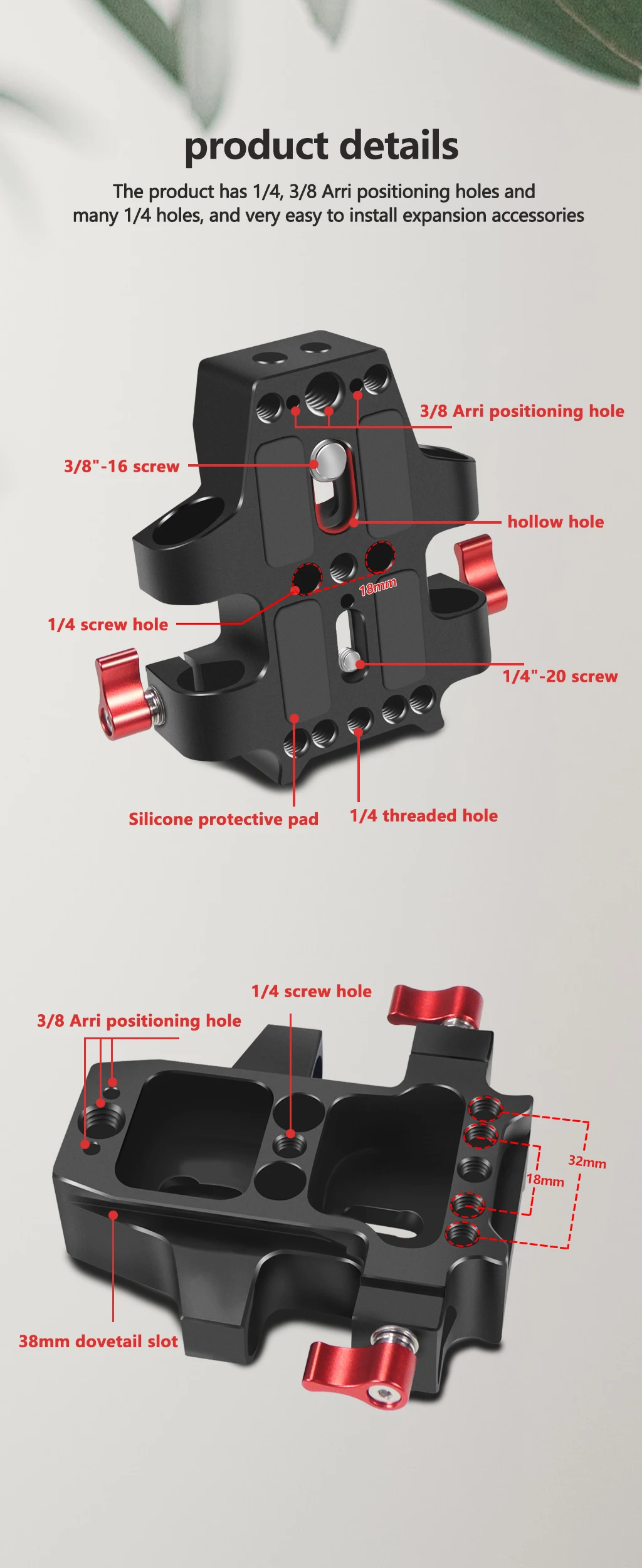

The product is designed with rich expansion holes, with 1/4 3/8 ARRI positioning holes and many 1/4 holes respectively. There is no pressure to install expansion accessories;

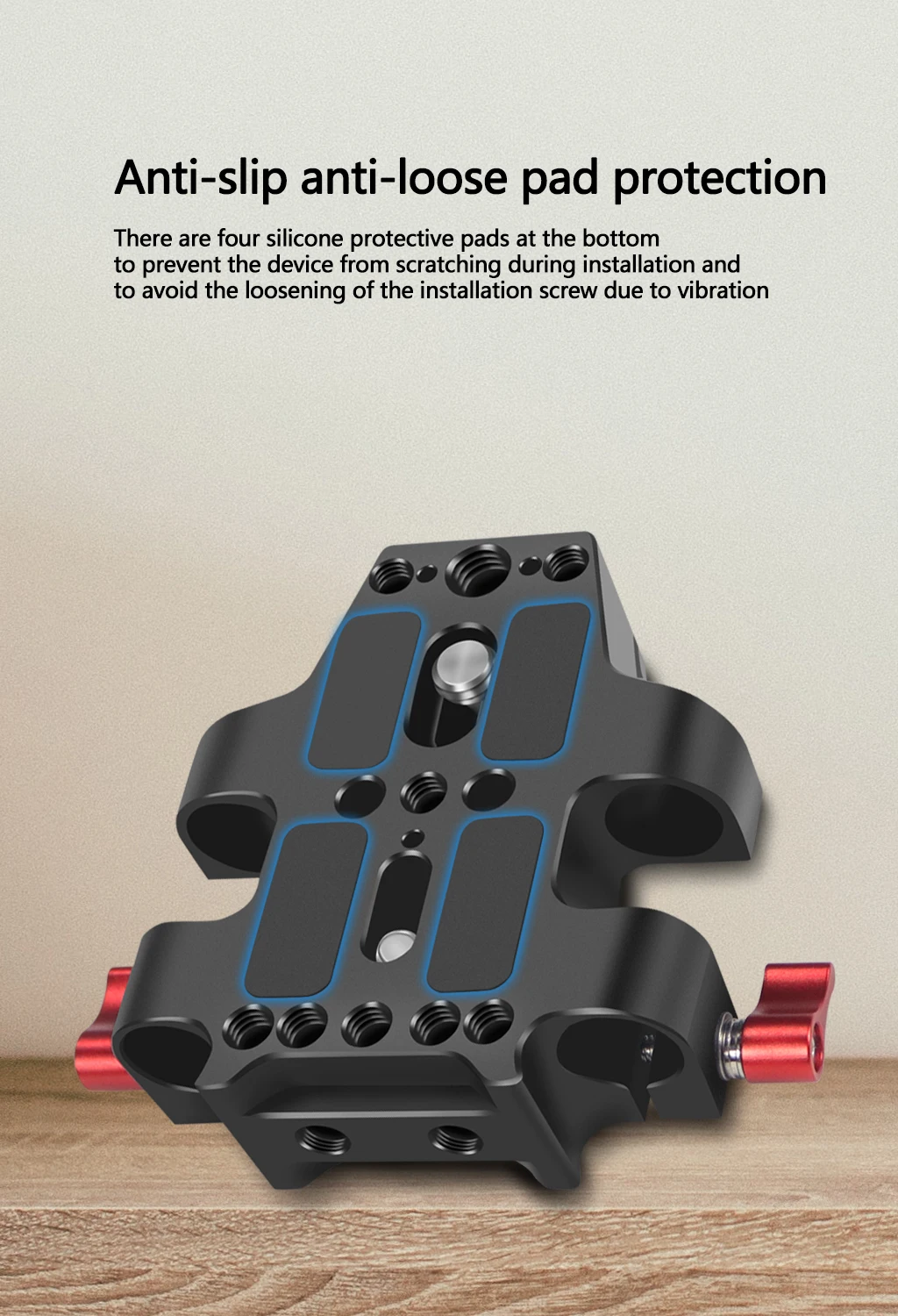

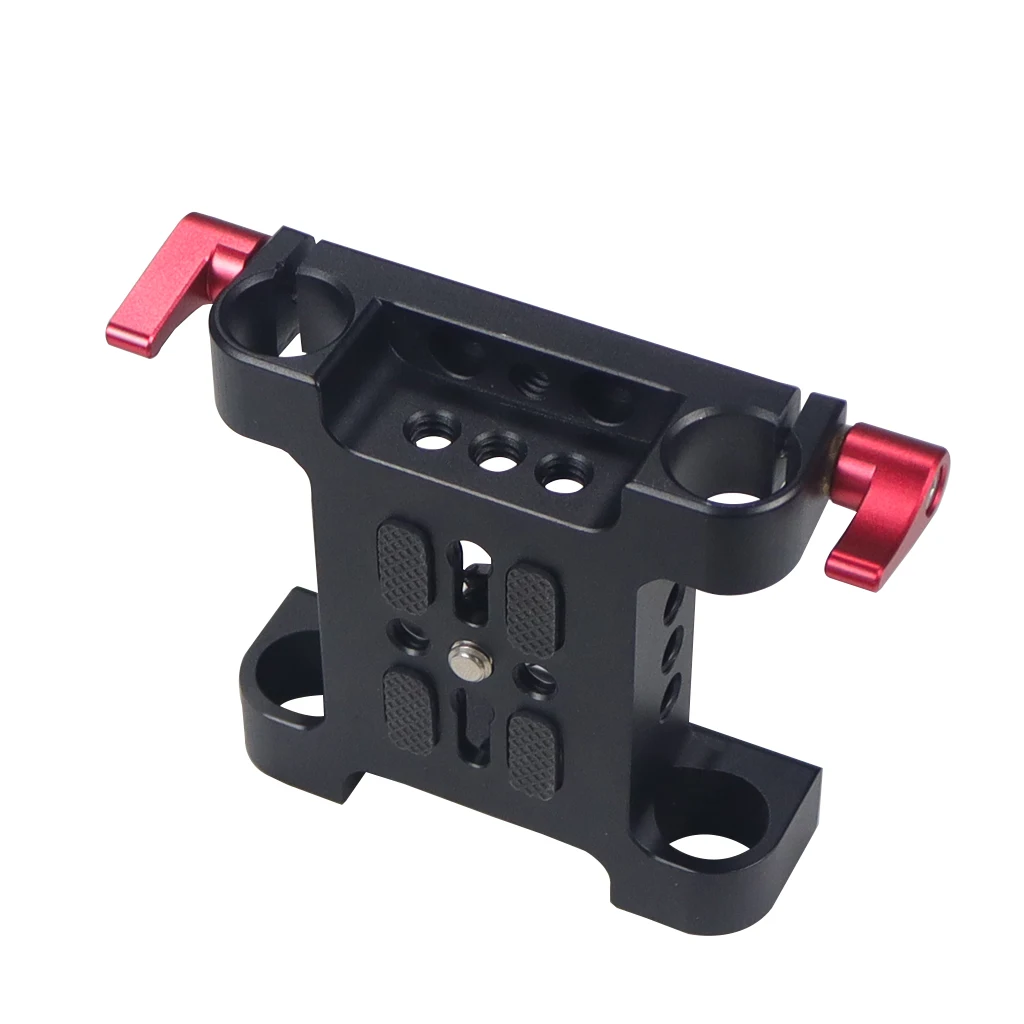

The bottom plate is designed with 4x silicone protective rubber pads, and the equipment is installed on it to prevent scratches and prevent the installation screw from loosening due to vibration;

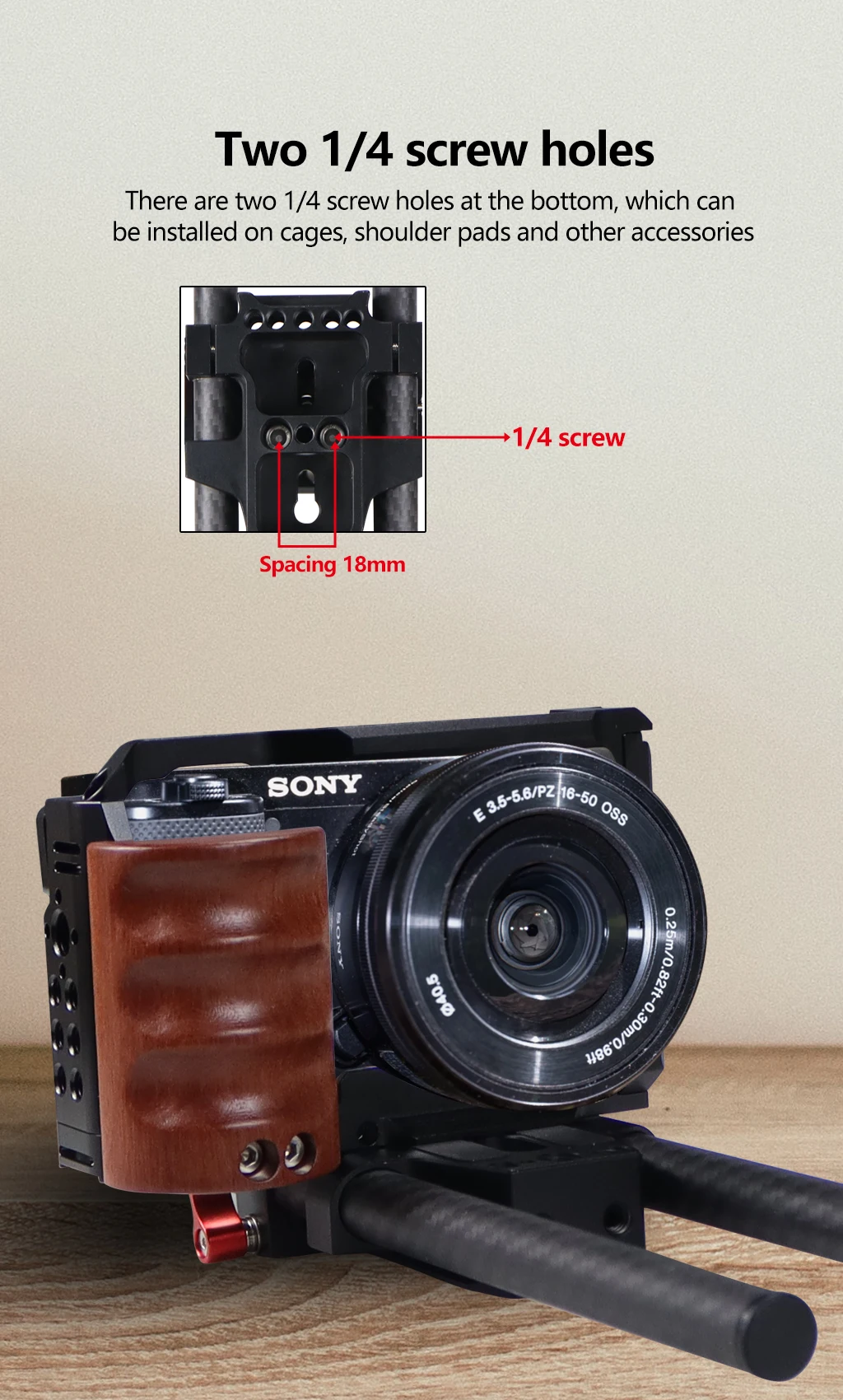

There are 2x 1/4" screw through holes with a hole spacing of 18mm at the bottom, which can be installed on shoulder pads and other accessories;

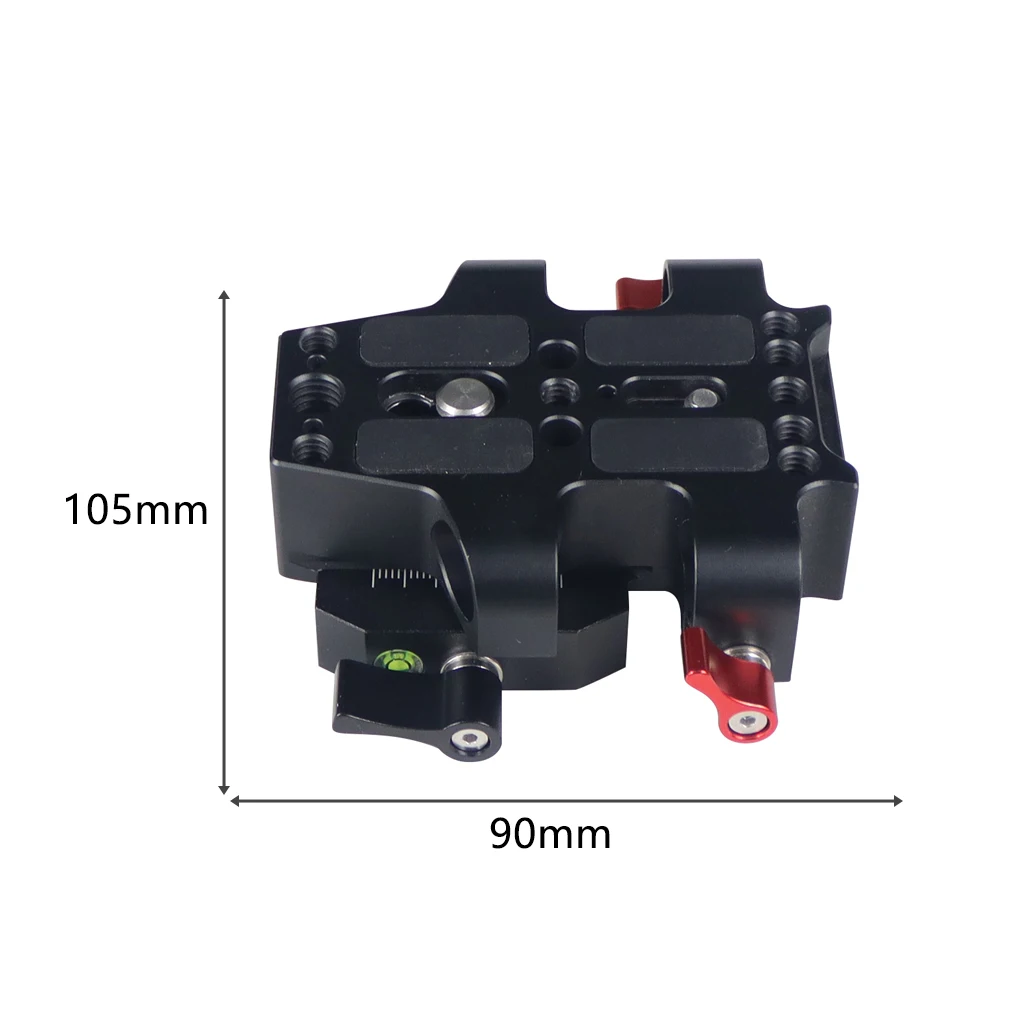

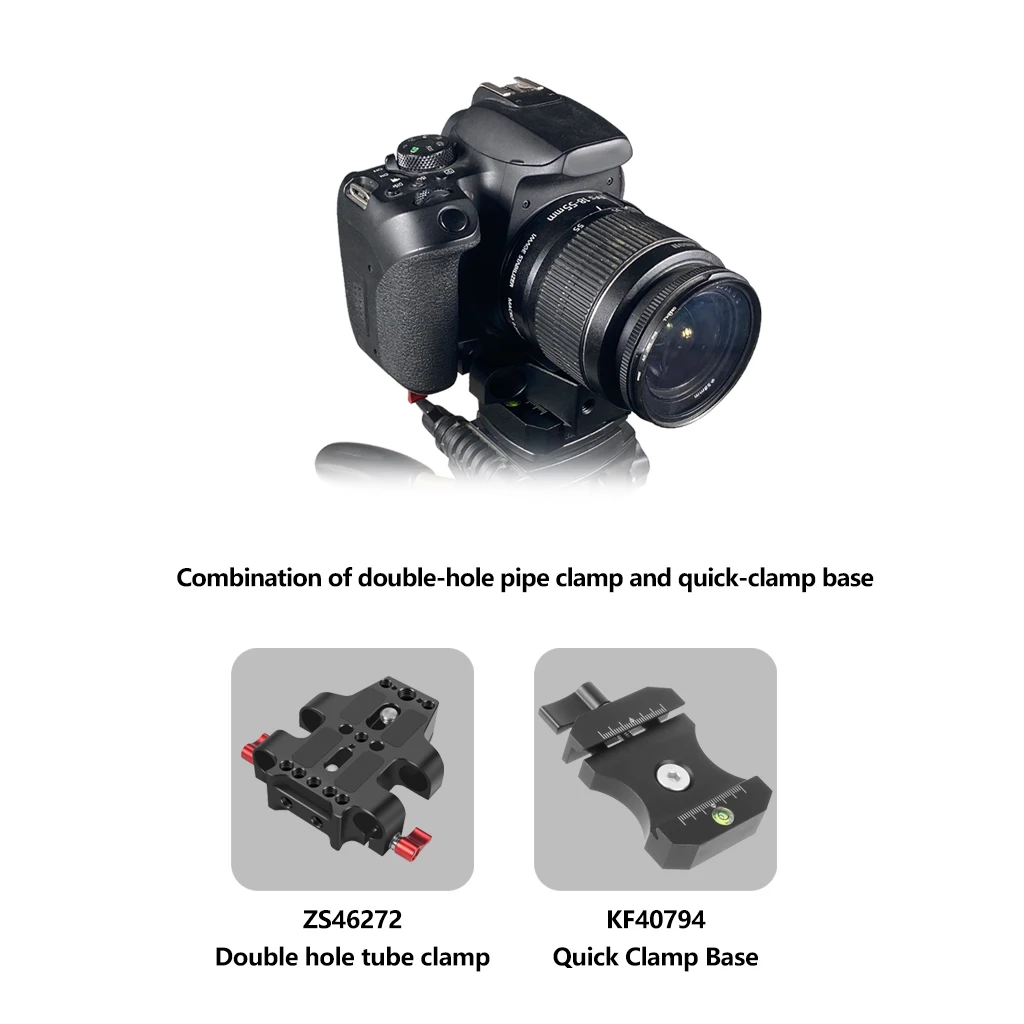

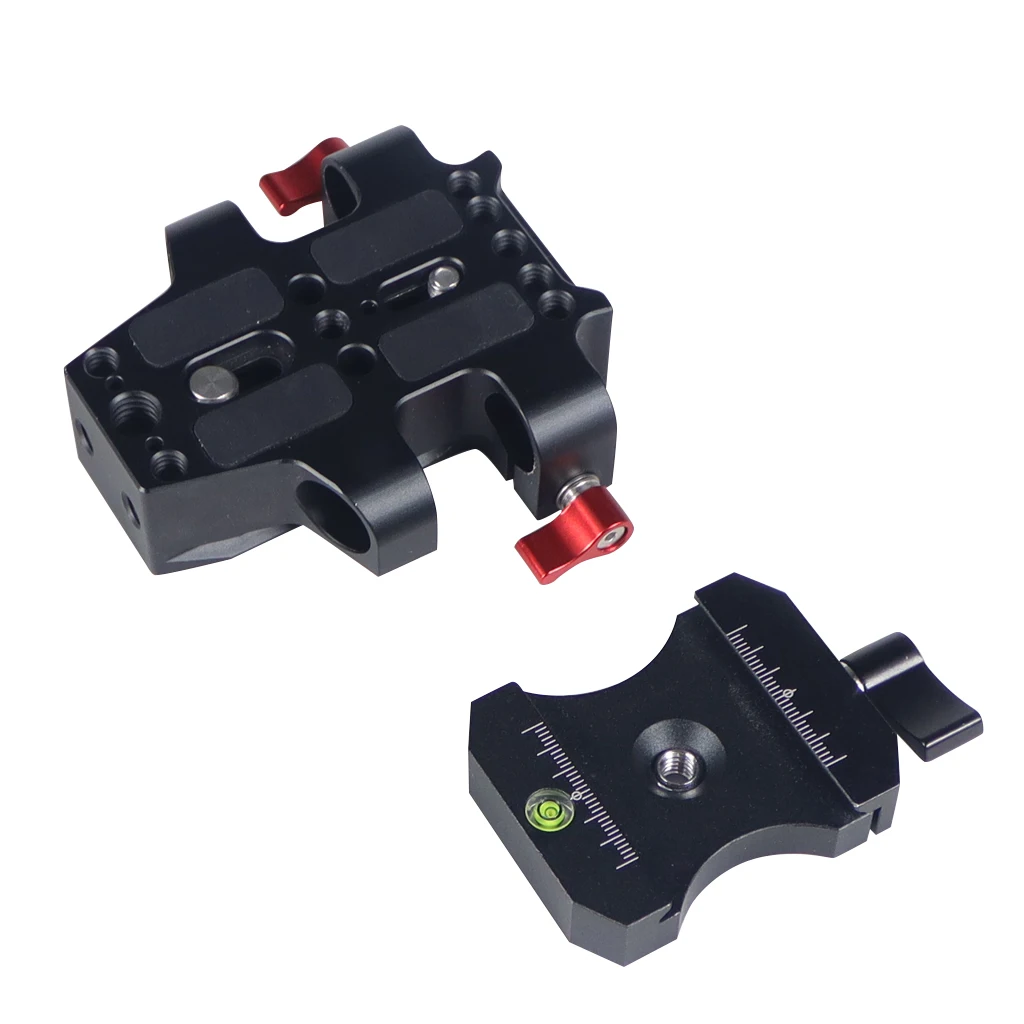

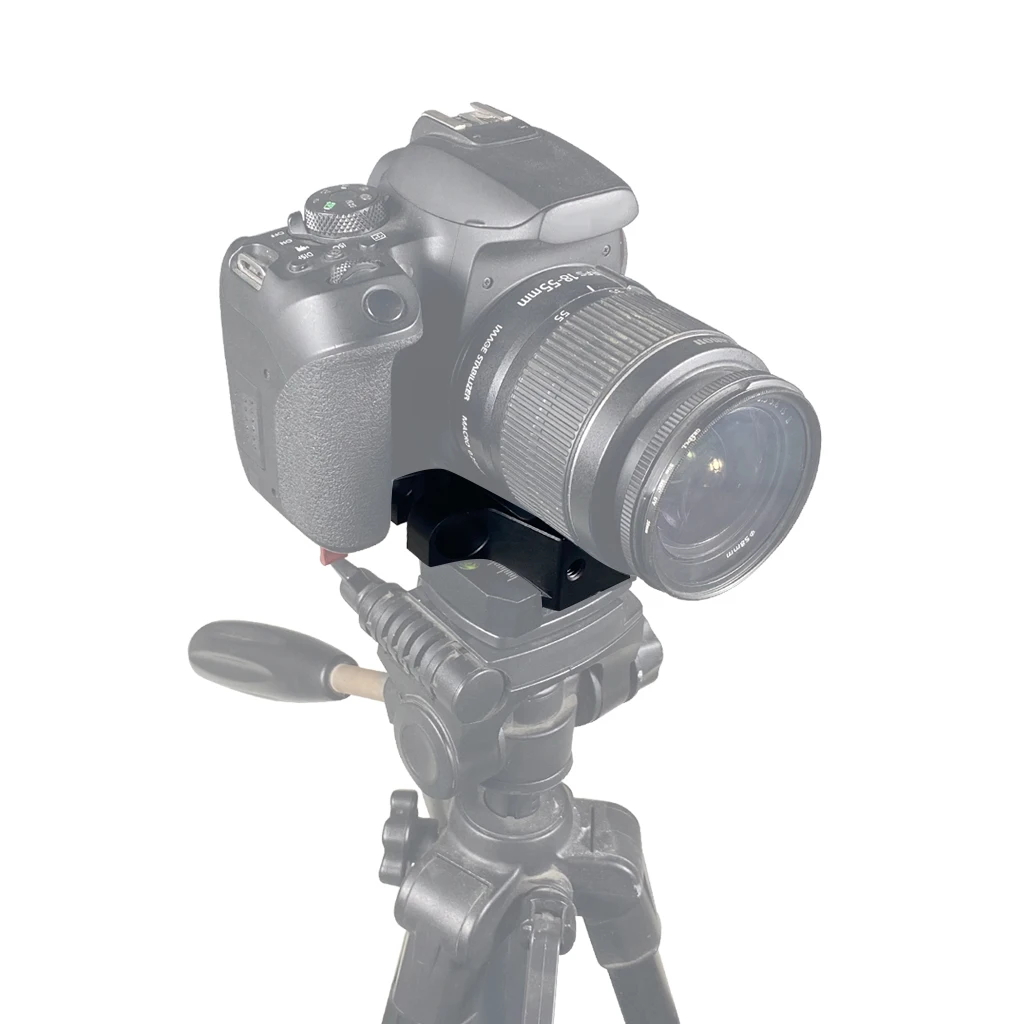

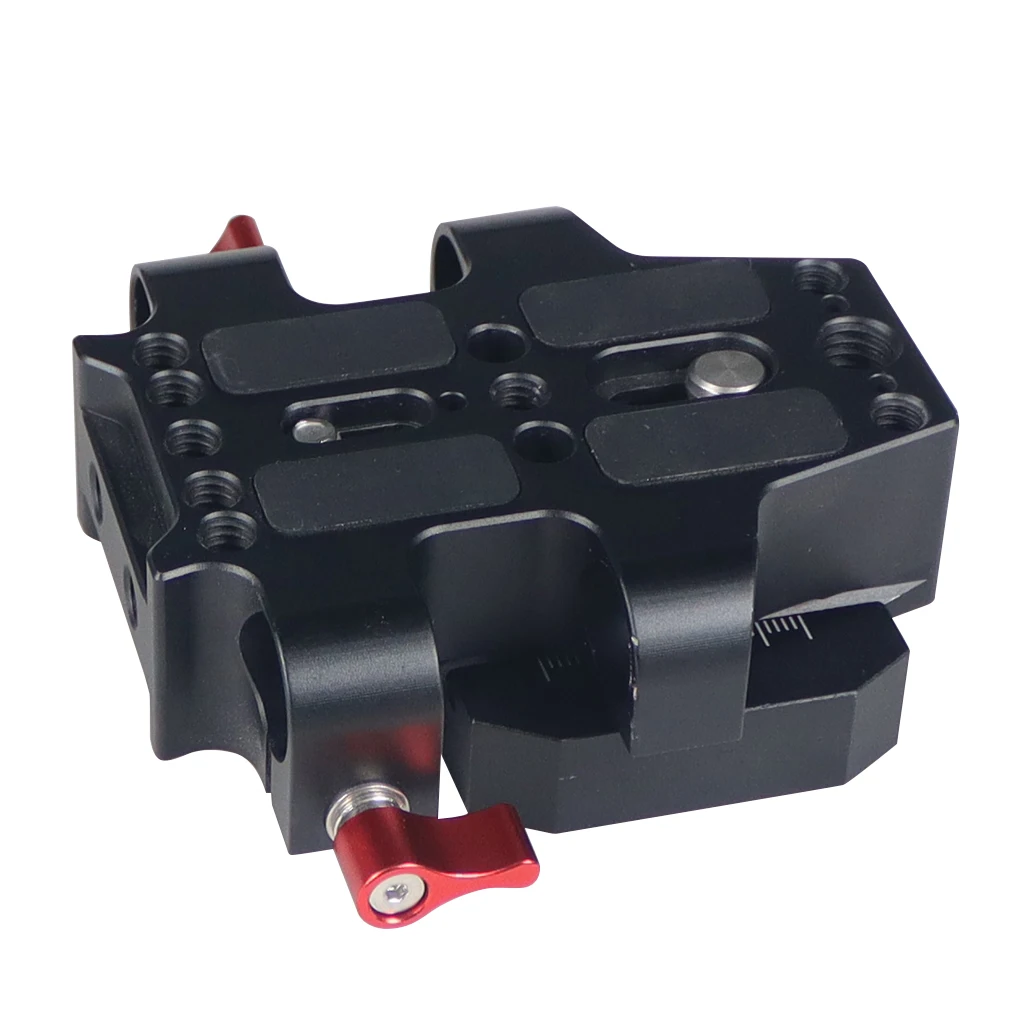

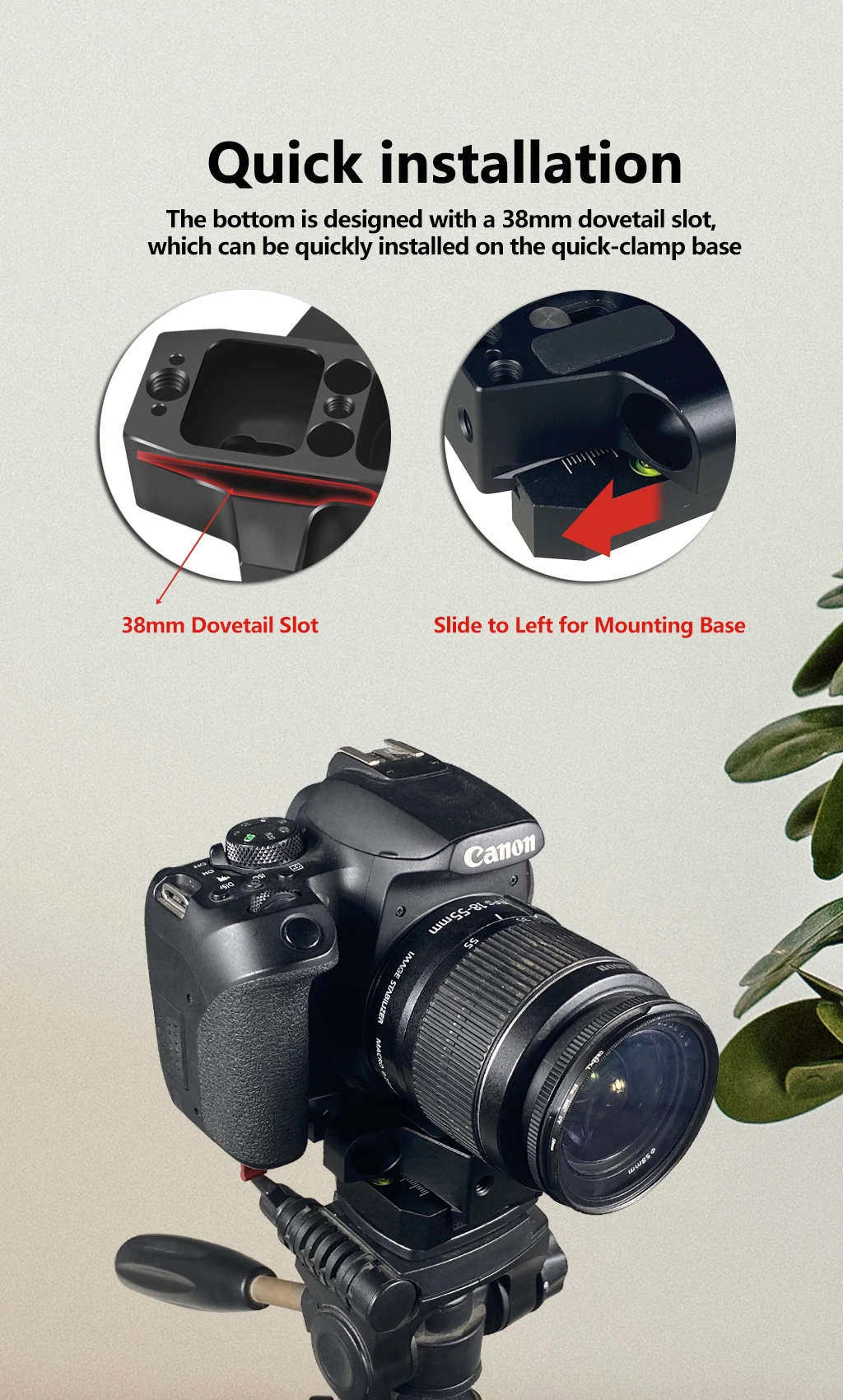

The bottom is designed with a 38mm tripod groove, which can be quickly installed on the quick clamping base, just like a tripod;

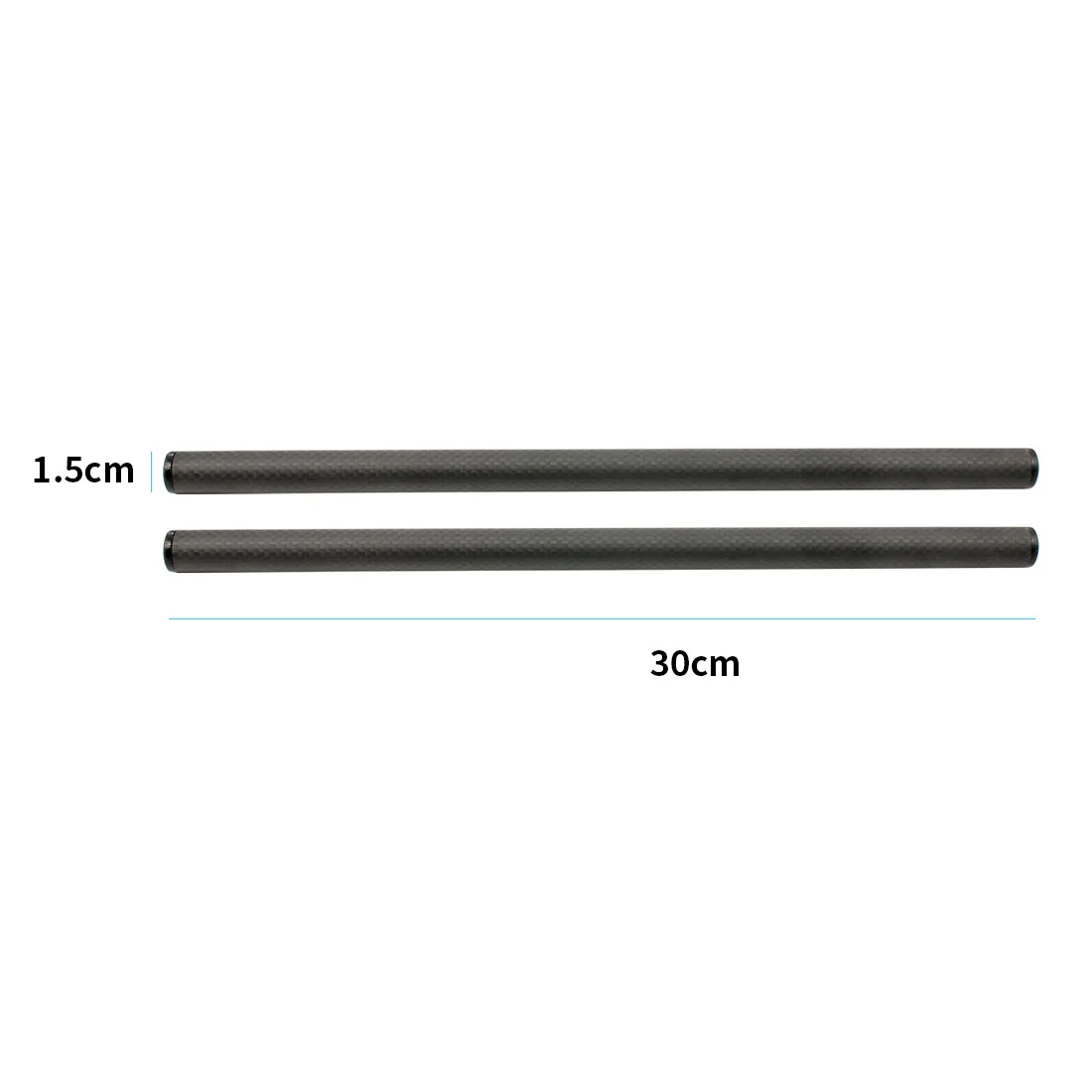

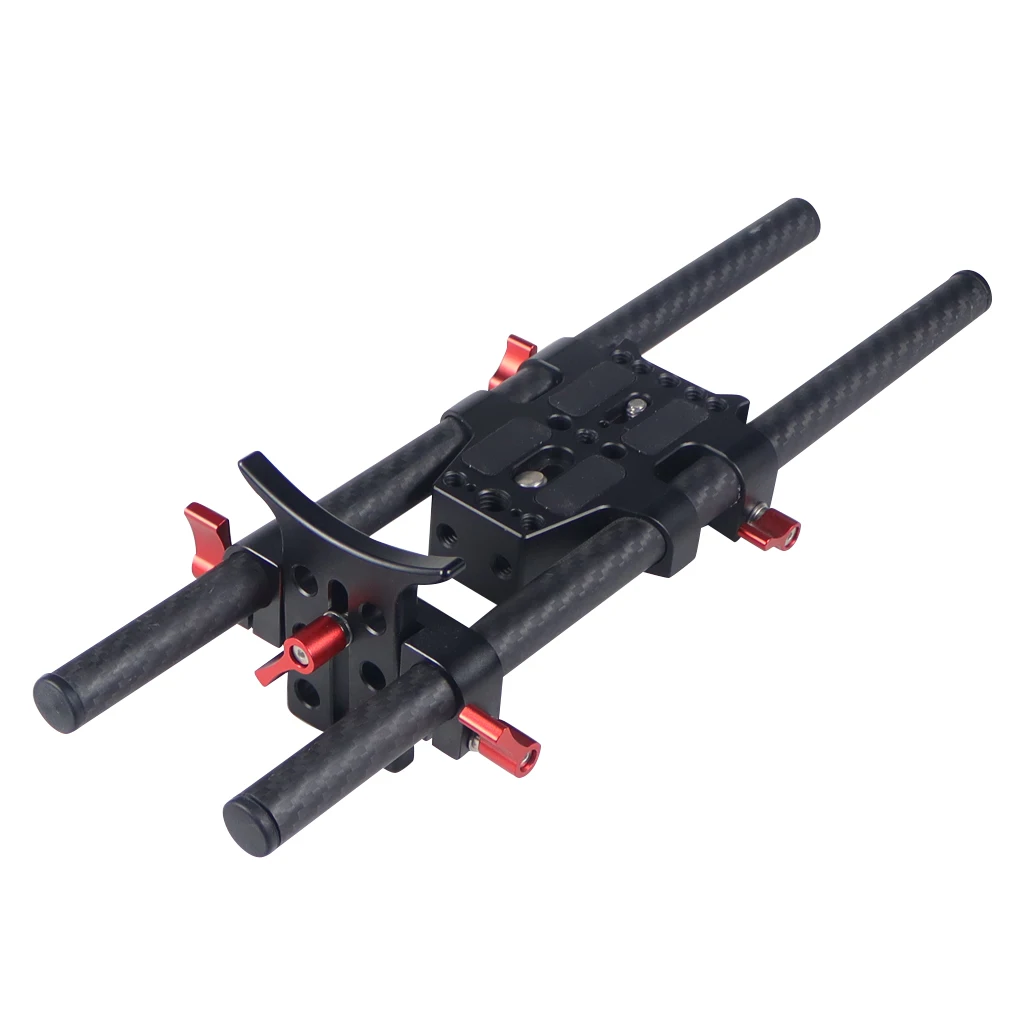

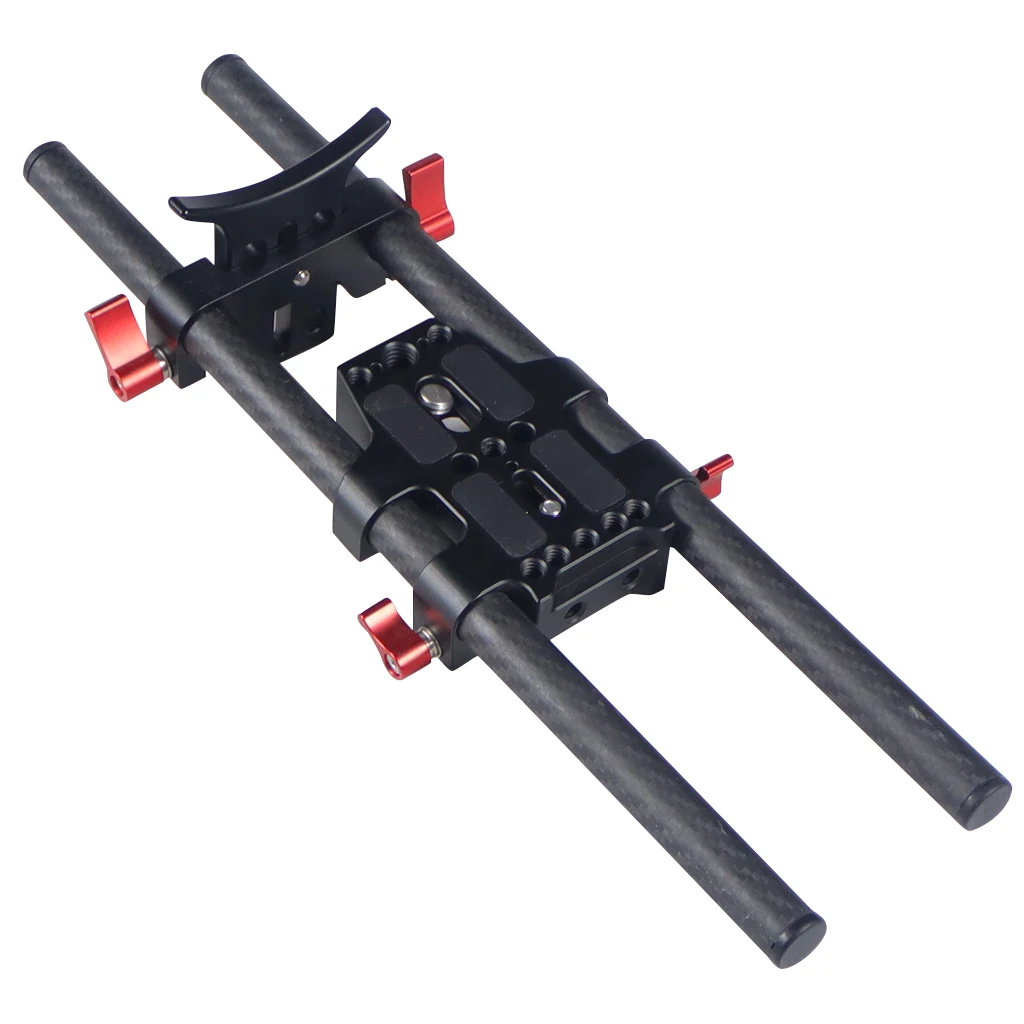

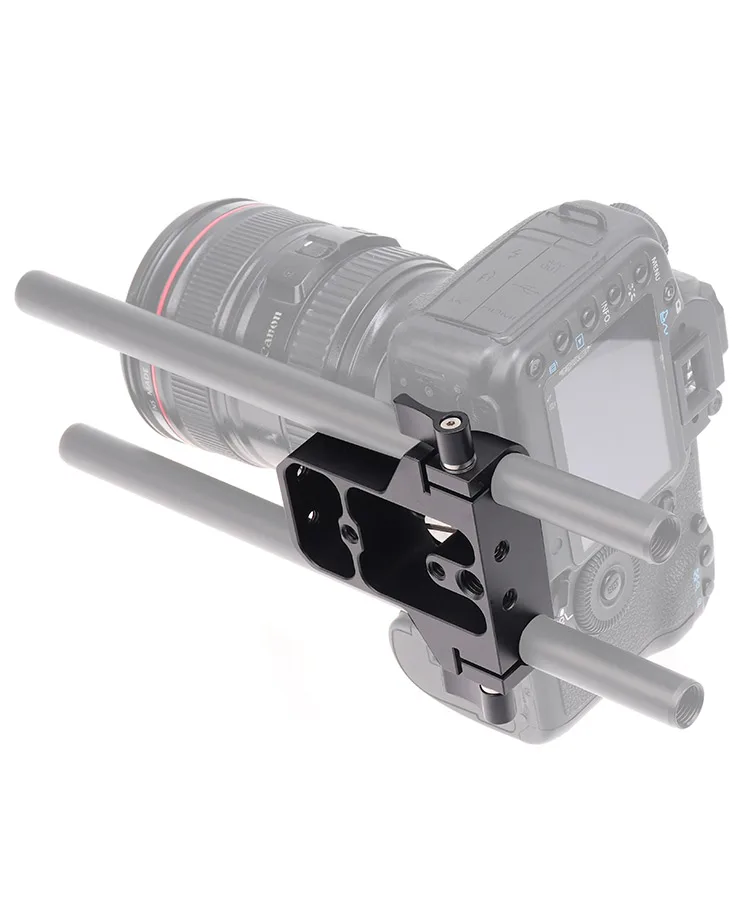

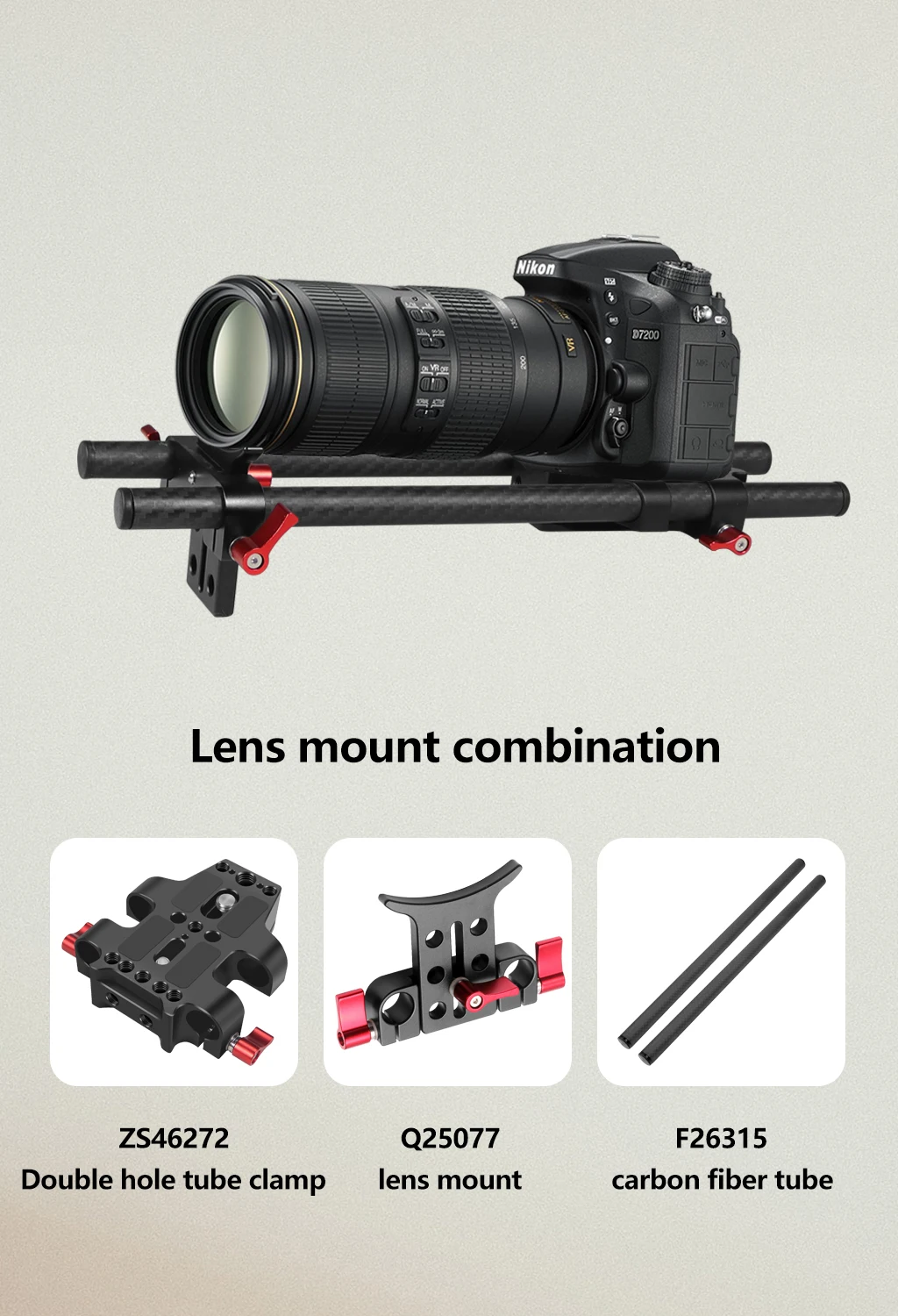

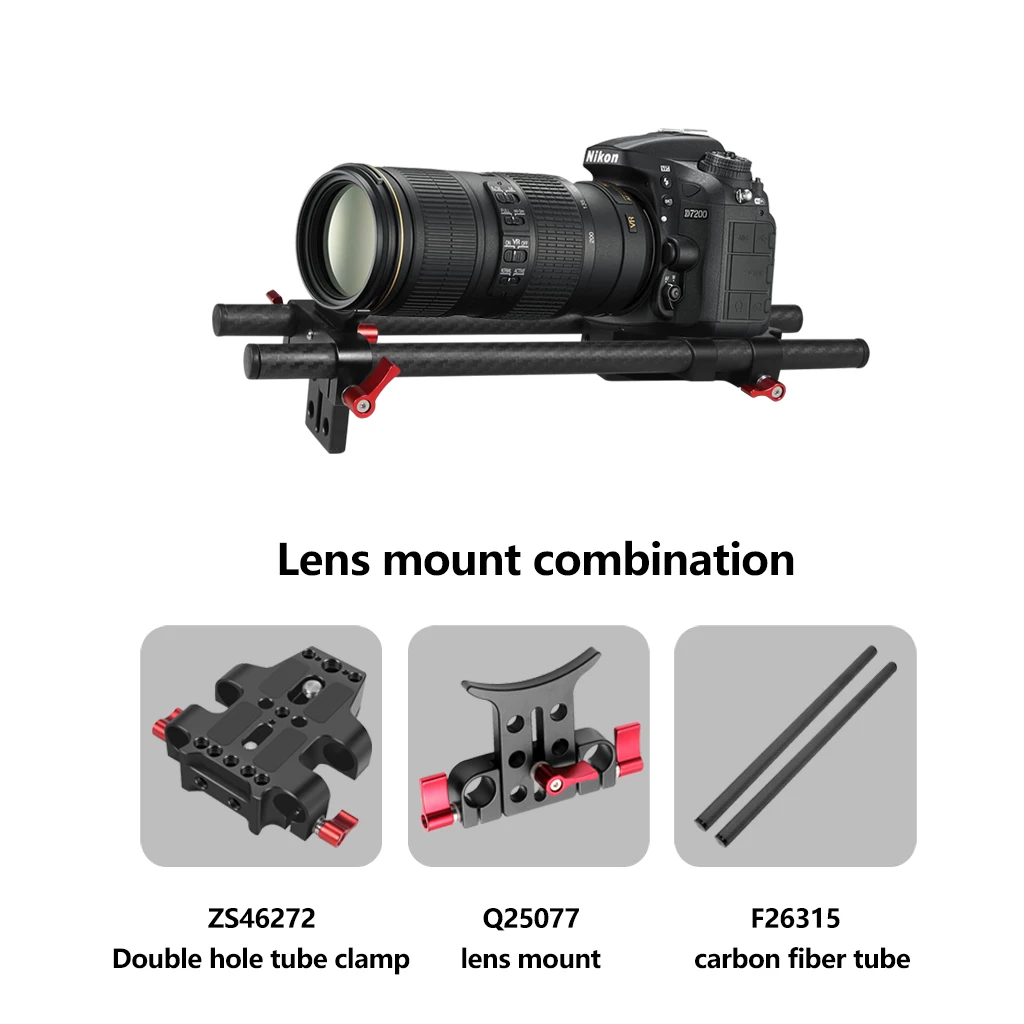

The bottom plate is designed with a guide rod hole with a diameter of 15mm, which can be installed with a scorer, a shade box, a lens holder, and other accessories
