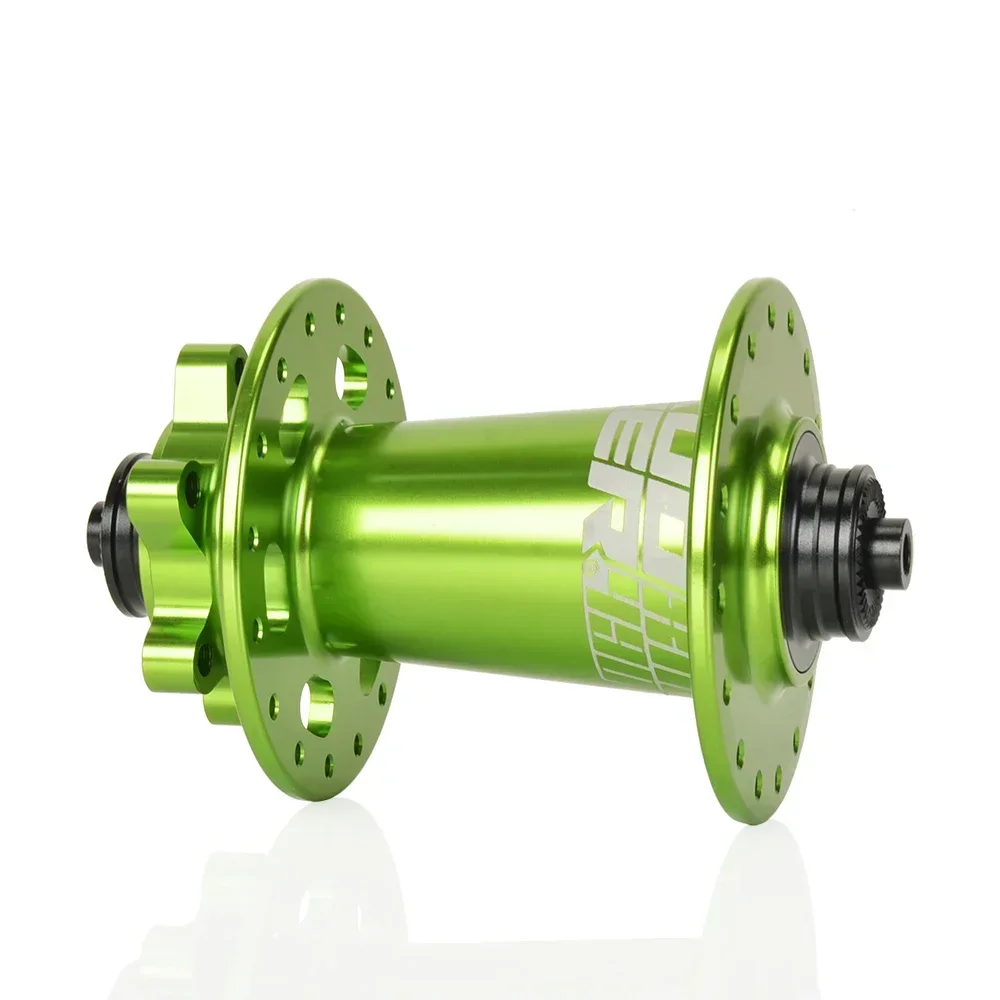

Koozer XM490 pro Front Mtb hubs k7 cube 5x100mm QR 9x100mm TA 15x100m

We are cnc machining factory welcome customize products.

Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.

Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials

Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,

Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ

File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

XM490pro is evolved from XM490. It is adapted to advanced riders who like more intense riding. Its rear hub axle is changed from AL7075 to 30crmo steel, which improves the overall strength, but through structural optimization, it still maintains the same weight of XM490. Also supply multi-specification: 32holes, front hub 5x100/15x100mm, rear hub 5x135/12x142mm with HG/XD/MS cassette body with tool-free conversion, and up to 8 colors, so rich colorful to meet the individual needs of most rider.

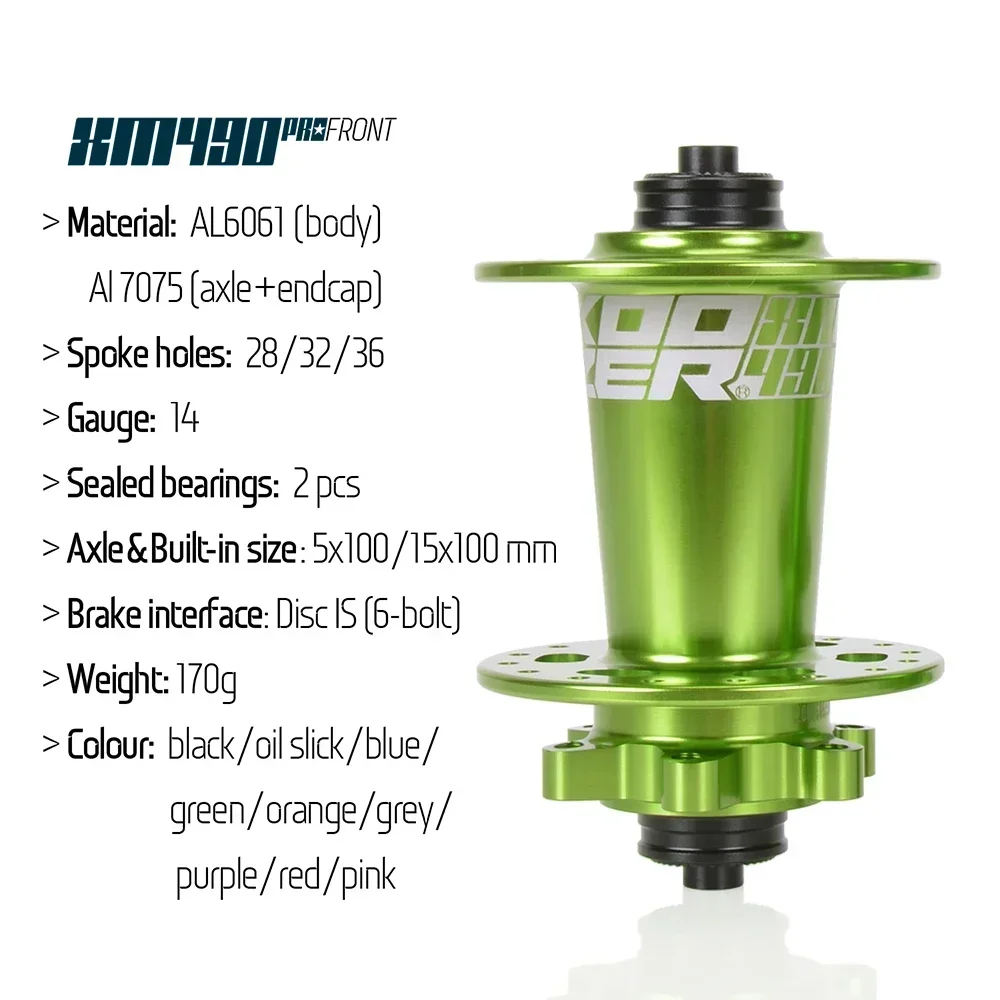

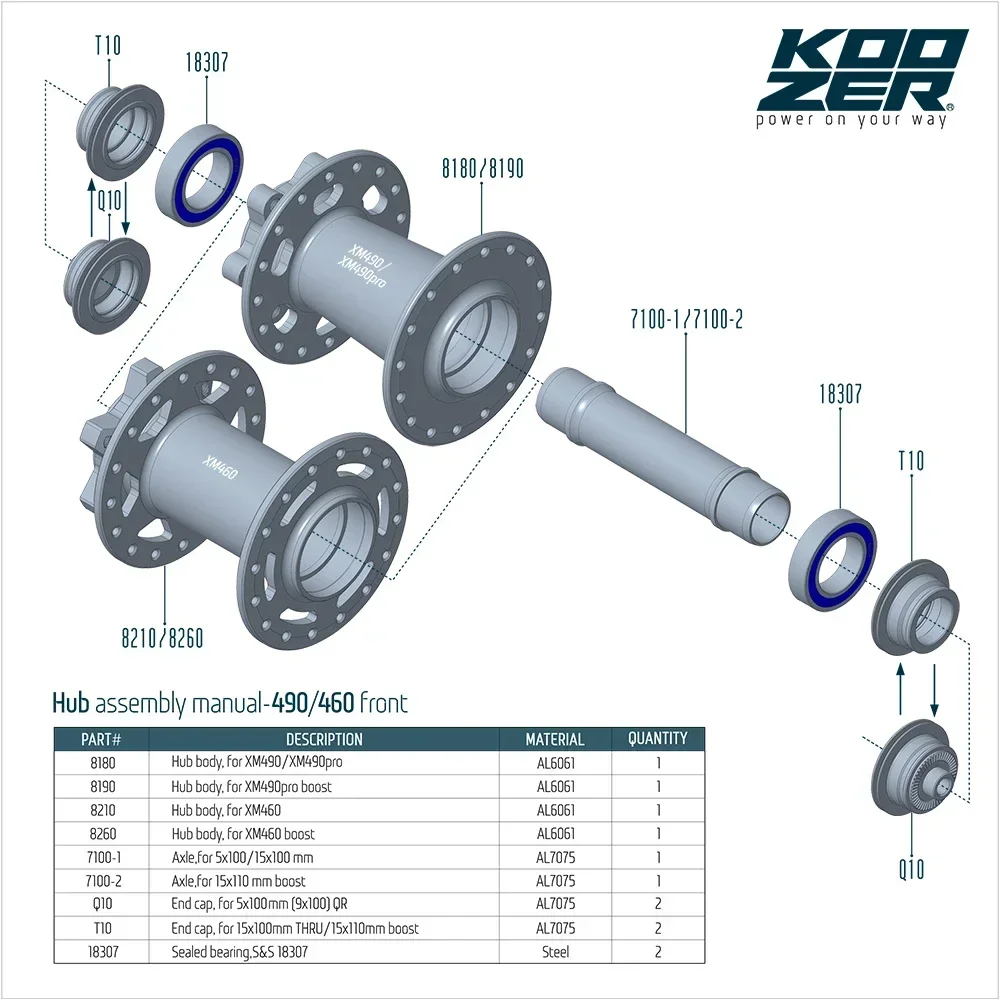

> Material: Body: AL6061

Axle: AL7075

Endcap: AL7075

Cassette body: AL7075

> Spoke holes: 28/32/36

> Gauge: 14

> Sealed bearings: 2 pcs

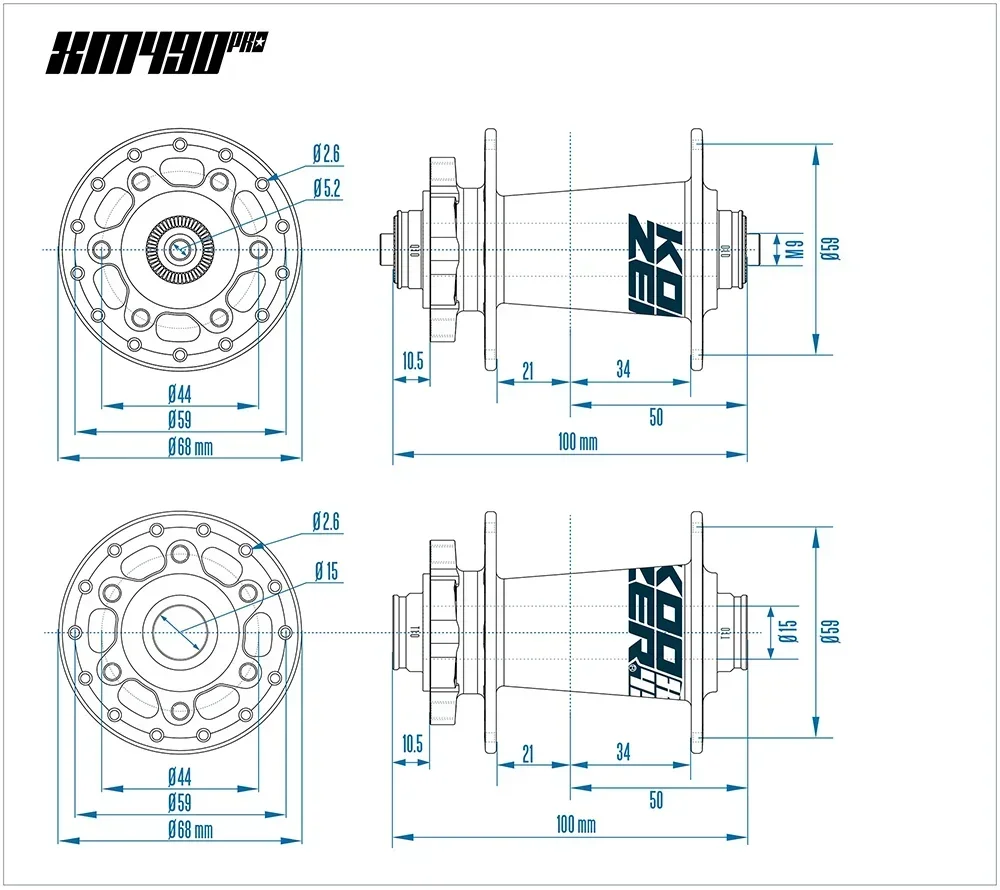

> Axle&Built-in size: 5x100 QR/15x100mm Thru

> Brake interface: Disc IS (6-bolt)

> Weight: 170g

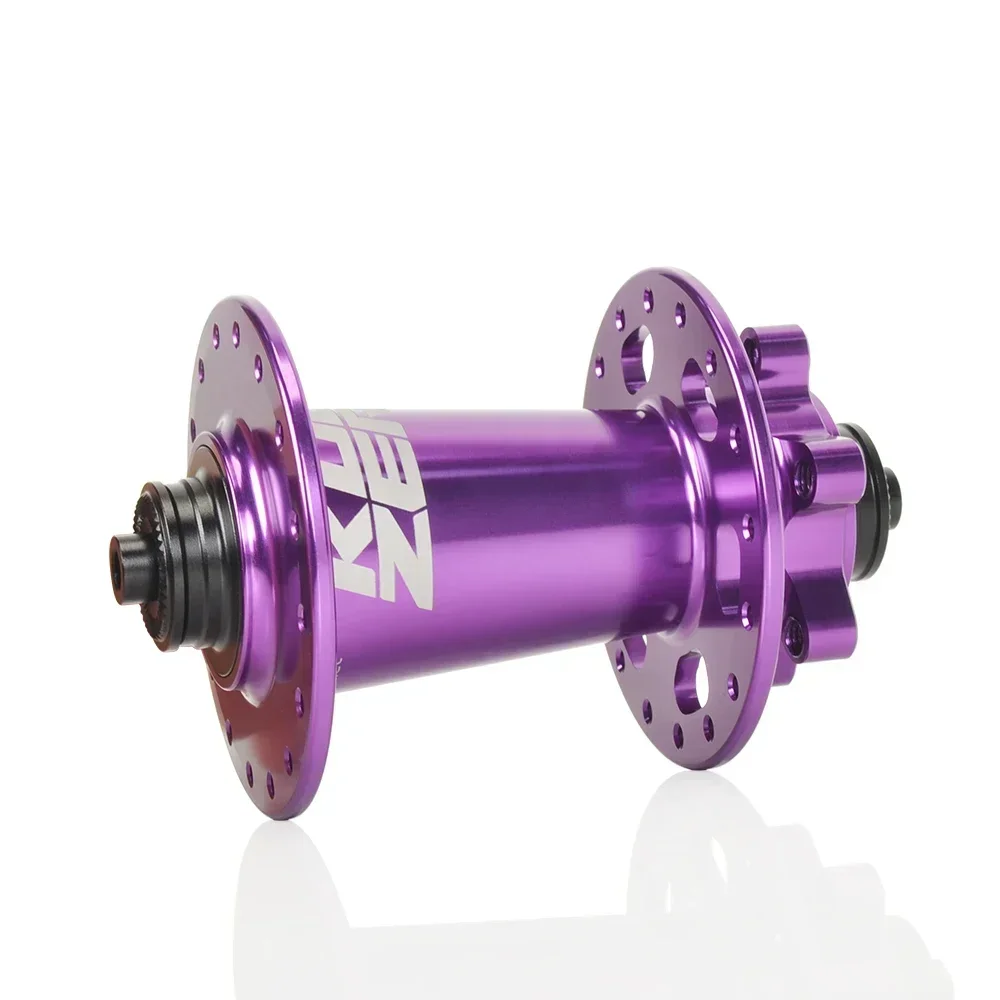

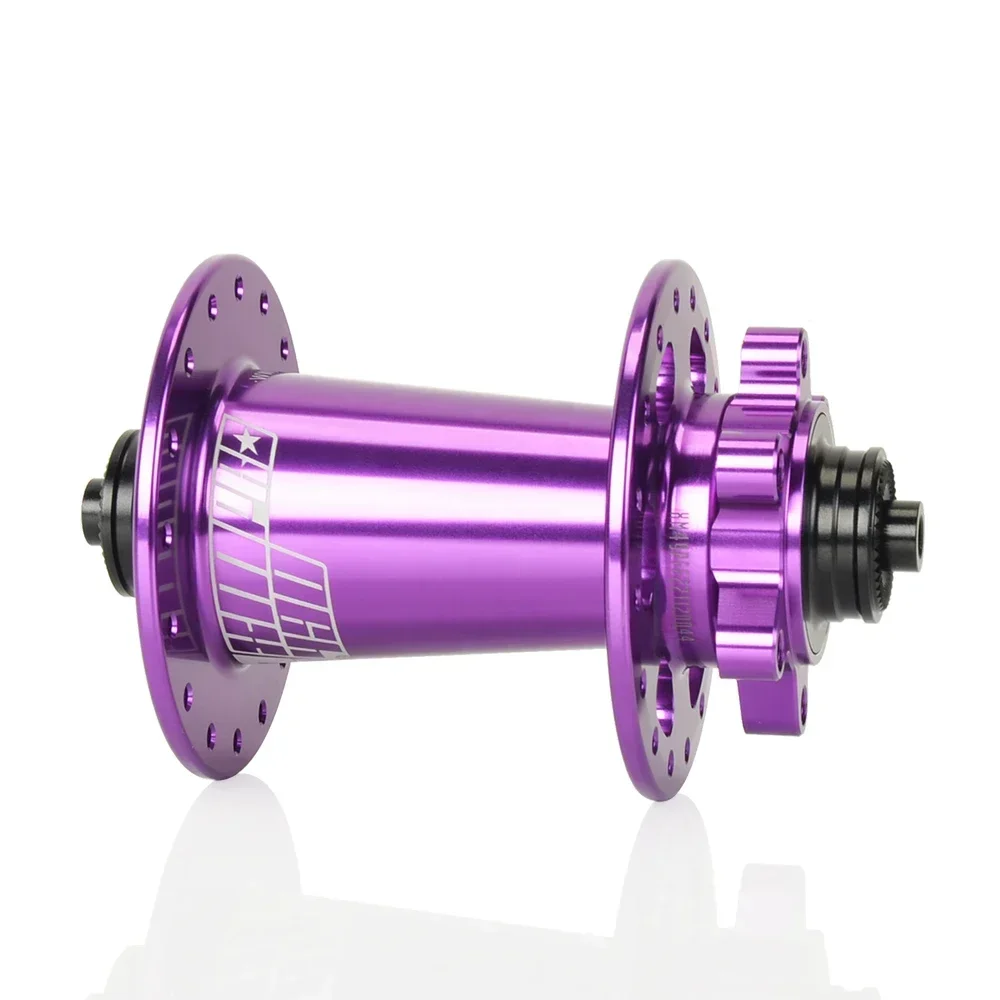

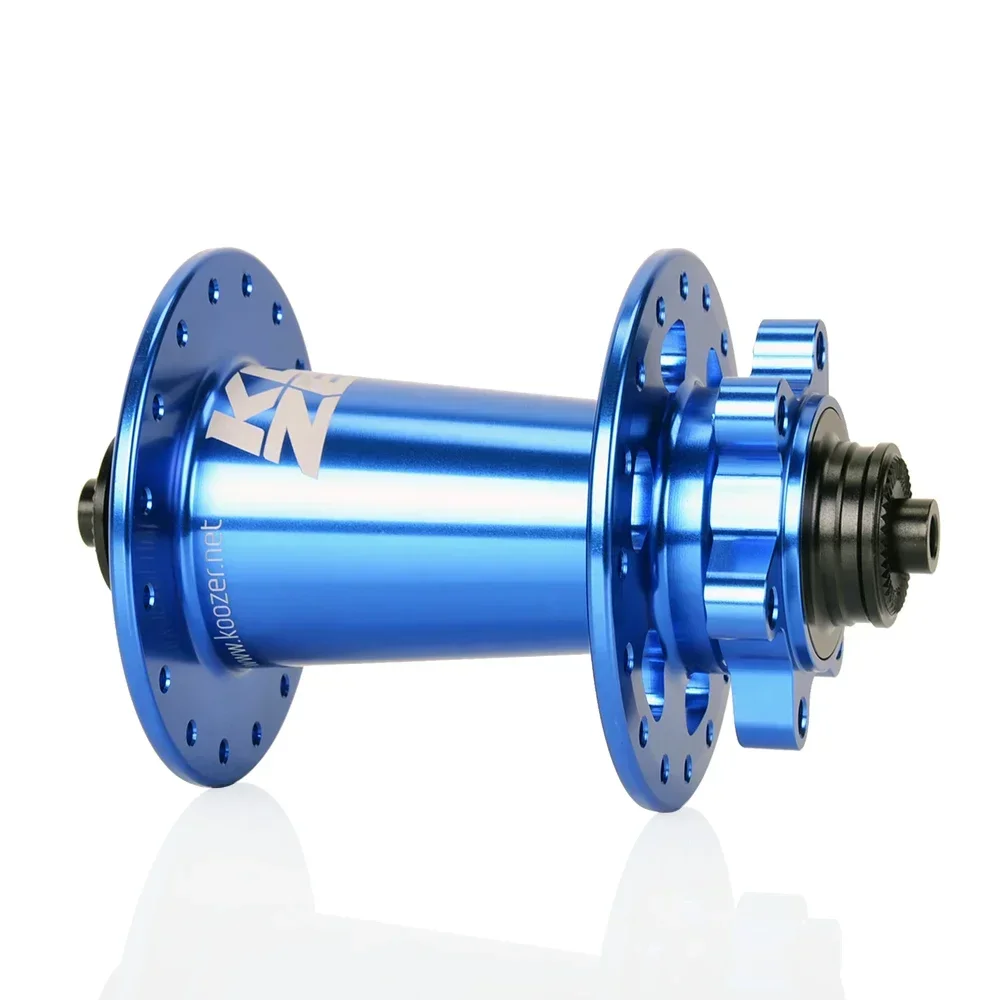

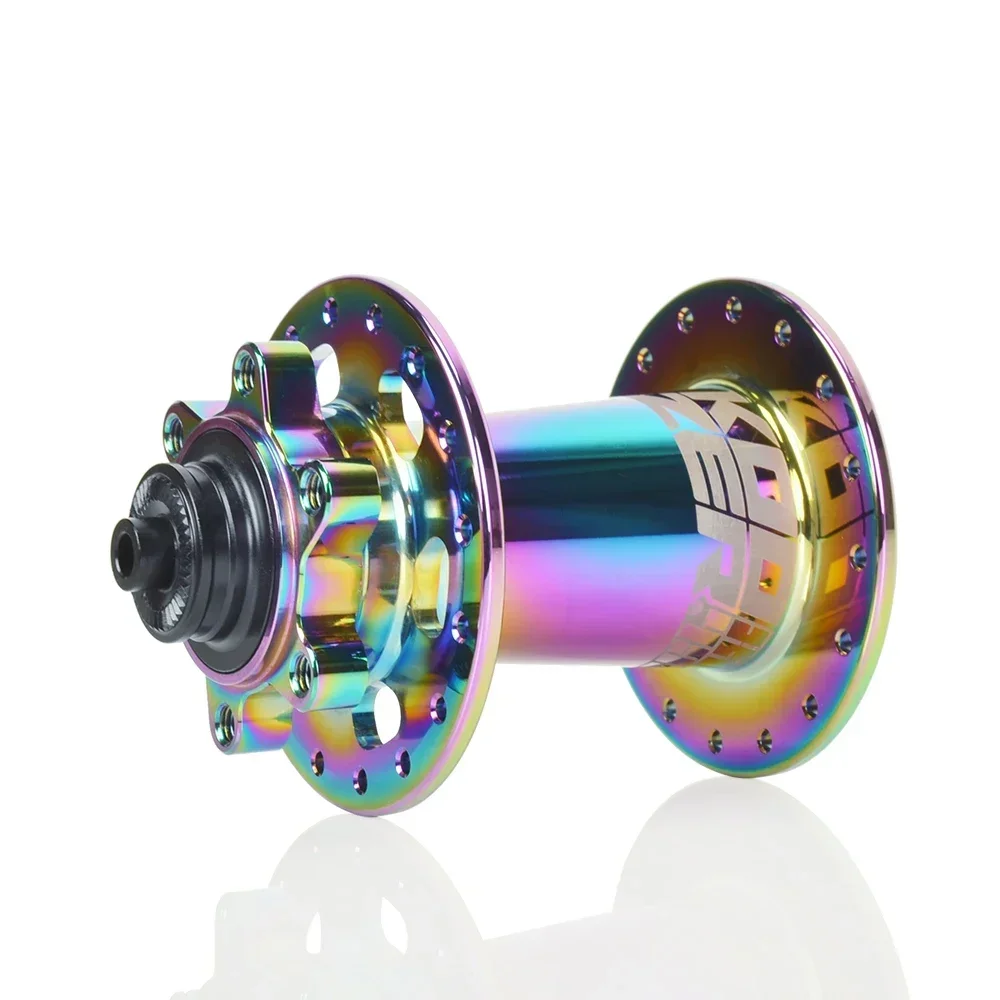

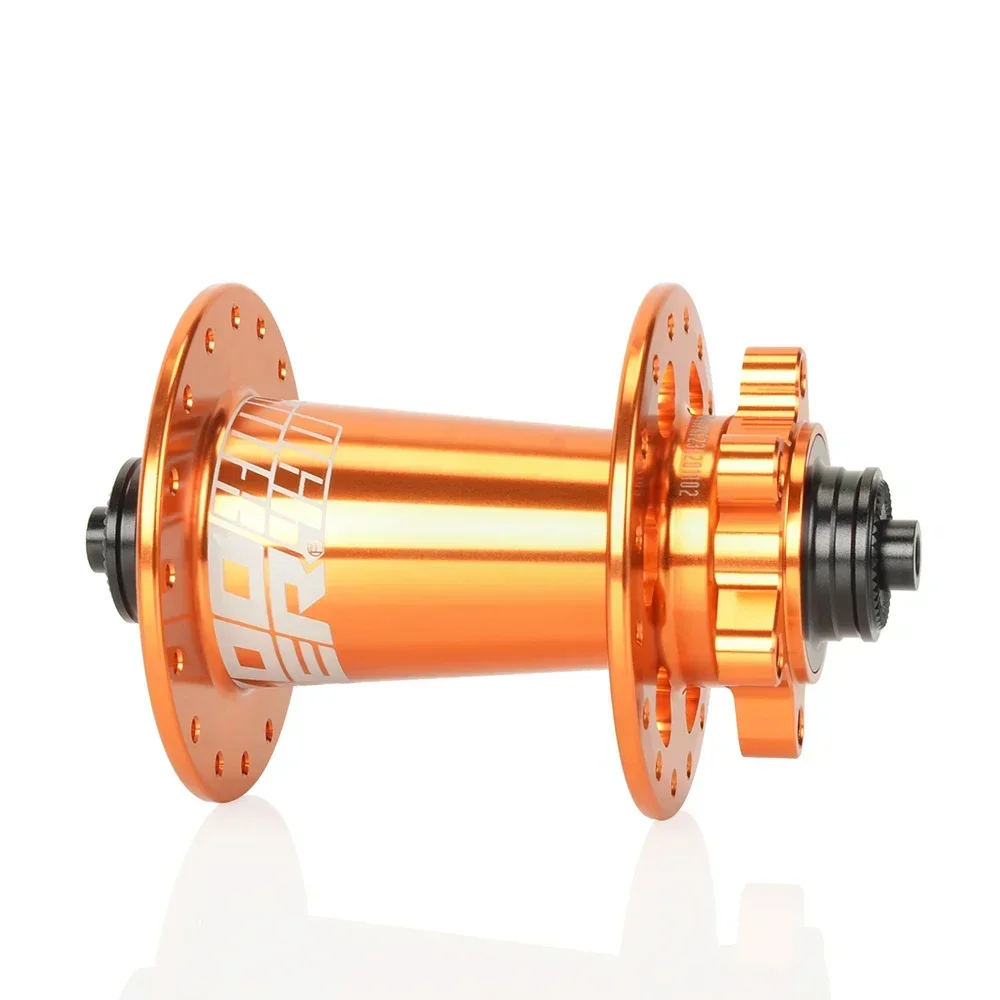

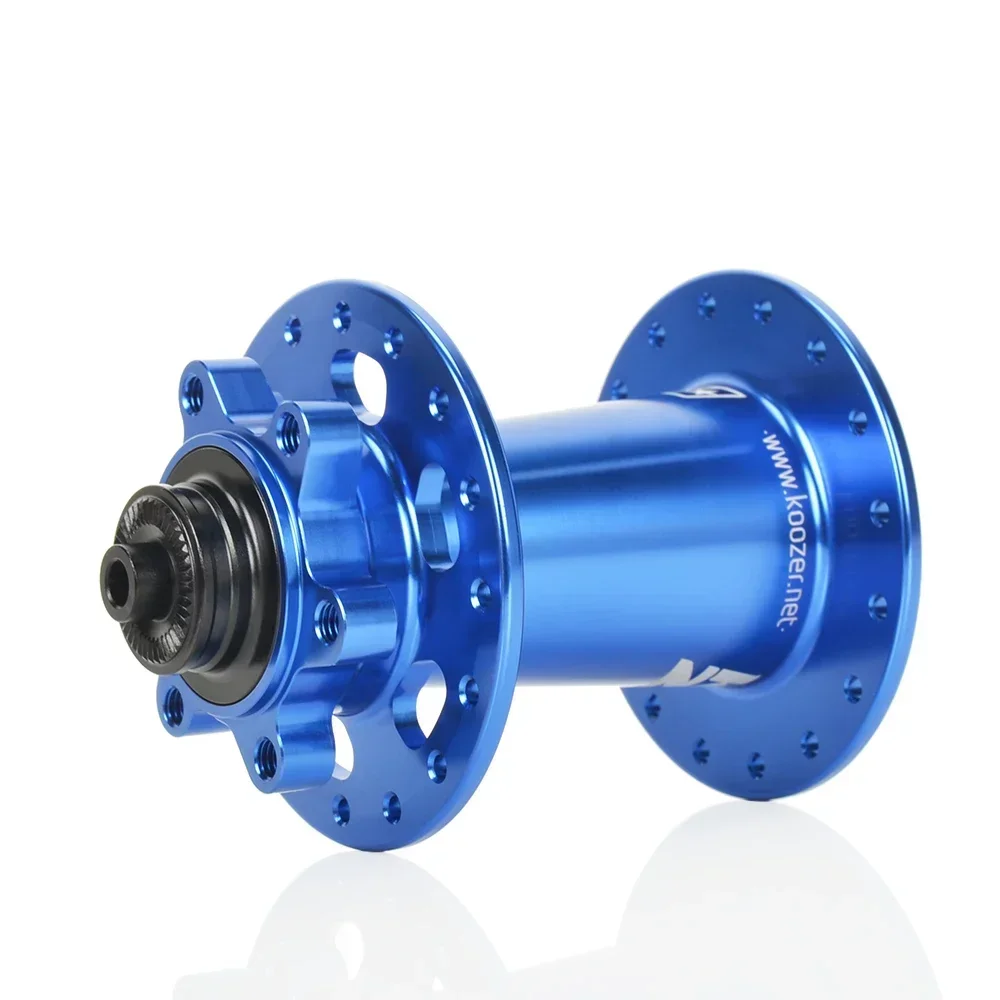

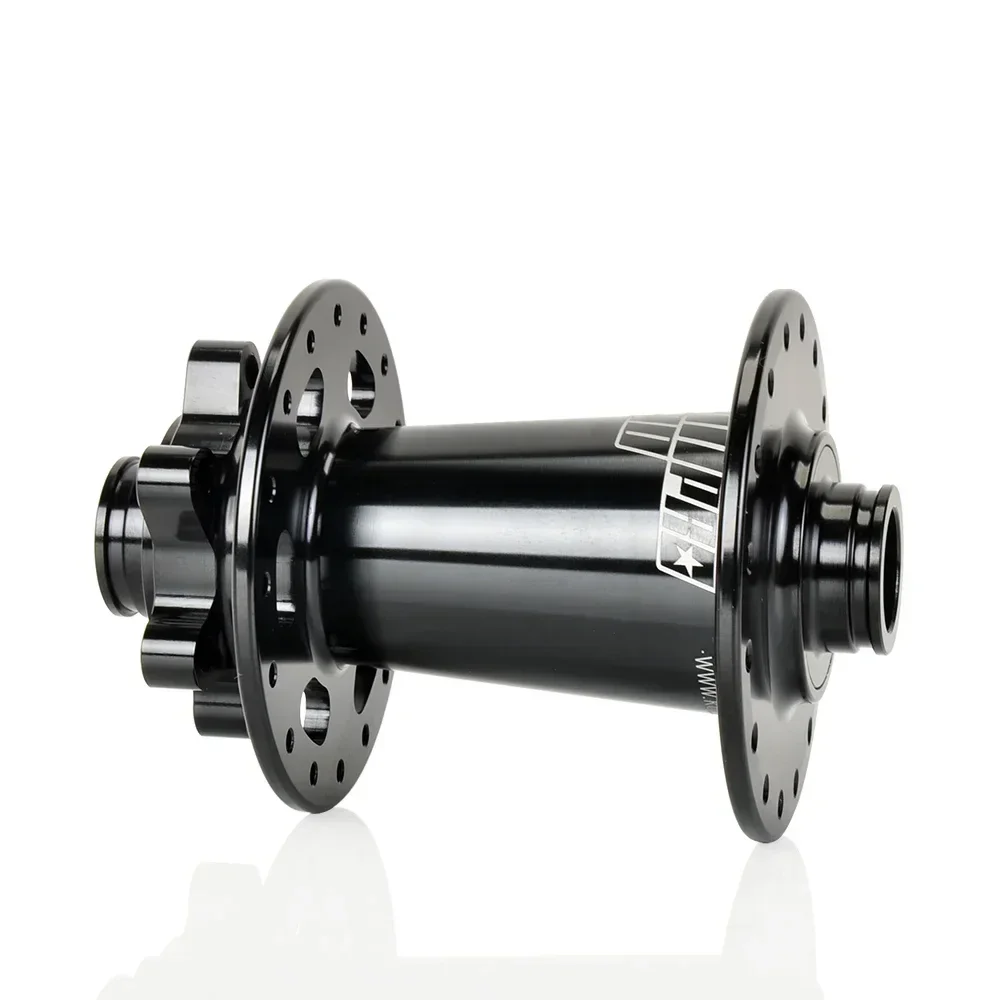

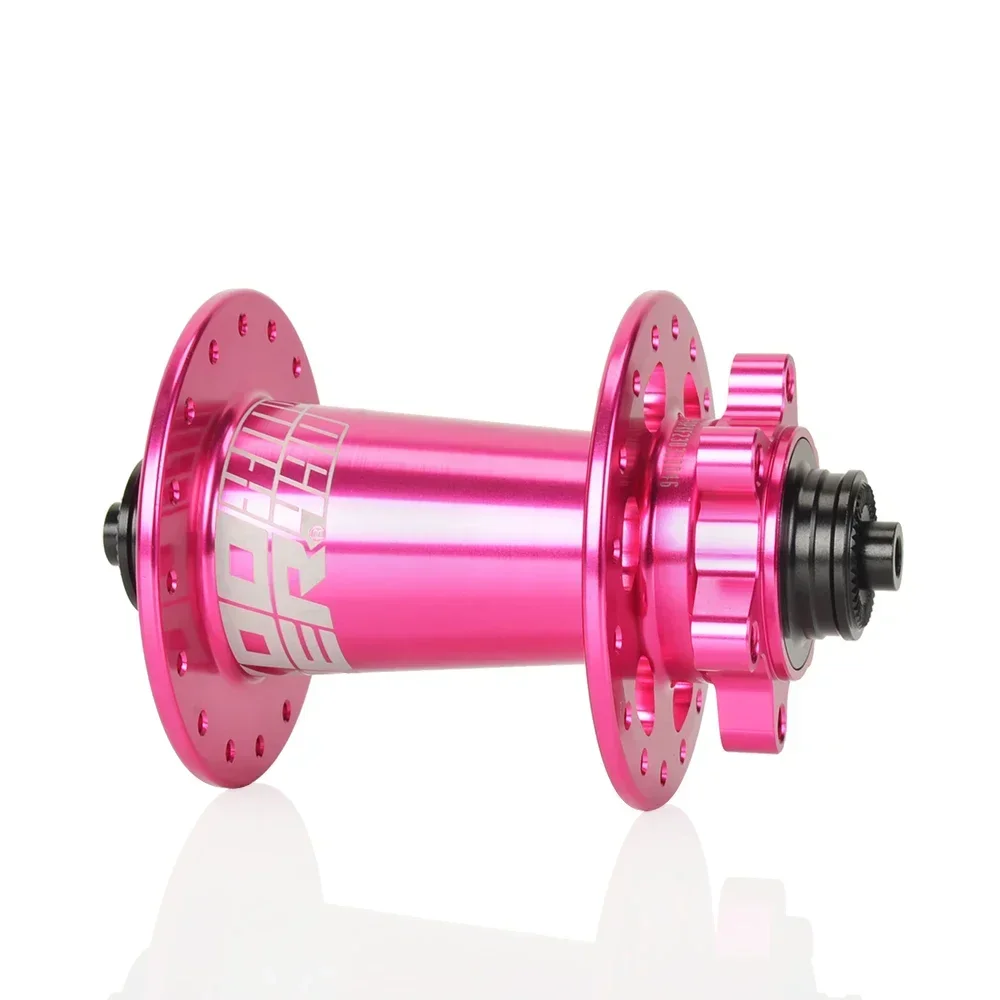

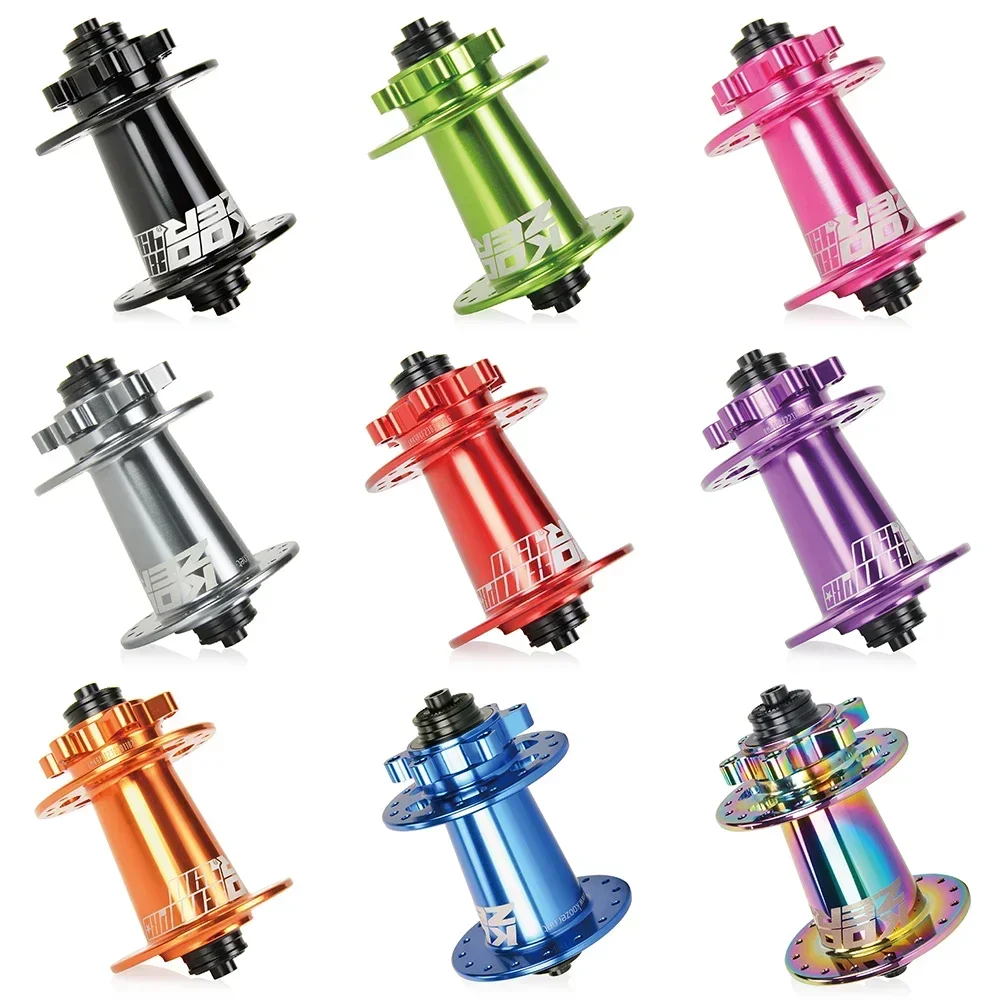

> Colour: black/oil slick/green/orange/grey/purple/red/pink

28H/32H/36H = the hub has 28 spoke holes/32 spoke holes/36 spoke holes, can fit your 28/32/36 holes rim.

QR = quick release version = front 5x100/rear 5x135mm = front 9x100/rear 10x135mm QR

TA = through axle version = THRU = front 15x100/rear 12x142mm

mini THR = mini TA = rear 10x135mm THR or 12x135 THR

HG/XD/MS= the hub's cassette body is compatible with Shimano MTB 8-11 speed cassette and for Sram PG series 8-12 speed cassette(HG) / for Sram MTB XG series cassette 11&12 speed(XD) / for Shimano MTB micro spline 12 speed cassette(MS).
