Custom CNC machining Woodturning Tool Set Carbide Inserts Cutter 6 in 1 Wood Turning Tools Swan Neck Aluminum Handle for Woodworking Lathe
Custom CNC machining Woodturning Tool Set Carbide Inserts Cutter 6 in 1 Wood Turning Tools Swan Neck Aluminum Handle for Woodworking Lathe
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

TASP Wood Turning Tool Carbide Insert Cutter Set with Aluminum Handle
- Carbide Insert Details: Allows maintain a sharp cutting edge for long time, which have multiple sides that can be rotated. When the tool dulls, simply rotate the tip for a fresh, clean cutting edge.
- Arbor Details: Square Stainless Steel, making them stronger, stiffer and less likely to roll than round shaft tools. Stainless steel will never rust and will last for years.
- Handle Details: Premium quality solid aluminum for balance, durability, and to last for years. Tools can be easily changed by loosening the two stainless steel set screws.

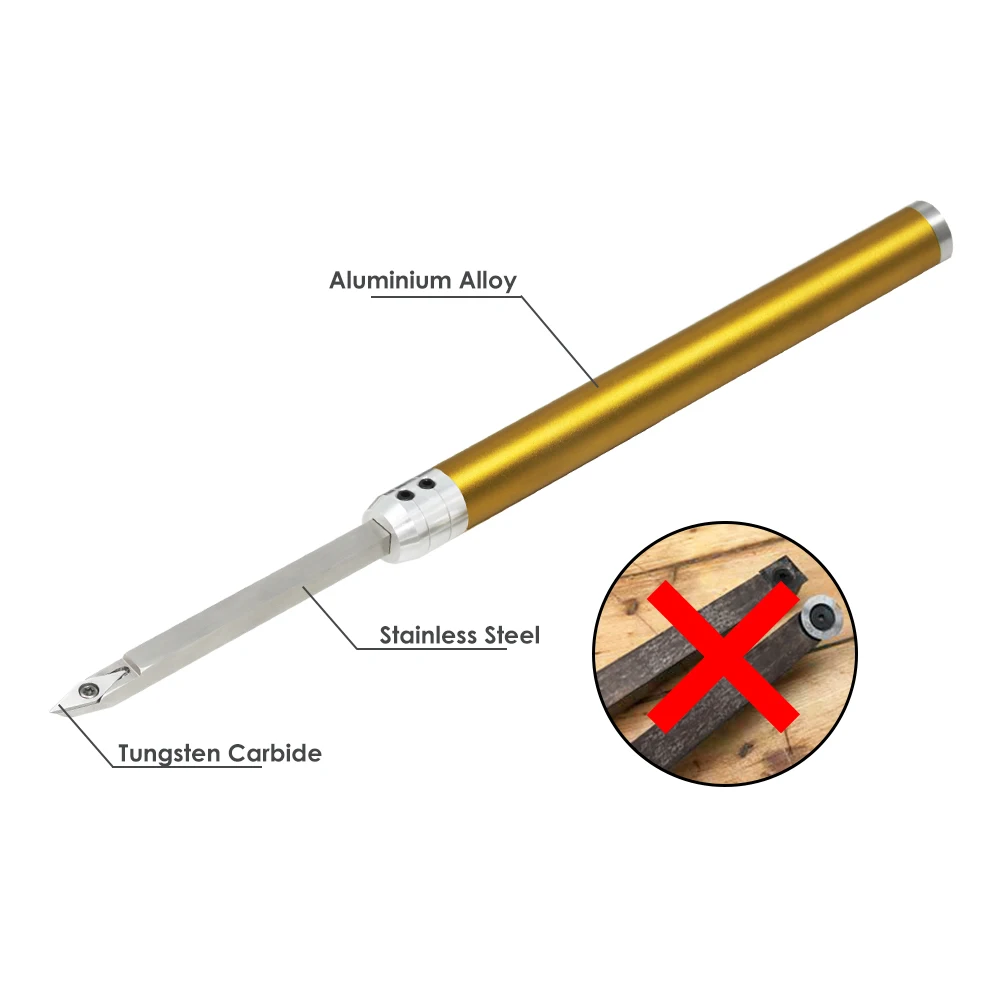

Specification:
- Material of Blade: Tungsten Carbide
- Material of Arbor: Stainless Steel
- Material of Handle: Aluminium Alloy
- Hardness of Blade: HRA 90

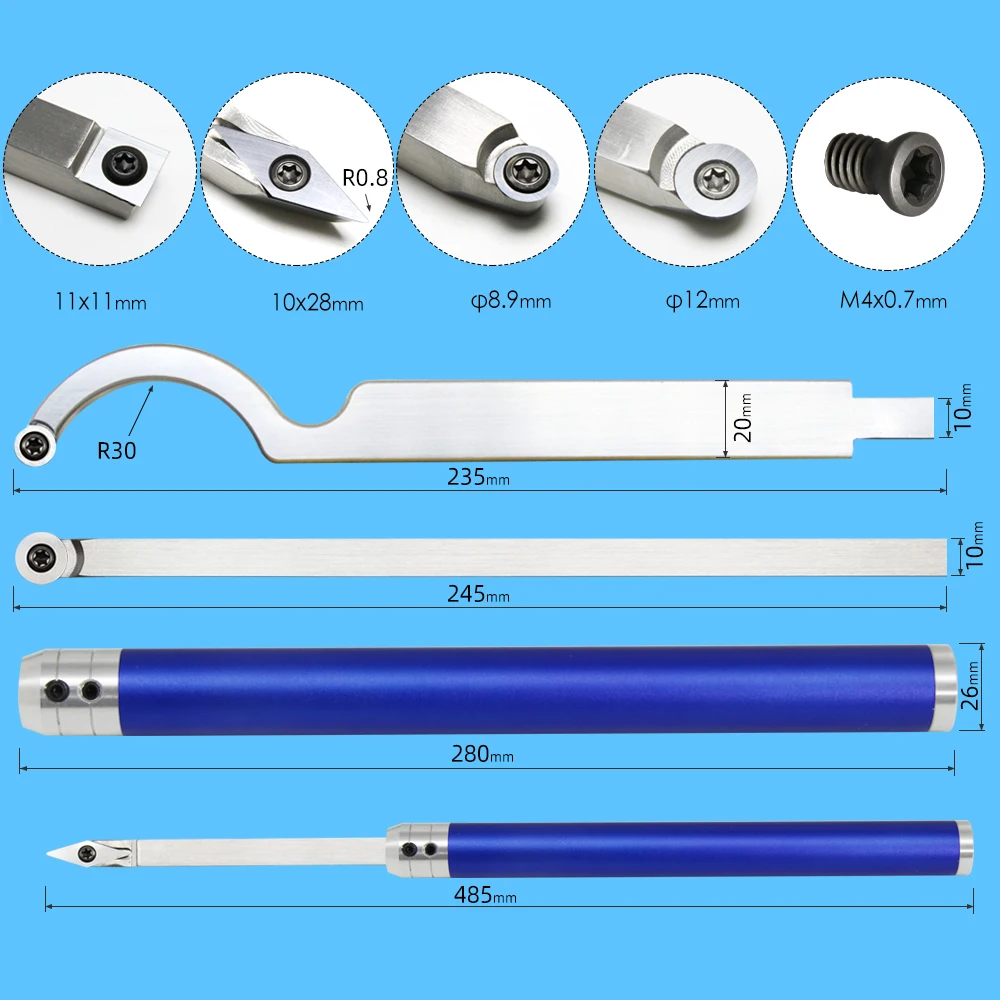

- Length of Straight Arbor: 245 mm
- Length of Swan Neck Arbor: 235 mm
- Diameter of Arbor: 10 mm
- Length of Handle: 280 mm
- Diameter of Handle: 26 mm
- Color of the Handle: Gold/Blue

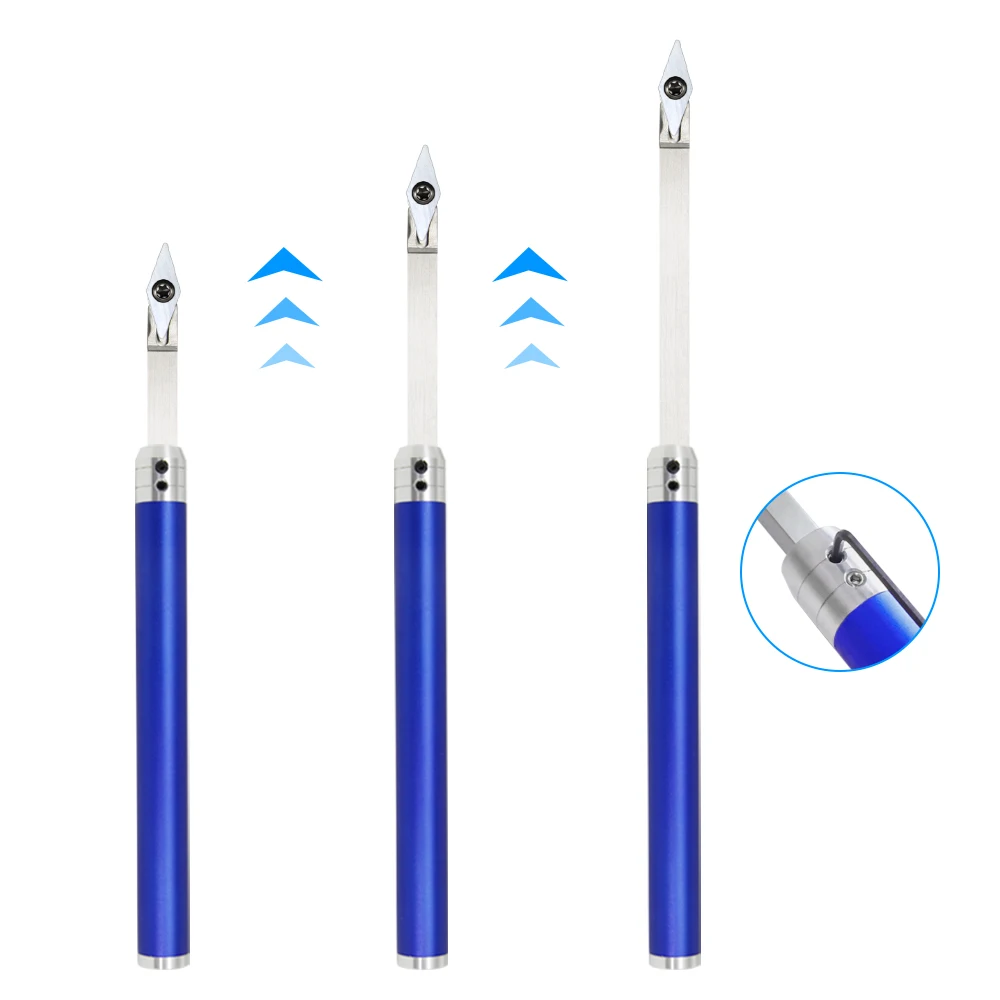

- Max Length: 20" Telescopic Wood Turning Tool
* Use with M4 x 0.7mm Screw

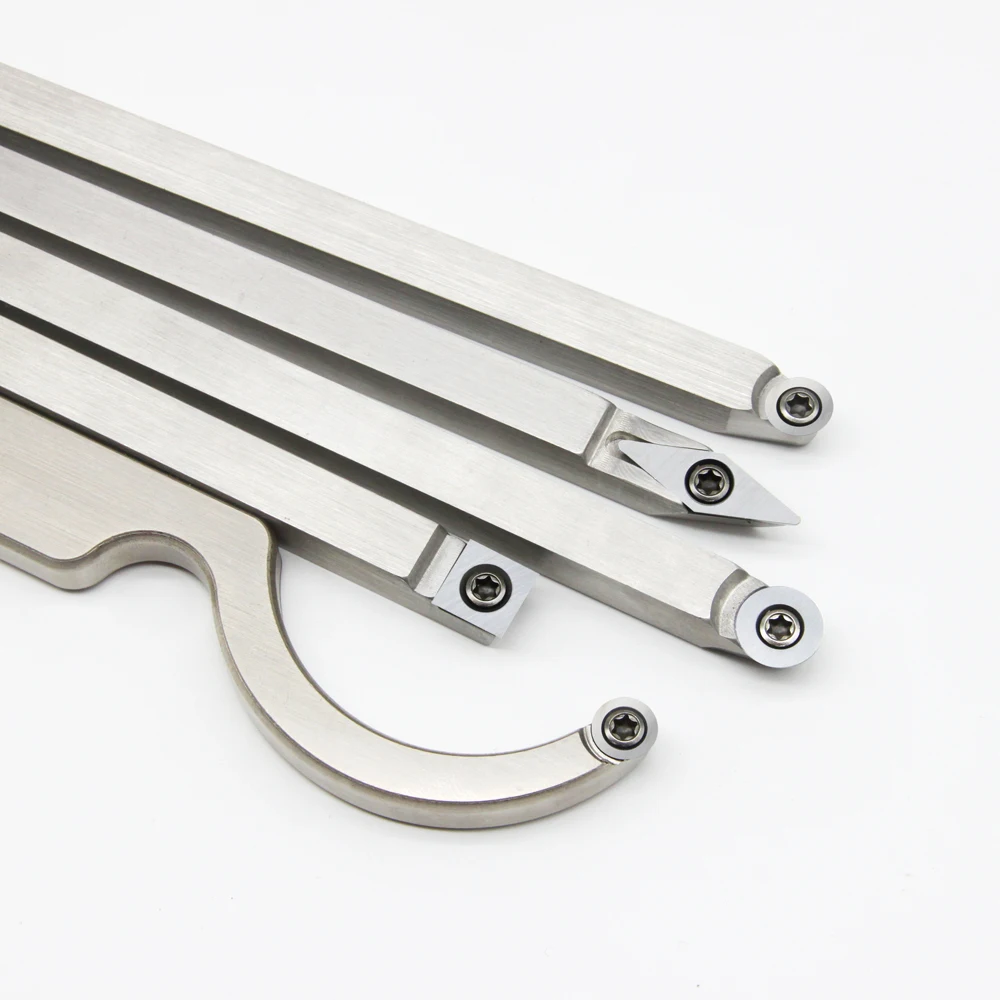

Carbide Cutter Size:
- Square (11x11mm)
- Diamond with Radius (10x28mm-R0.8)
- Round (8.9mm)
- Round (12mm)

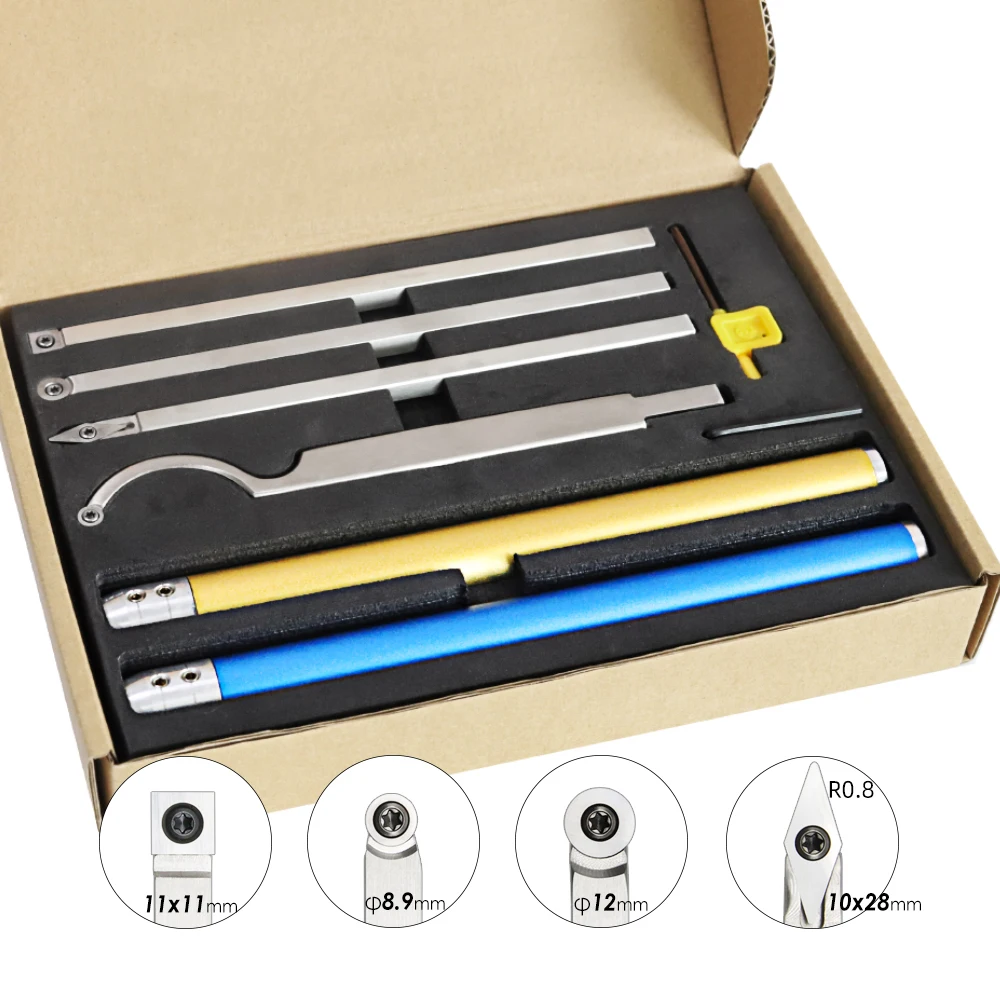

Combo 6 in 1 Including:
- 3pcs Straight Arbor

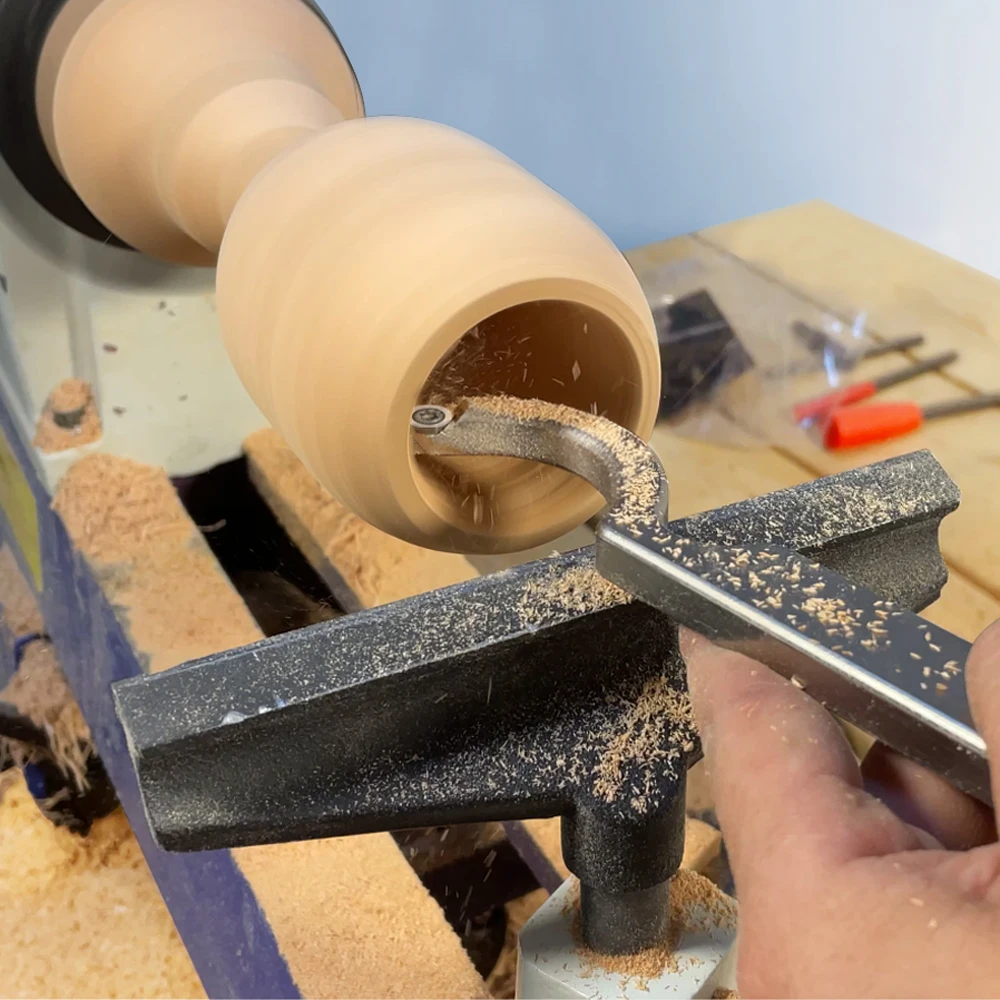

- 1pc Swan Neck Hollower Arbor
- 2pcs Aluminum Handle (Gold + Blue)
- 1pc Allen Key + 1pc Screwdriver

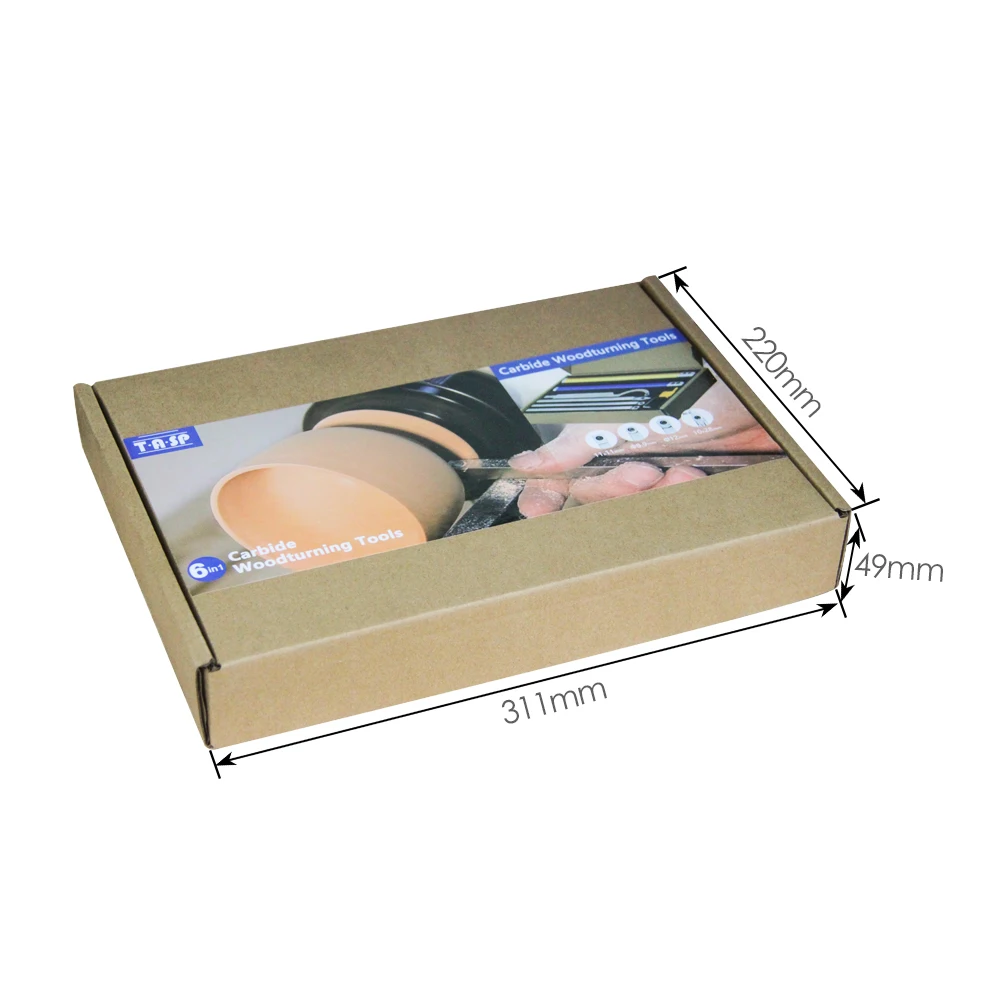

- Cardboard Box with Foam Lined
