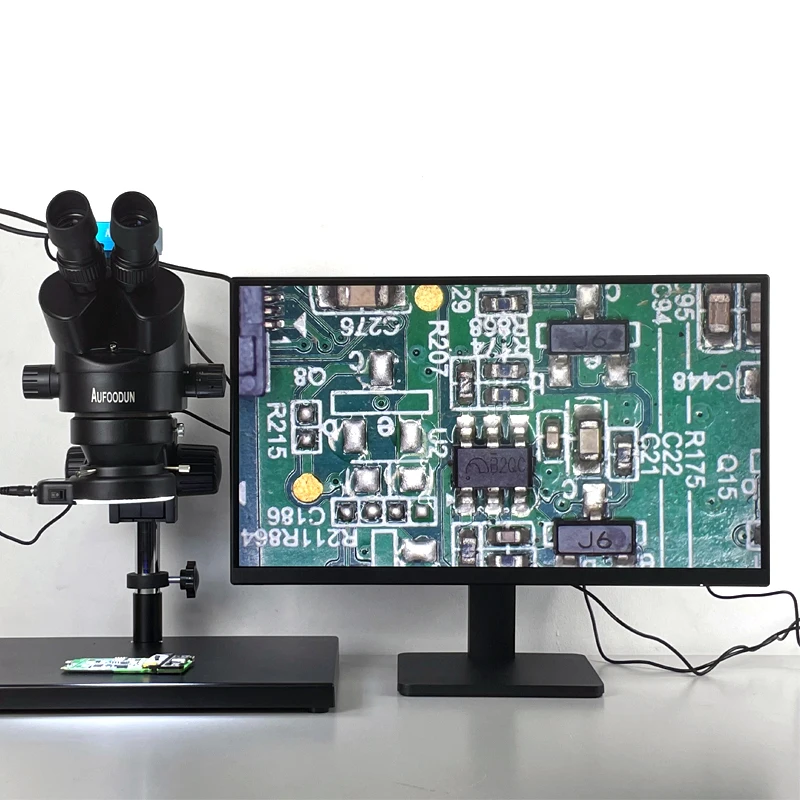

Custom CNC machining 7X-45X 3.5X-90X Simul-Focal Zoom Stereo Trinocular Microscope HDMI USB Microscope Camera Set 0.5x 2.0x Auxiliary Objective Lens

Package incluede: 7X-45X

1 x Trinocular microscope Zoom Head

1 x Pair of Super Widefield 10X Eyepieces

1 x 56-LED Ring Light with Adapter

1 x Big size Pillar Table Stand

1 x Focusing Rack

1 x Pair of Eye-Guards

1 x Dust Cover

1x stand

A. B. C. D. 3.5-90x

1 x Trinocular microscope Zoom Head

1 x Pair of Super Widefield 10X Eyepieces

1 x 56-LED Ring Light with Adapter

1 x Pillar Table Stand

1 x Focusing Rack

1 x Pair of Eye-Guards

1 x Dust Cover

1x camera set (as option selection)

1x 0.5X Objective lens

1x 2.0X Objective lens

1x CTV 1/2Adapter

A1. B1. C1. D1. 7-45x

1 x Trinocular microscope Zoom Head

1 x Pair of Super Widefield 10X Eyepieces

1 x 56-LED Ring Light with Adapter

1 x Pillar Table Stand

1 x Focusing Rack

1 x Pair of Eye-Guards

1 x Dust Cover

1x camera set (as option selection)

The Microscope Features:

Standard: 7X-45X Optional eyepiece and auxiliary objective lens can be expanded to 3.5x-270X

7X to 45X Continuous Zoom Magnification Power

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces

Trinocular port for adding photo or video capability

30mm Super Widefield WF10X Eyepieces with 20mm Field of View

High Resolution with Great Flatness and Contrast

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

Large Working Distance

Accurate Alignment Ensuring a Fatigue-Free Viewing

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance

Manufactured under ISO 9001 Quality Control Standard

Specifications:

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Range: 6.5:1

Trinocular Port: 23mm photo port

Interpupillary Distance: 2-1/8" to 3"(54-76mm)

Field of View: 1-1/4" (33mm)

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)

Head Mounting Size: 3" (76mm) diameter

Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

Height of bracket: 270mm

Base size: 200x250mm

Weight : 8KG

A Camera Features (48MP 4K 60Fps HDMI USB)

◆ 48 million pixel imported Panasonic CMOS image sensor;
◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
◆USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
◆48 million photos, JPG format, photo size 4608x3456;
One-click freezing/thawing function;
◆48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
◆ Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
◆ Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
◆ Strong metal shell;


Camera specifications:
The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Packing List of camera set:
1* Camera body
1* Power adapter
1 * HDMI cables
1 * USB cable
1* Remote control (no battery due to logistics requirements)

B Camera Features (13MP 60Fps HDMI USB)

Feature:
The sensor: gc2053
Overall dimension: 20*70*70mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)


Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Hard copy

C Camera Features (13MP 60Fps HDMI VGA)

Feature:
The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)


Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Hard copy

D set camera （13MP VGA）

Overall dimension: 70*50*50mm

Video Interface:VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/2.7"

Pixel size:3.0um*3.0um

Pixel array: 1920*1080

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:60dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

Package incluede

1 x Camera Body

1 x 100V-240V power supply (EU / UK / AU Adapter for free）

1 x LED ring lamp holder

1 x Link line

1 x Hard copy
