Custom CNC machining 50X 100X Simul-Focal Stereo Trinocular Microscope 1080P 48MP 2K 4K HDMI USB VGA C Mount Video Camera Phone Soldering PCB Repair
Custom CNC machining 50X 100X Simul-Focal Stereo Trinocular Microscope 1080P 48MP 2K 4K HDMI USB VGA C Mount Video Camera Phone Soldering PCB Repair
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Note: VGA port can only use VGA monitor, HDMI port can only use HDMI monitor, USB port can use PC, PC does not need driver, but needs to install software! It is possible to record video and take pictures via PC! With TF card and U disk port can store pictures and videos!
Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields. Feature:

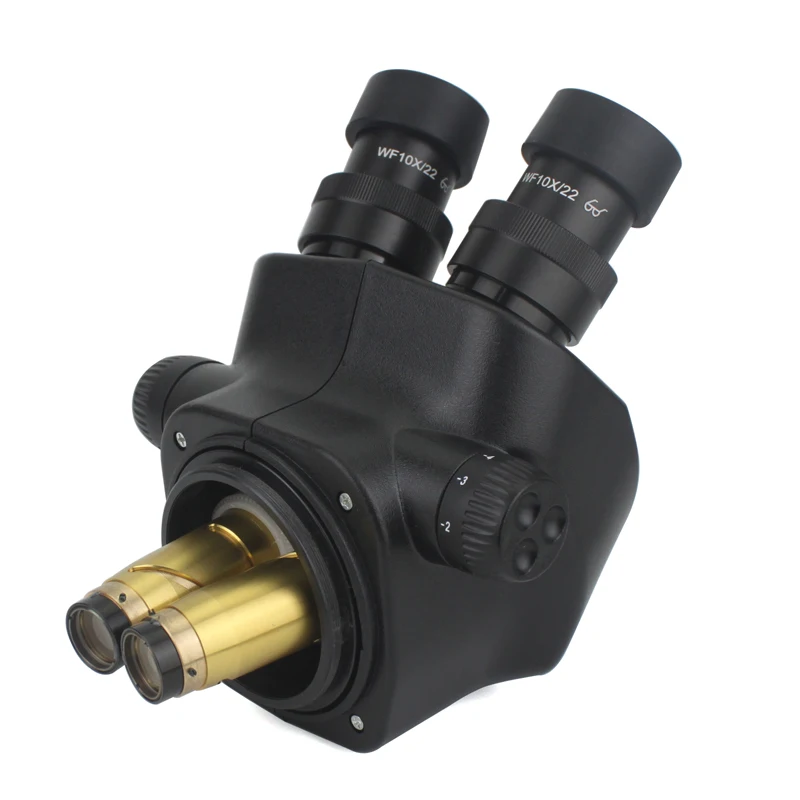

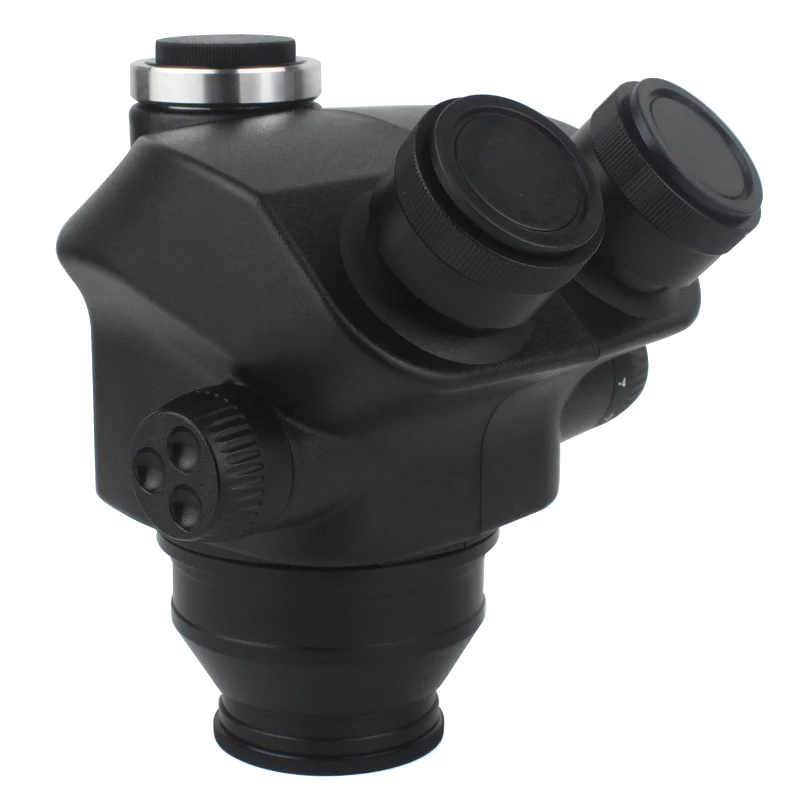

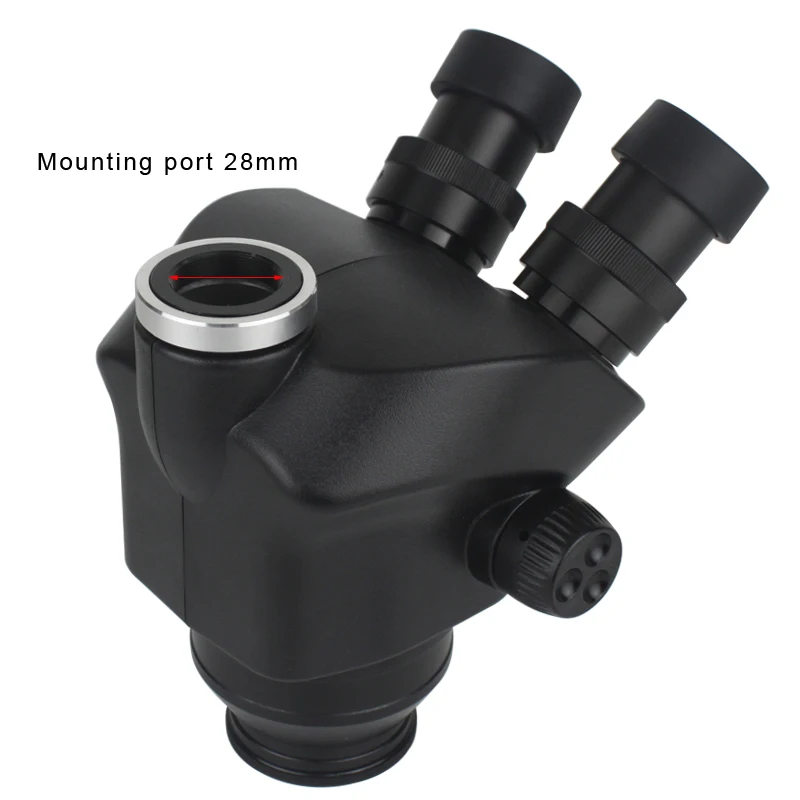

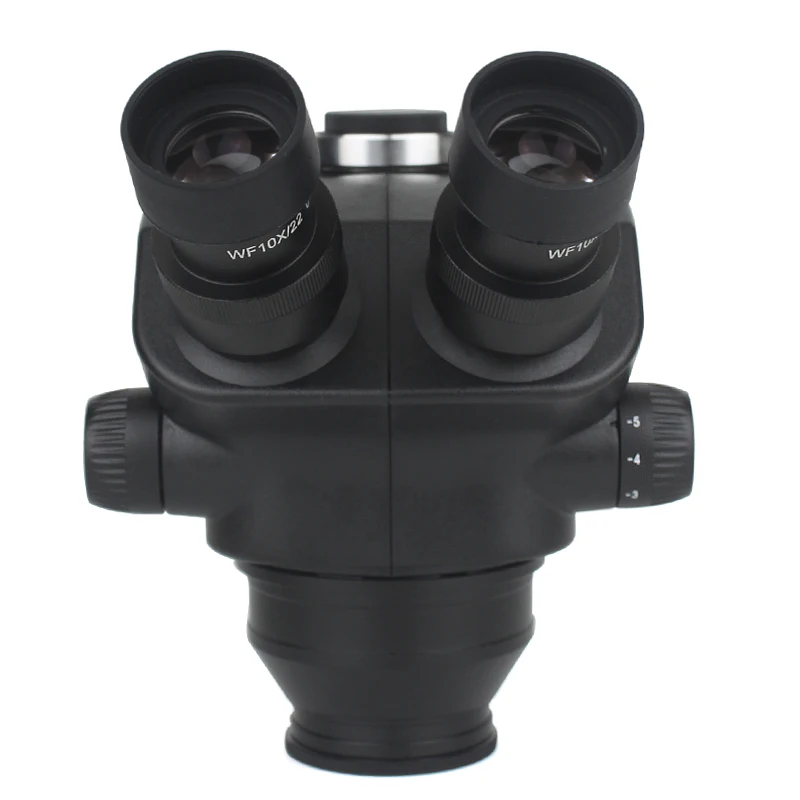

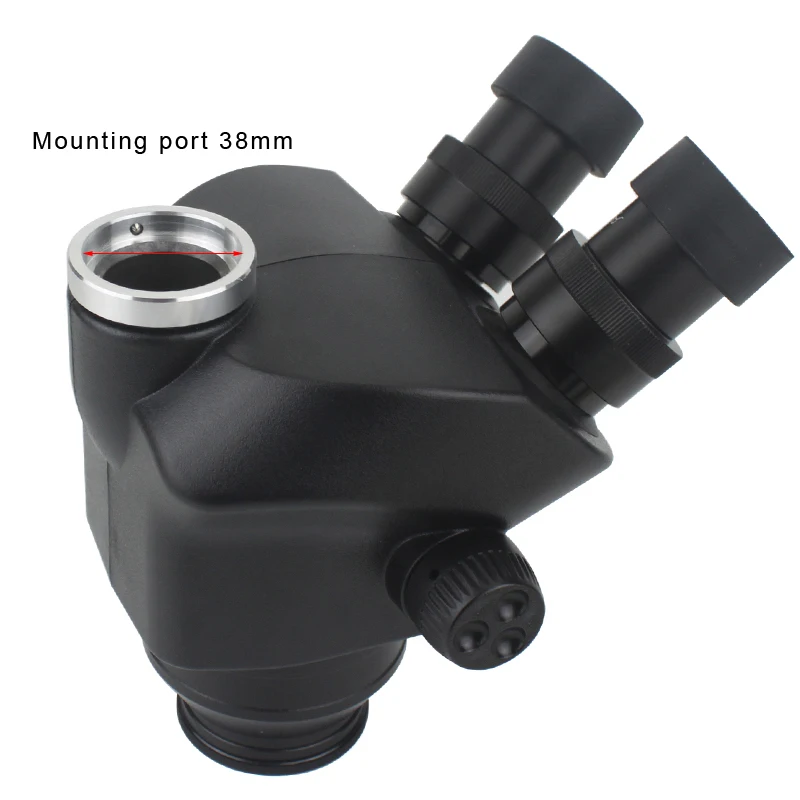

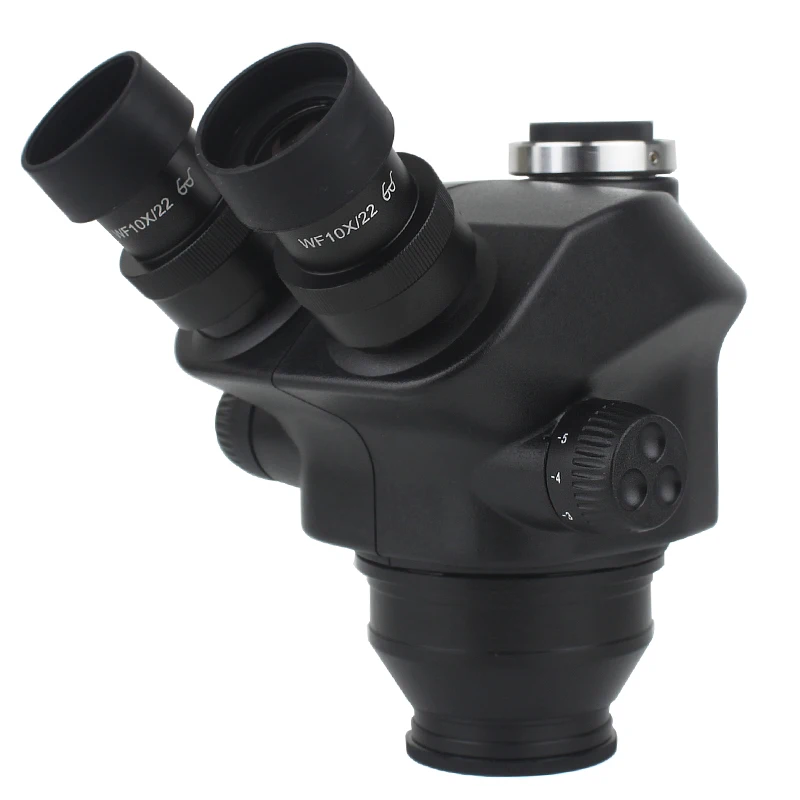

Microscope Head Feature:
Sharp stereo erect image over a wide field of view. Standard working distance is 110mm, to create enough space for the uses
45inclined and 360rotatable binocular head .The interpupillary distance is between 54-75mm. Observation head 45 ° inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use.
Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm，plan and high eye-point design, more suitable for search and observation
Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision.
Best eye-point height, to ensure that different vision of the user can get a clear image
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: WF10X/22MM
Zoom Rate position:0.7-5x
Magnification:7x-50x
Working Distance:110mm
Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses
4K 48MP HDMI USB Camera
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)（Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.）
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language：Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
4K 48MP HDMI USB Camera
High Quality, High Resolution, Clear Images
Picture Pixel:48M
Sensor: SONO 2.33 inch 48MP
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for USB)
Video resolution: 4K(4:3) 2880×2160 @25 FPS
1920×1080@60F/S Video Camera
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
TF Card: Video Recorder
Grid line:8 horizontal lines, 8 vertical lines
Video Frame Rate:60FPS@1920x1080 24FPS@2K 60FPS@720P
25FPS@4K
Model: Camera with HDMI USB two output
TF card:4GB (Up to 32GB max）
Cross line:Overlap or Cancel
CMOS pixel:1.33um x 1.33um
Lens jack:C-mount
Color setting:Auto
Power:12V/1A
White balance:Auto/one button calibration/Manual
Size:64x64x35mm
EV:Auto/Manual
Weight:180g
Language:Chinese, English
Camera mode:HDMI output 1080P @60 FPS
Working temperature:0-70℃
13MP HDMI VGA Camera
13MP VGA Camera
Overall dimension: 70*50*50mm
Video Interface:VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7"
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
2K 38MP HDMI USB Camera
Module:FHD3860
38 MegaPixel
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:38 MegaPixel
Size of the picture:7120*5344
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
13MP HDMI USB Camera
High Quality, High Resolution, Clear Images
1/2.8"
1080P 1920*1080 Video Camera
HDMI USB Video Model
Added TF card and U disk picture and video storage functions.
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.Can also connect to PC.
Optical format:1/2.8 inch
Housing: Aluminium alloy
Interface:HDMI(Type A).USB(Type B).TF Card,USB Flash Drive
Image resolution:1080P
Video record resolution:1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
HDMI scale:Support 4:3,16:9, screen
USB2.0(Drive free):1920*1080@30FPS1280*720@30FPS640*480@30FPS
TF card:MAX 64GB
USB Flash Drive:MAX 128GB
TF card or U disk format
Digital Zoom:1X-4X
White balance:One key white balance,Manual balance
AWB:WB color correction/Auto/Manual
Sharpness:1-5,Adjustable
Sharpness: 0-10,Adjustable
Noise reduction: 0-10,Adjustable
Avoid flicker: Auto or 50Hz 60Hz
Color:Black and White / color
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
IR remoter:Support
Power supply:12V 1A xc
