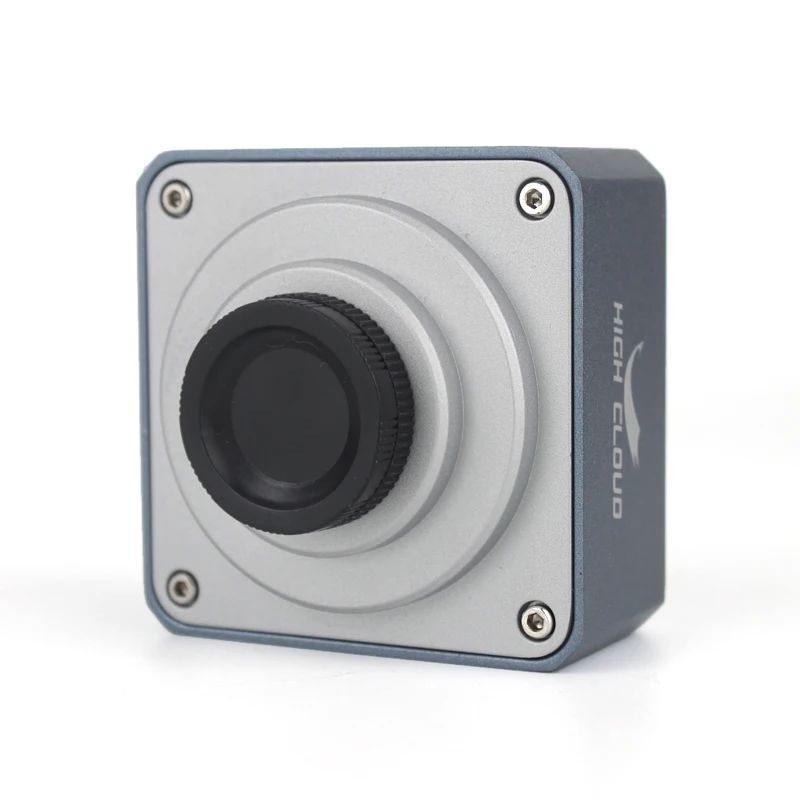

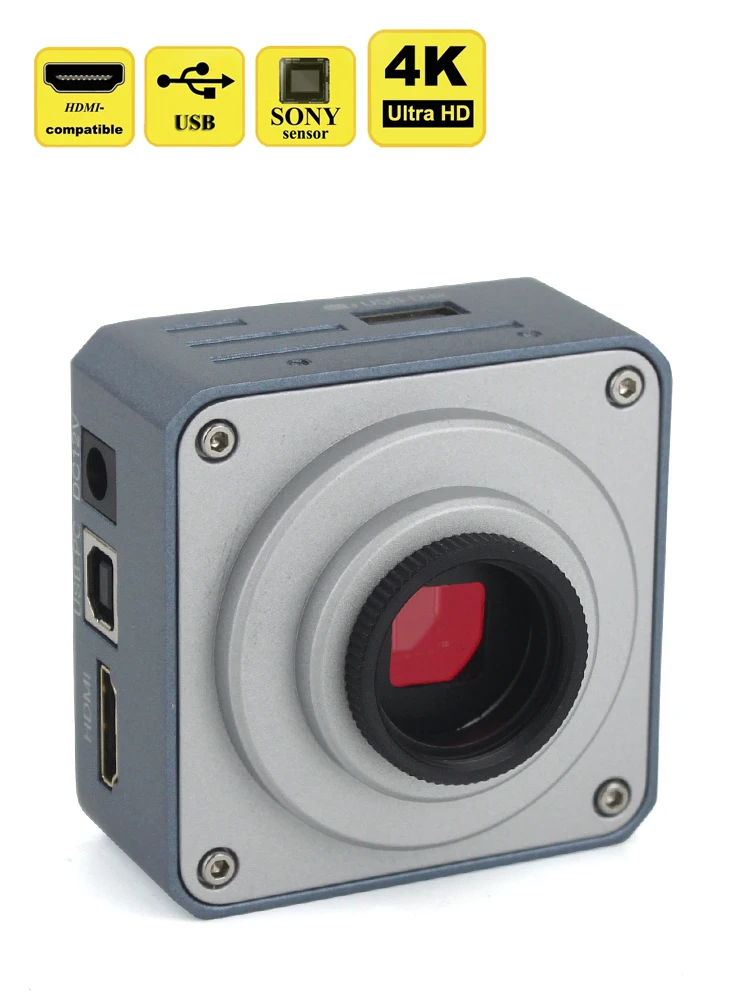

Custom CNC machining 4K Ultra HD 60fps HDMI compatible and USB Video output 4K industrial microscope camera 1/2" SONY sensor
Custom CNC machining 4K Ultra HD 60fps HDMI compatible and USB Video output 4K industrial microscope camera 1/2" SONY sensor
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Specifications:
overall dimension : 66*66*40mm

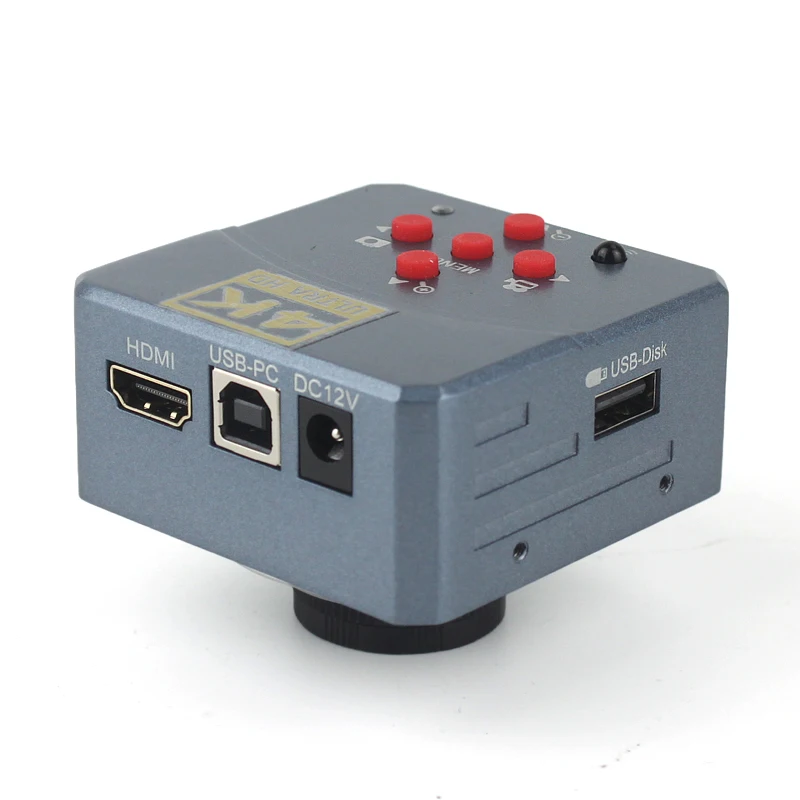

Video Interface：HDMI USB-PC
Video Interface：4K @30FPS 1080p@60FPS
USB-PC output of display resolution：4K @25FPS
Udisk video resolution：4K @30FPS 1080p@60FPS
Lens：CS
working voltage：DC12V
working current : 200mA
optical format : 1/2"
pixel size : 2um*2um
Pixel array : 4K 3840*2160
TV Lines : 2000TVLine
FPS : 4K @30FPS 1080p@60FPS
scanning mode : progressive
shutter mode : electronic shutter
dynamic range : 78dB
S/N radio : 40dB
OSD language : Chinese / English
AWB mode : Primary White Balance/Manual/Auto
Cross line : Support 20 cross lines, color/line width/position/horizontal and vertical adjustable
B/W : √
negative : √
mirror flip : √
Freeze : √
compare : √
Manual set bright,contrast, sharp,saturation : √

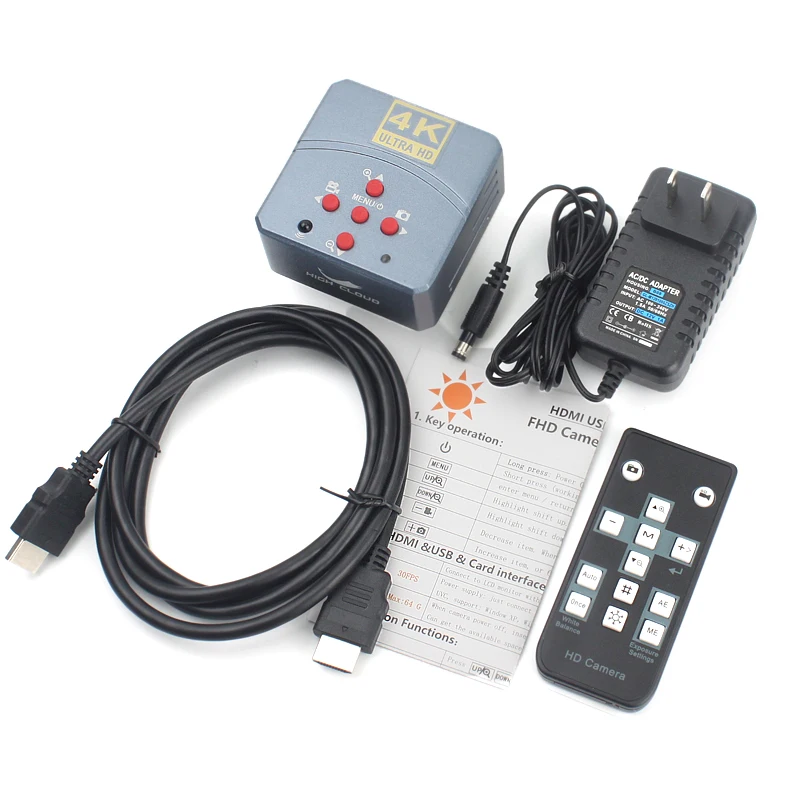

Package incluede：
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
