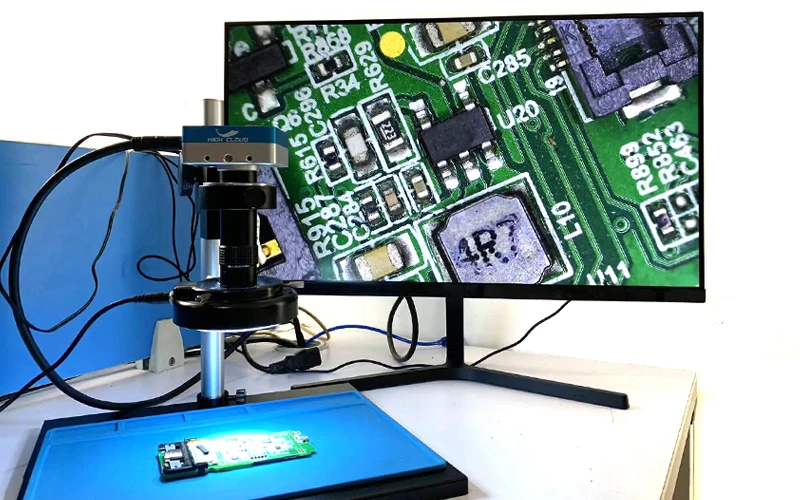

Custom CNC machining 48MP 4K USB HDMI 1080P Digital Video Monocular Microscope Camera Continus Zoom 130X C-Mount lens For Soldering Phone PCB Repair
Custom CNC machining 48MP 4K USB HDMI 1080P Digital Video Monocular Microscope Camera Continus Zoom 130X C-Mount lens For Soldering Phone PCB Repair
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Note: Please select the product you need according to the SKU picture, you can choose to buy a package or a combination
Function：
High Quality, High Resolution, Clear Images
Picture Pixel:48M
Sensor: SONO 2.33 inch 48MP
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for USB)
Video resolution: 4K(4:3) 2880×2160 @25 FPS
1920×1080@60F/S Video Camera
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
TF Card: Video Recorder
Grid line:8 horizontal lines, 8 vertical lines
Video Frame Rate:60FPS@1920x1080 24FPS@2K 60FPS@720P
25FPS@4K
Model: Camera with HDMI USB two output
TF card:4GB (Up to 32GB max）
Cross line:Overlap or Cancel
CMOS pixel:1.33um x 1.33um
Lens jack:C-mount
Color setting:Auto
Power:12V/1A
White balance:Auto/one button calibration/Manual
Size:64x64x35mm
EV:Auto/Manual
Weight:180g
Language:Chinese, English
Camera mode:HDMI output 1080P @60 FPS
Working temperature:0-70℃
Note: The SKU image shall prevail
A: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x Stand
1 x 130X lens
1 x 56 led ring light
1 x work mat
B: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x Stand
1 x 130X lens
1 x 56 led ring light
1 x work mat
1 x clip-on led light
C: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x Stand
1 x 130X lens
1 x 56 led ring light
1 x work mat
D: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
E: Package incluede
1 x Stand
1 x 130X lens
1 x 56 led ring light
1 x work mat
1 x clip-on led light
8X-130X Zoom C-mount Lens:
Work distance: 40mm-400mm
Zoom ratios: 1:17
Magnification Power by 0.12 - 2X (about 8X - 100X on the Monitor)
view field of Max multiple : 5.4mm*3mm
view field of Min multiple : 54mm*3mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
10X-130X C-MOUNT Lens:
Working distance: 60mm-300mm
zoom ratios: 1 : 11
Magnification Power by 0.1 - 1.3X (about 10 - 130X on the display)
view field of Max multiple : 8mm*4.5mm
view field of Min multiple : 40mm*33mm
Size: 30mm(diameter) * 84mm(length)
Weight: 180g
