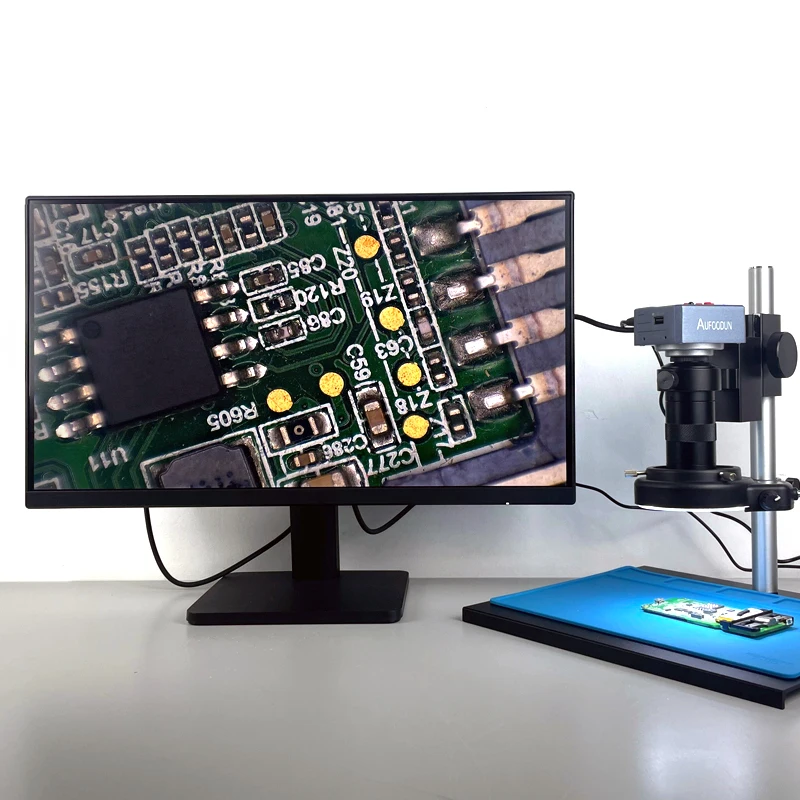

Custom CNC machining 48MP 4K 1080P HDMI USB Video Microscope Camera 150X Lens Electronic Industrial Digital Microscope for Phone PCB Repair Soldering
Custom CNC machining 48MP 4K 1080P HDMI USB Video Microscope Camera 150X Lens Electronic Industrial Digital Microscope for Phone PCB Repair Soldering
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
c-mount Lens
150X Objective Lens:
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 35mm(default), 42mm, 50mm (optional)
Key Feature:
overall dimension : 66*66*40mm
Video Interface：HDMI USB-PC
Video Interface：4K @30FPS 1080p@60FPS
USB-PC output of display resolution：4K @25FPS
Udisk video resolution：4K @30FPS 1080p@60FPS
Lens：CS
working voltage：DC12V
working current : 200mA
optical format : 1/2"
pixel size : 2um*2um
Pixel array : 4K 3840*2160
TV Lines : 2000TVLine
FPS : 4K @30FPS 1080p@60FPS
scanning mode : progressive
shutter mode : electronic shutter
dynamic range : 78dB
S/N radio : 40dB
OSD language : Chinese / English
AWB mode : Primary White Balance/Manual/Auto
Cross line : Support 20 cross lines, color/line width/position/horizontal and vertical adjustable
B/W : √
negative : √
mirror flip : √
Freeze : √
