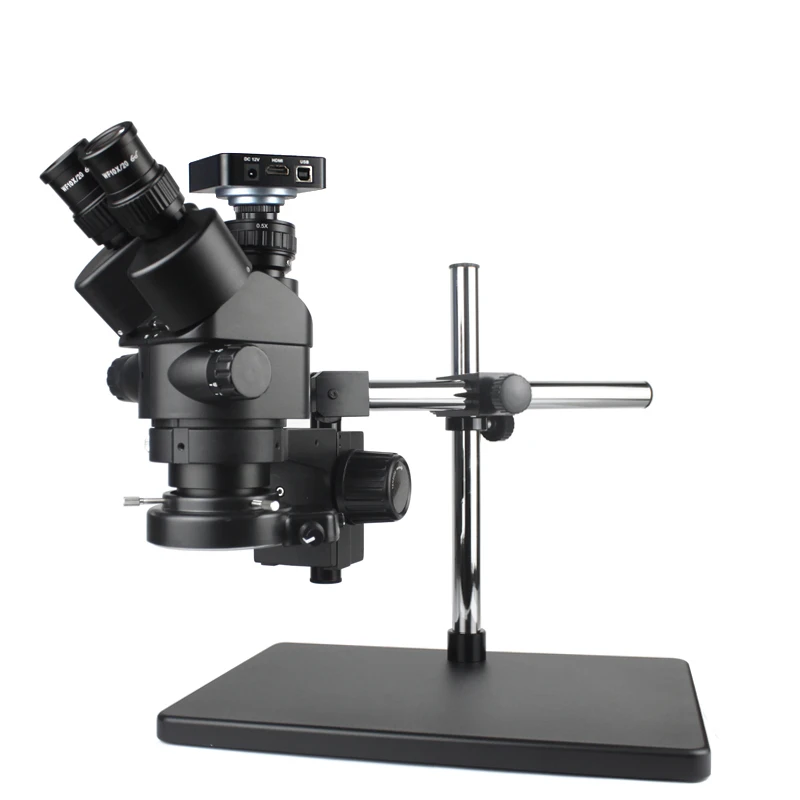

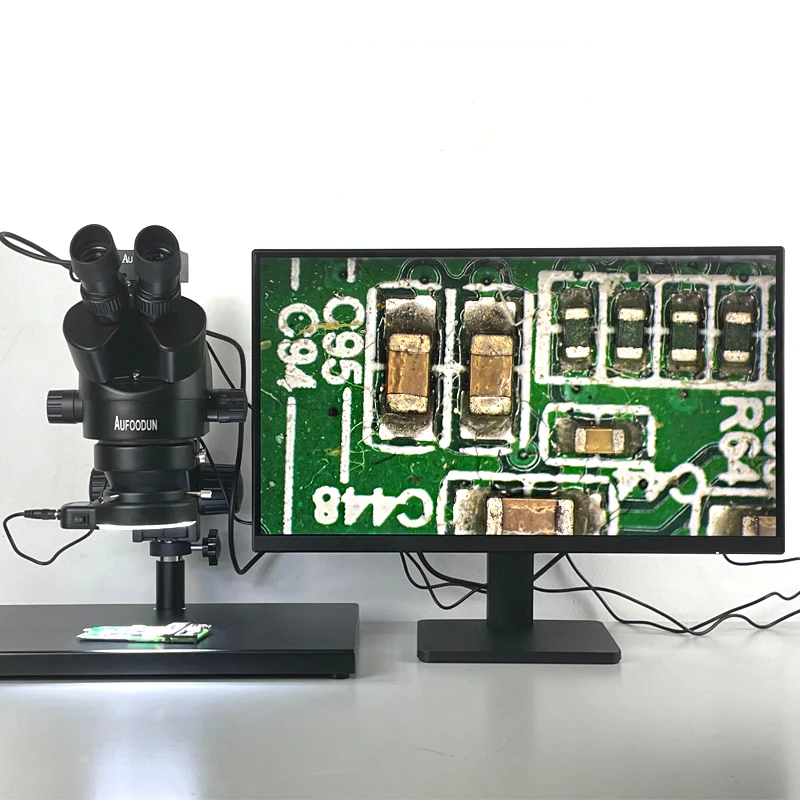

Custom CNC machining 3.5X 7X 45X 90X Simul-Focal Zoom Trinocular Stereo Microscope USB Digital HDMI 38MP Microscope Camera Set For PCB Soldering Repa



Key Feature:

7X~45X zoom magnification power with crisp sharp images

Super widefield high-eyepoint optics

widefield of view

4" (100mm) working distance

Sturdy all-metal pillar stand

Powerful 56-LED ring light with dimmer

This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Key Feature:

An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light

7x-45x super wide zoom magnification power

Bright cool light 56-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

Package incluede:

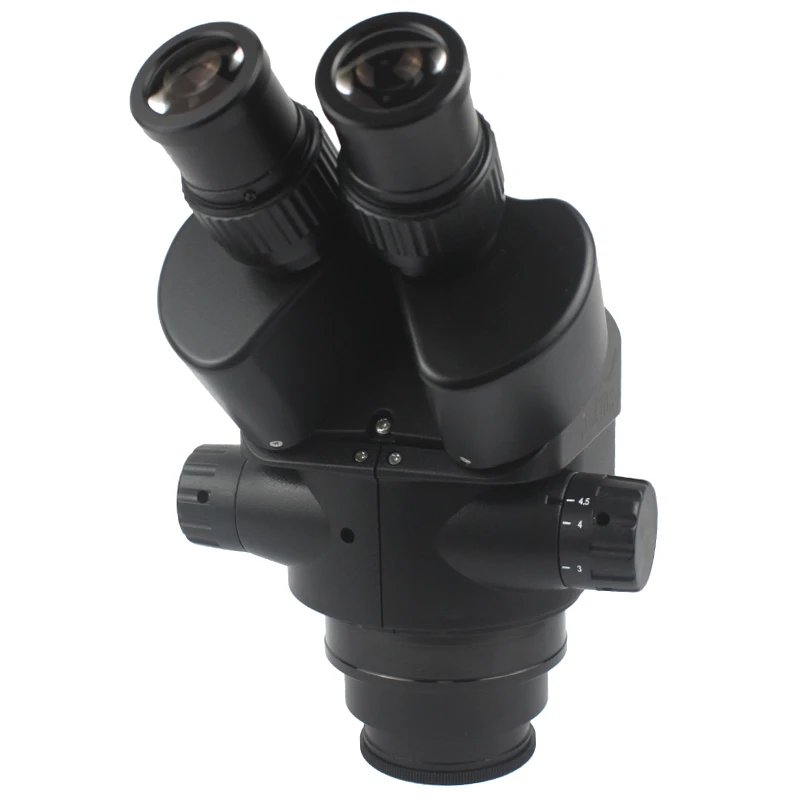

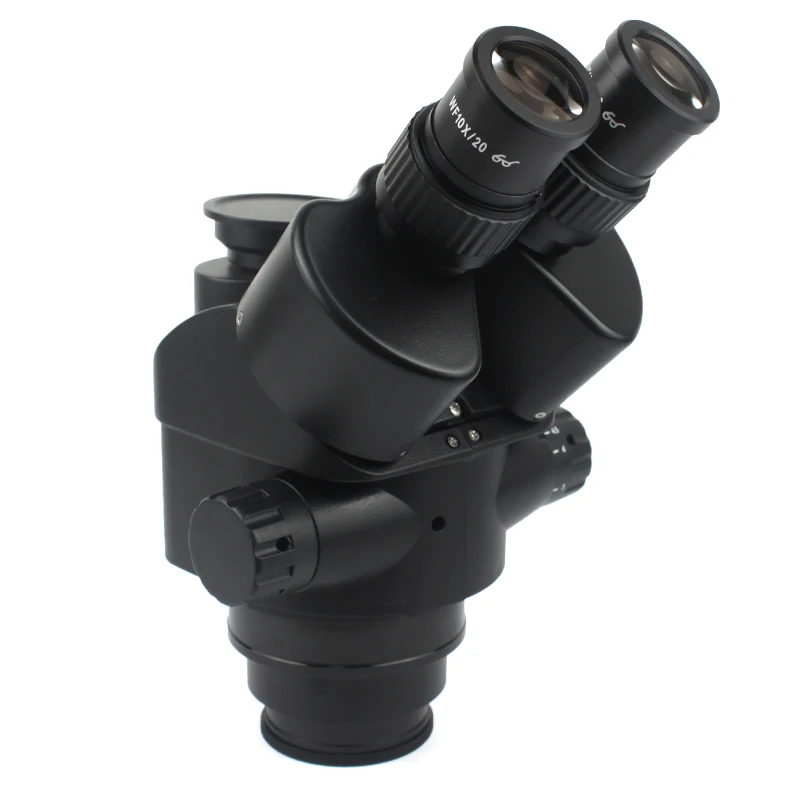

1 x Trinocular microscope Zoom Head

1 x Pair of Super Widefield 10X Eyepieces

1 x 56-LED Ring Light with Adapter

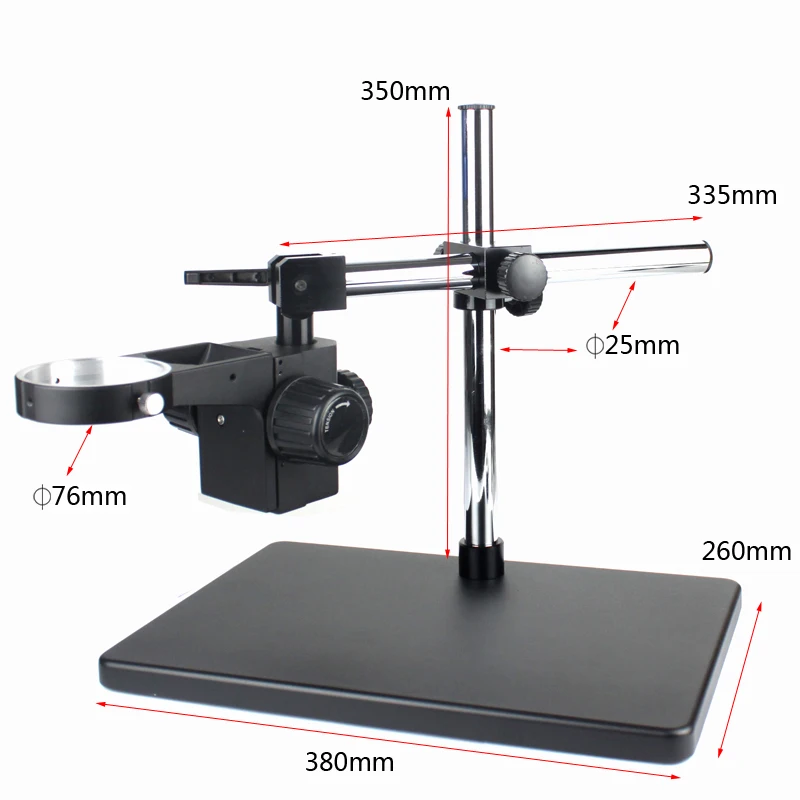

1 x Big size Pillar Table Stand

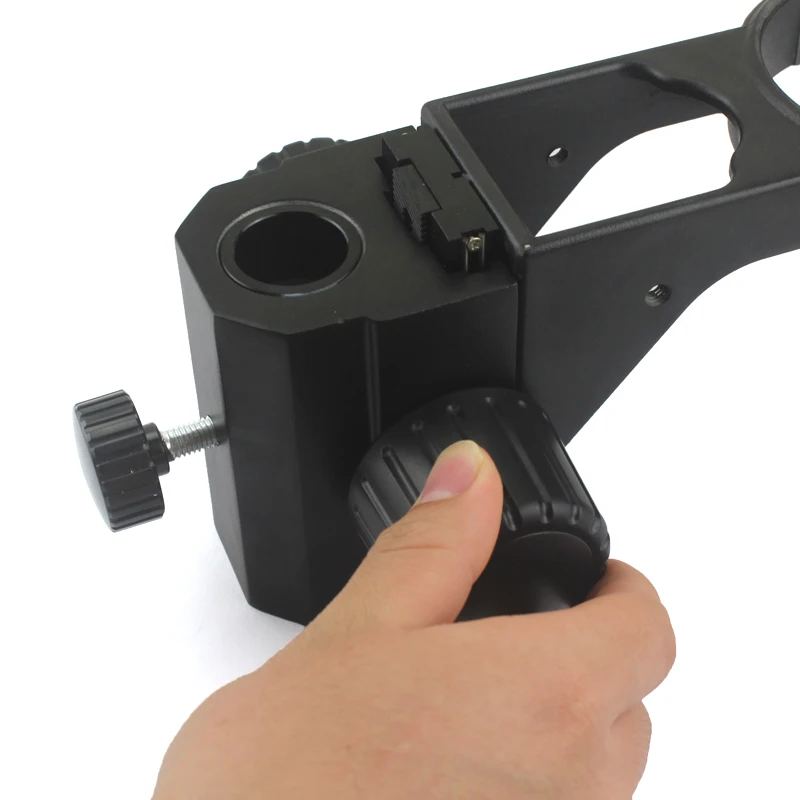

1 x Focusing Rack

1 x Pair of Eye-Guards

1 x Dust Cover

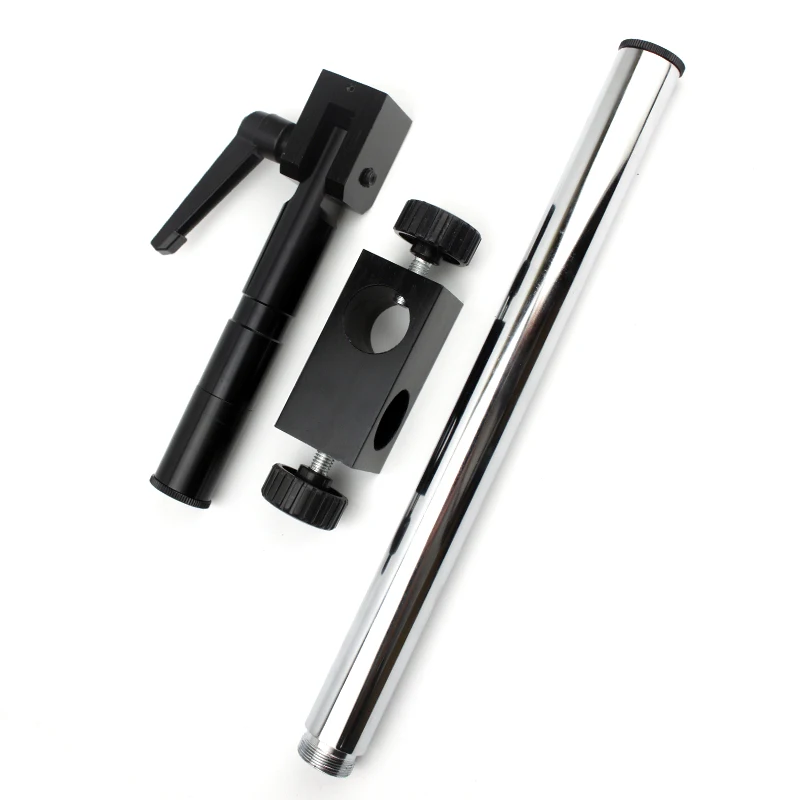

1xuniversal stand

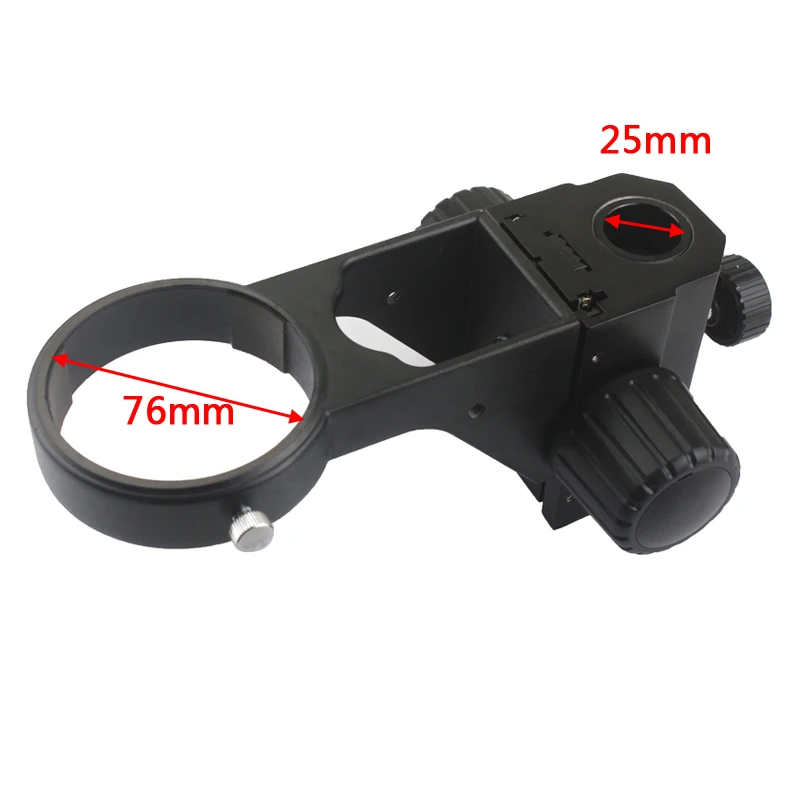

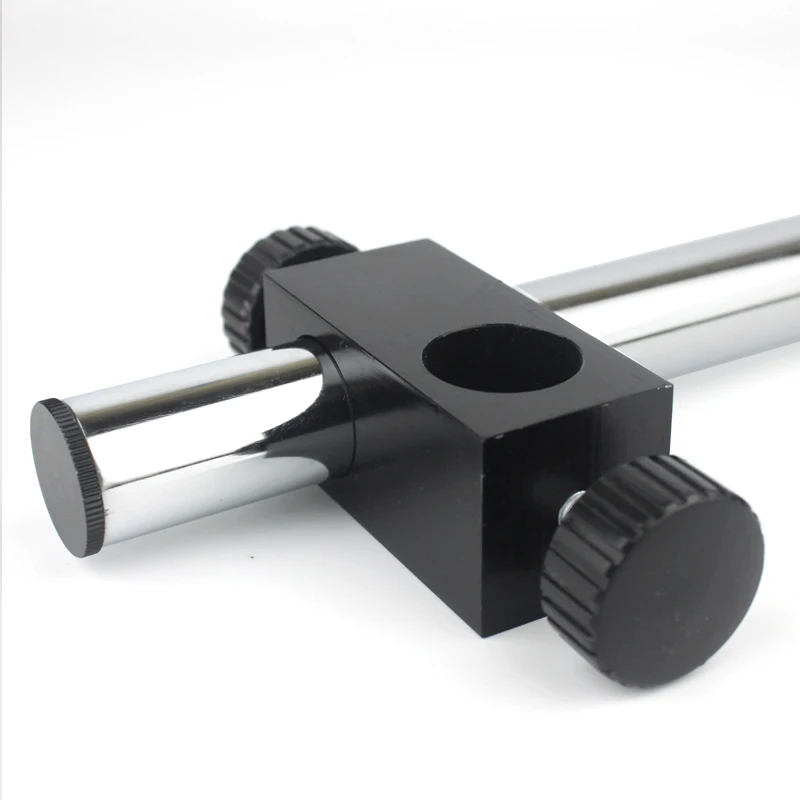

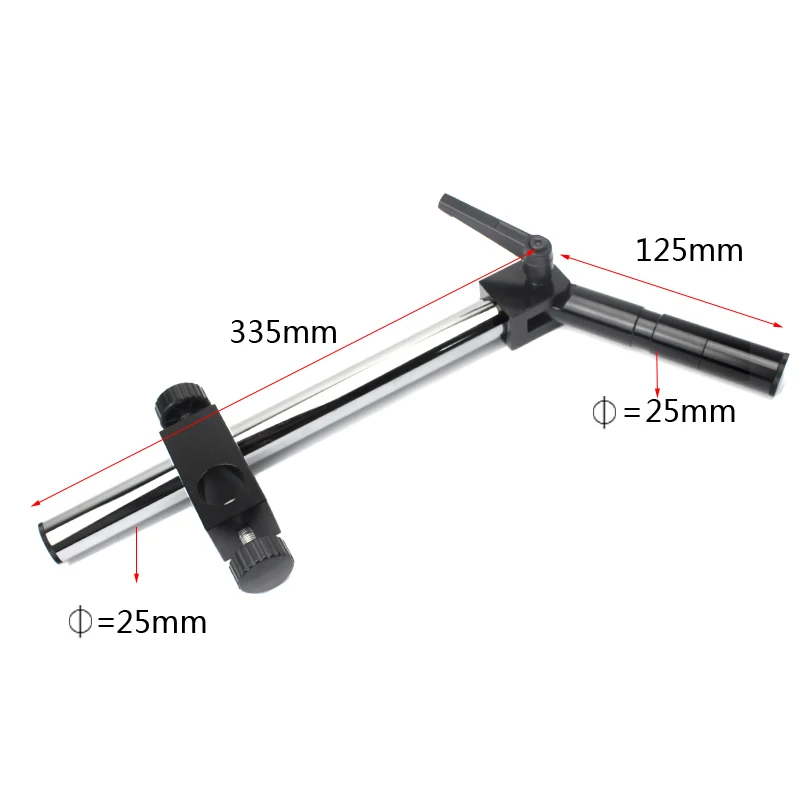

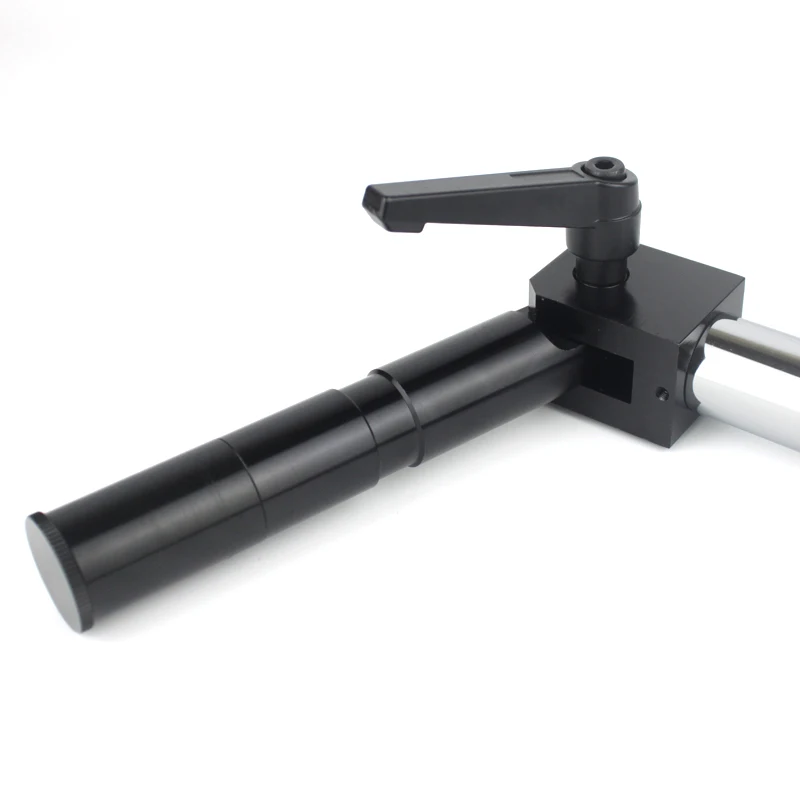

1 x Universal bracket

1x CTV0.5 Adapter

1 x microscope camera(as option selection)

1x 0.5X Objective lens(as option selection)

1x 2.0X Objective lens(as option selection)

Specification:

Head: 360 degree rotatable 45 degree inclined binocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM

Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses

Working Distance: 4" (100mm)

Diopter Adjustment: +/- 5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Round Plate: 3-3/4" (95mm) in diameter

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

Illumination: 56-LED Ring Light

Power Input: 110-240V, 50-60HZ, Automatic Switching

Accessories: Paired eye-caps

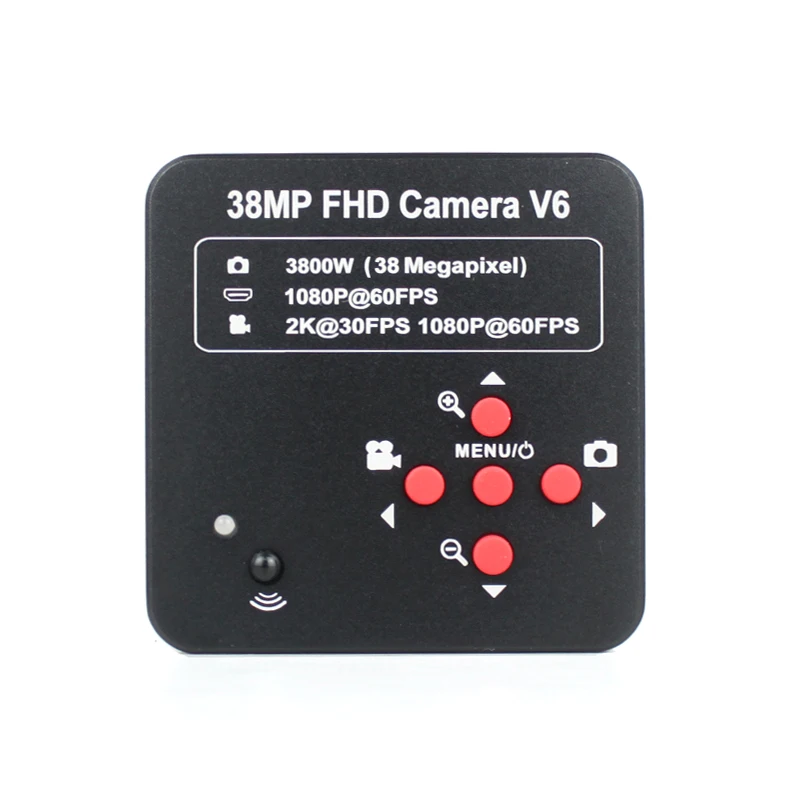

Sensor Panasonic:38 MegaPixel, 38 million pixels CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:21MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Support

Mono Negative:Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS口

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

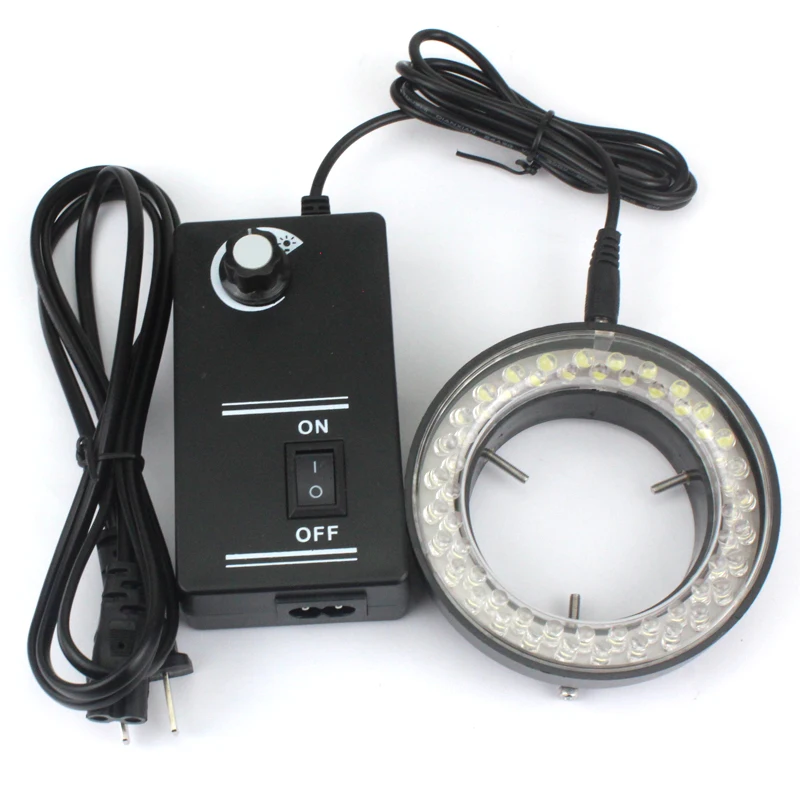

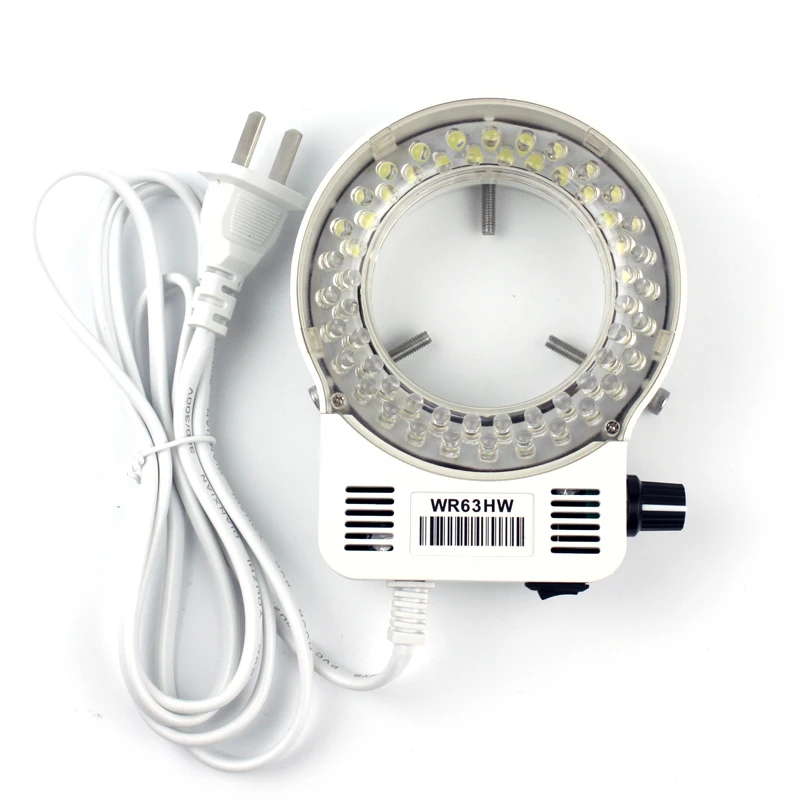

56LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

56 Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm
