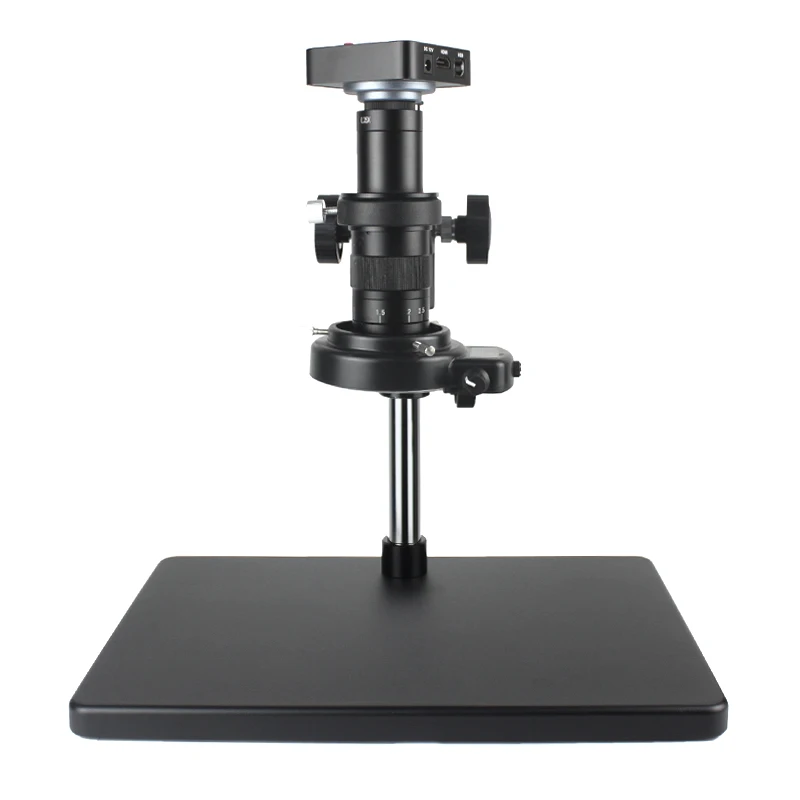

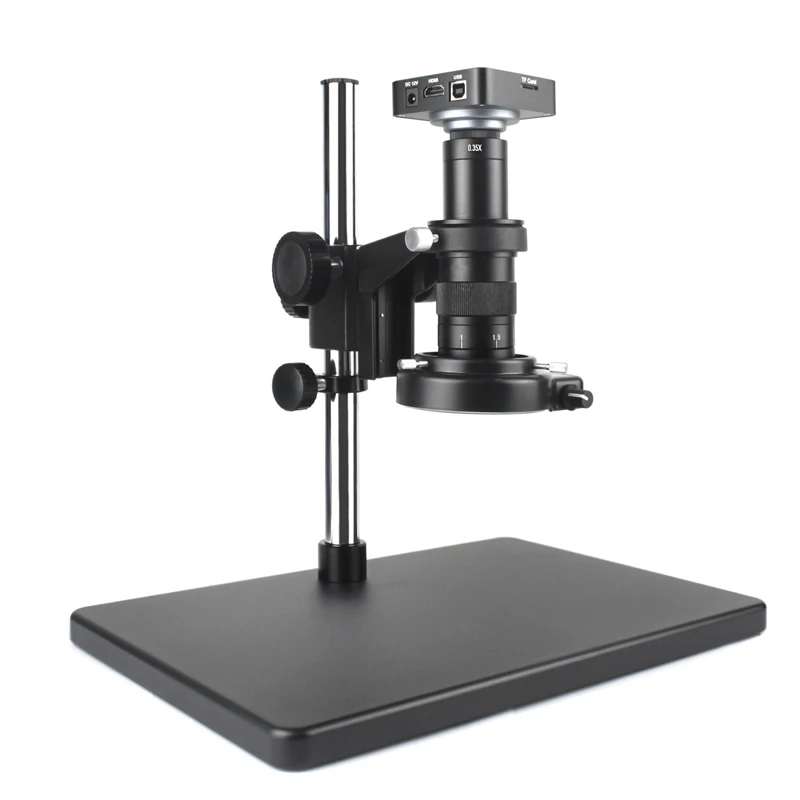

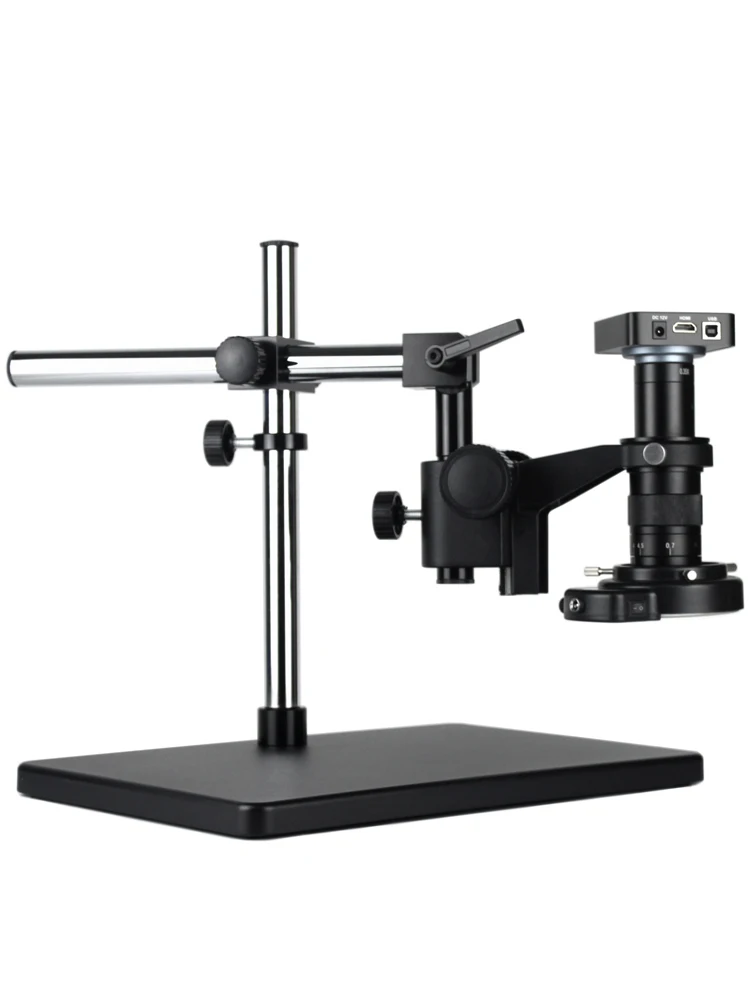

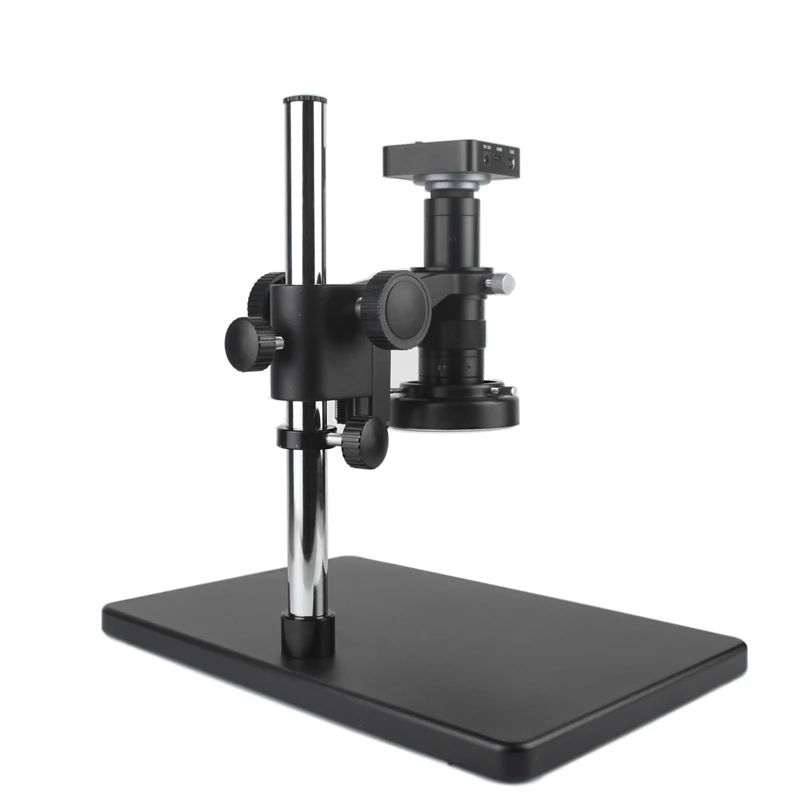

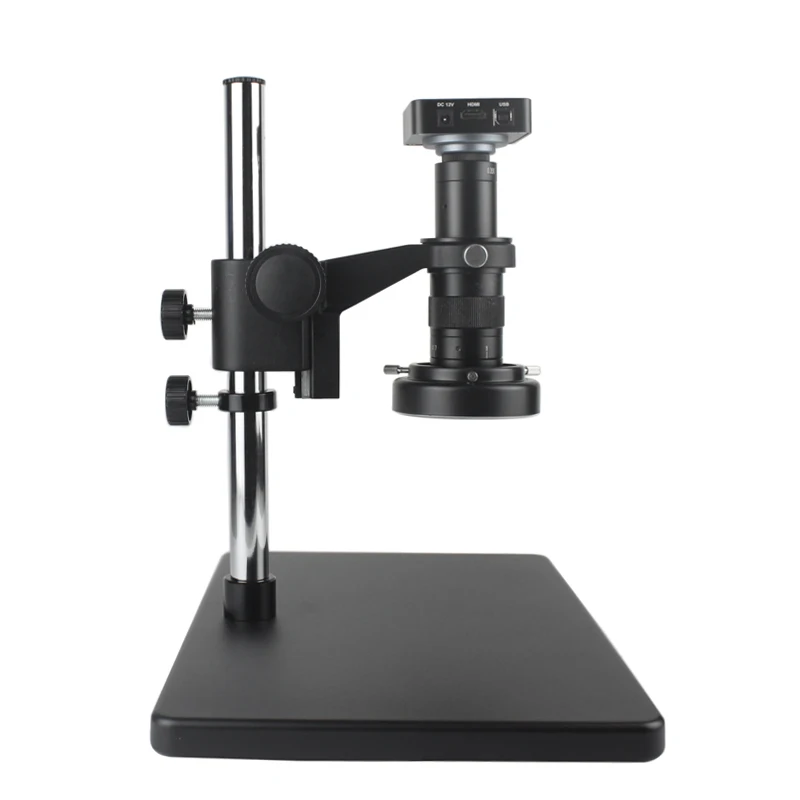

Custom CNC machining 1080P HDMI digital microscope for electronic soldering 120X & 300X 38MP microscope camera USB LED Ring Light professional repair
Custom CNC machining 1080P HDMI digital microscope for electronic soldering 120X & 300X 38MP microscope camera USB LED Ring Light professional repair
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
38MP HDMI USB Camera Specifications:
Image sensor: Panasonic original 38 million pixel CMOS sensor
Sensitive size: 1/2.3 inches. A larger field of view than the usual 1/3
Pixel size: 1.335μm × 1.335μm
Output interface: HDMI (Type A), USB (Type B), TF Card
Photo output: 38 million pixels (7120*5344)
Video output: 2K@30 frames, 1080p@60 frames
HDMI output: progressive 1920*1080 60 frames. Simultaneous output with USB
HDMI output ratio: support 4:3, 16:9, 16:10 screen, to ensure that the image is not distorted.
USB2.0 output (free drive): 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI
TF card storage capacity: maximum 64GB
White balance: One-click white balance/automatic/manual, R, G, B can be individually adjusted
Exposure: manual/automatic. Adjustable exposure value
Crosshairs: 8 lines. Adjustable color, thickness and position
Cross tick: 2 lines. Dotted cross: 2 lines. Adjustable color, thickness and position
Sharpness, contrast, saturation, support, adjustable, black and white, negative film, support
Mirror: horizontal and vertical mirror
Language: Chinese/English
Digital zoom: support
Remote control: supported. The remote control takes pictures and videos without shaking.
Input voltage: DC 12V (support 5-19V), 55-21 large mouth
Lens interface: C/CS port
Product size: 74*74*35mm
package includes: camera, power adapter, remote control, paper manual, HDMI cable, 16G TF memory card
The packaging includes:
1 x HDMI USB Camera
1 x Power Supply (EU/US)
1 x Remote Control
1 x HDMI Cable
1 x paper manual
1 x C mount Lens

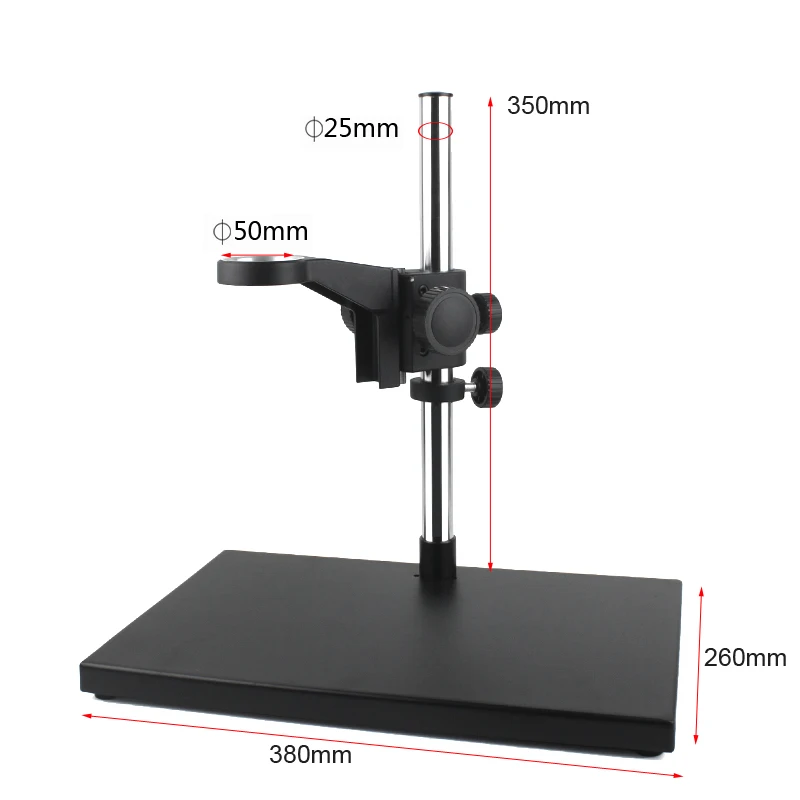

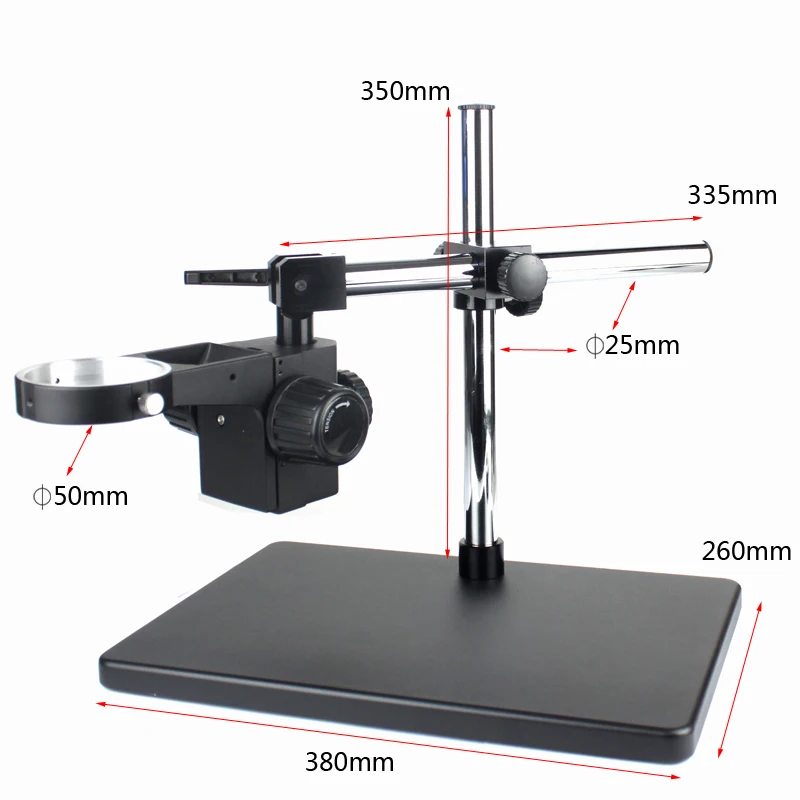

1 x Microscope Focusing Bracket
1 x LED Light Source

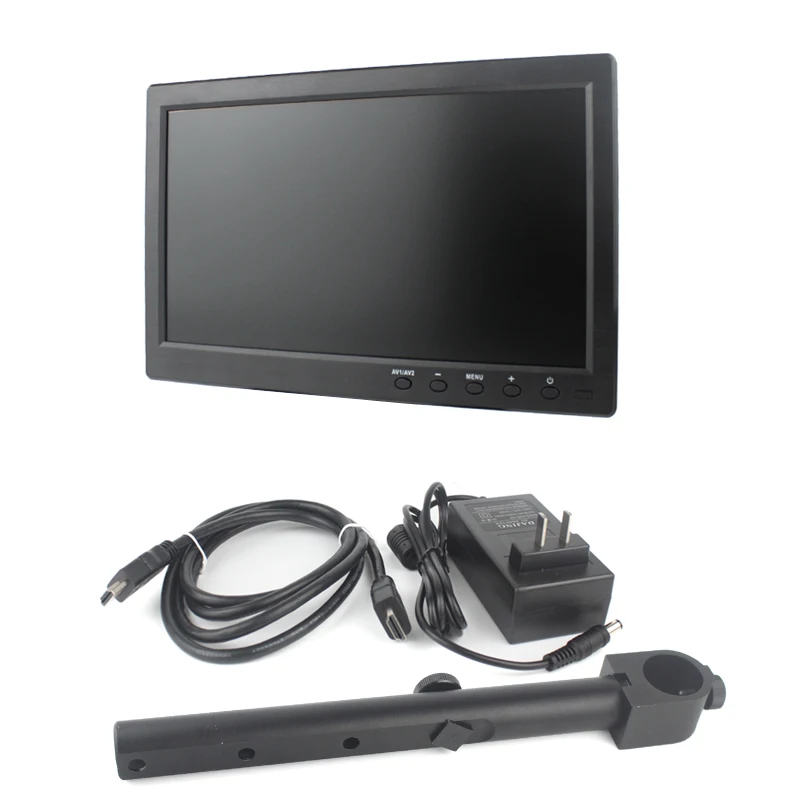

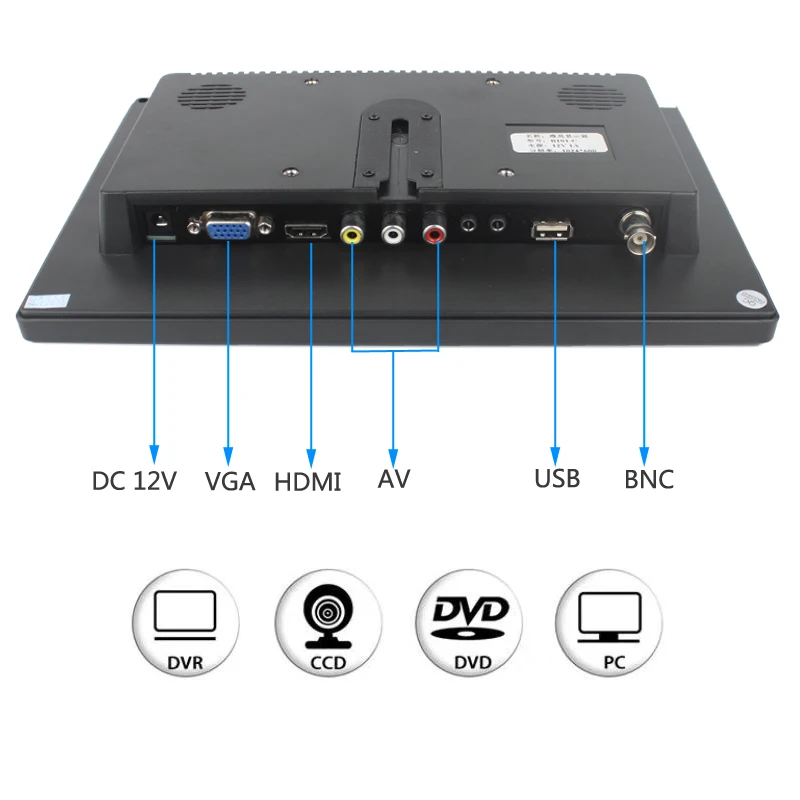

1 x 10.1-inch or (Selective Purchase)

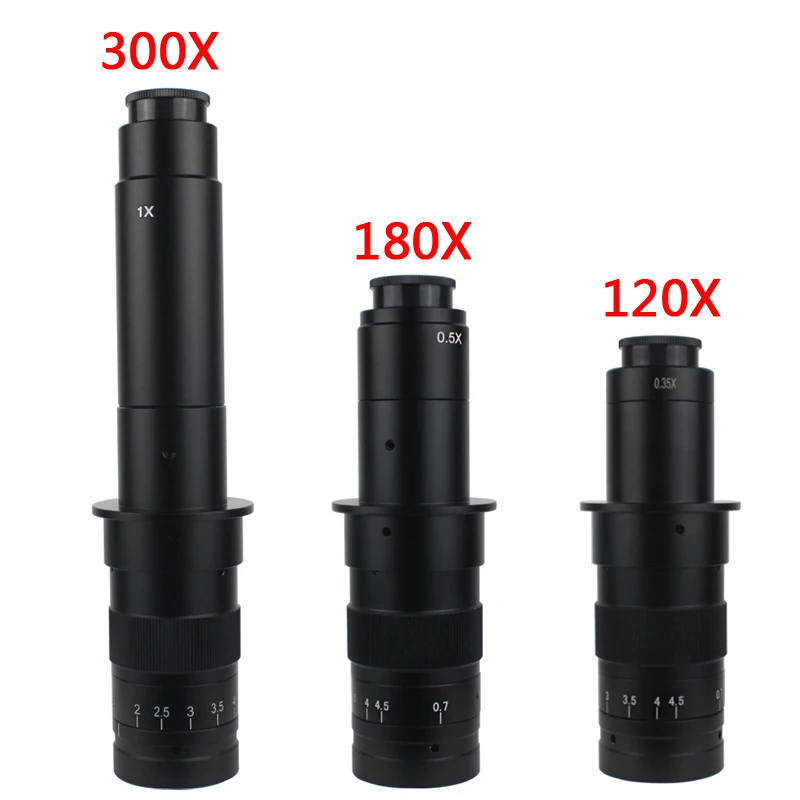

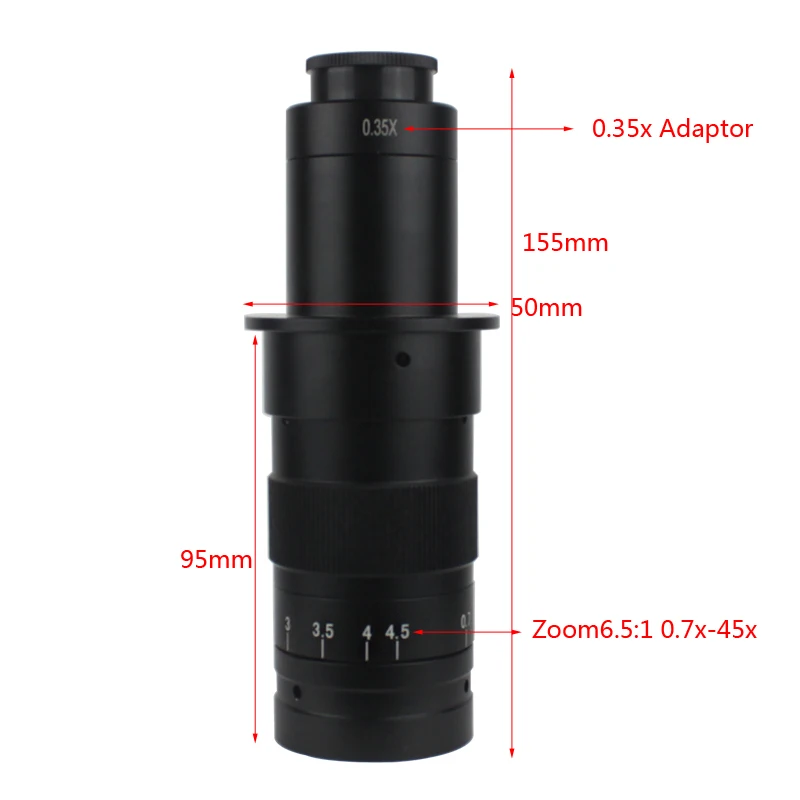

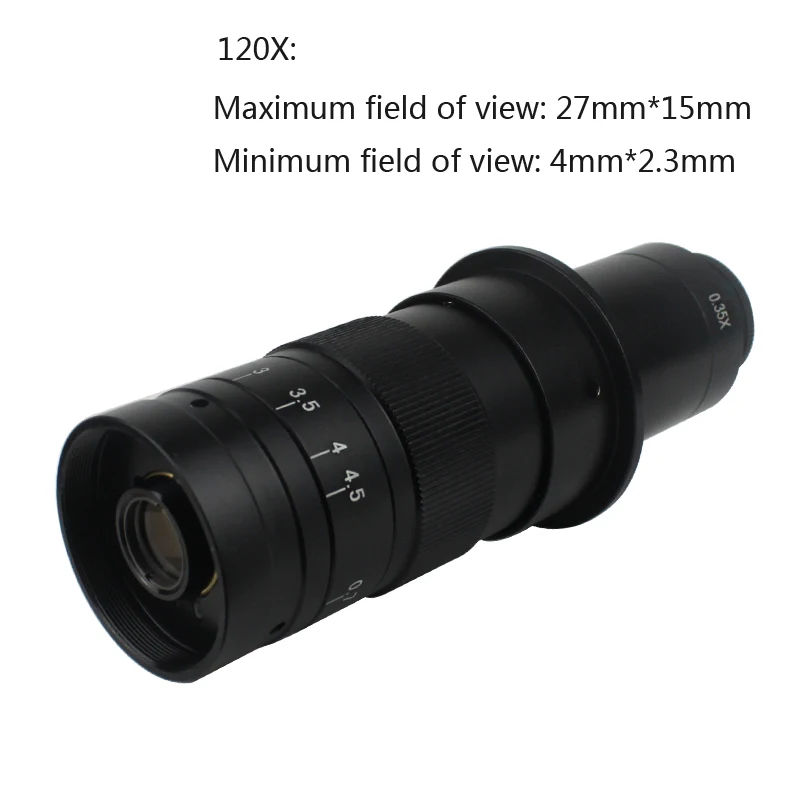

120X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
0.35X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 27mm*15mm
Minimum field of view: 4mm*2.3mm

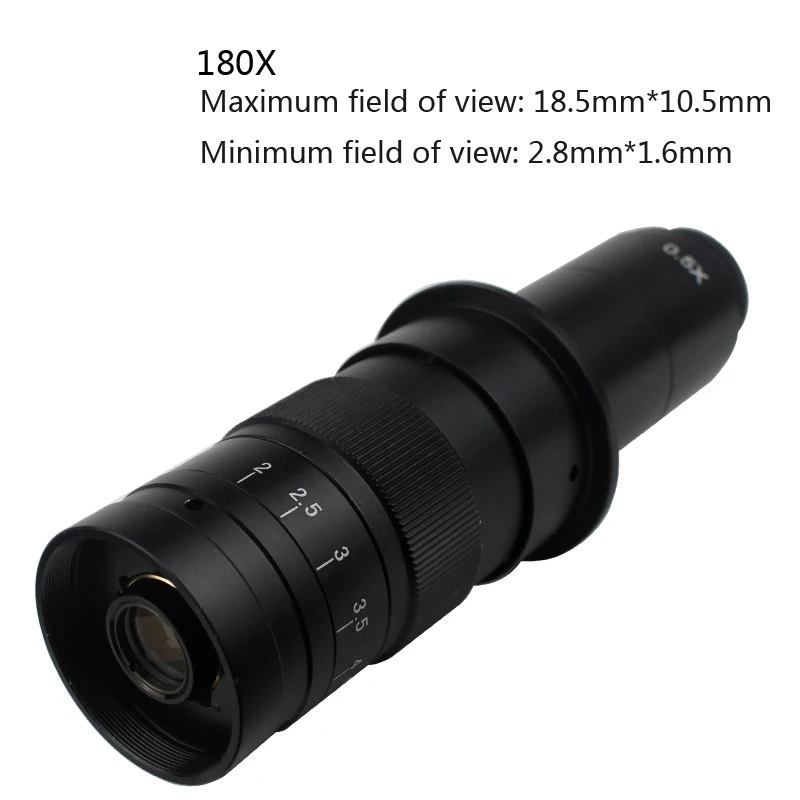

180X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
0.5X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 18.5mm*10.5mm
Minimum field of view: 2.8mm*1.6mm

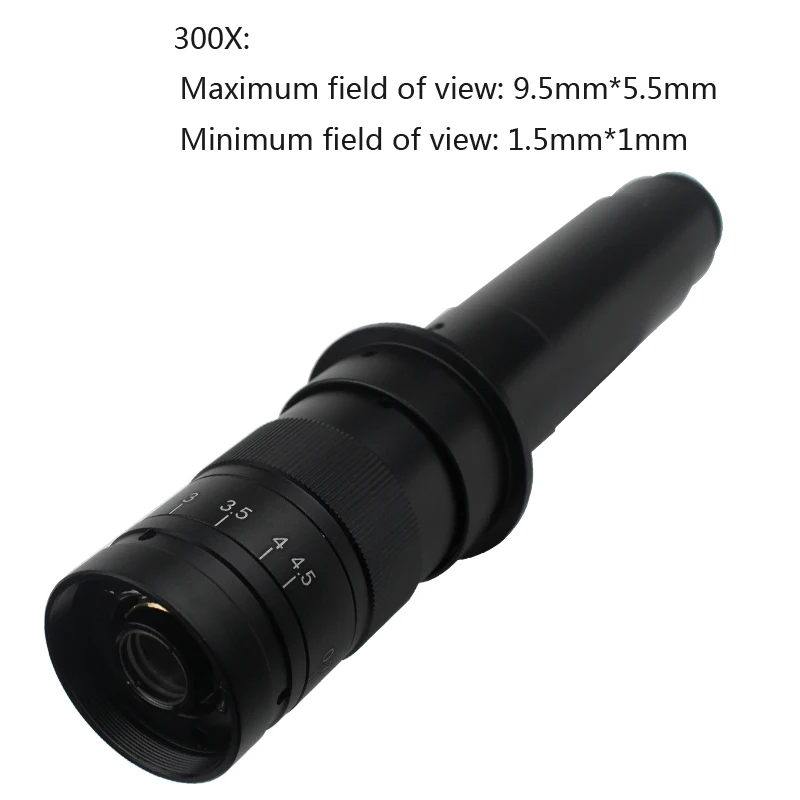

300X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
1X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 9.5mm*5.5mm
Minimum field of view: 1.5mm*1mm

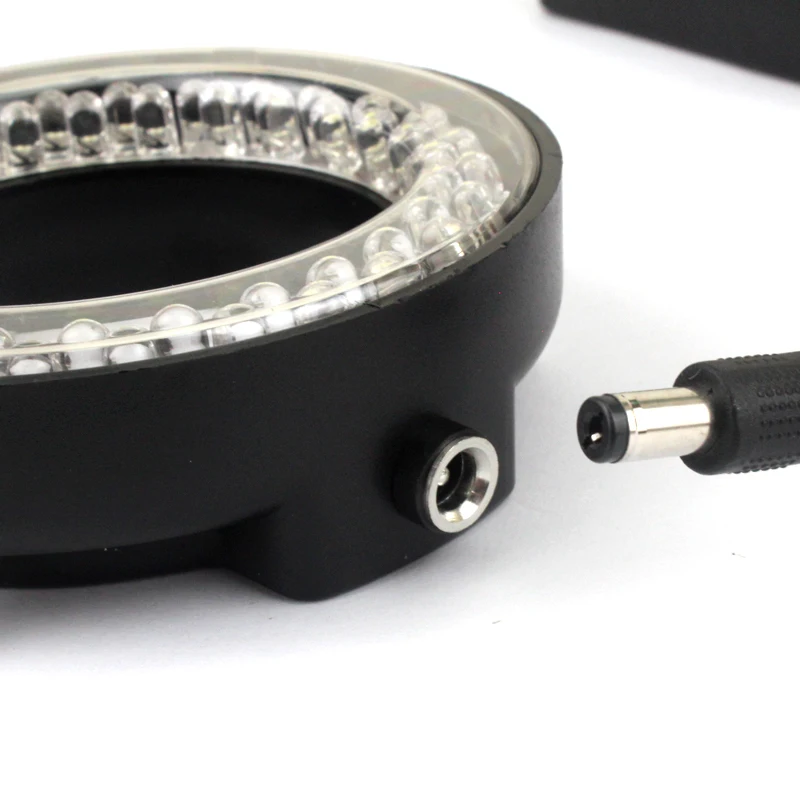

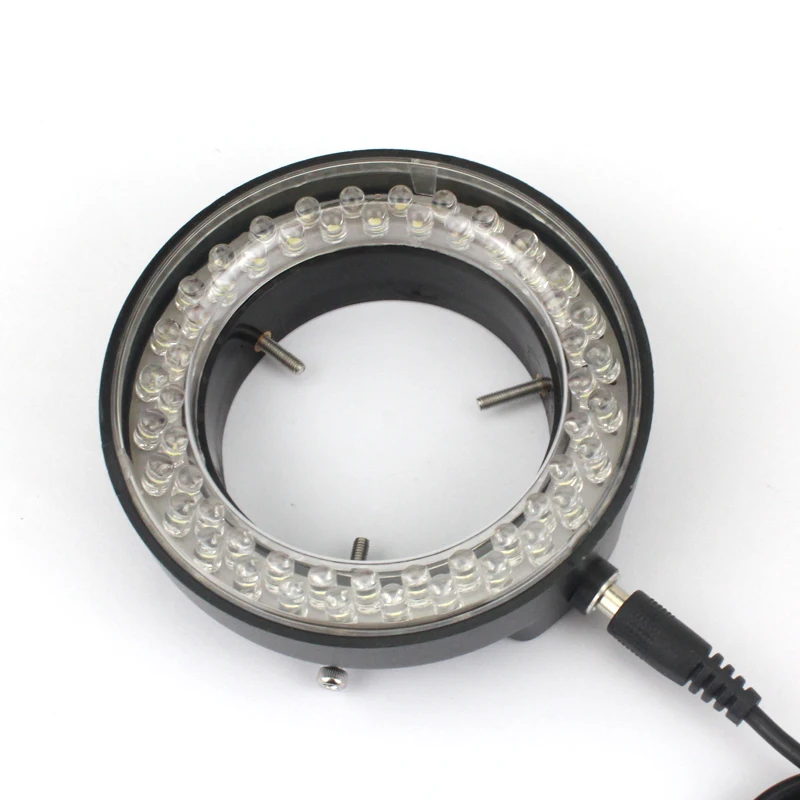

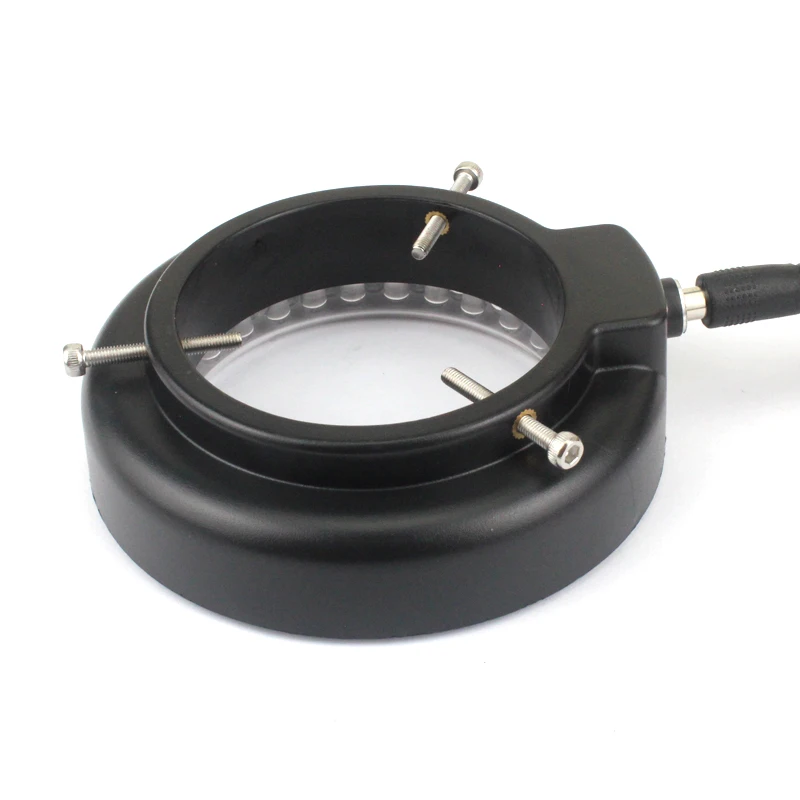

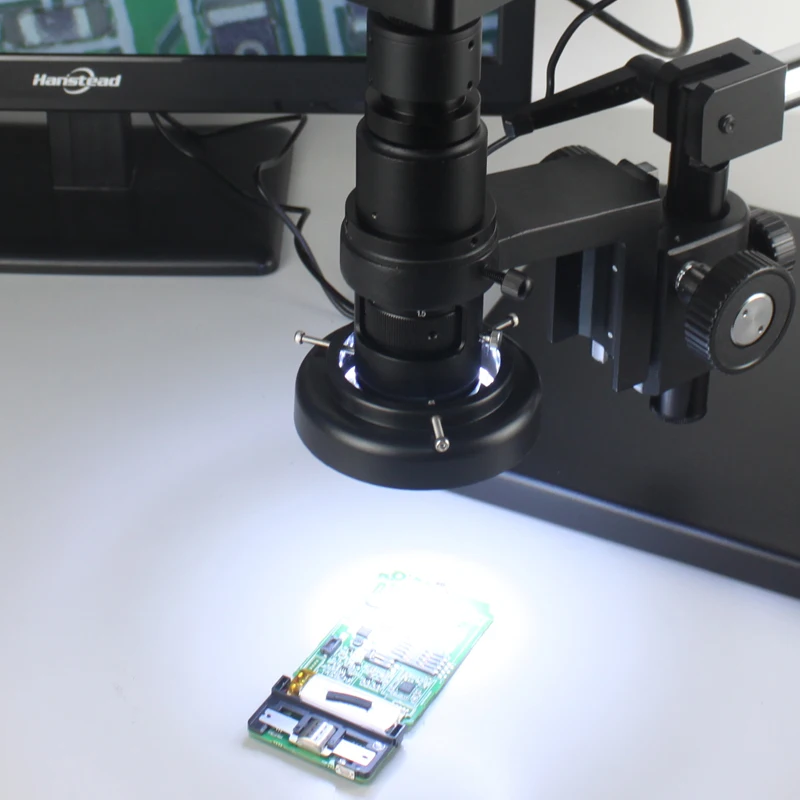

56 LED light source:
56 white LED bulbs
100,000 hours of life
Strong and concentrated shadowless lighting
Brightness 0-100% adjustable, high brightness
Variable intensity control
Power input: 100-240V AC, 50-60HZ
Suitable lens diameter: 30mm-61mm
