Custom CNC machining Camera Panoramic Tripod Ball Head Clamp QJ-07 360 Rotatable Monopod Quick Release Plate PU-60 Adapter Set for Arca Swiss Mount
Custom CNC machining Camera Panoramic Tripod Ball Head Clamp QJ-07 360 Rotatable Monopod Quick Release Plate PU-60 Adapter Set for Arca Swiss Mount
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

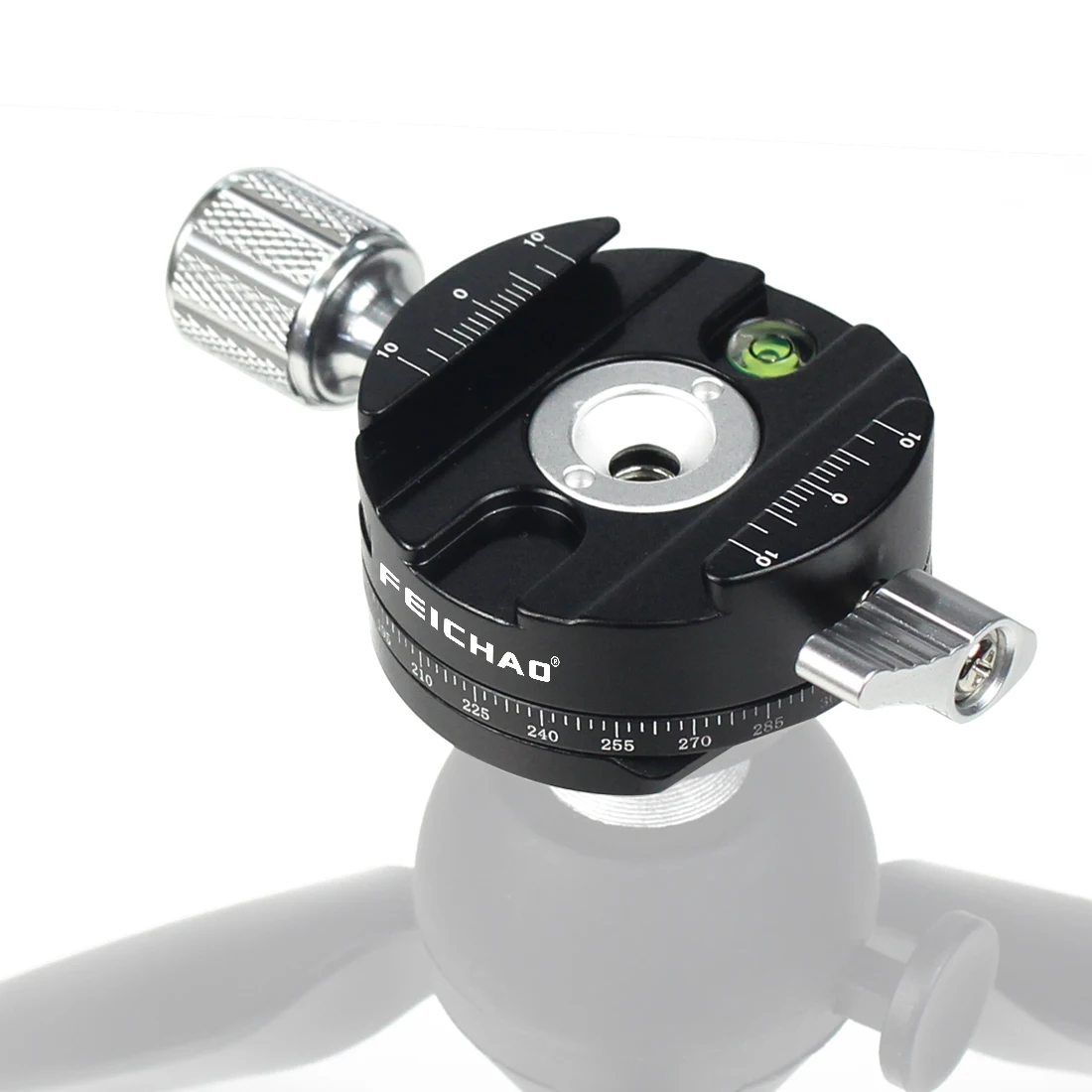

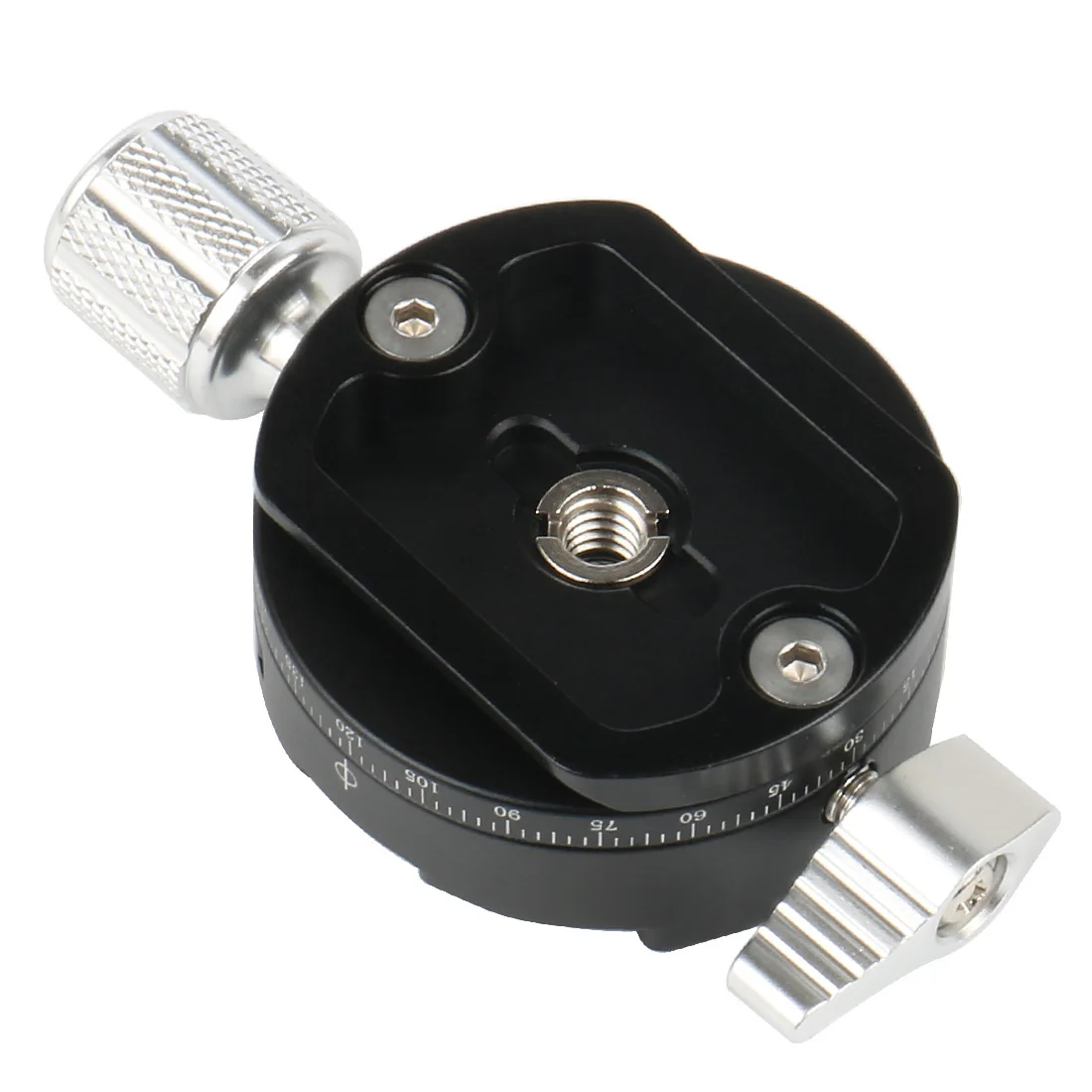

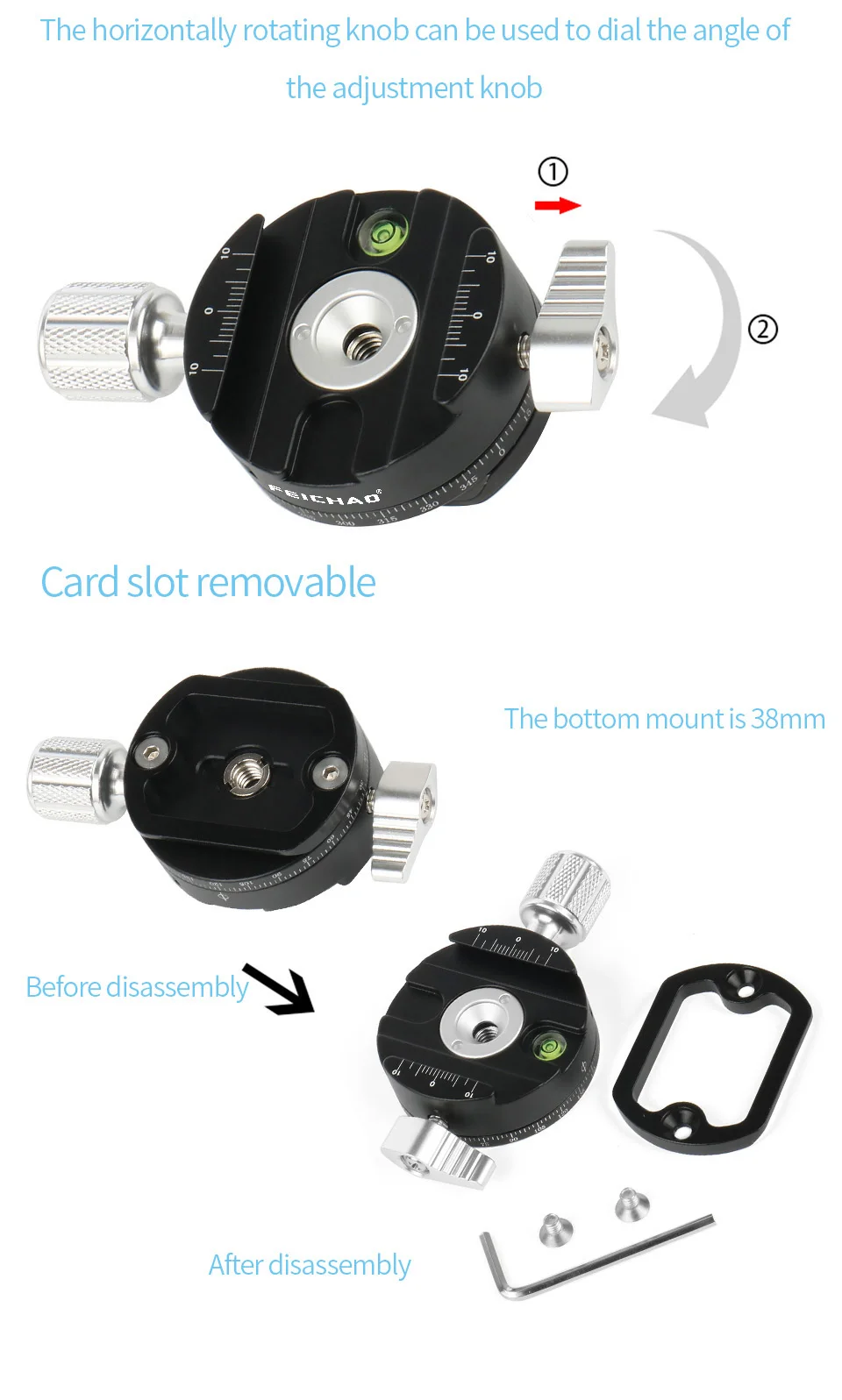

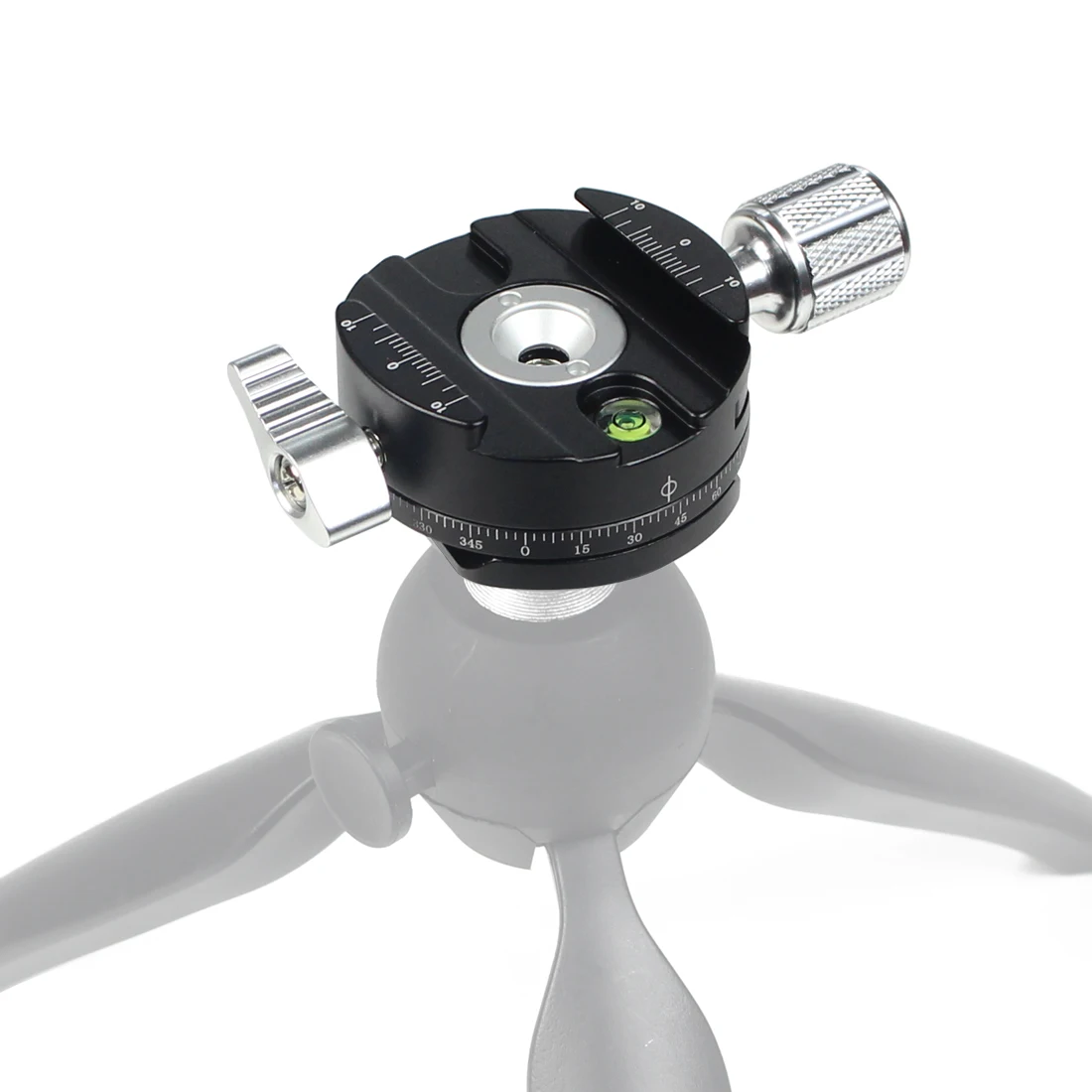

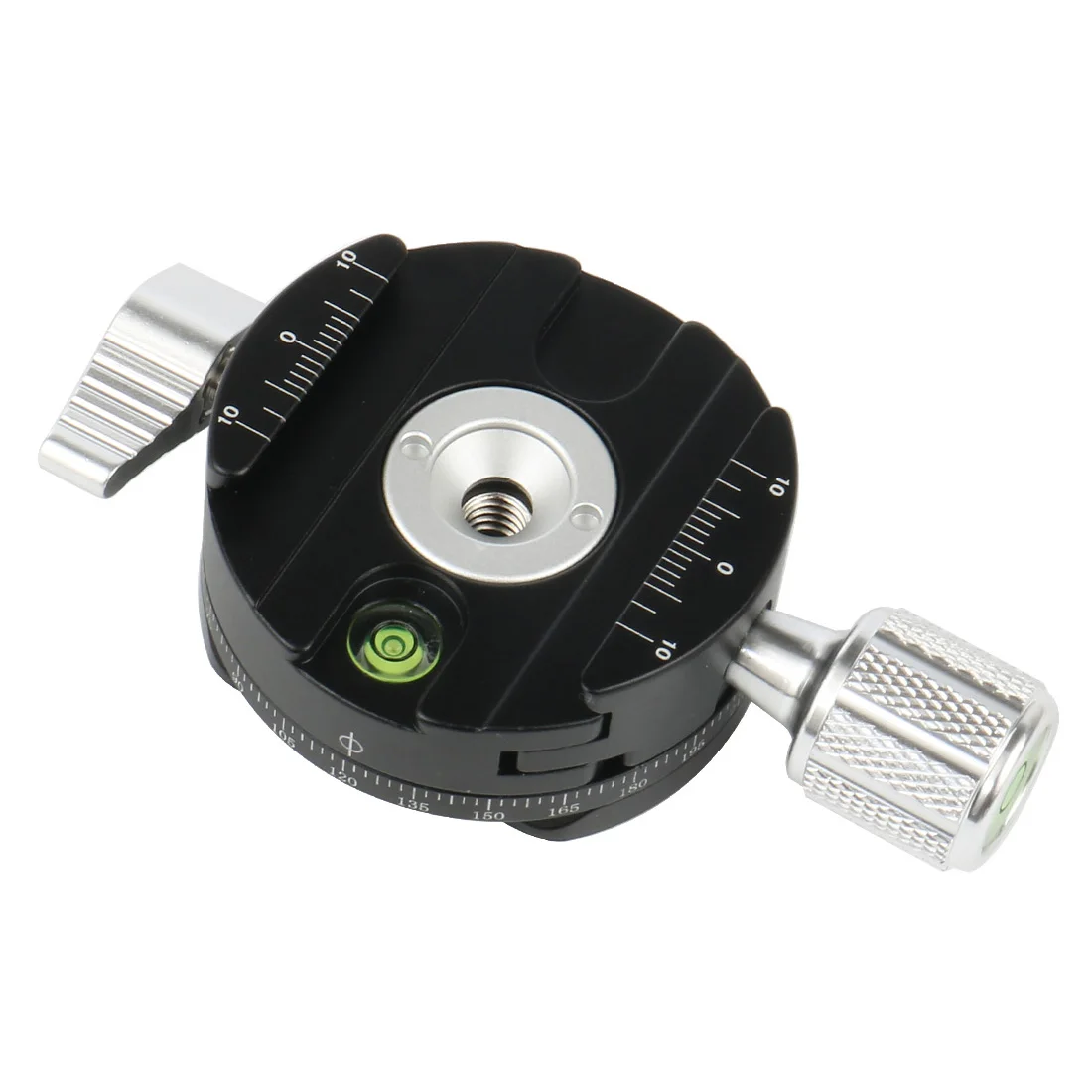

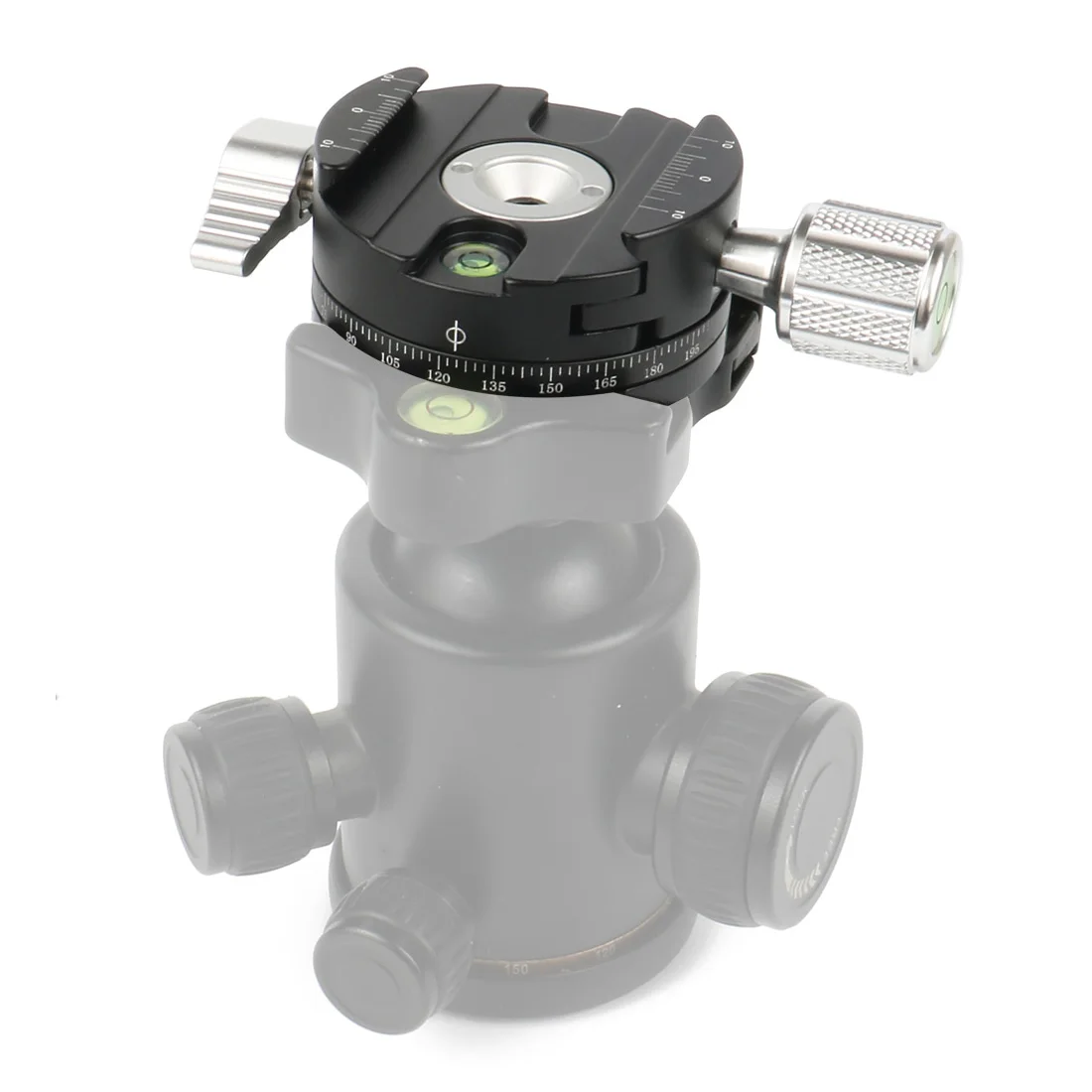

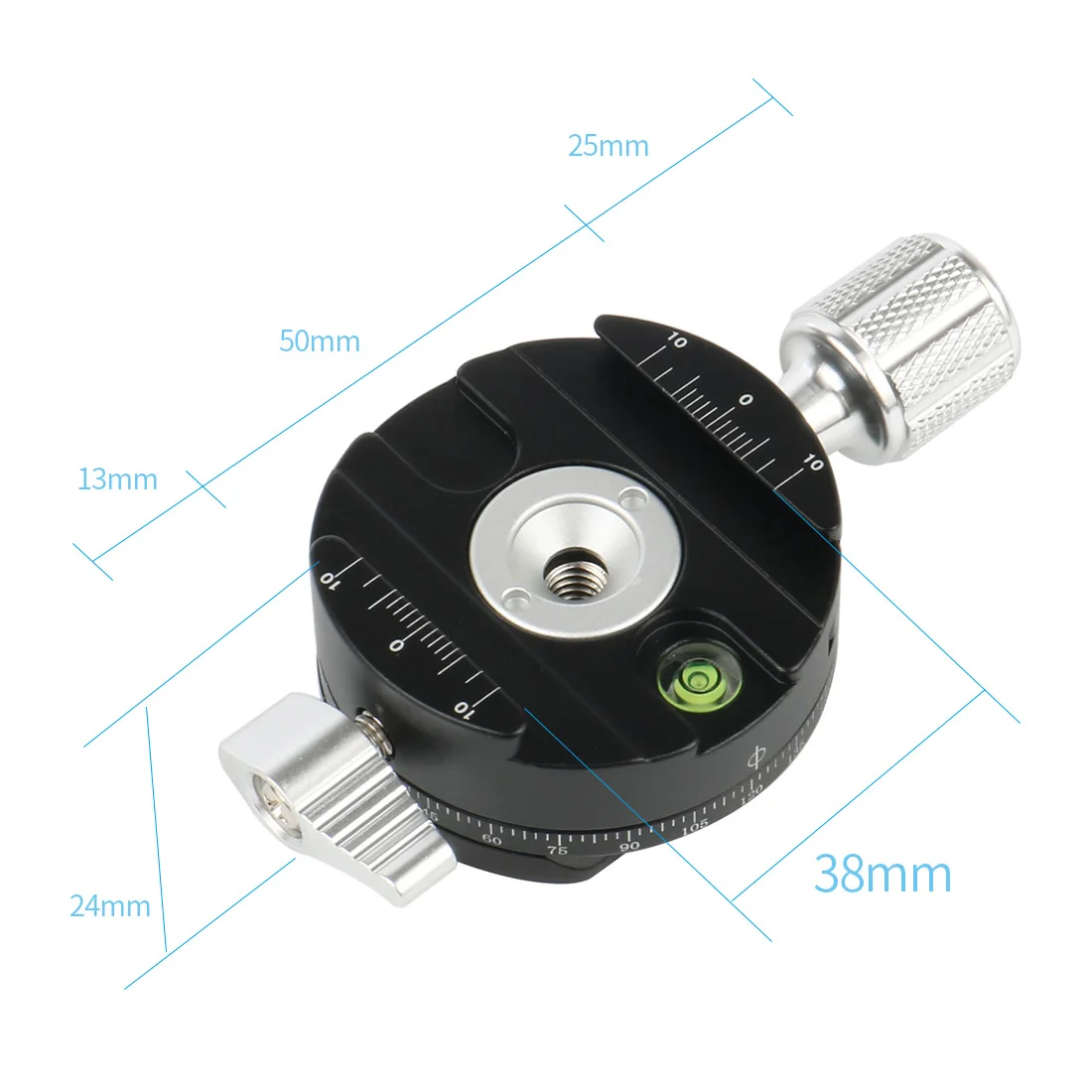

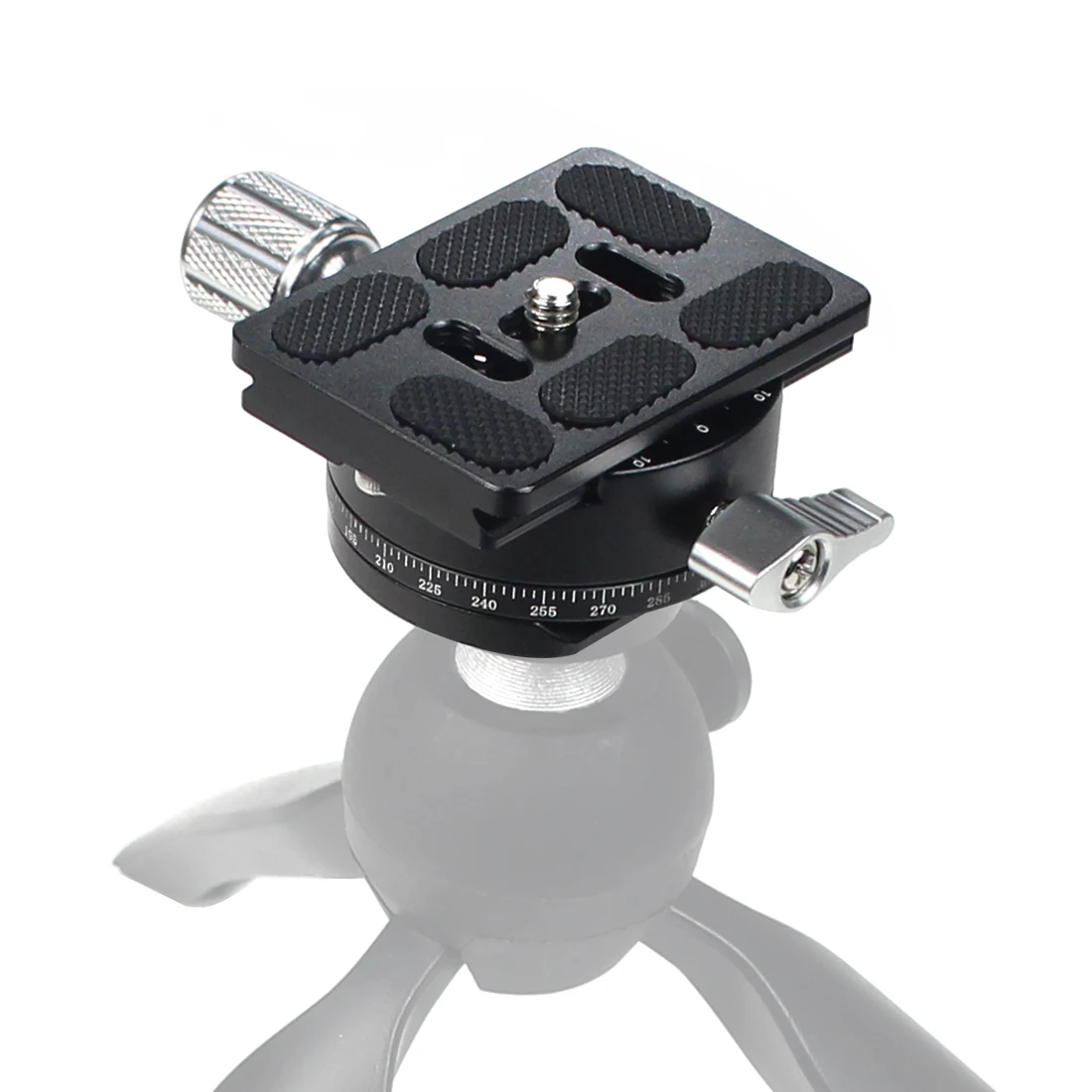

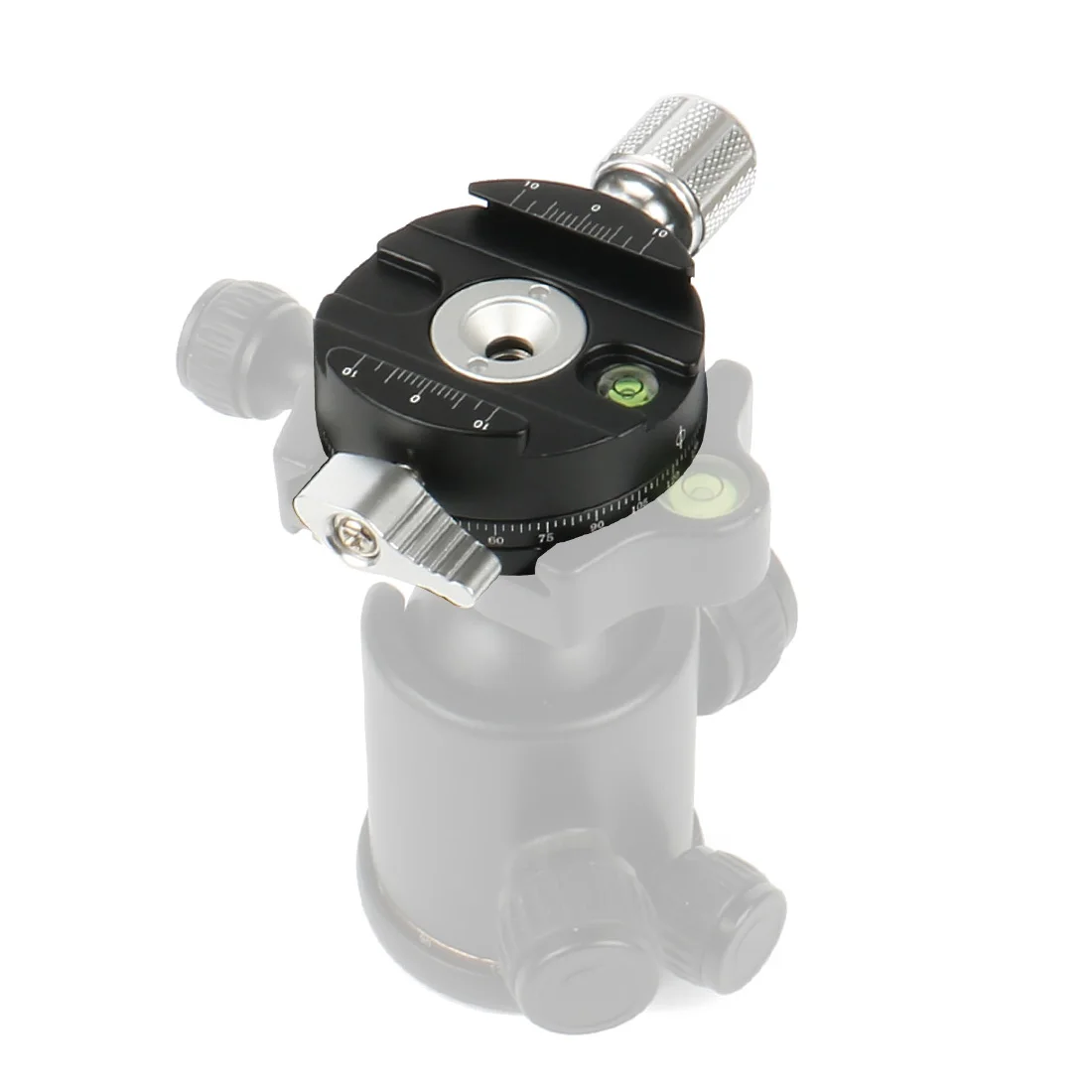

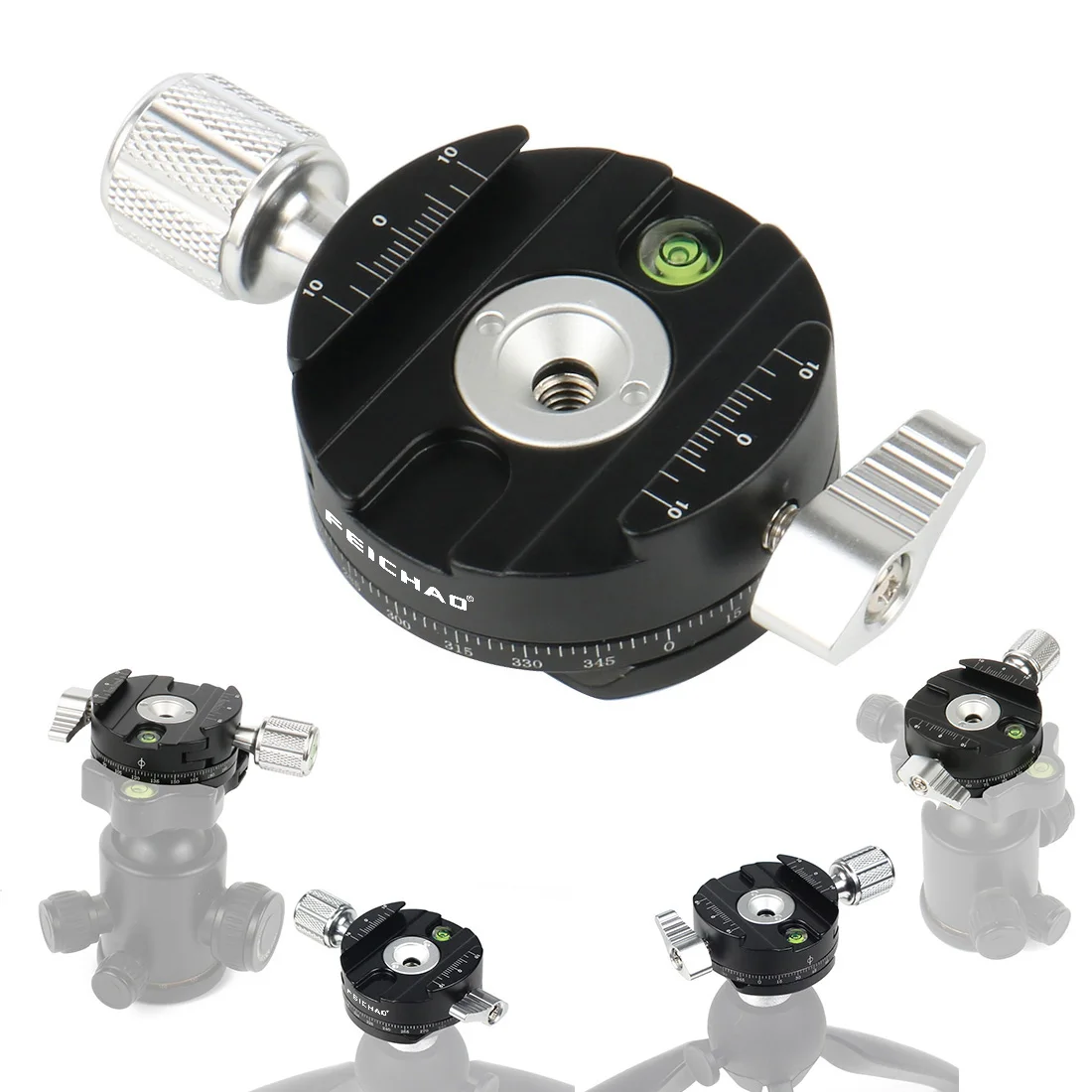

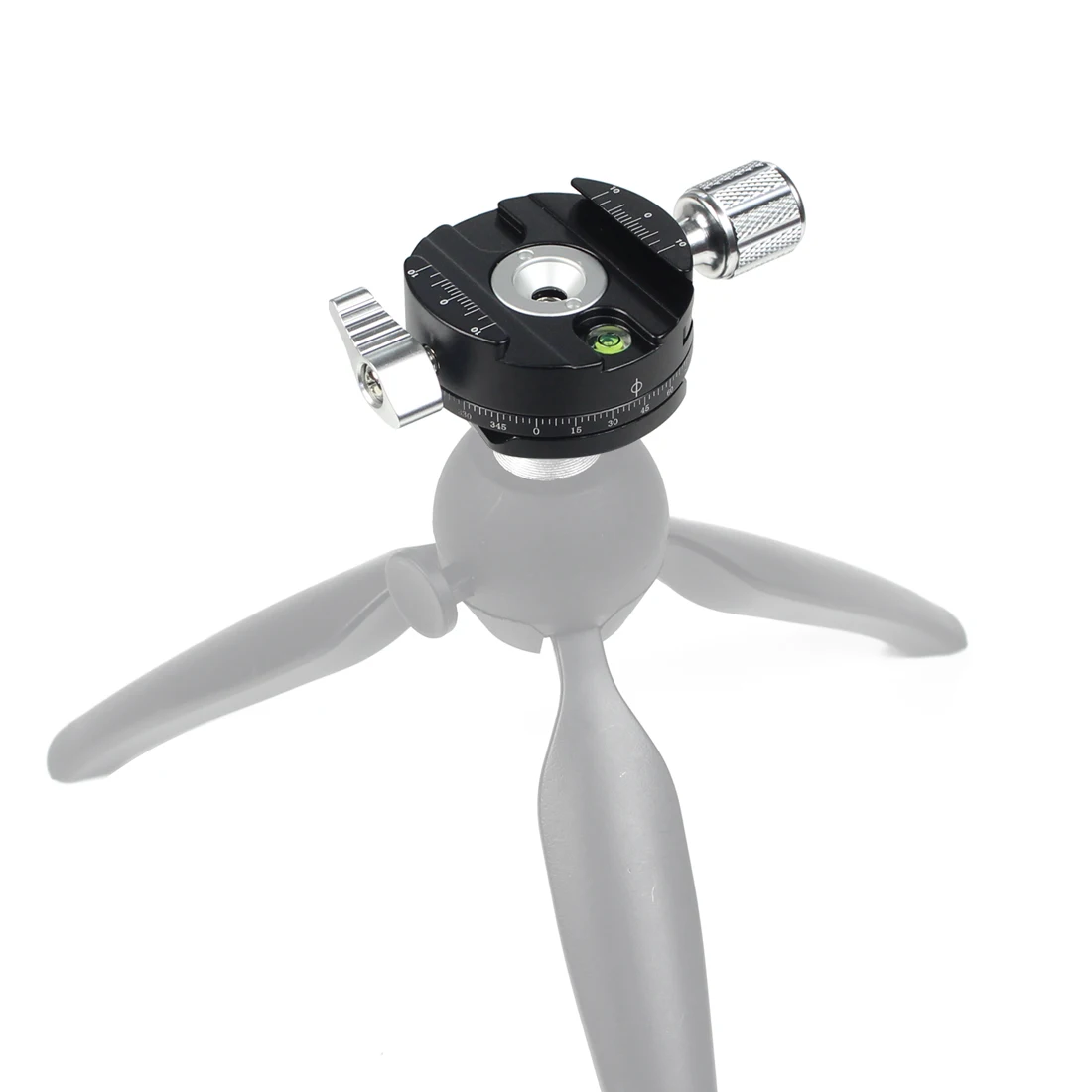

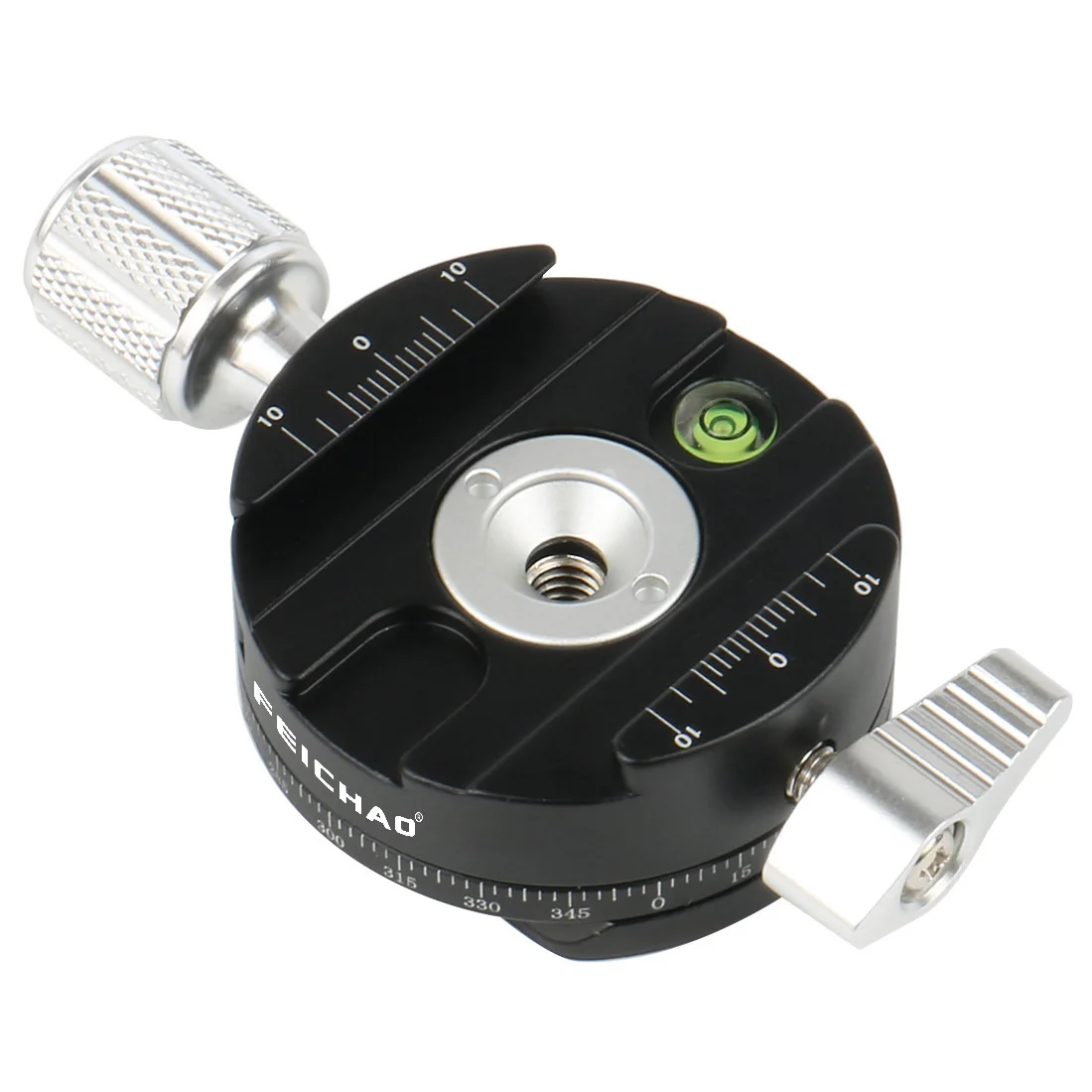

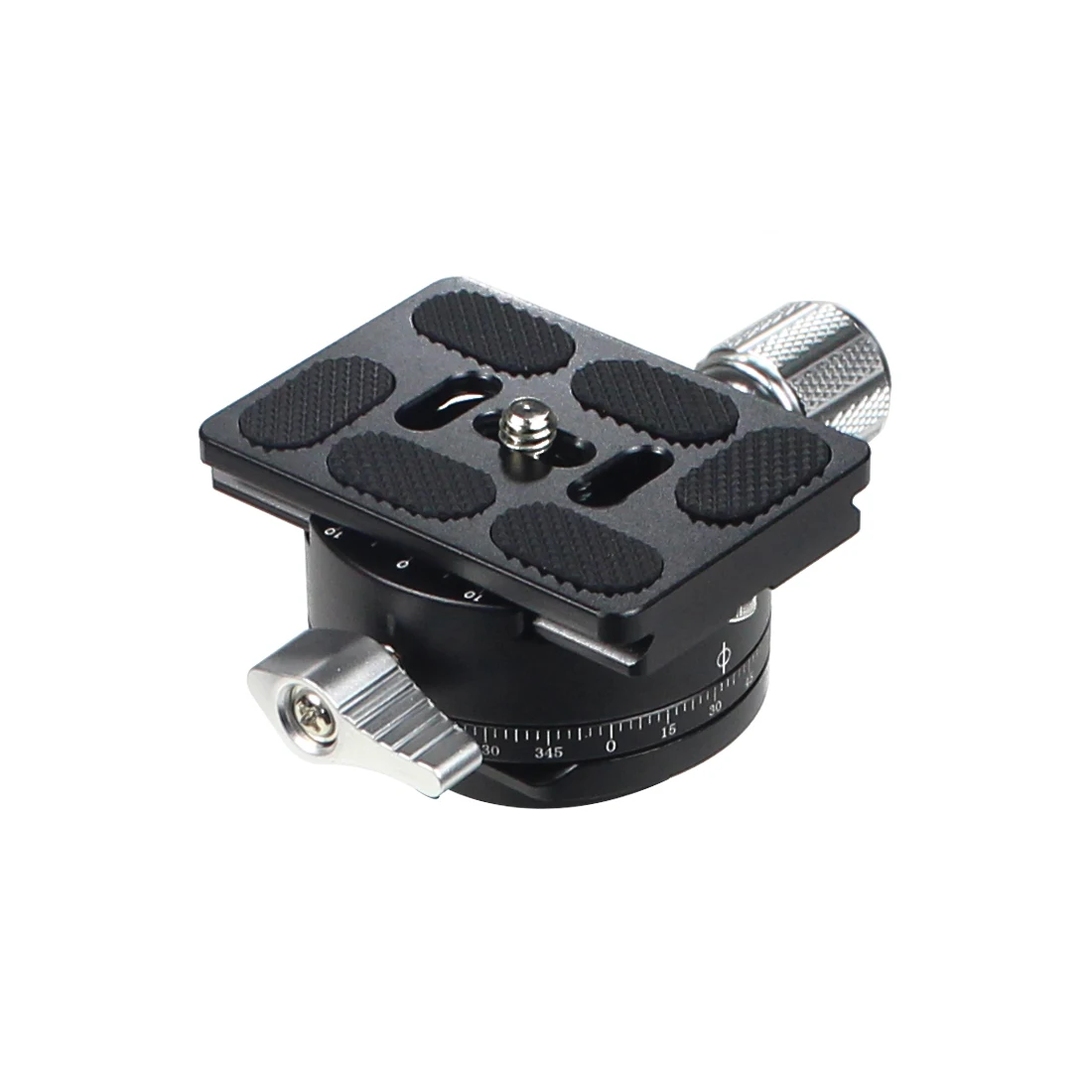

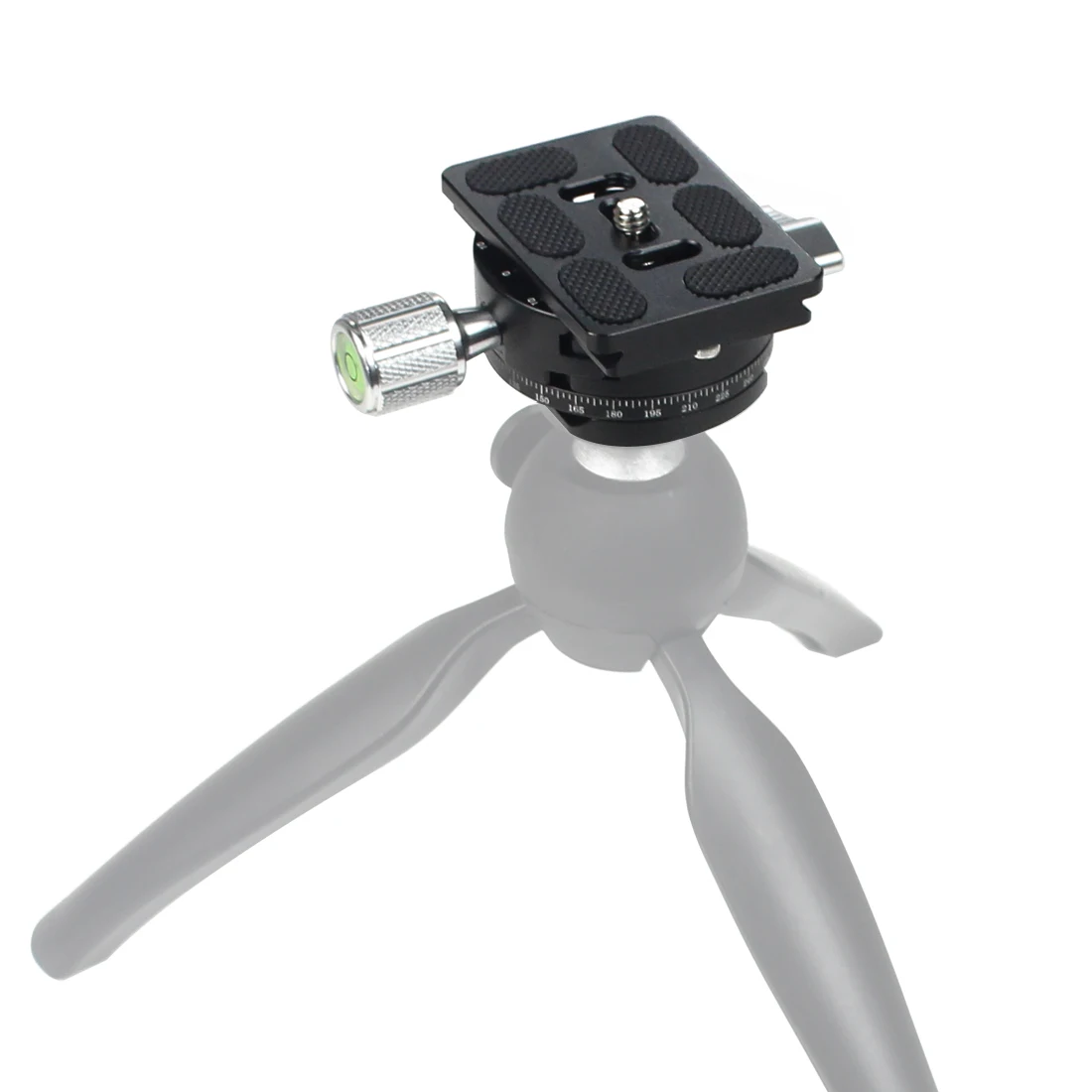

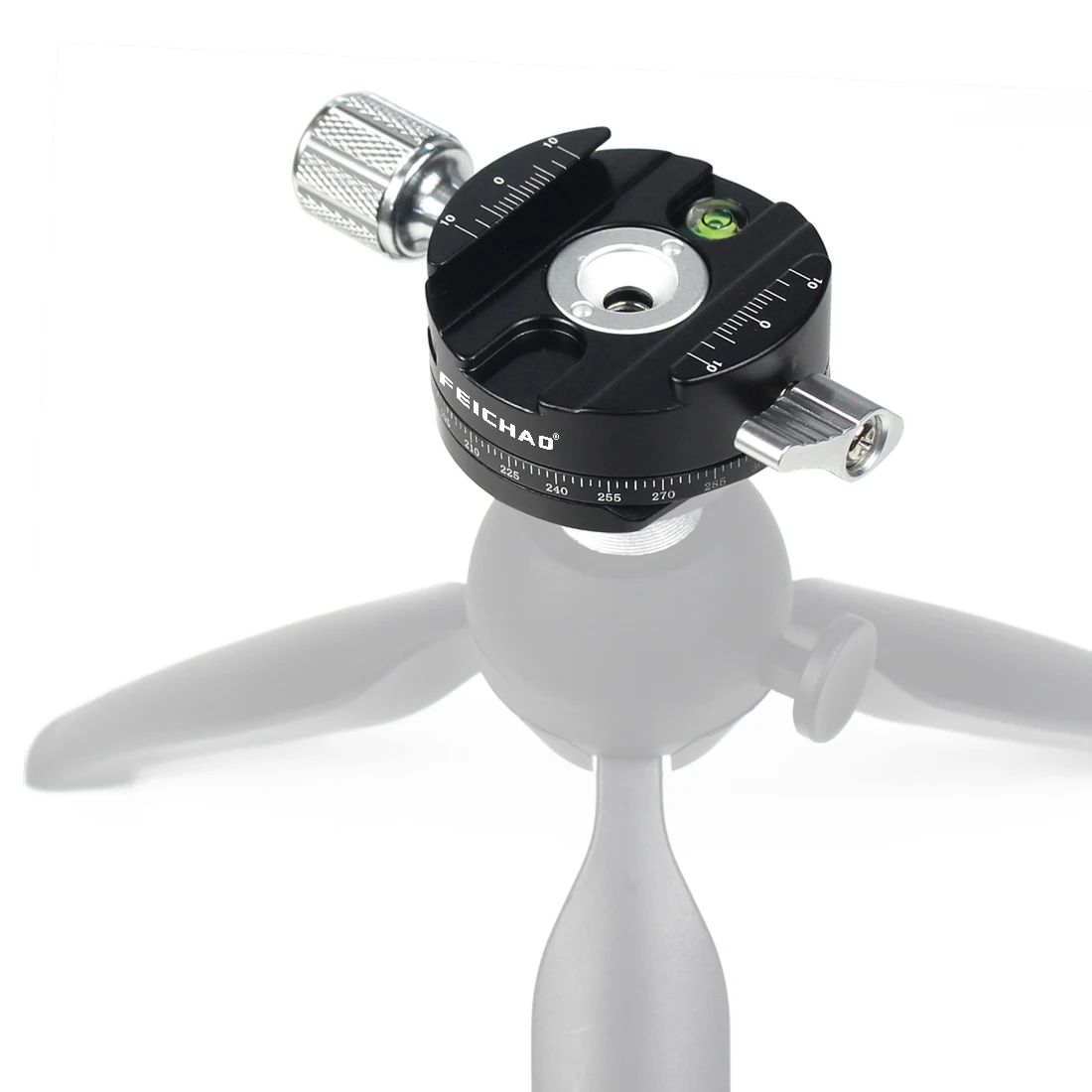

Camera Panoramic Tripod Ball Head Clamp QJ-07 360 Rotatable Monopod Quick Release Plate PU-60 Adapter Set for Arca Swiss Mount DSLR Photograph Accessories

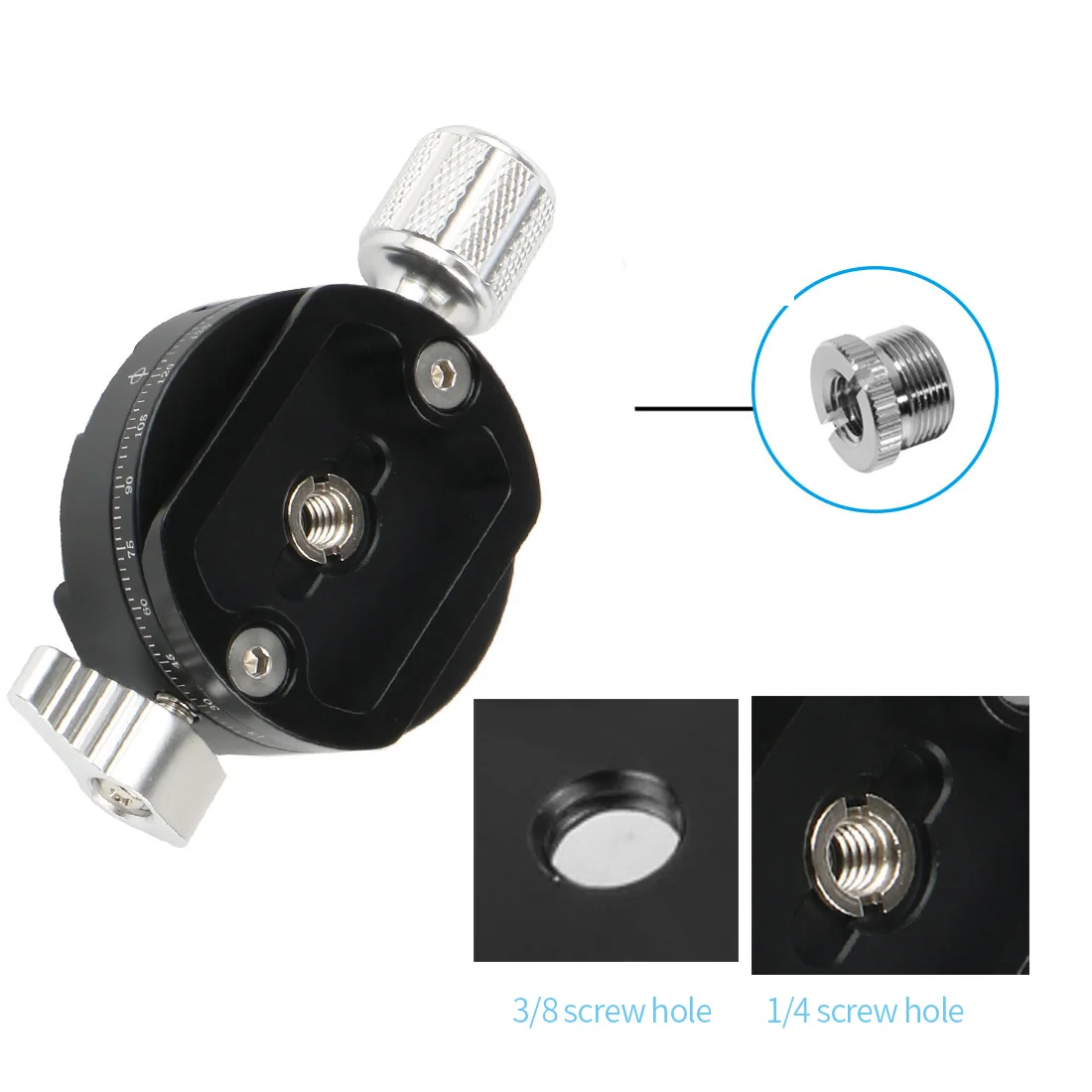

Installation mode: screw
Clamp Standard: Arca swiss
Plate Standard: Arca swiss
Item No.: QJ07
Material: aluminum alloy
Vertical rotation angle: 90
Vertical speed: 90
Applicable model: 1/4 interface camera
Horizontal rotation angle: 180
Horizontal speed: 180

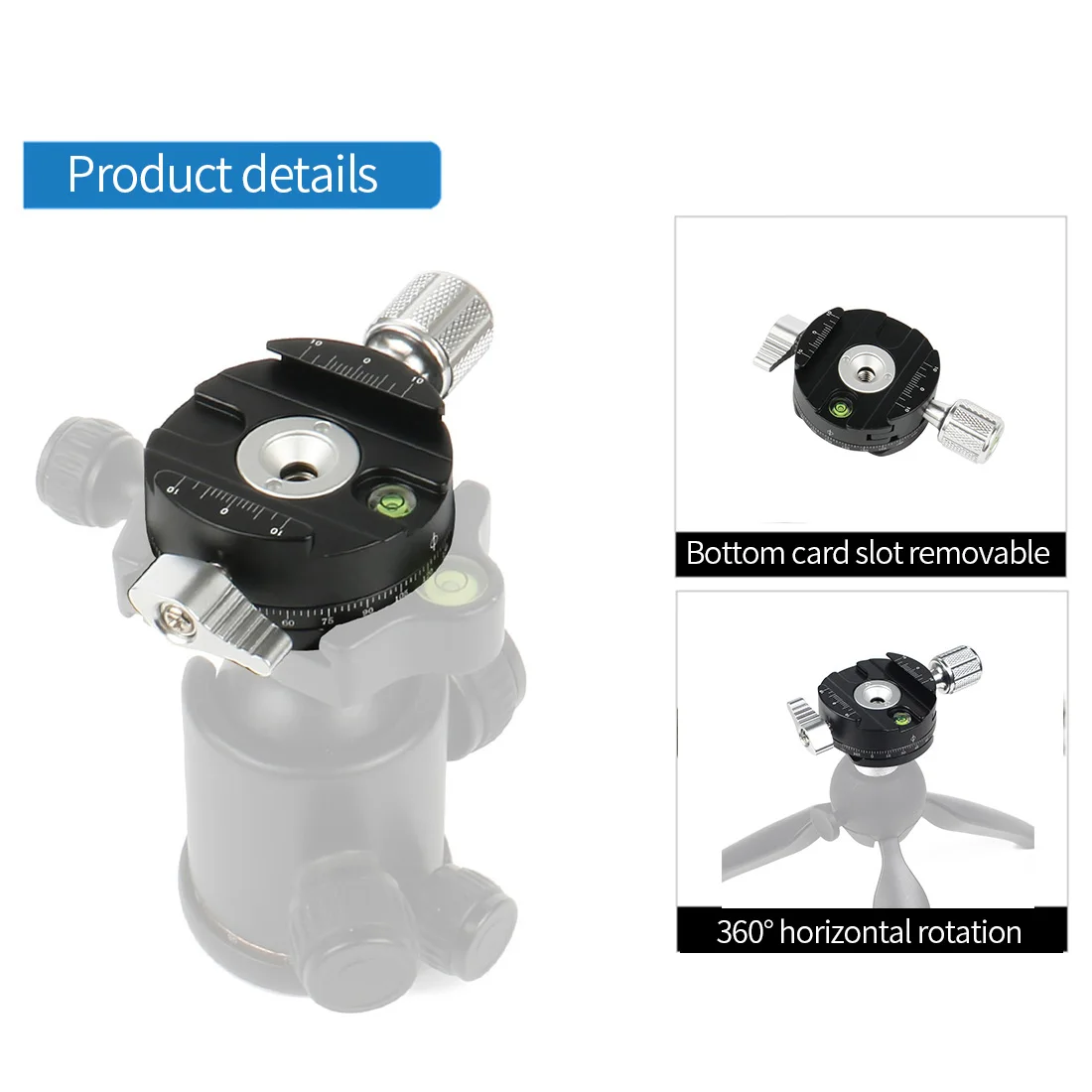

Rotation limit: 360

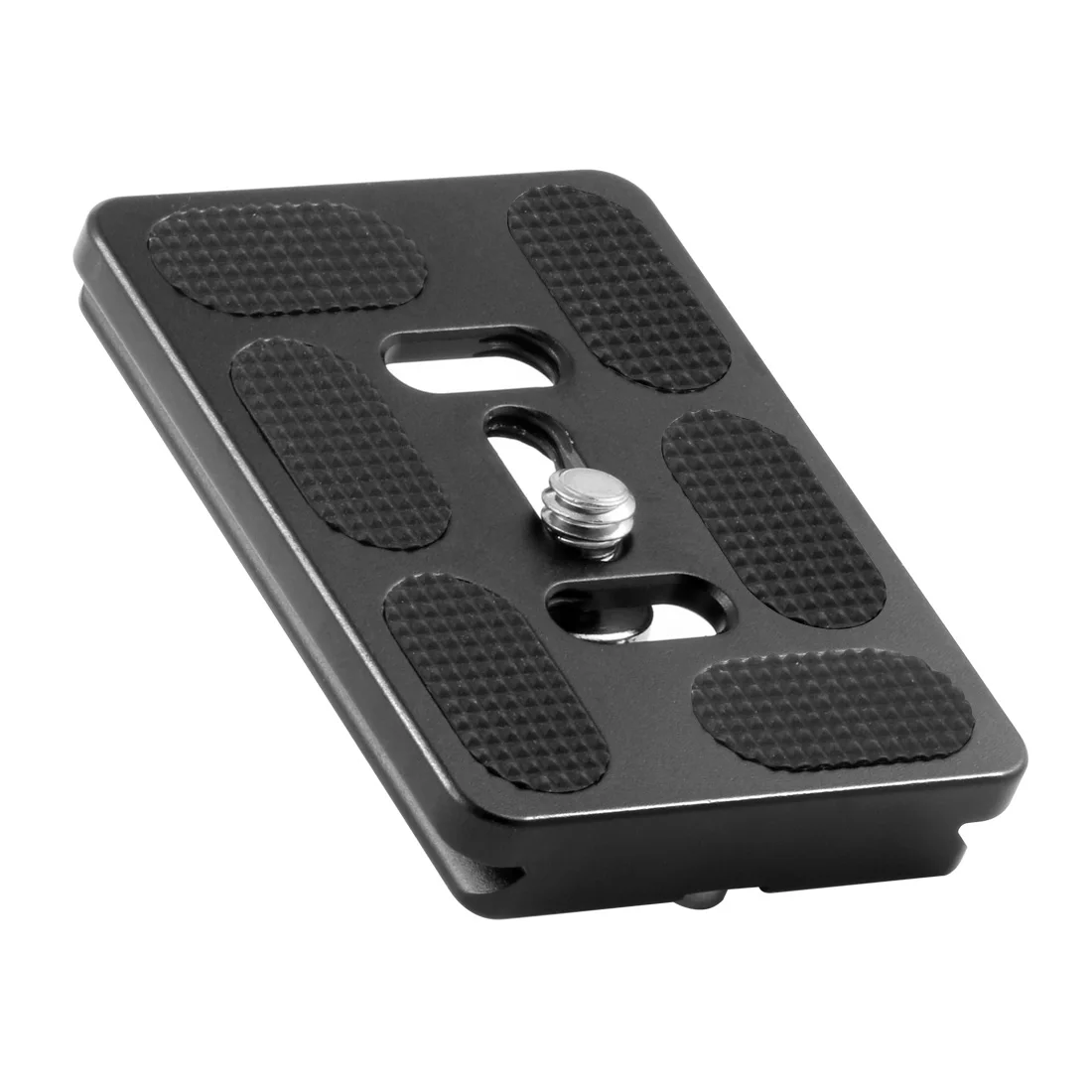

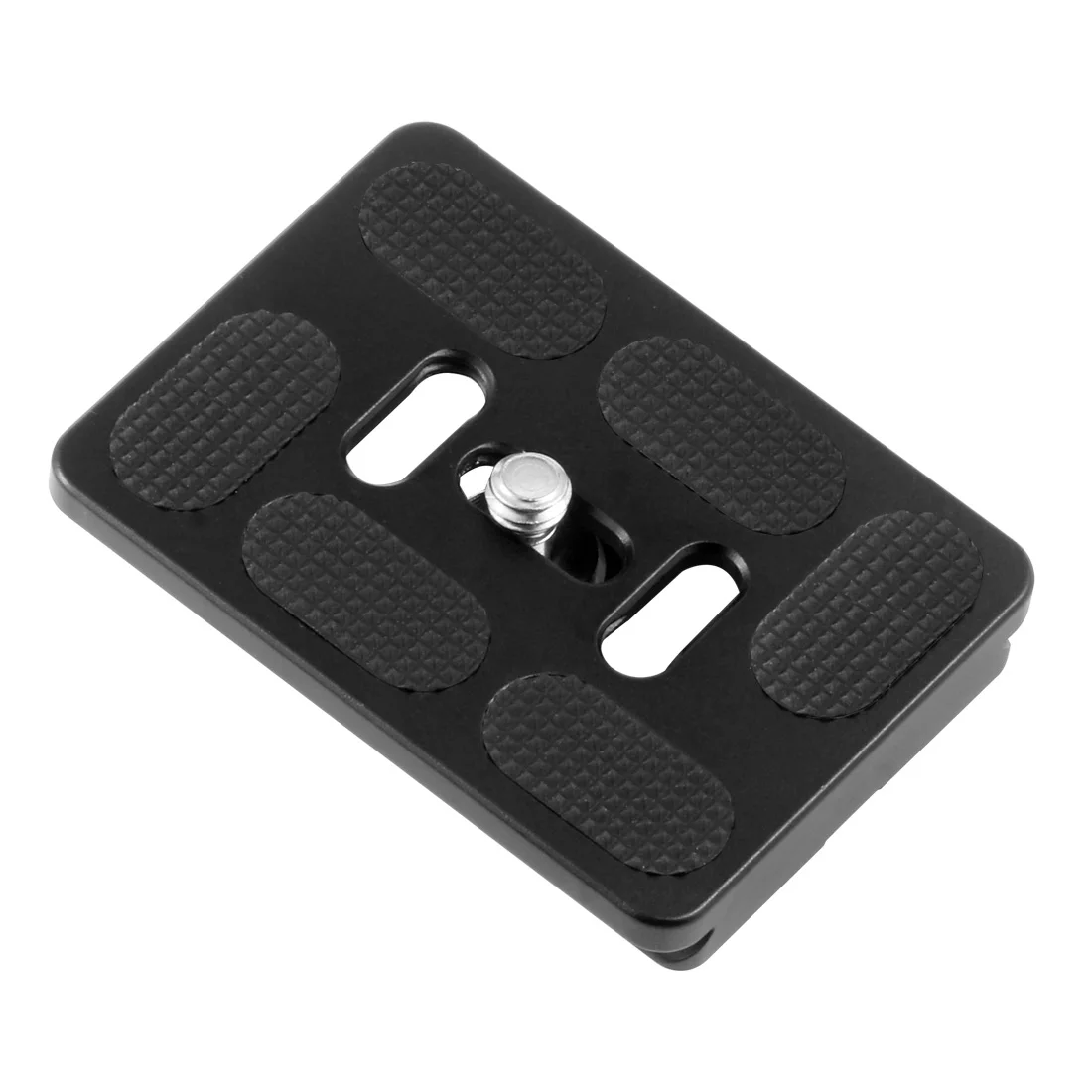

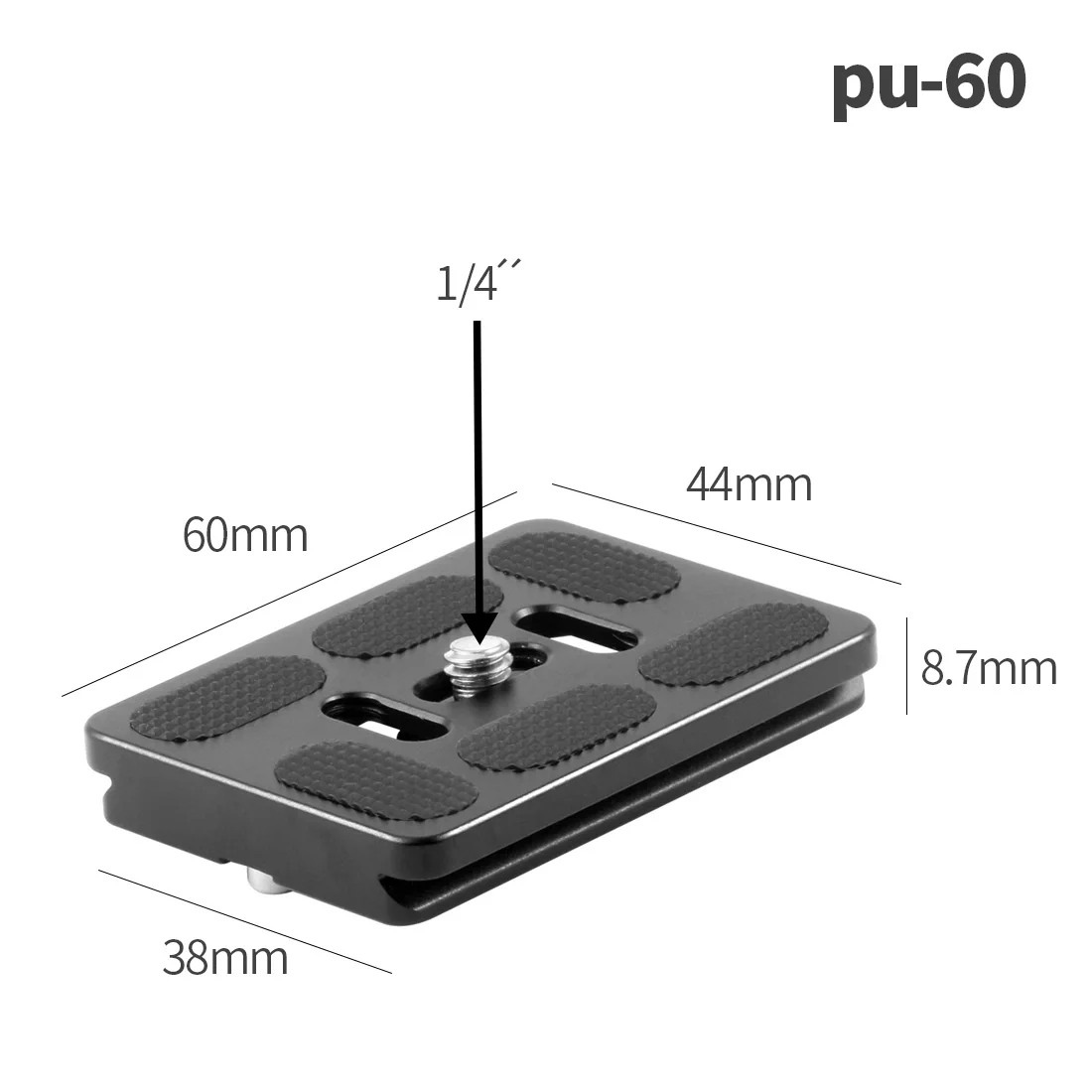

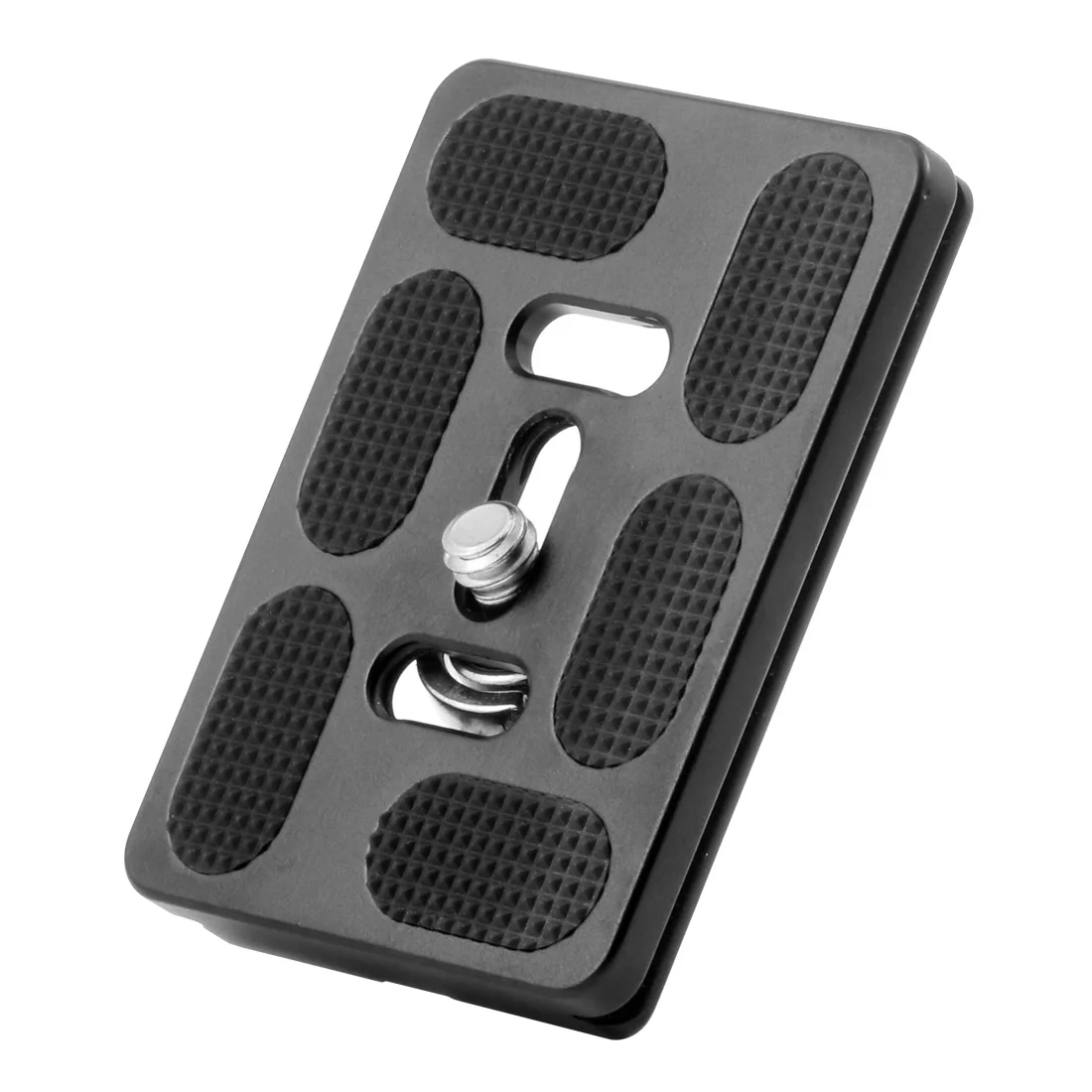

PU-60 60x38.5mm
Material: Metal Alloy
Length: 60mm
Width: 38.5mm
Thickness: 8.7mm (universal thickness of Arca-Swiss Standard QR plates)
Mounting Screw Diameter: 1/4" (the screw size that connecting the QR plate and camera)
Compatibility: Arca-Swiss Standard

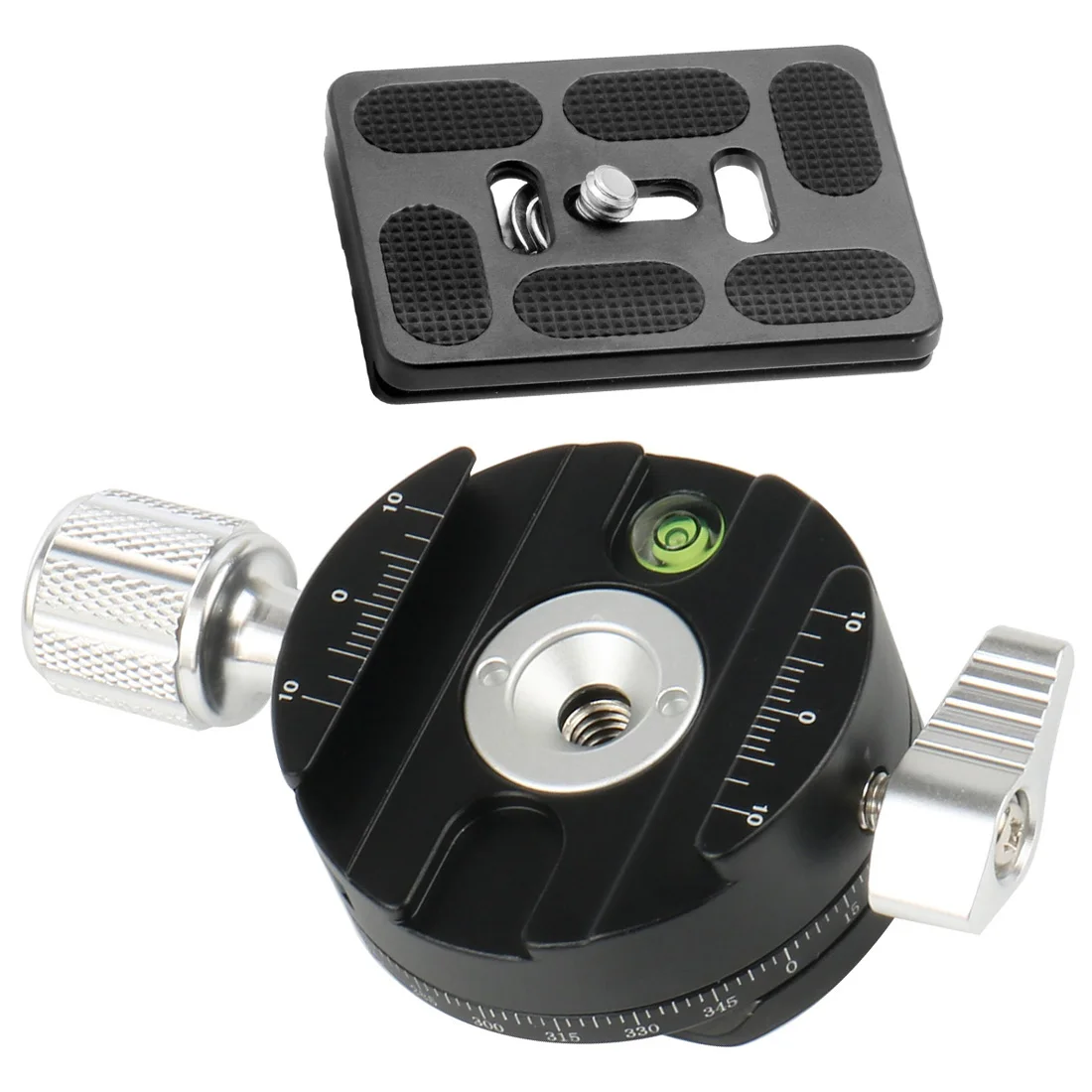

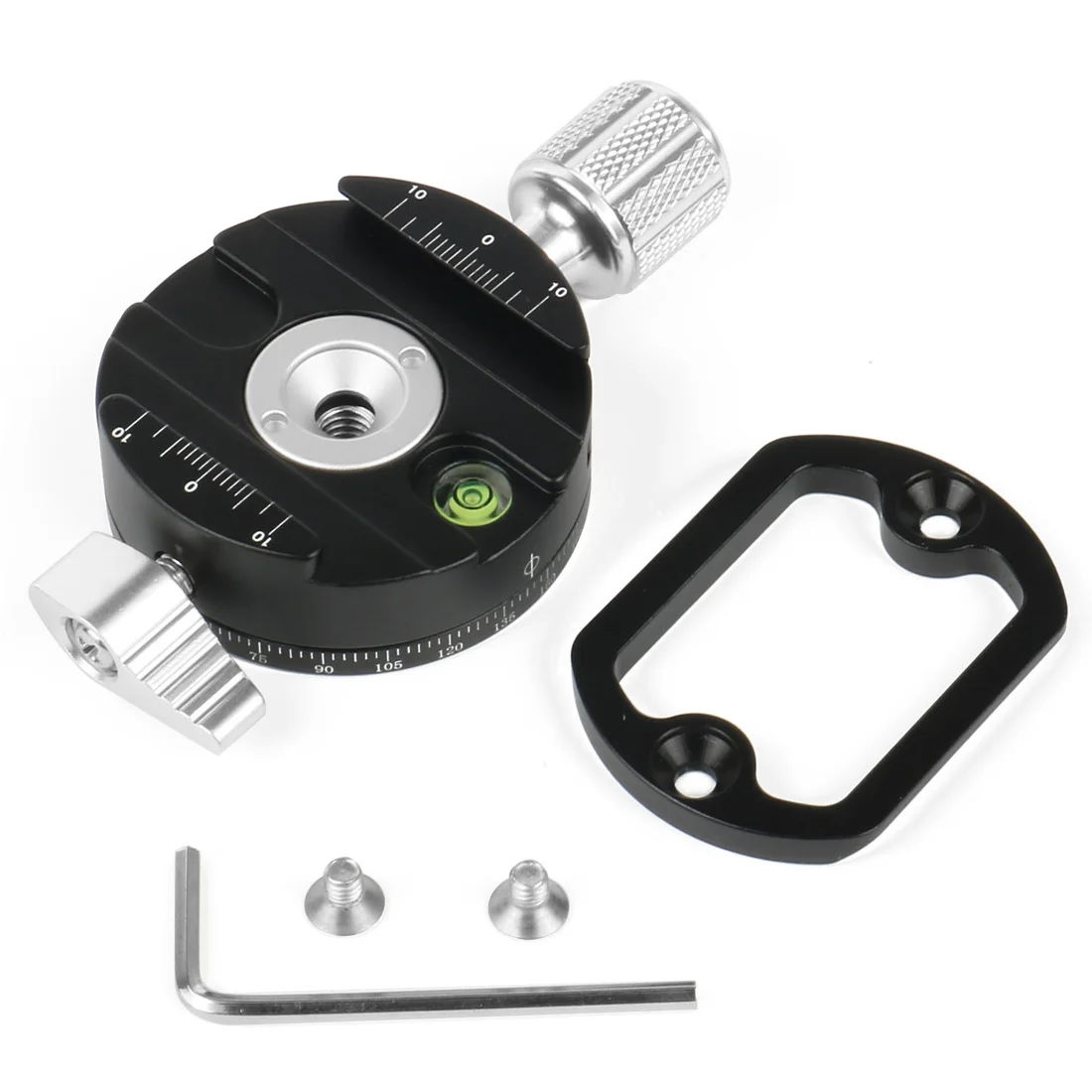

Package Content:
1x Panoramic Clamp
1x PU-60 Quick Release Plate (optional)
(Pictures as reference only, Other accessories are Not included)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
